Fischer PBB 090634 Step drill bit 14 mm SDS-Plus 1 pc(s)
EAN:
Part number:
Item no:
Product type
Step drill bit
Drill hole Ø
14 mm
Material suitability
Foamed concrete
Working length
6 mm
Content
1 pc(s)
Highlights & Details

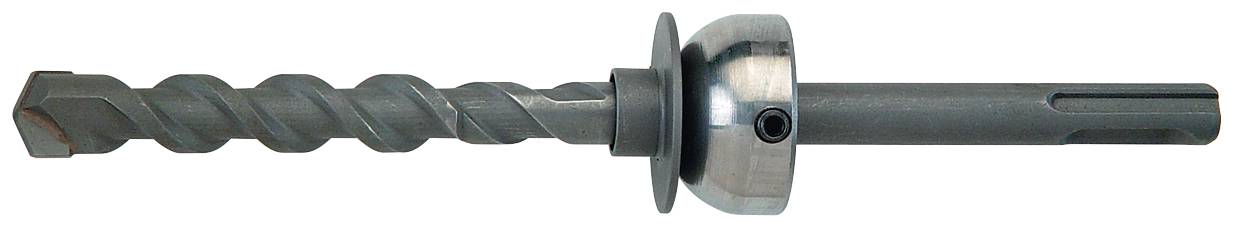

fischer conical drill PBB
- Create drill hole and undercut in one drill pass
- Suitable for fischer FIS A M 8 to M 12 anchor rods
- Suitable for FIS E M 6 / M 8 internal thread-locking anchor
- Visually approved system
Technical specifications
- Product type
Step drill bit
- Drill hole Ø
14 mm
- Material suitability
Foamed concrete
- Working length
6 mm
- Content
1 pc(s)
- Tool holder
SDS-Plus
- Drill features
Depth stop
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472291 Fischer PBB 090634 Step drill bit 14 mm SDS-Plus 1 pc(s)
Description
the fischer conical drill PBB is a special drill for the creation of an attachment with structural approval in aerated concrete. The cone drill creates the drill hole and the undercut by swiveling the drill in one step. This is then filled with the fischer FIS V injection mortar and the FIS A anchor rod or the FIS E internal thread anchor is inserted slightly turning.
This text is machine translated.
This text is machine translated.
Features
- With the conical drill PBB, drill hole and undercut can be created by swiveling the drill in one operation
- The conical drill hole guarantees maximum load capacity in aerated concrete by forming the joint
- Two adjustable drill depths increase the variability of anchoring (e.g. higher loads, brushing bypass)
Hints
Creation of conical undercut drill holes in aerated concrete.
