Fischer PFCN 41 Through connector Steel, Polypropylene 533739 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

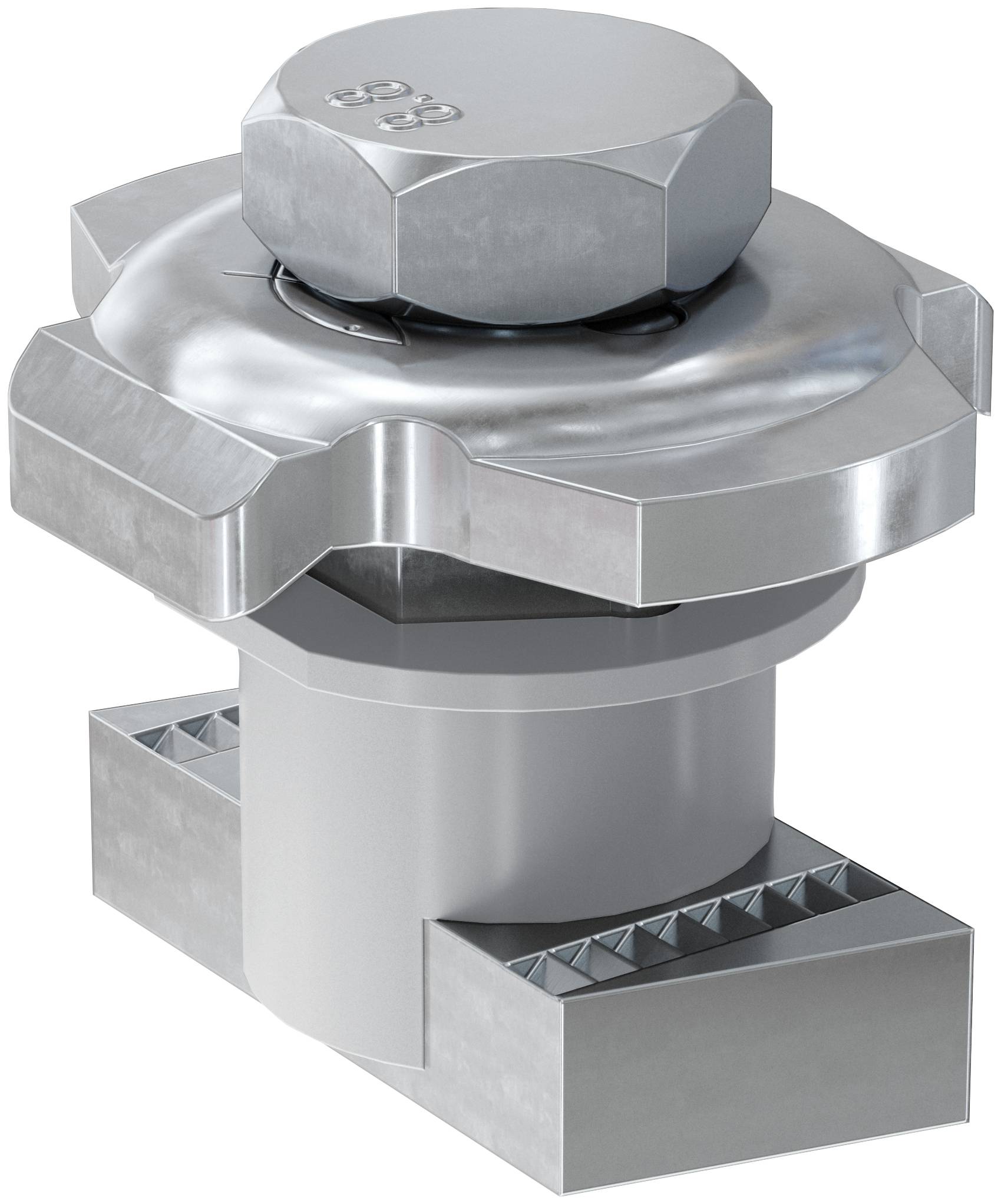

Through connector PFCN 41
- Connection of FUS rails and construction elements by means of a through-hole principle
- Universal use for all through-hole construction elements and FUS profiles
Technical specifications
- Product type
Through connector
- Material
Steel
Polypropylene
- Content
50 pc(s)
- Thread size
M10
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1879284 Fischer PFCN 41 Through connector Steel, Polypropylene 533739 50 pc(s)
Description
Through connector for the fastest and easiest connection of FUS profiles!

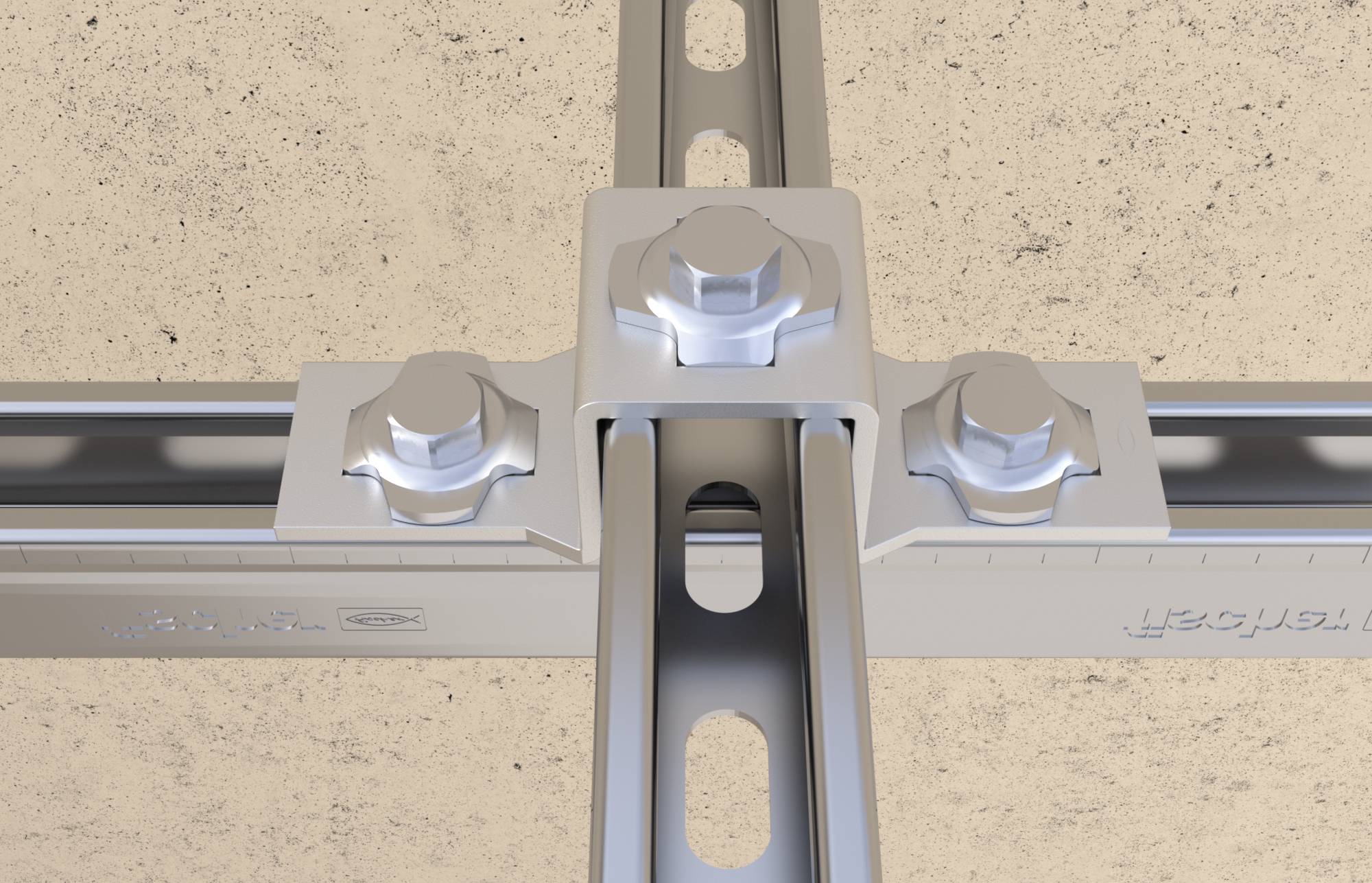

the fischer through-connector PFCN stands for the fastest and easiest connection of the fischer FUS mounting rail profiles. By the shaped hole of the construction element and turning by 90°, the through-connector can be connected to the rails. The spring action allows an exact positioning through the contact pressure. The pronounced interlocking of the PFCN provides a secure hold. The error-free assembly is made possible by the adjustability before the construction element is fixed. The galvanized version is suitable for installations in buildings, the versions made of hot-dip galvanized and stainless steel for installation outdoors and in highly corrosive environments. the fischer PFCN plug-in connector is available in a universal size.
This text is machine translated.
the fischer through-connector PFCN stands for the fastest and easiest connection of the fischer FUS mounting rail profiles. By the shaped hole of the construction element and turning by 90°, the through-connector can be connected to the rails. The spring action allows an exact positioning through the contact pressure. The pronounced interlocking of the PFCN provides a secure hold. The error-free assembly is made possible by the adjustability before the construction element is fixed. The galvanized version is suitable for installations in buildings, the versions made of hot-dip galvanized and stainless steel for installation outdoors and in highly corrosive environments. the fischer PFCN plug-in connector is available in a universal size.
