Buy Fischer PFUF 3D zl L piece Steel 569756 10 pc(s)

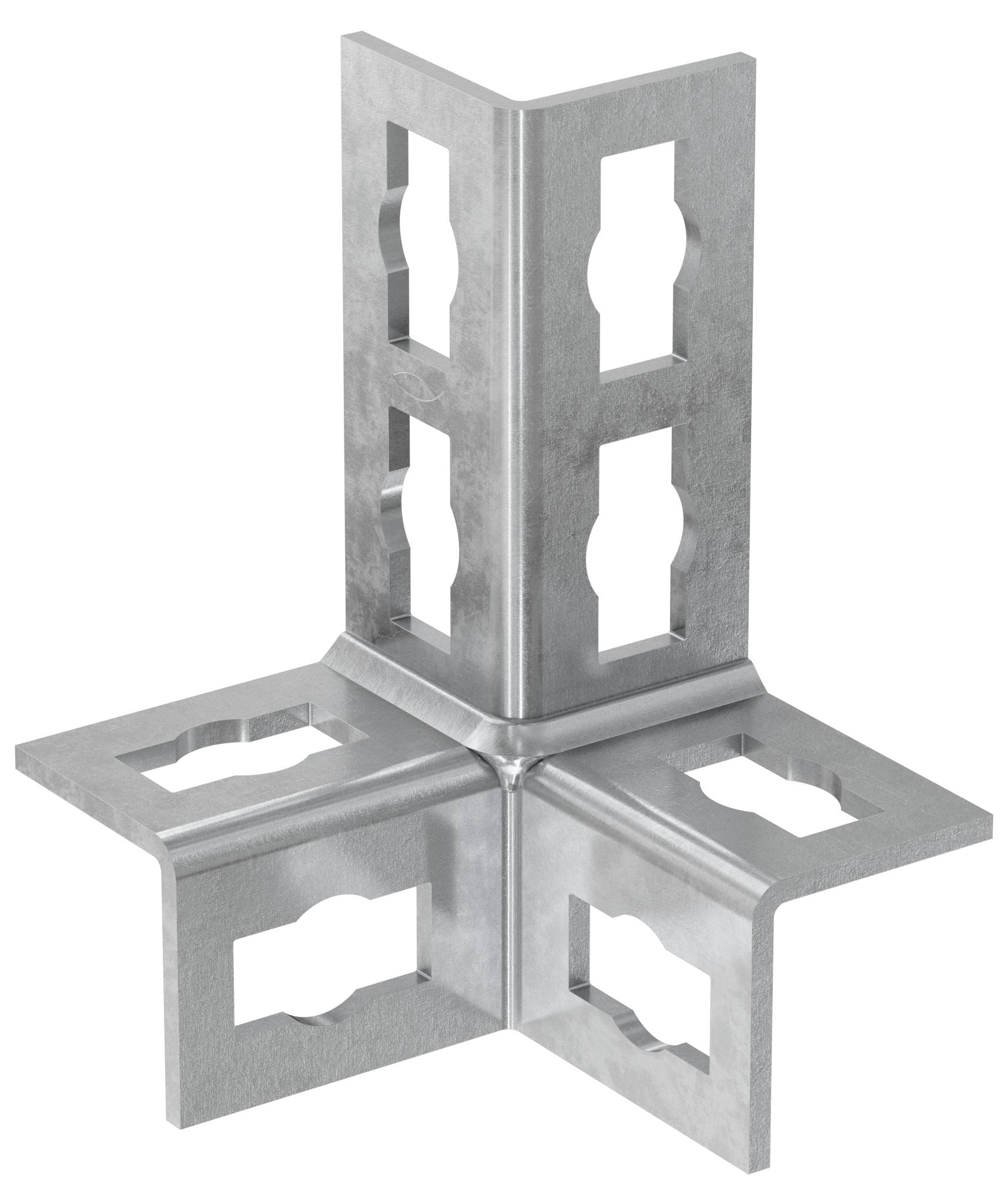

Metal corner bracket with four perforated arms joined at a central vertical post, shown on a white background.

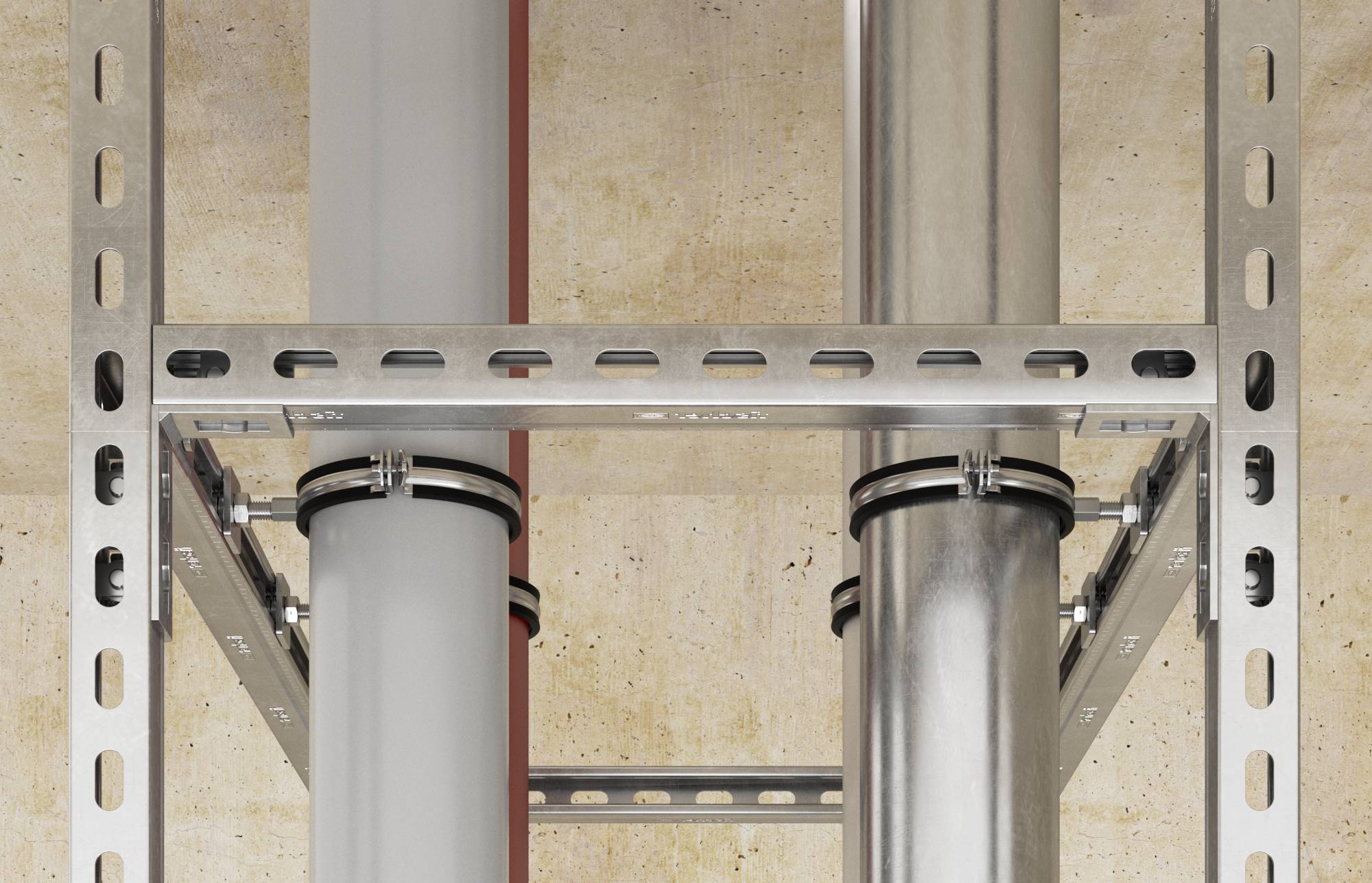

Industrial steel pipe supports holding two large vertical pipes against a concrete wall, secured by perforated metal framing.

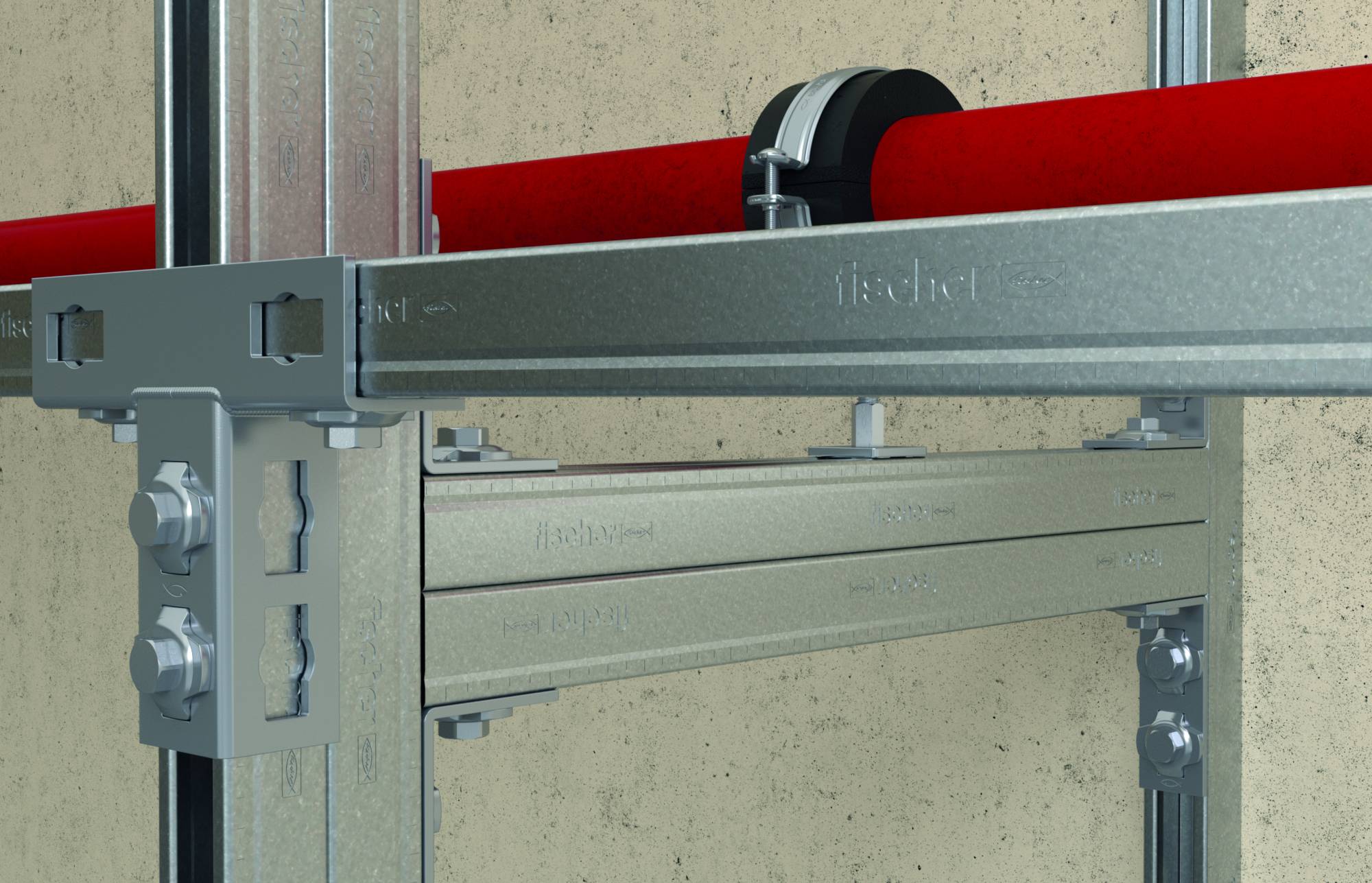

Metal wall-framing bracket and horizontal support rail attached to a stud, showing a building construction connection detail.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer multi-dimensional angle PFUF 3D zl

Multi-dimensional PFUF design elements can be used to create multi-dimensional designs within a short time.
The punching of the construction elements ensures the system fit with the PFCCN through connector.
The different shapes of the connecting elements allow for a flexible mounting of rail constructions.
Simple construction of track constructions in conjunction with FUS rails and PCCN 41.
Quick mounting by 90° rotation of the Through-hole connector PFCN 41 in the rail.

Technical specifications

Product type: L piece

Material: Steel

Content: 10 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729013 Fischer PFUF 3D zl L piece Steel 569756 10 pc(s)

Description

The Fischer multi-dimensional angle PFUF 3D zl connects multi-dimensional designs with the mounting rails FUS and the plug-in connector PFCN. With the PFUF 3D connection elements, multi-page shaft structures can be created easily and easily within a short time. The design with zinc-leaf coated (zl) surface is suitable for outdoor installation and highly corrosive environments.

This text is machine translated.
