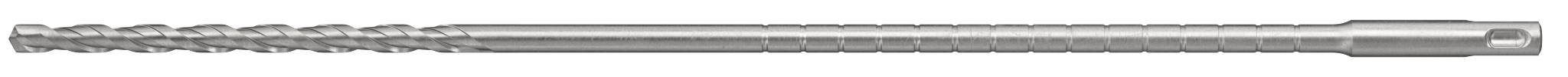

Fischer Pointer U 8/120/400 530686 Masonry twist drill bit 8 mm SDS-Plus 1 pc(s)
EAN:
Part number:
Item no:
Product type
Masonry twist drill bit
Drill hole Ø
8 mm
Material
Carbide metal
Material suitability
Concrete
Cored brick
Foamed concrete
Flintlime brick
Working length
120 mm
Highlights & Details
Fischer masonry drill pointer U 8/120/400 with notch
- Robust carbide tip ensures precision and speed in different materials.
- The reduced SDS Plus mounting reduces the impact force on the drill and thus prevents breakage in building material bars for best load-carrying capacity in all types of perforated brick.
- Shorter working length for more precise and more massive drilling holes.
- Integrated depth stop for reliable control of drill hole depth.
- A large-volume spiral filament ensures rapid removal of the flour.
- PGM certification for a fitting hold on dowels in the borehole.
Technical specifications
- Product type
Masonry twist drill bit
- Drill hole Ø
8 mm
- Material
Carbide metal
- Material properties
cut
- Material suitability
Concrete
Cored brick
Foamed concrete
Flintlime brick
- Working length
120 mm
- Content
1 pc(s)
- Total length
400 mm
- Tool holder
SDS-Plus
- Drill features
Depth stop
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3728990 Fischer Pointer U 8/120/400 530686 Masonry twist drill bit 8 mm SDS-Plus 1 pc(s)
Description
The Fischer masonry drill with ground hard metal plate is Ideal for drilling into perforated brick. The shortened SDS Plus attachment reduces the impact on the drill, protects the brick chambers and enables an optimum anchoring with maximum holding force. Due to the shortened working length, drilling only takes place on the front spiral, which avoids unnecessary friction or re-cutting. The result is precision-fitting drill holes, which are crucial, among other things, when setting VBS-M anchors. A built-in depth stop allows you to control the drill hole depth while drilling without the need for an additional measurement tool.
