1/2
Fischer PSAE 500 Support 500 mm Steel 535270 10 pc(s) (L x W) 500 mm x 40 mm
EAN:
Part number:
Item no:
Highlights & Details

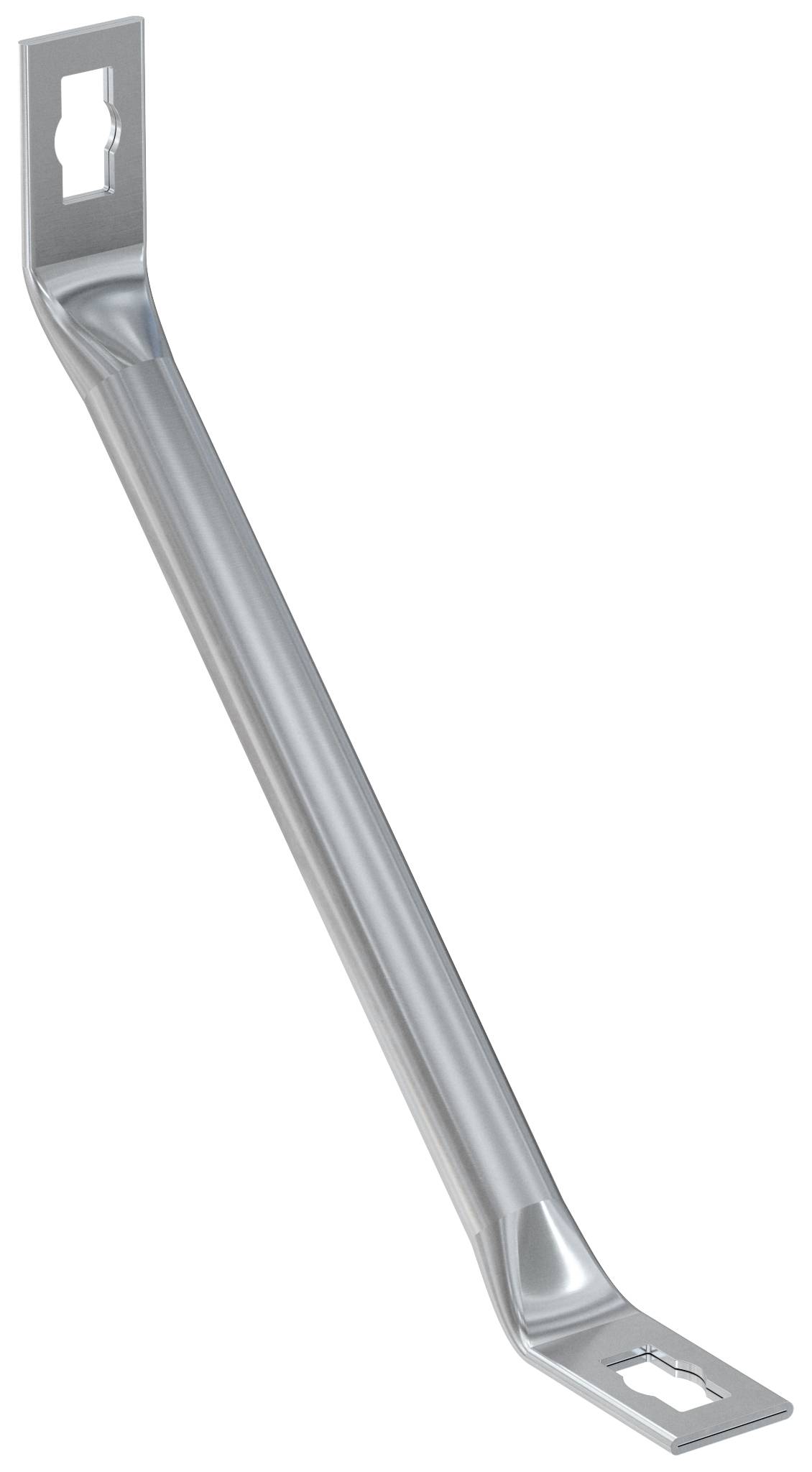

Support PSAE 500
- Elements for the production of stable console constructions with FUS rails or FCA consoles by means of push-through connectors PFCN
Technical specifications
- Product type
Support
- Dim
(L x W) 500 mm x 40 mm
- Material
Steel
- Content
10 pc(s)
- Material properties
zinc galvanized
- Width
40 mm
- Length
500 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1878459 Fischer PSAE 500 Support 500 mm Steel 535270 10 pc(s) (L x W) 500 mm x 40 mm
Description

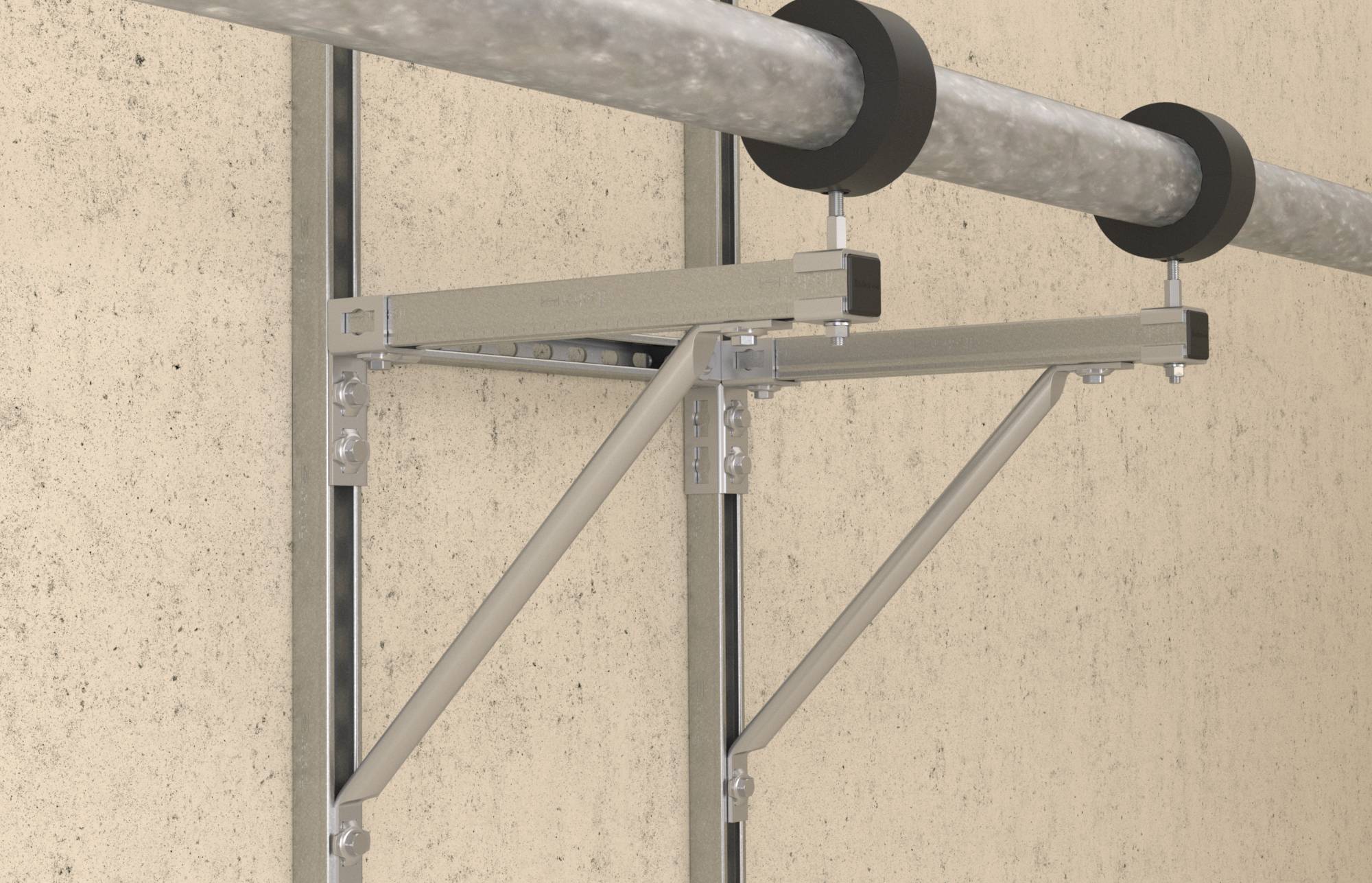

the fischer PSAE support is an element for the production of stable console constructions with FUS rails or FCA consoles by means of push-through connectors PFCN. The stable support PSAE gives a support structure very high stability and security. The punching of the construction element ensures system fit with the PFCN through-connector.
Advantages/benefits
of the stable support PSAE gives a supporting structure very high stability and safety.
The punching of the construction element ensures system fit with the PFCN through-connector.
With additional PU adapter disk, the attachment of elements with a shaped hole directly to the wall or ceiling is possible with dowels or screw.
Properties
Material: Steel P235TR2 (material no. 1.0255) according to EN 10216-1
Galvanized according to DIN 50979, at least 8 µm
This text is machine translated.
Advantages/benefits
of the stable support PSAE gives a supporting structure very high stability and safety.
The punching of the construction element ensures system fit with the PFCN through-connector.
With additional PU adapter disk, the attachment of elements with a shaped hole directly to the wall or ceiling is possible with dowels or screw.
Properties
Material: Steel P235TR2 (material no. 1.0255) according to EN 10216-1
Galvanized according to DIN 50979, at least 8 µm
This text is machine translated.
