Fischer PUWS 2 x 2 Universal elbow piece 542709 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Fischer PUWS 2 x 2 inch universal angle
- Material: Steel DD11 (material no. 1.0332) according to DIN EN 10111
- Coating: Zinc flake coating according to DIN EN ISO 12944, min. 8 µm
Technical specifications
- Product type
Universal elbow piece
- Content
10 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2894511 Fischer PUWS 2 x 2 Universal elbow piece 542709 10 pc(s)
Description
The Fischer PUWS universal angle bracket is Ideal for the universal angle connection of Fischer FUS mounting rails with the Fischer PFC plug-in connector. The holes in the universal angles make it easy to connect with the through connector. The universal angle is a two-sided construction element which attaches itself to the profiles and thus offers a very high stability and security. Fischer offers the universal angle as 4 and 8-hole variants with 90° and as 4-hole version with 45°.
This text is machine translated.
This text is machine translated.
Features

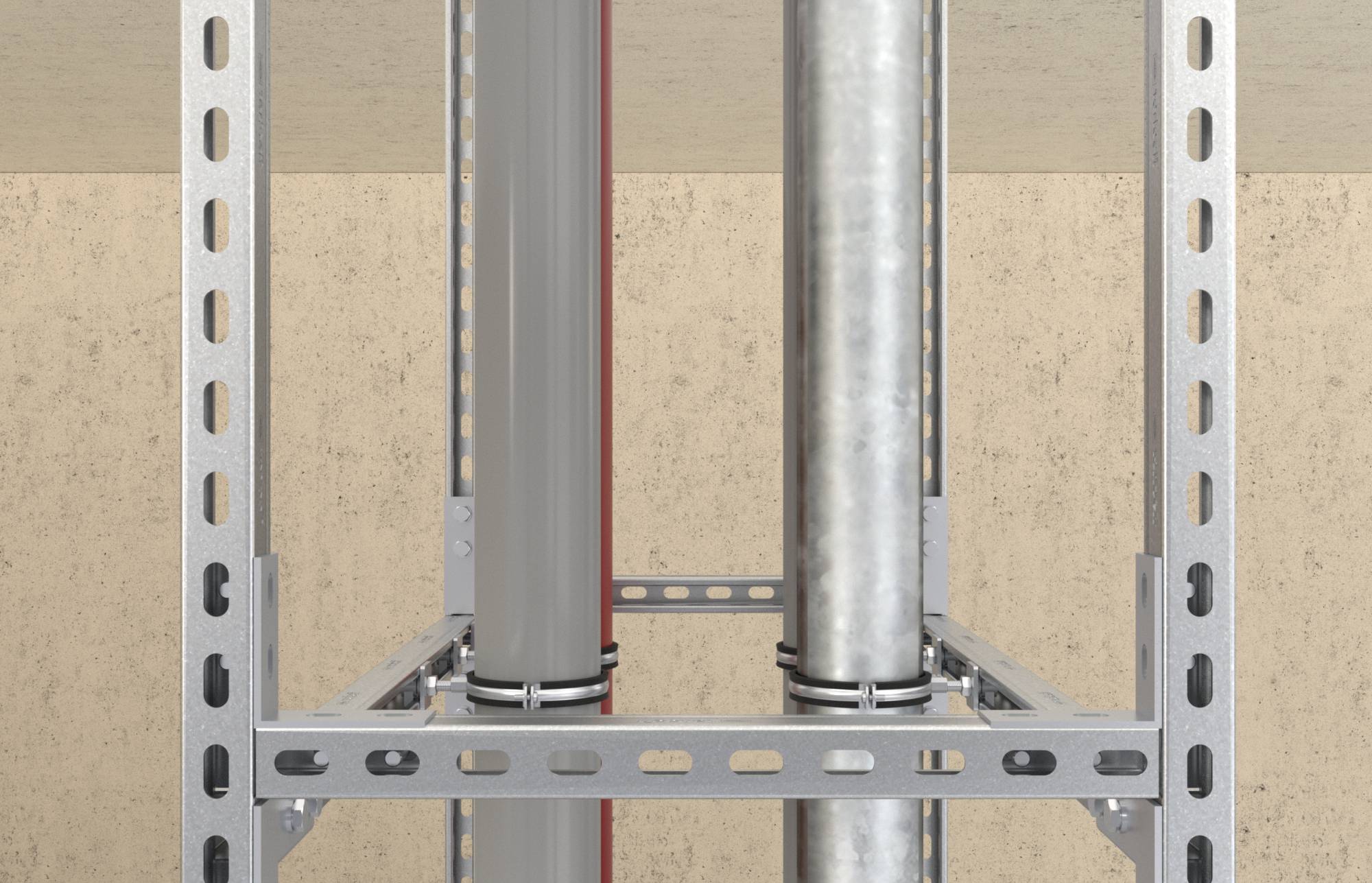

- The universal angle for connecting the FUS mounting rails give a carrying construction a very high stability and security (use in pairs is recommended).
- Simple construction of track constructions in conjunction with FUS rails and PCCN 41.
- Quick mounting by 90° rotation of the Through-hole connector PFCN 41 in the rail.
