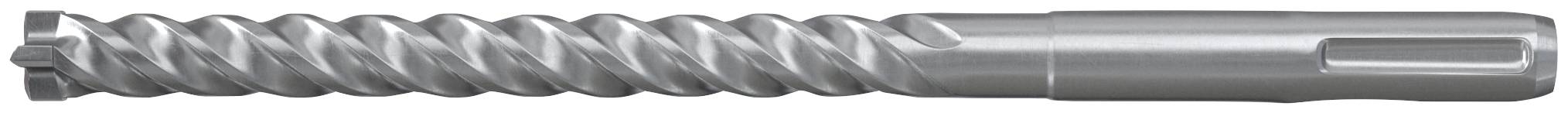

Fischer Quattric II 10/150/215 544187 Hammer drill bit 10 mm Total length 215 mm SDS-Plus 10 pc(s)
EAN:
Part number:
Item no:
Product type
Hammer drill bit
Drill hole Ø
10 mm
Material
Carbide metal
Material suitability
Concrete
Solid brick
Cored brick
Flintlime brick
Natural stone
Working length
150 mm
Highlights & Details
fischer Quattric II 10/150/215 XP 10 hammer drill
- High-performance drill bits for working in unreinforced and moving concrete, solid brick, sand-lime bricks

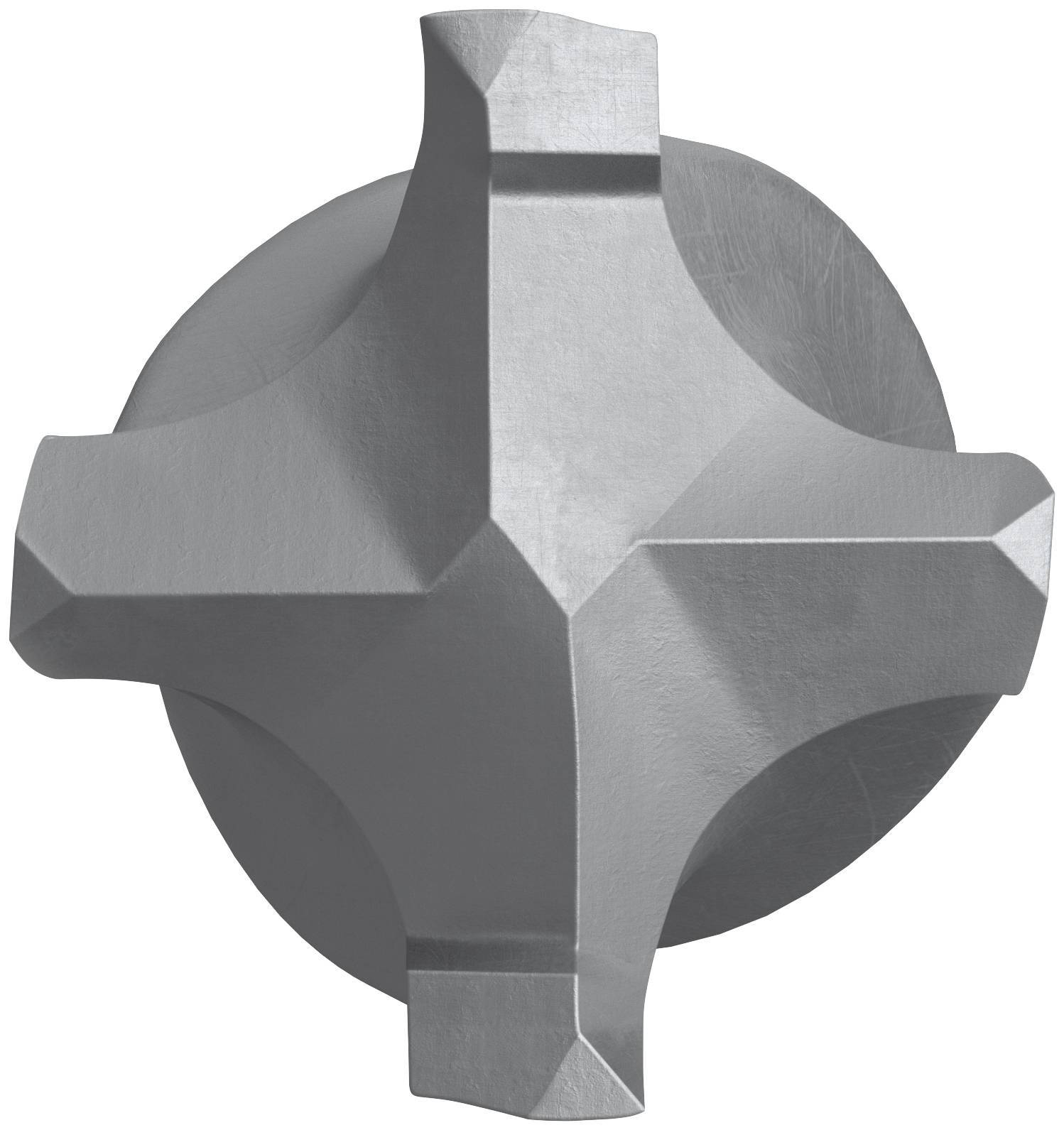

- Carbide head for a long service life
- power shouders on the drill head for increased breaking-in power in concrete
- Centering tip for easy positioning
- Arming phases against hooking into armings
Technical specifications
- SDS-plus coupling
- Product type
Hammer drill bit
- Drill hole Ø
10 mm
- Material
Carbide metal
- Material properties
carbide-tipped
- Material suitability
Concrete
Solid brick
Cored brick
Flintlime brick
Natural stone
- Working length
150 mm
- Content
10 pc(s)
- Total length
215 mm
- Tool holder
SDS-Plus
- Length
215 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472250 Fischer Quattric II 10/150/215 544187 Hammer drill bit 10 mm Total length 215 mm SDS-Plus 10 pc(s)
Description
the fischer Quattric II hammer drill is a high-performance drill with SDS Plus mounting. The carbide head and the new two-piece Wendel design enable a faster drilling and increase the service life. Its arming phases prevent the hooking into armations. The drill is perfectly suitable for approved boreholes according to PGM.
This text is machine translated.
This text is machine translated.
Features
- Carbide head (up to ø 10mm) for a long service life
- power shouders for improved breaking-up performance in concrete
- Solid main cutting edges for fast drilling progress
- Arming phases prevent hooking into armings
- Centering tip for easy positioning
- Wear mark for easy detection of wear limit according to PGM
- Two-part spiral for faster drilling progress and increased life span
Hints
For the creation of approval-compliant drill holes in unreinforced and reinforced concrete, solid brick, sand-lime bricks.
