Fischer SF plus SD 40 Plug 6 mm 58179 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

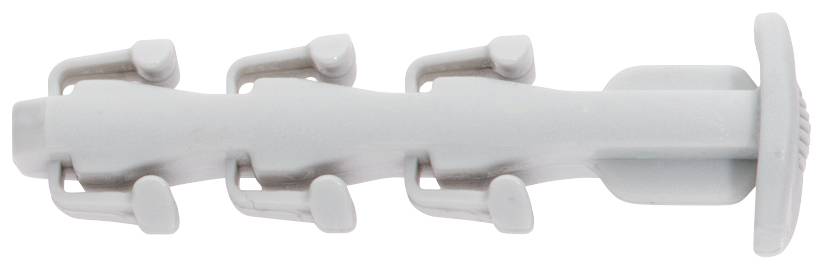

Plug-in fix SF plus SD 40
- The plug-in fix plus SD combines dowel and screw. This saves material and simplifies the attachment of difficult accessible cable channels without additional tools.
- The simple plug-in mounting reduces the assembly time.
- The extended shaft of the SF plus SD 40 enables the bridging of non-supporting plaster layers as well as the fixing of stronger attachment parts.
- The long-lasting material is flame-resistant, halogen and silicone-free, enables year-round use even in frost and thus ensures high safety.
Technical specifications
- (Ø)
6 mm
- Product type
Plug
- Material
Polyamide
- Screw diameter
6 mm
- Dim
(Ø) 6 mm
- Suitable for
Concrete
Solid pumice
Flintlime bricks
Natural stone
Solid brick
- Content
100 pc(s)
- Features
incl. screw
- Material properties
flame retardant
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479246 Fischer SF plus SD 40 Plug 6 mm 58179 100 pc(s)
Description

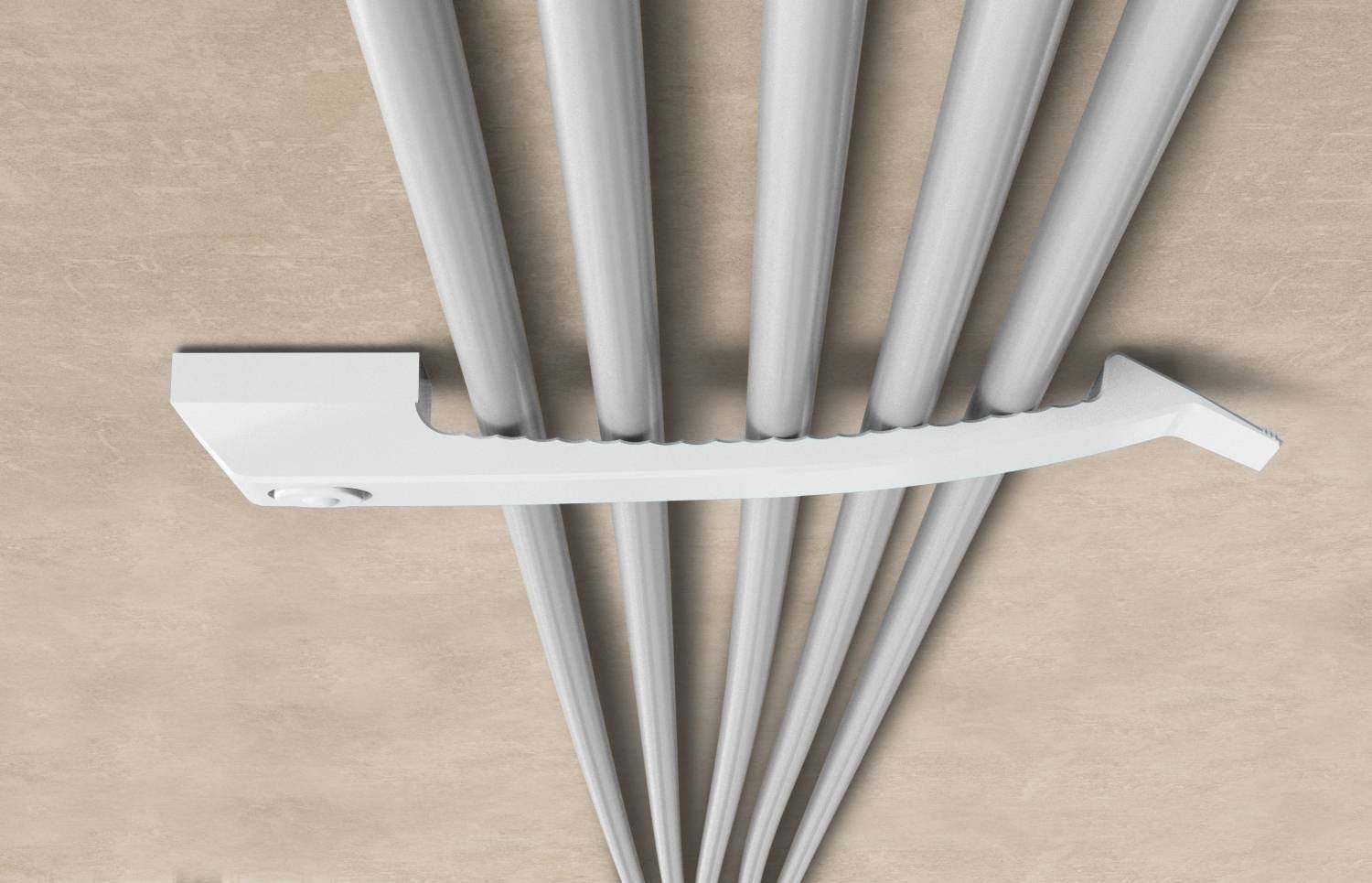

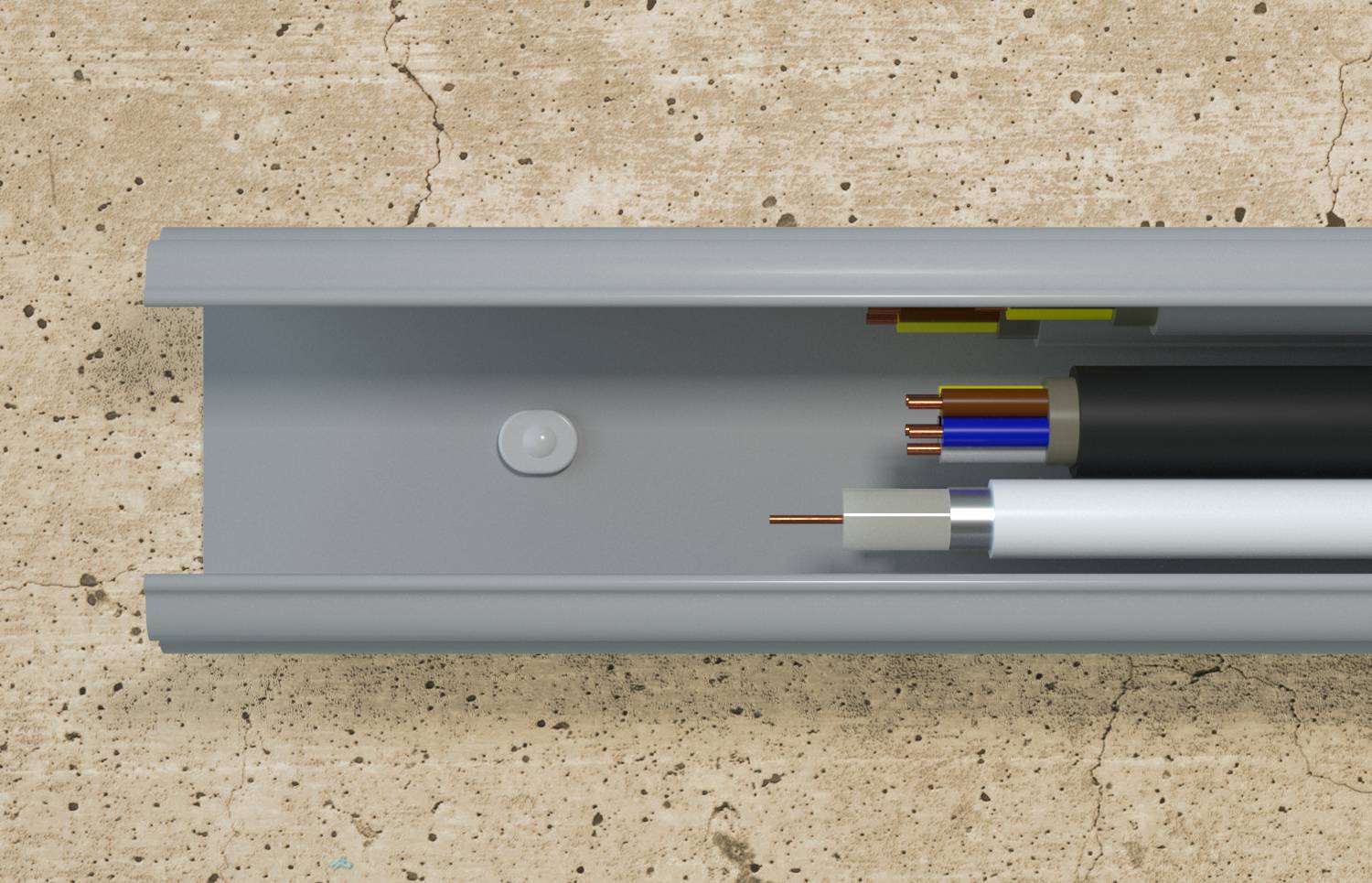

the fischer plug-in fix plus SD is an easy-to-install solution for fixing cable channels, cable clips and collective holders. The plug-in plug made of high-quality polyamide combines the dowel and the screw in one component and thus reduces the assembly time. The innovative electric attachment is inserted into the drill hole without screw and fixes loads up to 11 kg safely in concrete and solid stone. The plug-in fix plus SD holds even under extreme temperature loads of -20 °C to +80 °C.
This text is machine translated.
This text is machine translated.
Features
- Made from high-quality polyamide
- Easy installation in difficult to access cable ducts: Dowels and screws in one
- High holding forces by locking latch
- Plug-in installation saves time.
