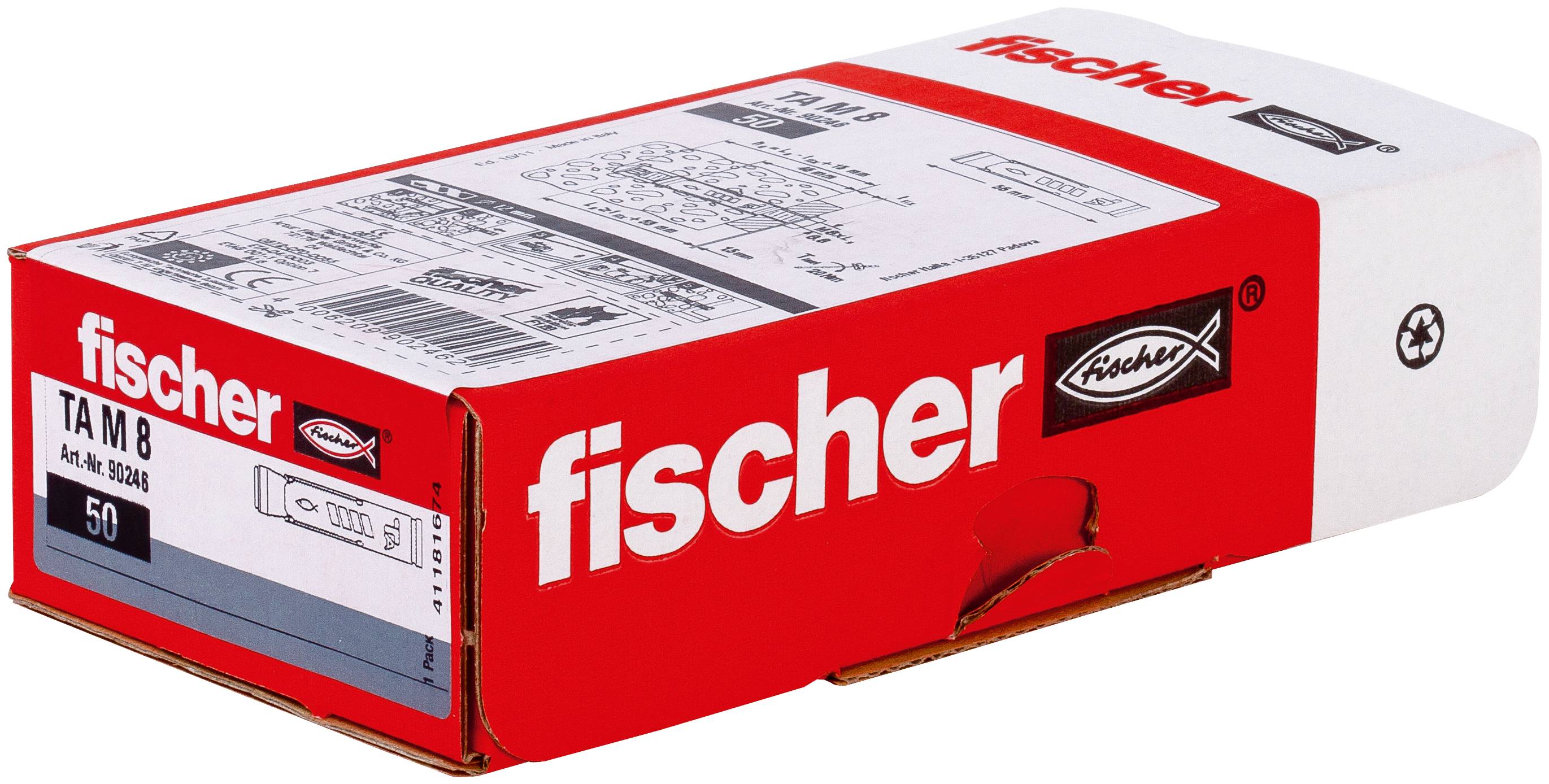

Fischer 90246 TA M8 Heavy duty anchor 56 mm 12 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
12 mm
- Product type
Heavy duty anchor
- Material
Steel
- Length
56 mm
- Screw diameter
8 mm
- Dim
(Ø x L) 12 mm x 56 mm
- Suitable for
Concrete
Natural stone
- Content
50 pc(s)
- Material properties
zinc galvanized
- Weight
0.018
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 482425 Fischer 90246 TA M8 Heavy duty anchor 56 mm 12 mm 50 pc(s)
Description

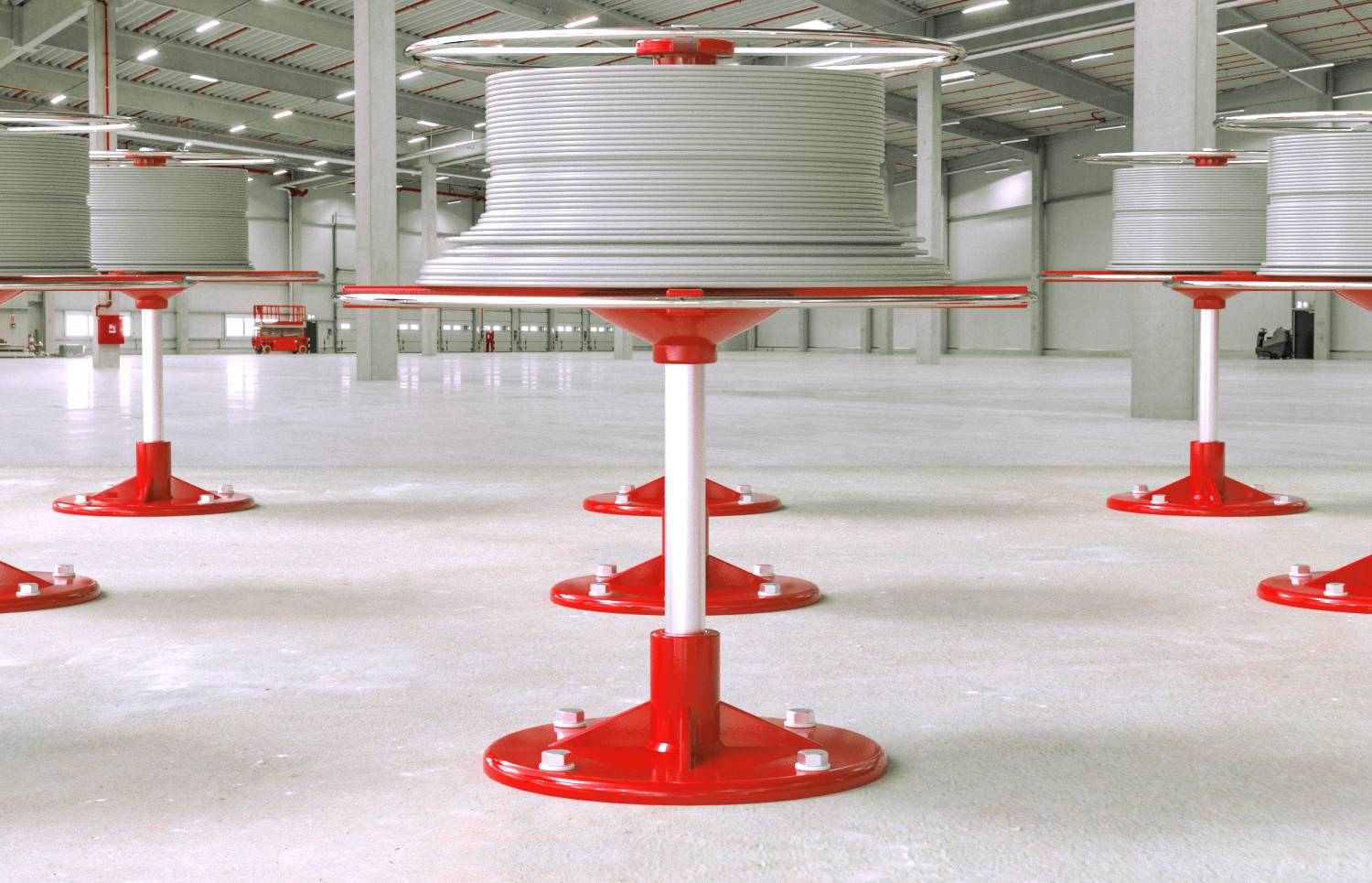

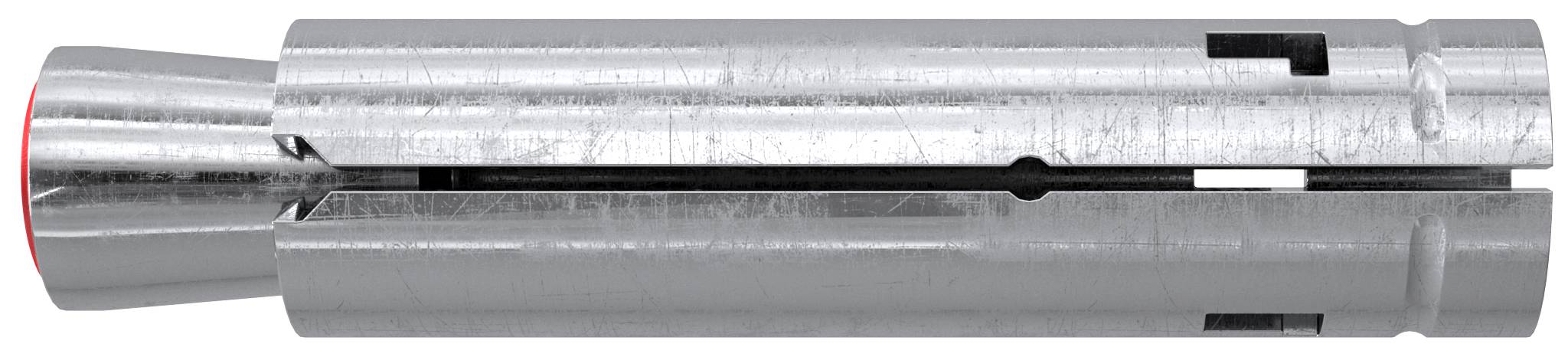

The fischer heavy-duty anchor TA M is an internal thread from electro-galvanised for the pre-on mounting. During installation, the cone in the split sleeve pulled and tightens them against the drill hole wall. The plastic cap protects the thread from dirt. This remains this move. The Heavy duty anchor is ideal for the attachment of crash fuses, systems and machines in ungerissenem concrete.
This text is machine translated.
This text is machine translated.
Features
- Easy installation thanks to low setting energy
- ETA-approval for cracked concrete
- Low axis and edge distances through uniform load application
- High flexibility through the use of commercially available screws and threaded rods
- Surface flush mounting through detachable screw connections.
