Fischer TKL Rail bracket Steel (galvanized) 564394 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

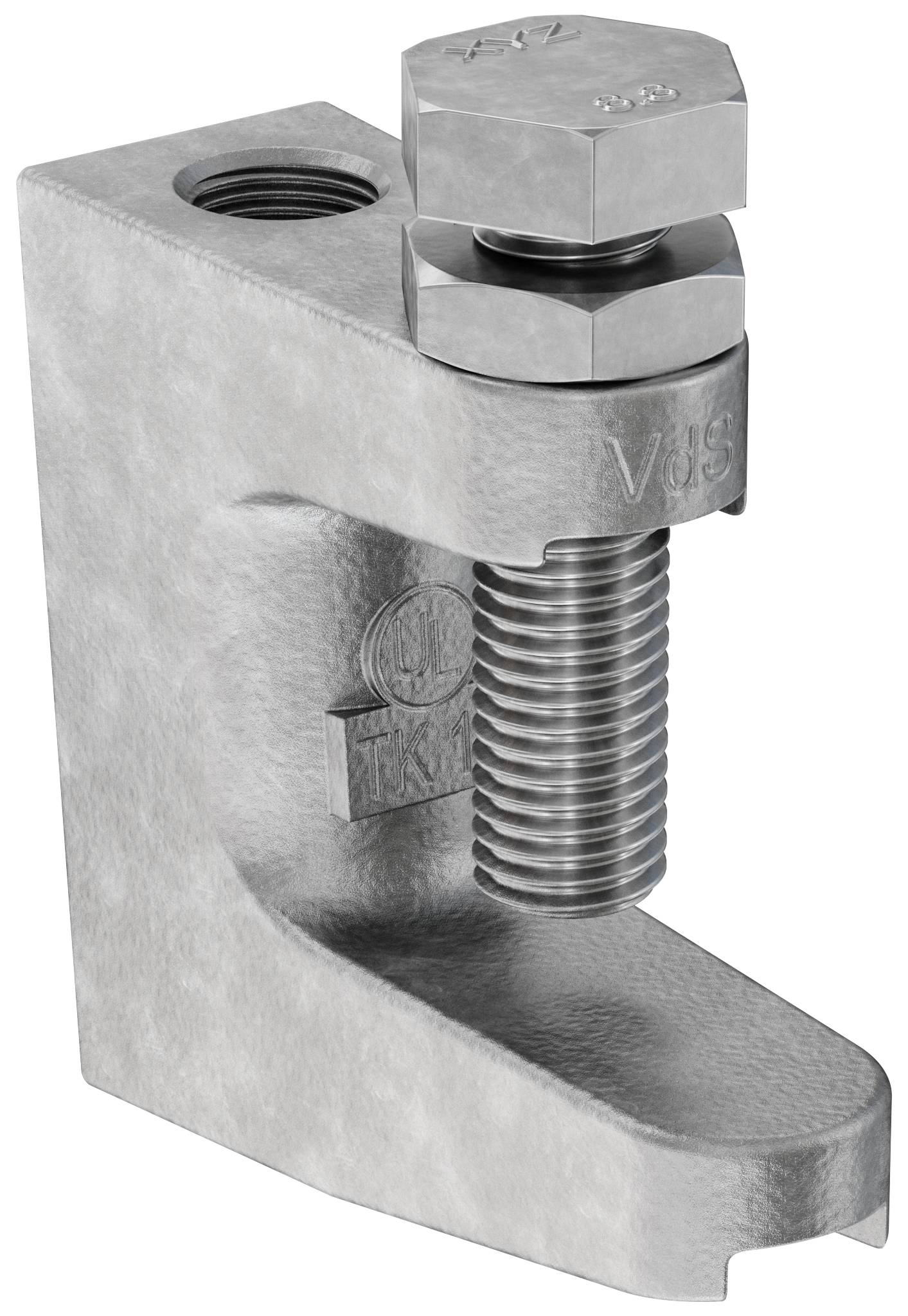

Fischer TKL M12 hot-dip galvanized carrier clamp
- Material TKL: Temperature cast en-GJMB-350-10 (M12: 460-6)
- Material: Steel 8.8 according to ISO 4017
- Material nut: Steel according to ISO 4035, strength class min. 4
- Galvanised: Hot dip galvanized in accordance with DIN-EN-ISO-1461
Technical specifications
- Clamping range 0 - 26 mm
- Thread: M12
- Product type
Rail bracket
- Material
Steel (galvanized)
- Content
50 pc(s)
- Material properties
hot-dip galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2827541 Fischer TKL Rail bracket Steel (galvanized) 564394 50 pc(s)
Description

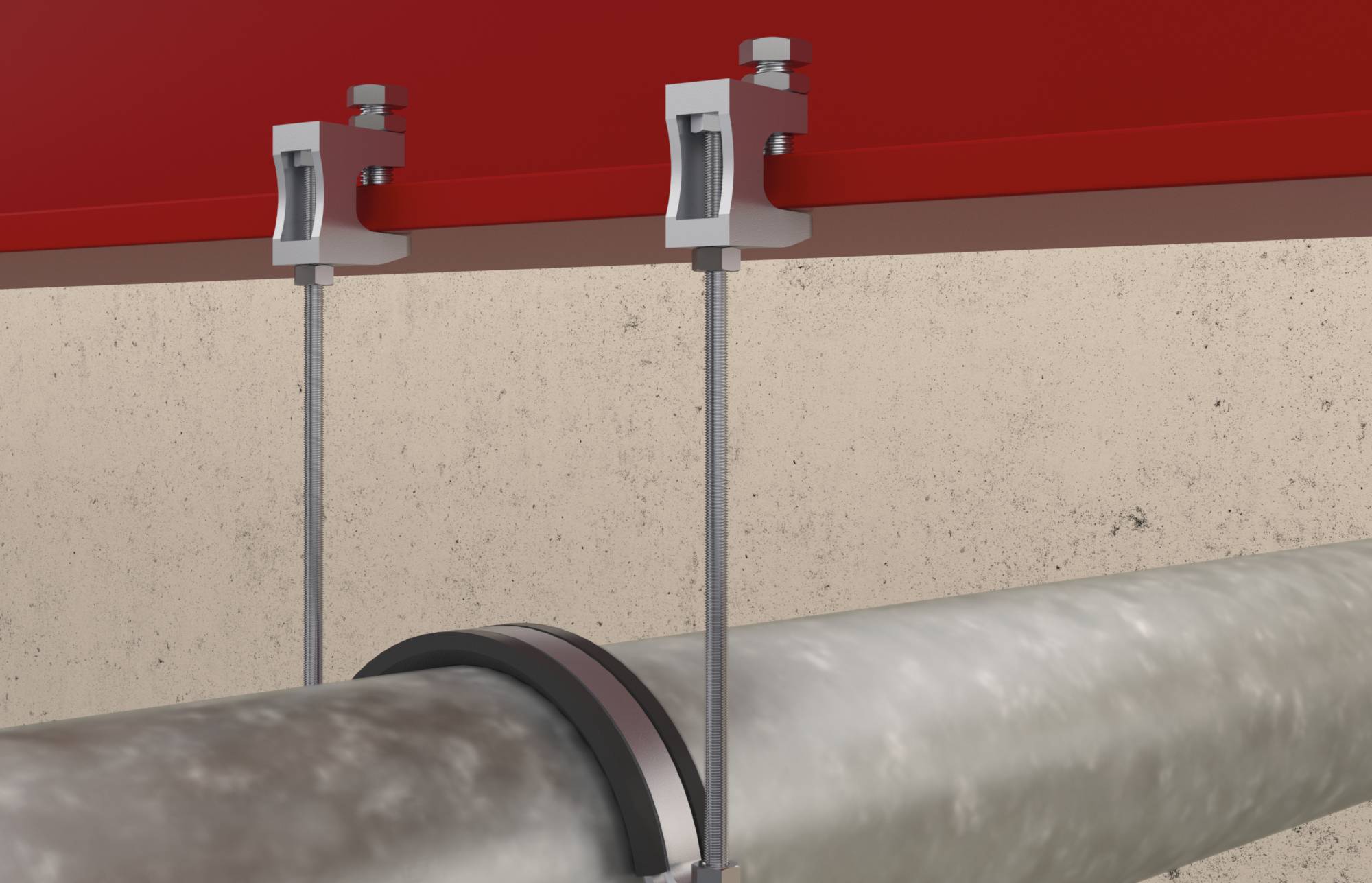

The Fischer carrier clamp with thread support for easy attachment by clamps to steel carriers. For VdS systems from DN 65 safety fuses are required. The hollow section of the fastening screw effectively prevents slipping of the steel carrier.
This text is machine translated.
This text is machine translated.
Features
- The design of the TKL with a fixing screw allows it to be fixed to the steel beam without welding or drilling.
- The hollow section of the fastening screw effectively prevents slipping of the steel carrier.
- VdS/FM/UL certificates guarantee objectively tested functional safety.
- The heavy-duty design of the TKL ensures high load capacity.
- The TKL with thread support ensures an easy and fast mounting.
