Fischer TKR 21 - 42 A4 Rail bracket 50 mm Stainless steel 559751 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

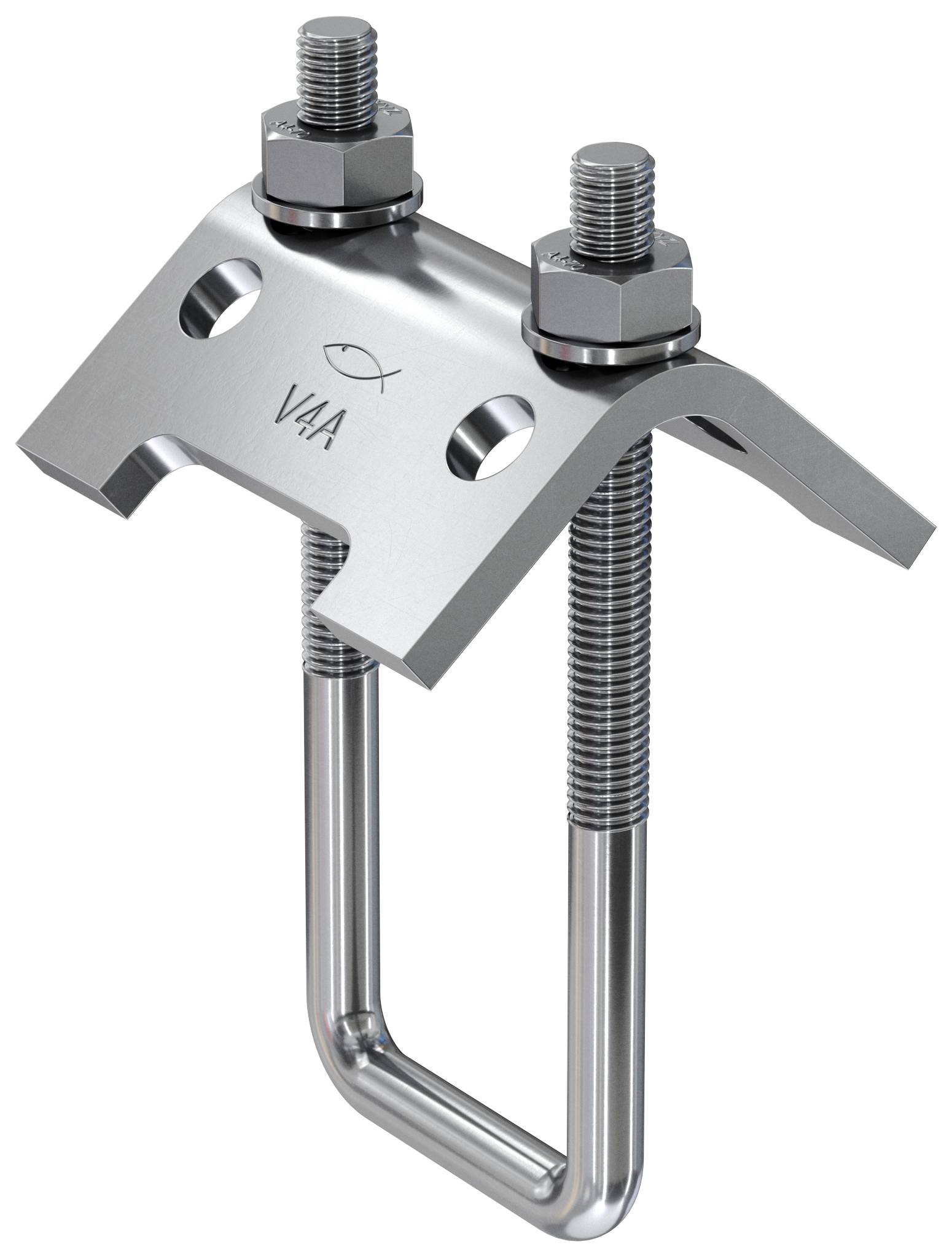

fischer TKR 21 - 42 stainless steel A4 support claw
- Clamping bracket for direct connection of FUS rails with steel beams
- No drilling, no welding required
- Application-oriented corrosion protection by stainless steel design
- For indoor and outdoor use
Technical specifications
- Tightening torque: 15 Nm
- Width A 52 mm
- Width B 79 mm
- For profile: FUS 21 + FUS 41
- Load level: medium
- Max. recv. Static load (central train): 5.00 kN
- Zinc plating: Galvanized, at least 5 µm
- Product type
Rail bracket
- Material
Stainless steel
- Content
10 pc(s)
- Thread size
M8
- Material properties
A4
- Length
50 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472030 Fischer TKR 21 - 42 A4 Rail bracket 50 mm Stainless steel 559751 10 pc(s)
Description

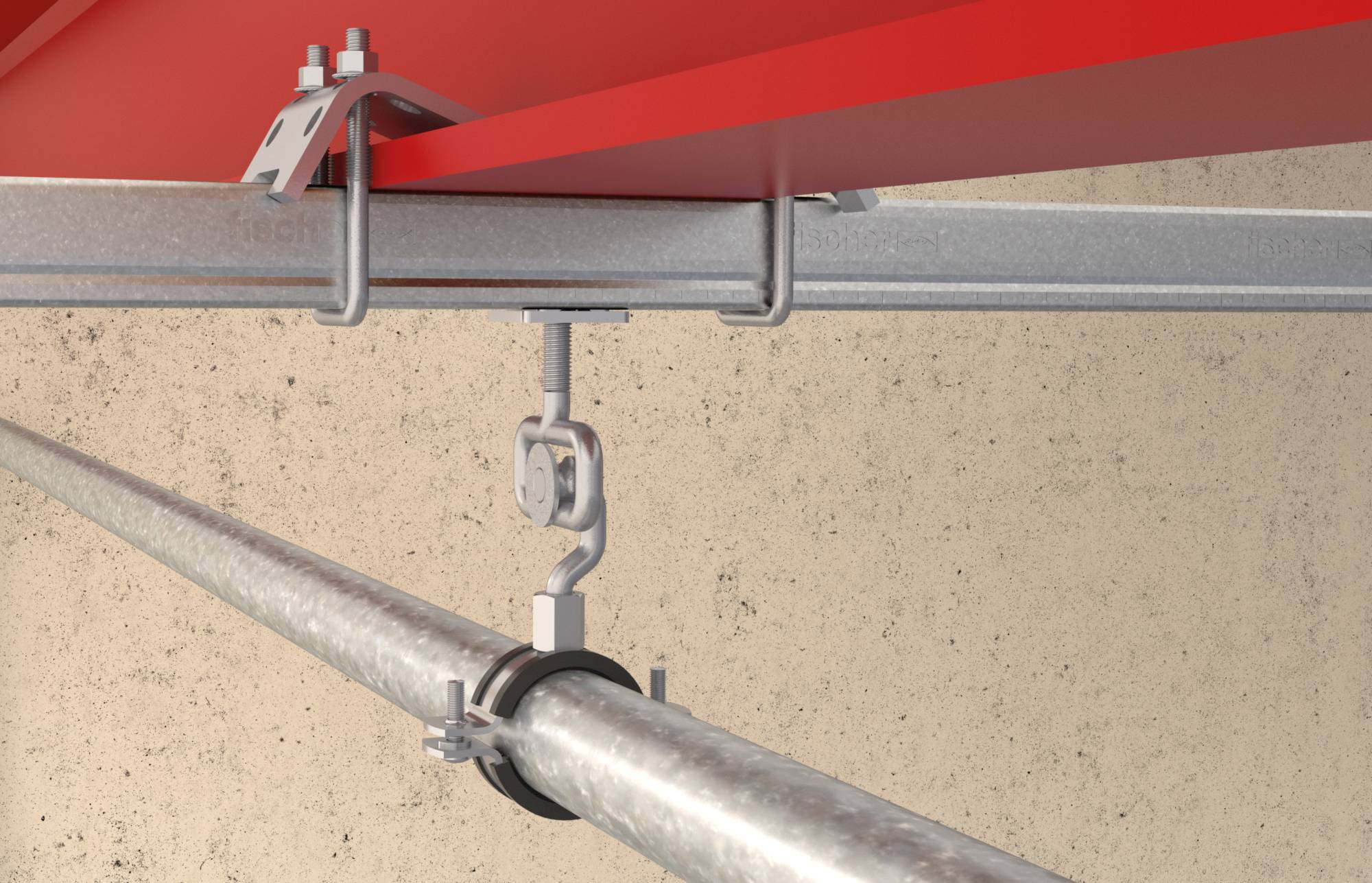

the fischer TKR 21-42 support claw is a A4 stainless steel mounting element. This allows mounting rails to be attached directly to the T-beam for the attachment of pipes and channels. No drilling or welding is necessary for fixing. The carrier clamps can be removed.
This text is machine translated.
This text is machine translated.
Features
- The design of the carrier claw makes it possible to fix it without drilling or welding
- The design of the carrier claw allows easy movement of the rail connection
- Attachment to the steel girder with two carrier claws each
