Buy Fischer V-shaped mount 79825 25 pc(s)

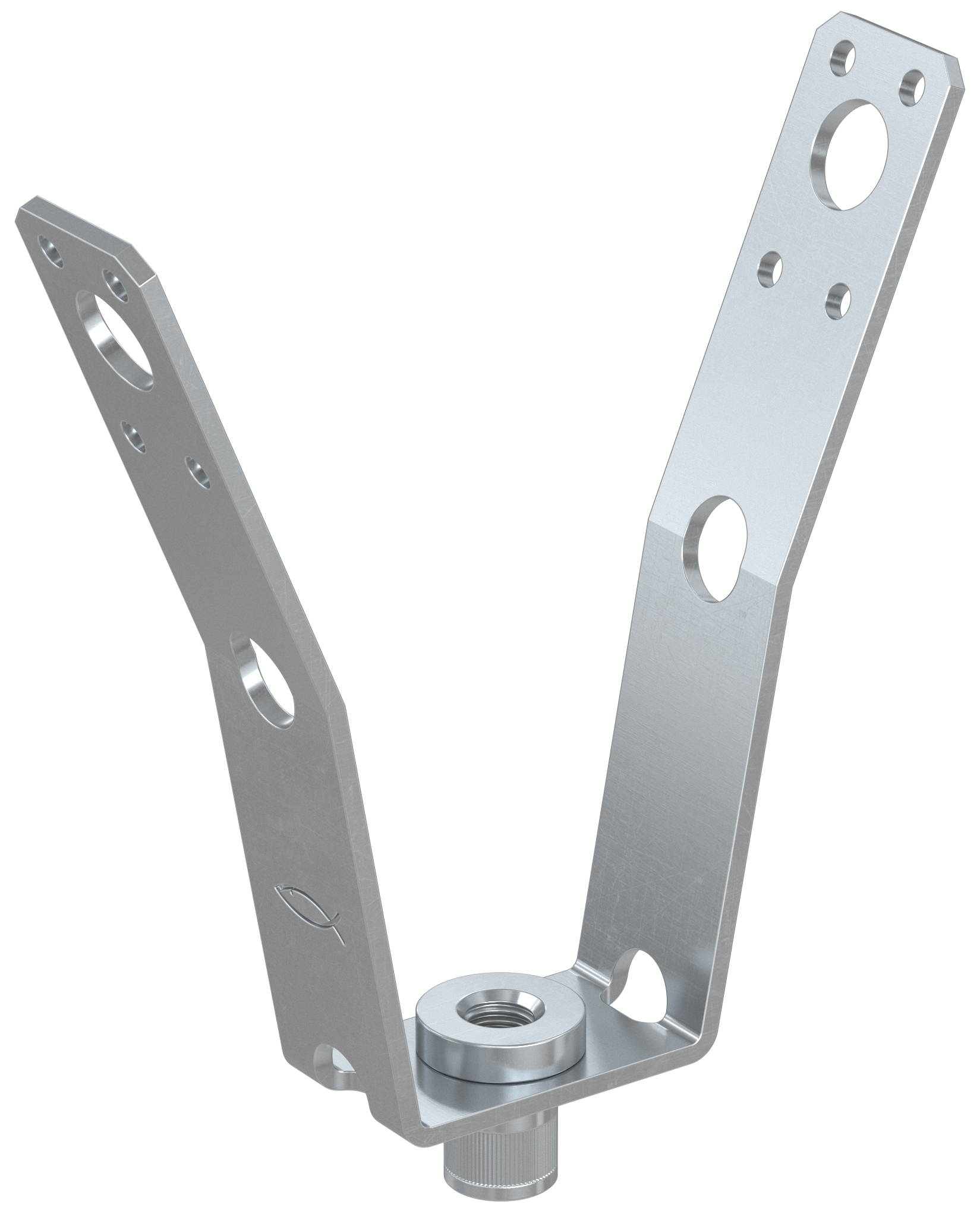

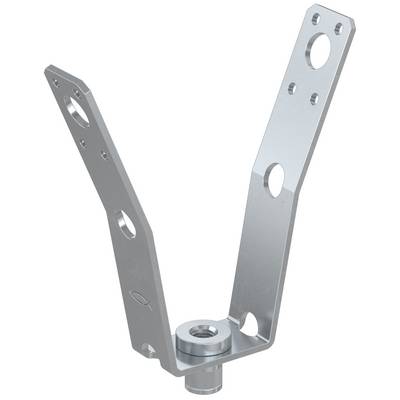

Two angled metal brackets with mounting holes attached to a central threaded fastener, shown on a white background.

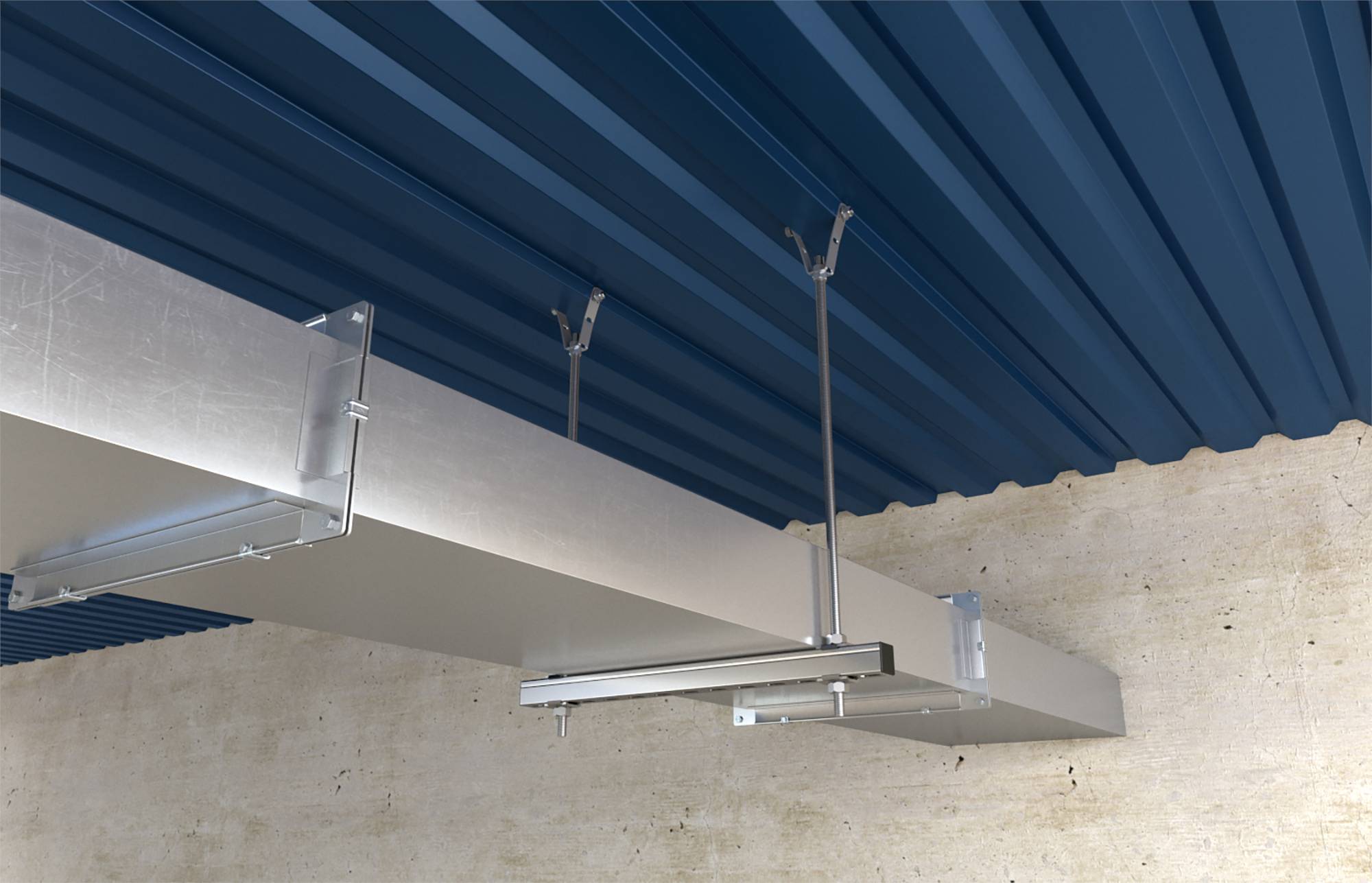

Suspended rectangular HVAC duct and plenum with metal hangers mounted under a blue corrugated ceiling beside a concrete wall.

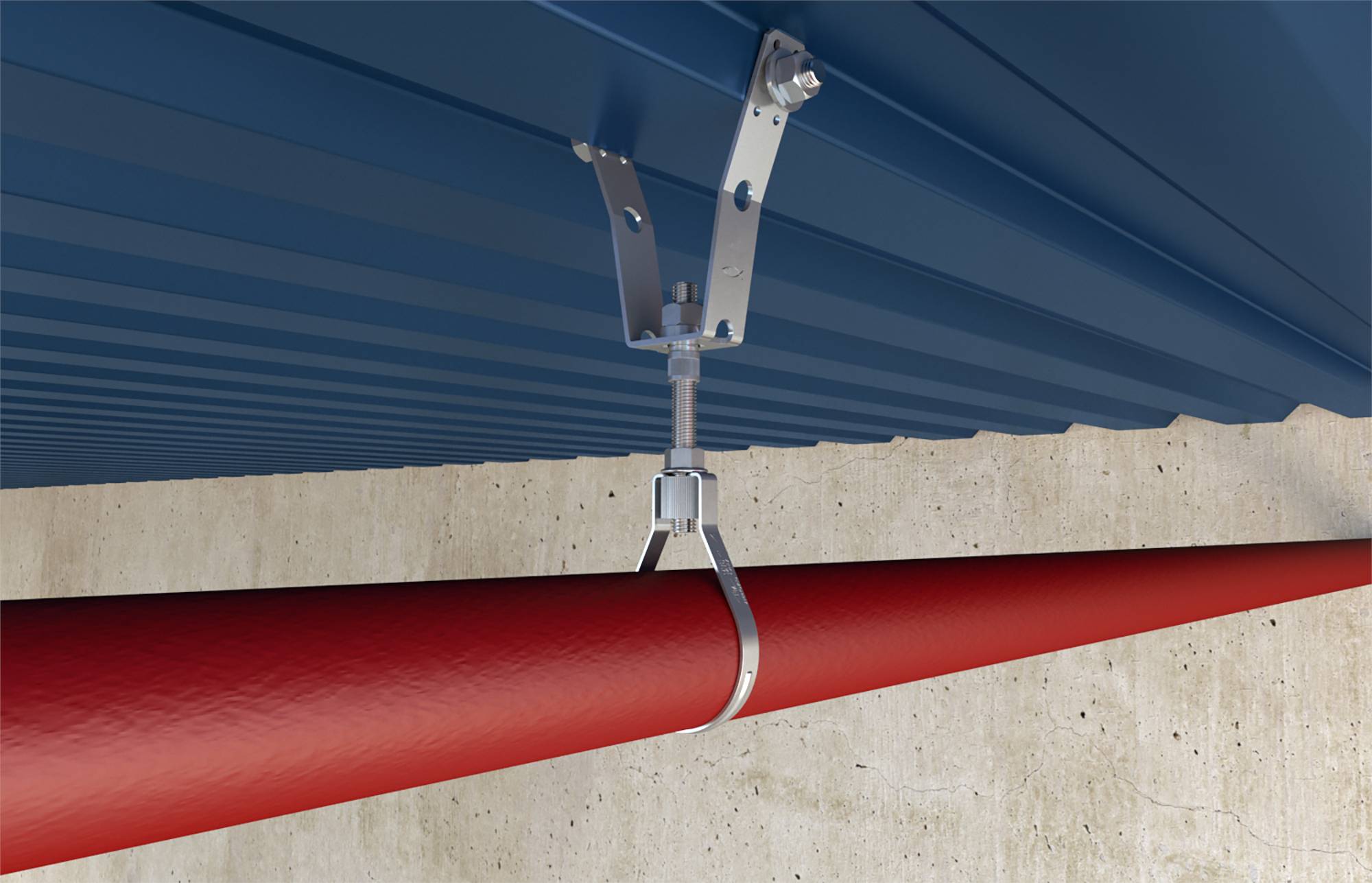

Metal pipe hanger suspending a red pipe from a concrete ceiling in a utility tunnel or building service space.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: V-shaped mount

Content: 25 pc(s)

Material (details): BSMZ

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 479995 Fischer V-shaped mount 79825 25 pc(s)

Description

The fischer trapeze hangers TZ is a fastening element for trapezoidal sheets. For the attachment of sprinkler systems by Bolt Fixing SKS M 8 x 100 in die-cut hole. For the attachment of other cables with sheet metal screws or steel blind rivets. To bending point allows the perfect adaptation to the trapezoidal sheet form. Adjusting Nut M8 as a connecting nut for a simple add height adjustment.

This text is machine translated.

Features

Adjusting Nut
To bending point
VdS certified.
