Buy Fischer V-shaped mount 79826 25 pc(s)

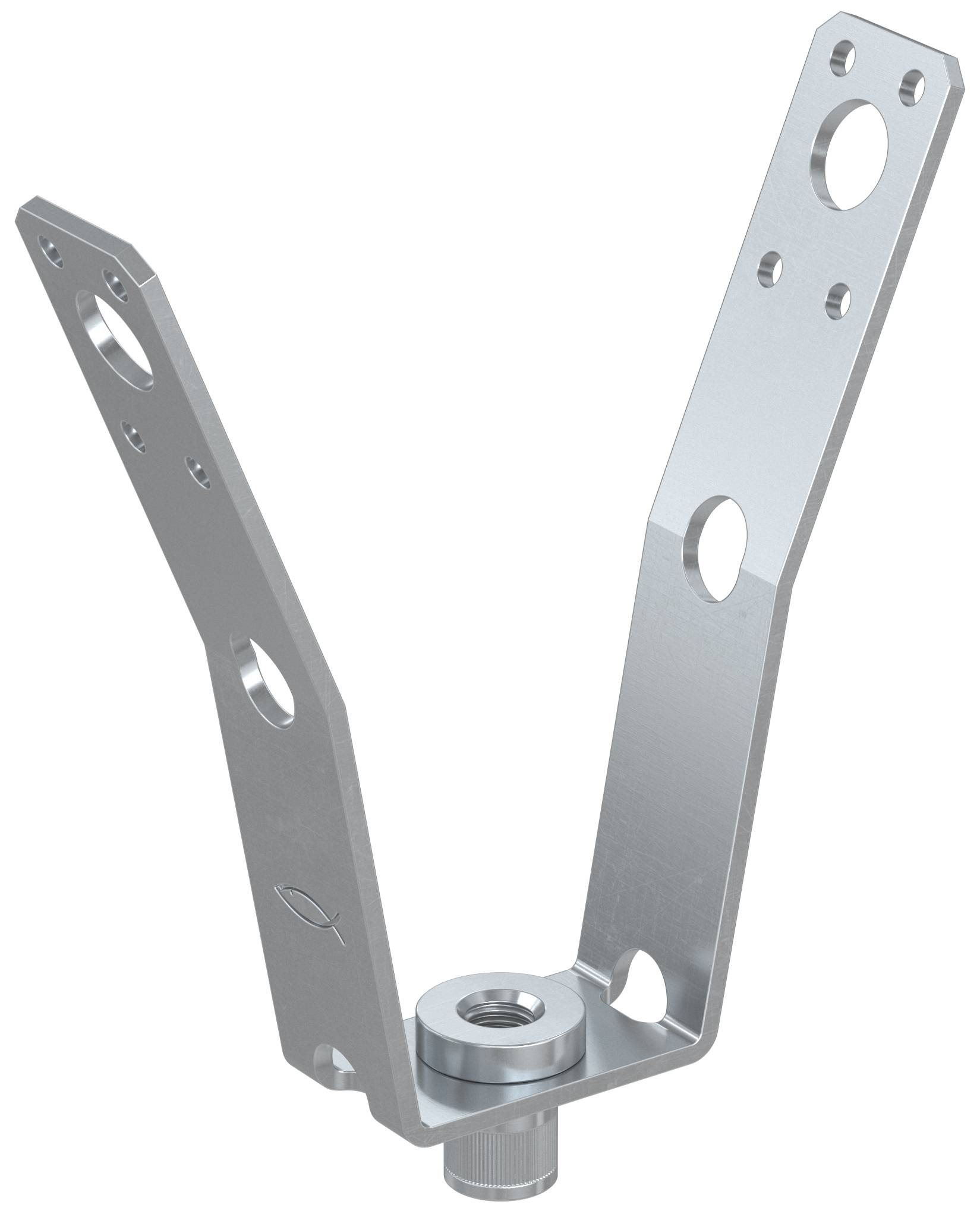

Metal U-shaped bracket assembly with two angled arms and multiple mounting holes, featuring a central threaded cylindrical connector at the base.

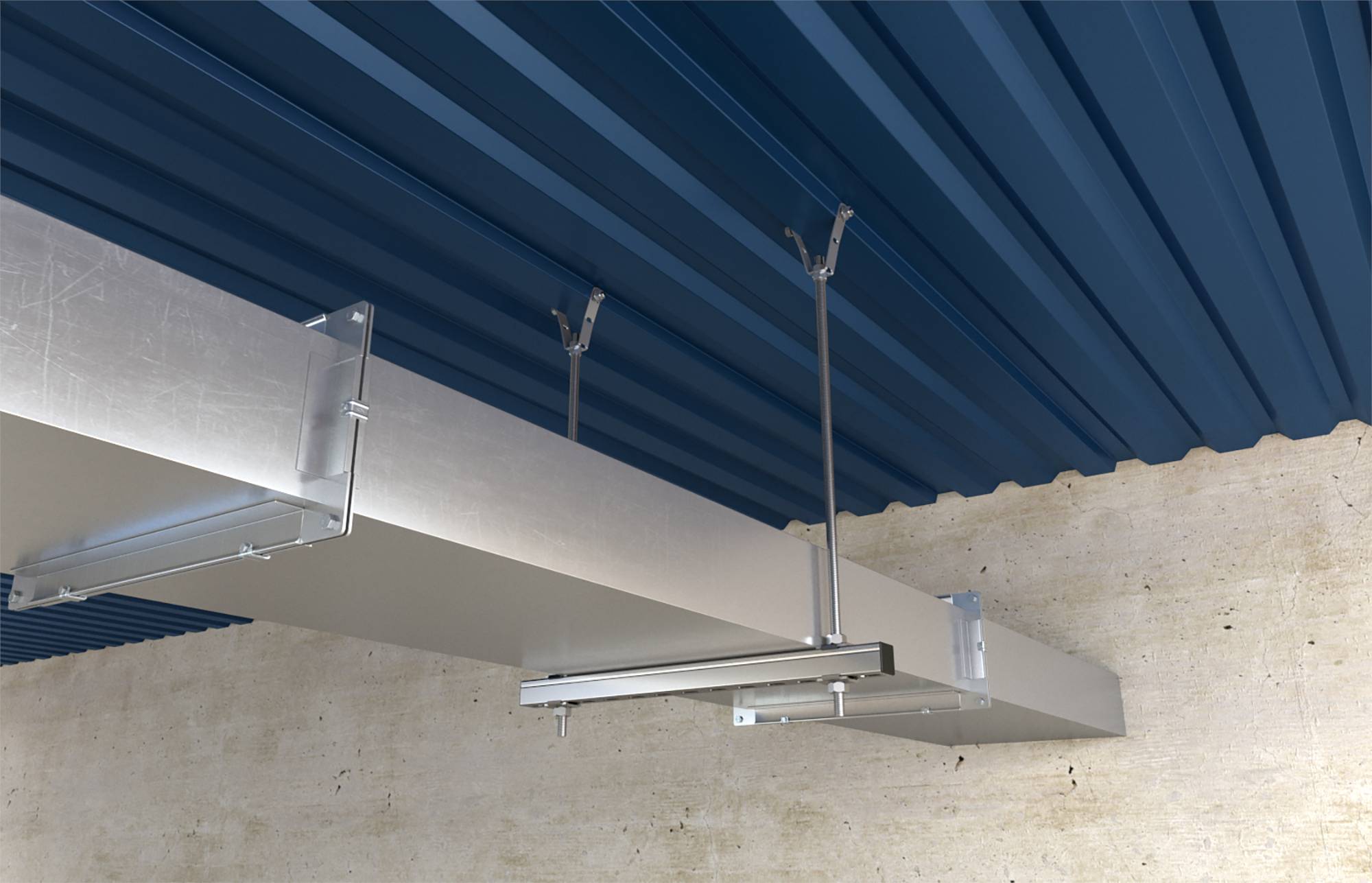

Suspended rectangular HVAC duct or air handler mounted from a blue metal ceiling with steel hangers and a concrete wall backdrop

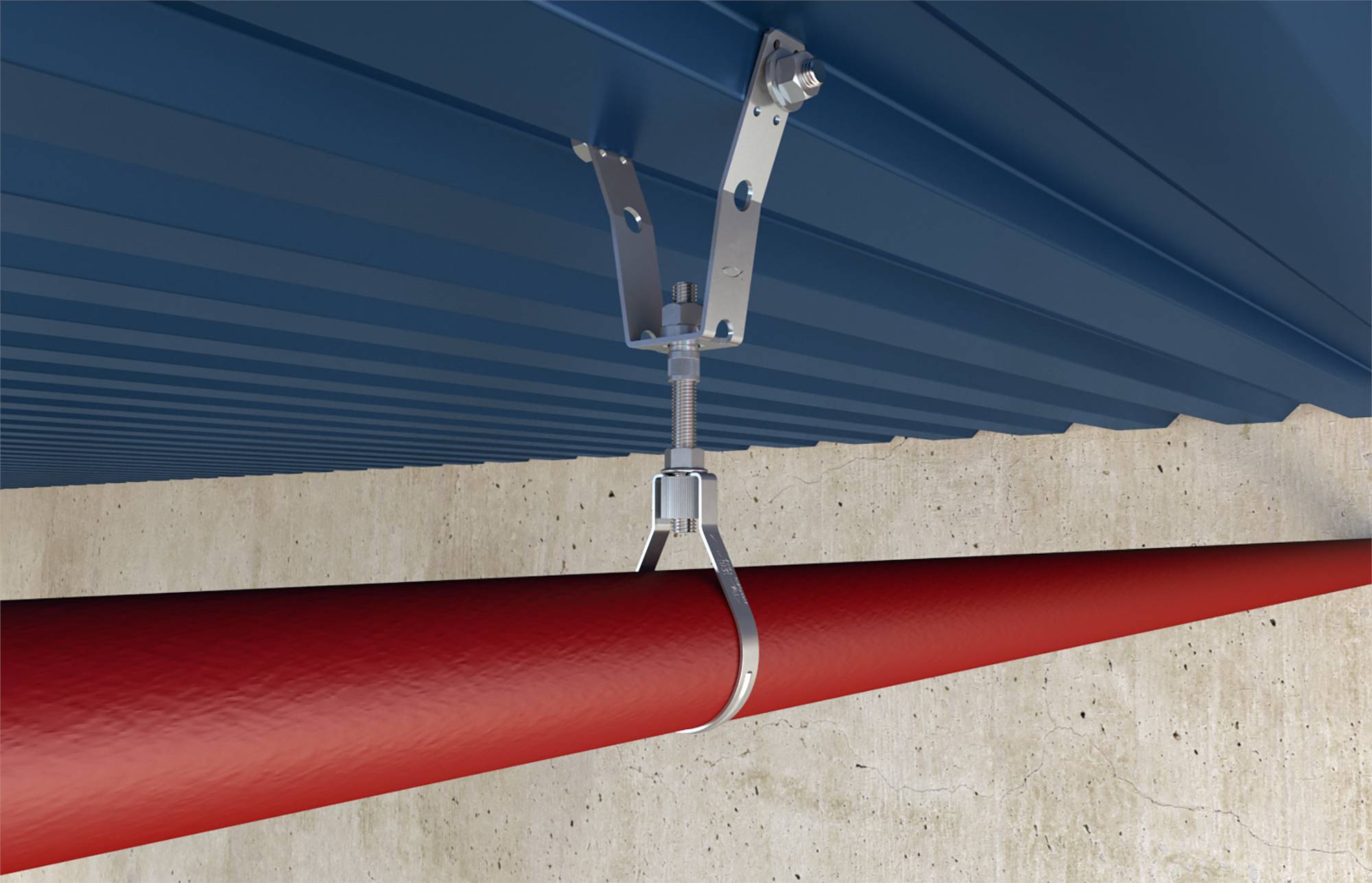

Close-up of a pipe hanger suspending a red pipe beneath a concrete ceiling with a blue structural deck above.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: V-shaped mount

Content: 25 pc(s)

Material (details): BSMZ

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 479996 Fischer V-shaped mount 79826 25 pc(s)

Description

The fischer trapeze hangers TZ is a fastening element for trapezoidal sheets. For the attachment of sprinkler systems by Bolt Fixing SKS M 8 x 100 in die-cut hole. For the attachment of other cables with sheet metal screws or steel blind rivets. To bending point allows the perfect adaptation to the trapezoidal sheet form. Adjusting nut M10 as a connecting nut for a simple add height adjustment.

This text is machine translated.

Features

Adjusting Nut
To bending point
VdS certified.
