Fischer VB gvz Rail base Steel 545650 5 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

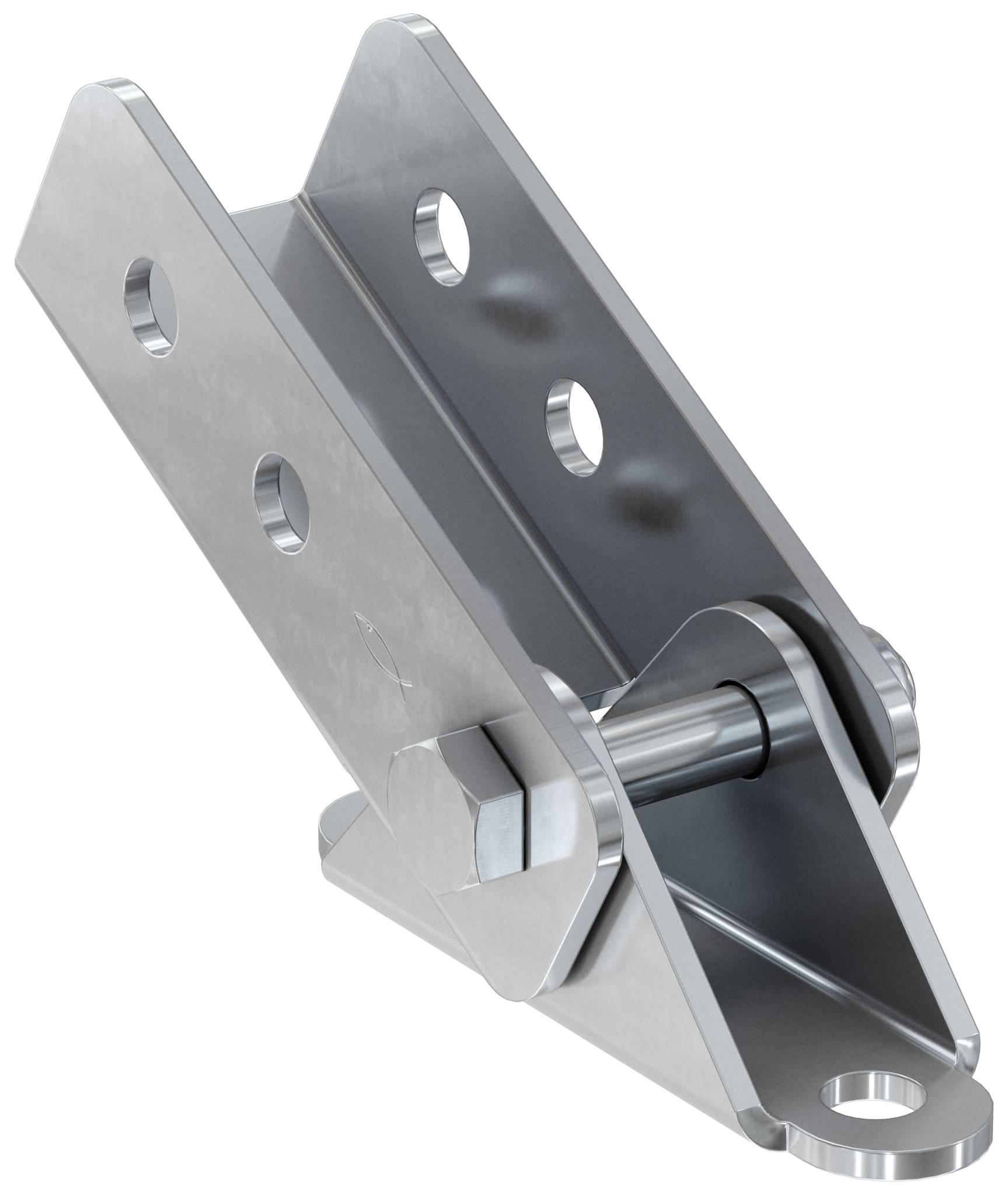

Variable rail base VB gvz
- Mounting elements for the variable design of wearing structures from FUS profiles
- Installations of FUS rails in the range of 0° to 180°
Technical specifications
- Product type
Rail base
- Material
Steel
- Content
5 pc(s)
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2266659 Fischer VB gvz Rail base Steel 545650 5 pc(s)
Description
Advantages/benefits

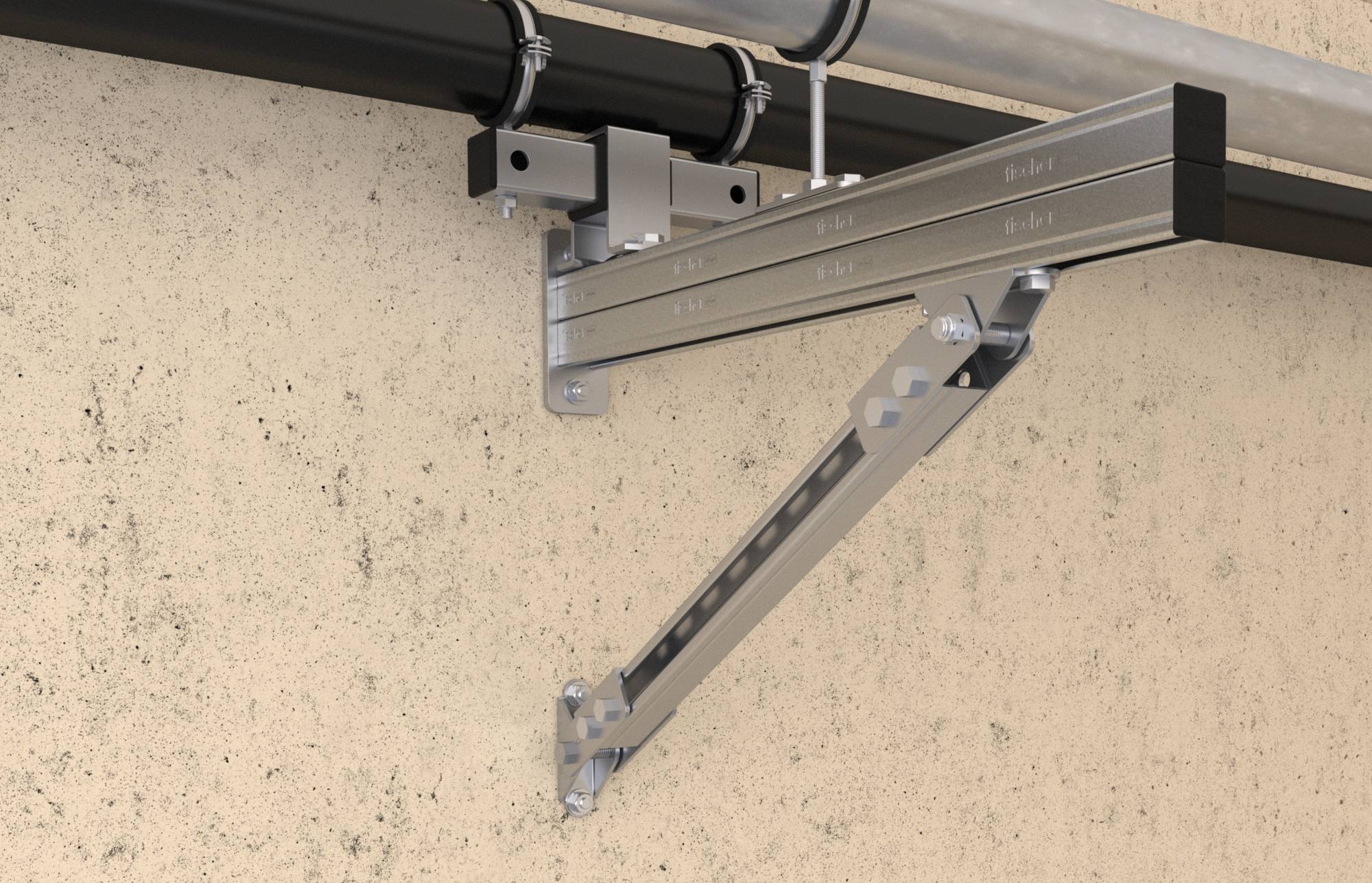

of the design of the VB rail base allows mounting of mounting rails at an angle of 0° to 180°.
Rails can be mounted downwards or laterally due to the holes on all sides of the VB with the rail opening.
The hole in the base plate allows the mounting directly on the base or on a mounting rail.
Properties
Material: Steel S235 JR (material no. 1.0037) according to DIN EN 10025
Galvanized, at least 5 µm
This text is machine translated.
of the design of the VB rail base allows mounting of mounting rails at an angle of 0° to 180°.
Rails can be mounted downwards or laterally due to the holes on all sides of the VB with the rail opening.
The hole in the base plate allows the mounting directly on the base or on a mounting rail.
Properties
Material: Steel S235 JR (material no. 1.0037) according to DIN EN 10025
Galvanized, at least 5 µm
This text is machine translated.
