FKF65-wg Eltako Wireless Switch Surge protection switch Surface-mount Max. range (open field) 30 m

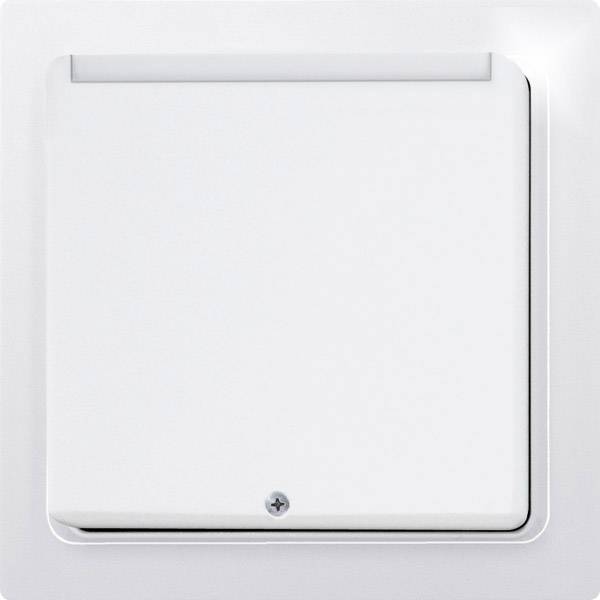

Wireless card switch with pure white glossy surface mounting 84x84x29mm or for mounting in the E-Design switch system*. Generates the energy for radio telegrams itself, therefore without connection cable and no standby loss. Smart home sensor. When inserting and removing a hotel door card (Hotelcard/Keycard) in the standardized credit card format 86x54mm, a radio message is sent to the Eltako building radio. The two-part card guide, a R1E frame, a mounting frame, a mounting plate and a radio module are included in the delivery, and two screws with dowels are included. Screw-on mounting: First disassemble the completely mounted card switch. To do this, remove the screw, unhook the card guide and remove the intermediate frame, including the transmitter module, by loosening the retaining brackets at the top and bottom. Secure the holding plate by screwing it on. Clip the frame with the cut-out sections at the top with the intermediate frame including the transmitter module, with the rear marking 0 facing upwards. Insert the card guide into the upper suspension sections of the frame and screw it into the retaining plate with the screw at the bottom. Worn card guides can be easily replaced without having to change the transmitter module. Suitable actuators: The radio time relays for the card switches FZK14 and FZK61NP were developed especially for controlling with the radio card switch FKF. With these switching relays, you can set a fall-back delay and an on-delay. If higher loads are to be switched than specified in the technical data, the actuator must switch a contactor. In this case, for the FZK14, do not activate the zero-crossing circuit. The radio module contained in the radio card switch can be programd in an encrypted manner in accordance with the operating instructions in ­untenstehende Encrypted actuators of the series 61 and 71, as well as in the FAM14 ­werden. For this purpose, the wireless key encryption rocker FTVW is required. Cipherable actuators carry the pictogram. * If necessary, please order a 2-way frame R2E, 3-way frame R3E or 4-way frame R4E with cut-outs above.

This text is machine translated.
