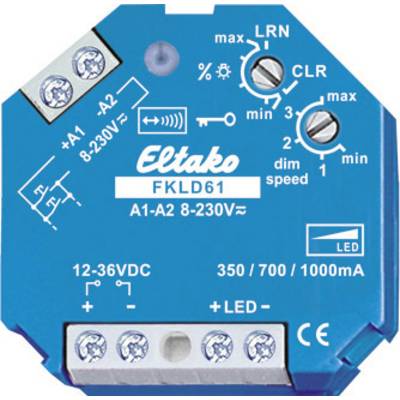

FKLD61 Eltako Wireless Dimmer actuator 1-channel Flush mount Switching capacity (max.) 30 W Max. range (open field) 30 m

DC constant power source for LEDs up to 1000mA or 30 watts. Standby loss of only 0.3 watts. Minimum brightness and dimming speed can be set. With children's room and snooze switch. Additionally with light-setting control via PC or with radio buttons. Encrypted radio, bi-directional radio and repeater function can be activated. For panel mounting. 45mm long, 45mm wide, 33mm deep. The nominal output current can be set with a jumper on the circuit board: No connection: 350mA, right aligned (pin 2-3 connected): 700mA, left aligned (pin 1-2 connected): 1000mA. Factory setting 700mA. The input voltage range ranges from 12V DC to a maximum of 36V DC. The input voltage must be selected above the sum of the LED voltage at the output in order for the current control to work. This difference must be at least 6 volts. The total output current x output voltage must not exceed 30 watts. An impulse-proof DC power supply is required, which supplies the required voltage and current of the LED lamp(s). Universal control voltage 8..230V UC, electrically isolated from the supply and switching voltage. The set brightness level remains stored when the device is switched off (memory). In the event of a power failure, the switching position and the brightness level are saved and, if necessary, switched on when the supply voltage returns. Automatic electronic overload protection and over-temperature switch-off. From week 11/14, encrypted sensors can be trained. Bidirectional radio and/or a repeater function can be switched on. The upper %lamp rotary switch can be used to set the minimum brightness (fully dimmed). In the LRN position, up to 35 radio buttons are assigned, one or more of them central control buttons. The dimming speed can be set with the lower DIM speed rotary switch. In addition to the radio control input via an internal antenna, this dimmer switch can also be locally controlled as a universal switch using a conventional universal voltage control button, which may be installed in front of it. This means that the dimming direction is changed by interrupting the control. Short control commands switch on/off. The radio buttons can be programd either as direction buttons or as universal buttons. The LED accompanies the teach-in process according to the operating instructions and indicates radio control commands during operation by briefly flashing.
