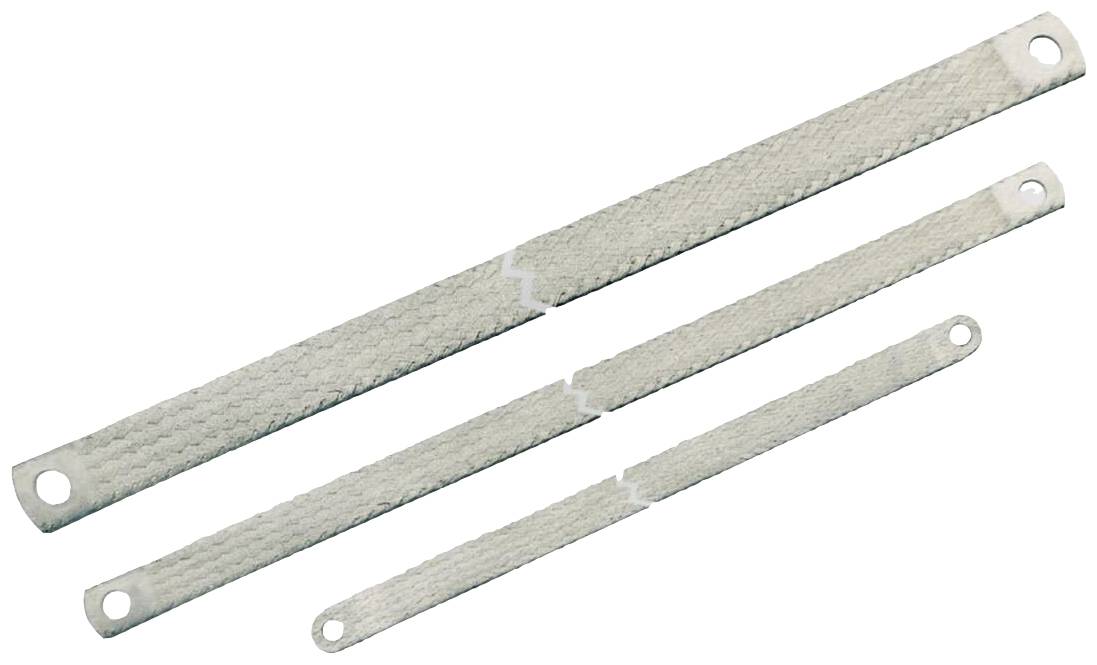

Flat band conductor, copper braiding, single wire Cu ETP UNI 5649-71, similar to DIN 72333 346109.0010 Lütze Content: 10
EAN:
Part number:
Item no:
Product type
Flat
Length
300 mm
No. of leads
1 x
Manufacturer part #
346109.0010
Content
10 pc(s)
Datasheet (PDF)
Number
Total (1 m = € 19.61)
€ 58.82
plus VAT.
Only 1 Set(s) available
Technical specifications
- 75 A load capacity
- Stranded conductor: 0.15 mm²
- Operating temperature range +5 °C to 105 °C.
- Weighs 0.1 kg/m.
- Product type
Flat
- Length
300 mm
- No. of leads
1 x
- Manufacturer part #
346109.0010
- Content
10 pc(s)
- Sold per metre
No
- Cross section
1 x 10 mm²
- Cross section (each core)
10 mm²
- Type
EMVMB 10/300/M6, 1VPE=10
Documents & Downloads
Datasheet
Datasheet 3124492 Flat band conductor, copper braiding, single wire Cu ETP UNI 5649-71, similar to DIN 72333 346109.0010 Lütze Content: 10
User & Safety Instructions
User & Safety Instructions 3124492 Flat band conductor, copper braiding, single wire Cu ETP UNI 5649-71, similar to DIN 72333 346109.0010 Lütze Content: 10
Description
EMC accessories, flat bands, ribbon strips, copper braid, tin plated, Single wire Cu ETP UNI 5649-71, similar to DIN 72333.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 pieces á 300 mm
