FLIR Acoustic camera Colour display Si2x-Pro 2 kHz - 130 kHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 29,881.51 / piece)
€ 29,881.51
plus VAT.
14-day return policy included
Highlights & Details

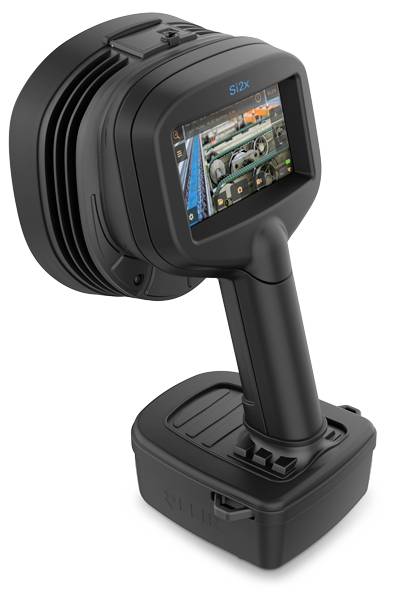

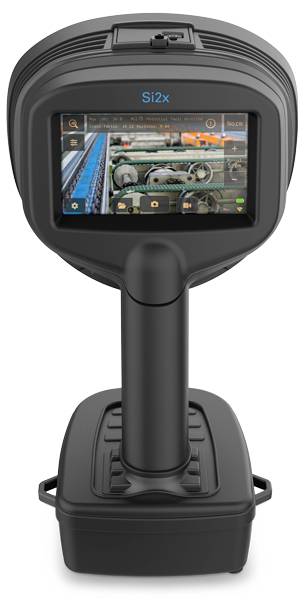

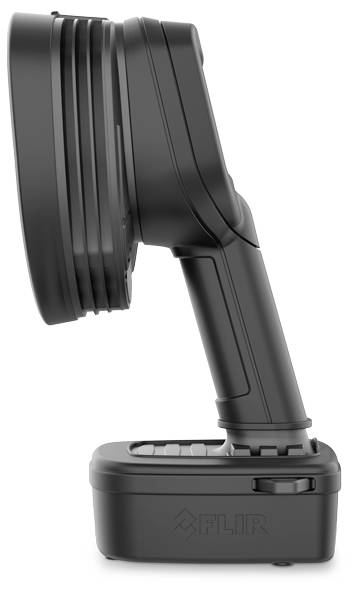

FLIR Si2x-Pro - Industrial Acoustic Imaging Camera
- ATEX certified for zone 2 (gas) and zone 22 (dust)
- Distance: From 0.3 to 200 m.
- 124 low-noise MEMS microphones
- Advanced KI
Technical specifications
- Li-ion battery 14.4 V 3450 mAh
- Max. Battery life 2.5 h
- Distance: 0.3 - 200 m.
- 5 inch (12.7 cm) color screen (1280 x 720)
- Picture rate: 30 fps
- Operating temperature: -10 °C to + +50 °C.
- Protection class IP54
- Product type
Acoustic camera
- Reading type
SPL
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 184 x 167 x 276 mm
- Max. frequency
130 kHz
- Min. frequency
2 kHz
- Frequency range
2 kHz - 130 kHz
- Width
167 mm
- Height
276 mm
- Length
184 mm
- Features
Colour display
Documents & Downloads
Datasheet
Datasheet 3345925 FLIR Acoustic camera Colour display Si2x-Pro 2 kHz - 130 kHz
Information
Test Summary Report 3345925 FLIR Acoustic camera Colour display Si2x-Pro 2 kHz - 130 kHz
Security datasheet
Security datasheet 3345925 FLIR Acoustic camera Colour display Si2x-Pro 2 kHz - 130 kHz
Description
Detection of gas or compressed air leaks, mechanical problems and electrical partial discharges. This camera is used for leak inspections in potentially explosive locations with volatile vapors and dust in the atmosphere.
This text is machine translated.
This text is machine translated.
Features
- Mechanical fault detection and measurement
- Distance: From 0.3 to 200 m.
- Extensive and improved leak detection
- Easy one-handed operation with automatic tuning
- Heller 5-inch color display (1280 x 720)
- 12-MP camera, 8-fold digital zoom and LED-lamps see to it that the visual details are captured even over long distances or in areas with little light

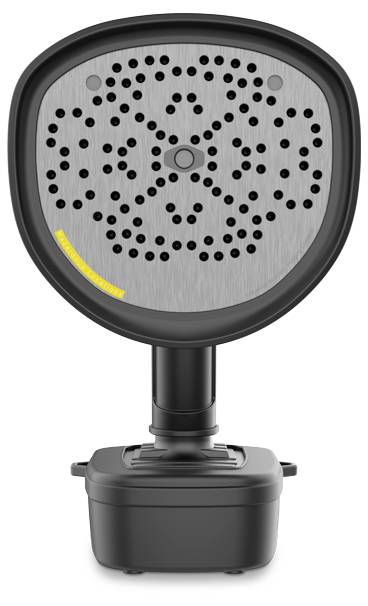

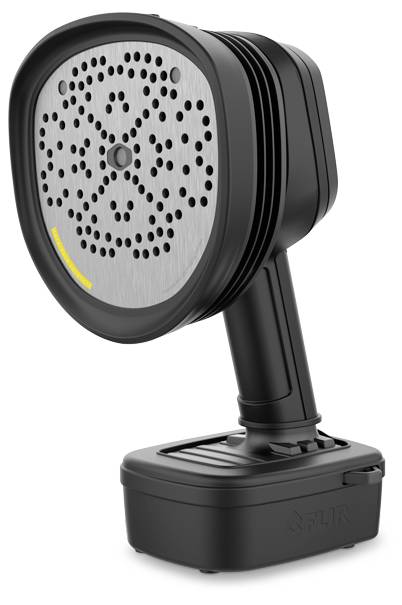

- The camera uses 124 low-noise MEMS microphones and provides real-time sound visualization
- Locates air and gas leaks
- Gas quantification (ammonia, hydrogen, helium, CO2, methane and argon)
- Bandwidth (2 to 130 kHz)
- Upload measurements to the cloud for storage and analysis thanks to built-in Wi-Fi
- PD severity rating for analysis of critical high-voltage components
- Fleet management functions for efficient tool use and maintenance
- Li-ion battery (battery runtime up to 2.5 hours)
- GPS tagging/QR code scanning
- Automatic filter
- AutoDistance
- Advanced KI
- Touch-screen
- Video recording
- LED light
- Wi-Fi compatible
- Memory function
- Internal memory 128 GB
- SD-Card slot
- USB port
- Visual image
Scope of delivery
- Camera
- Rechargeable battery (2 pieces)
- Battery charger
- Camera strap
- Hard case
- License card: FLIR Si-series plugin for FLIR thermal studio, perpetual license
- USB memory stick
- Power cable;
- Printed documents
