Buy FLIR Charging station analyzer No. of ports 1

FLIR handheld inspection camera kit with carrying case, strap, detachable sensor, and USB cable on a white background.

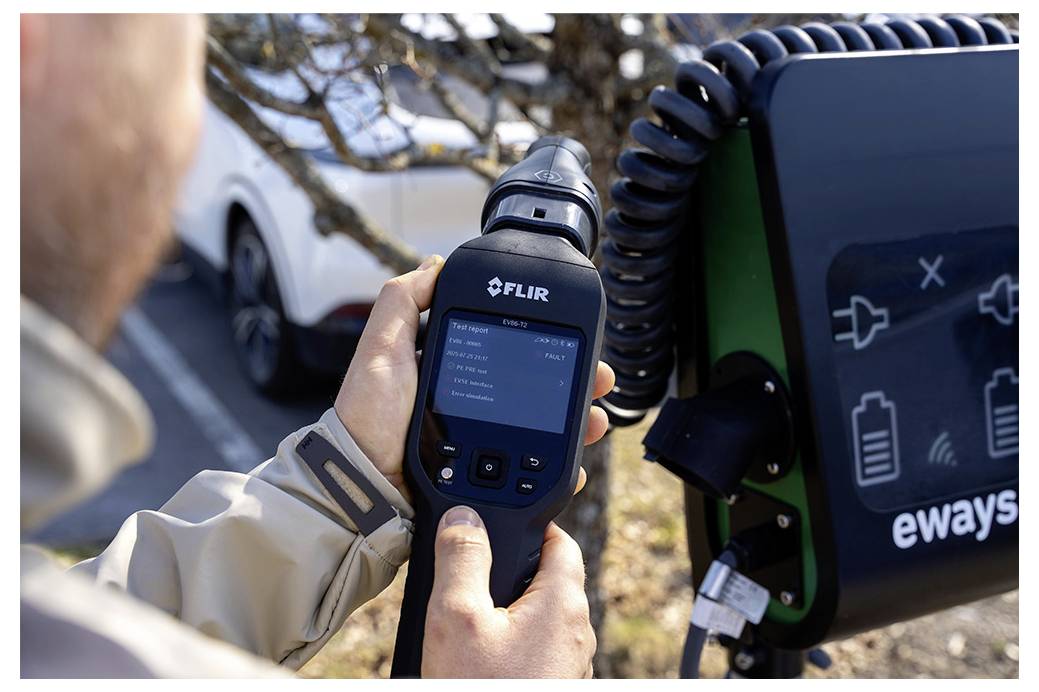

Person uses a FLIR thermal camera to inspect an eways electric vehicle charger, with car and outdoor background visible.

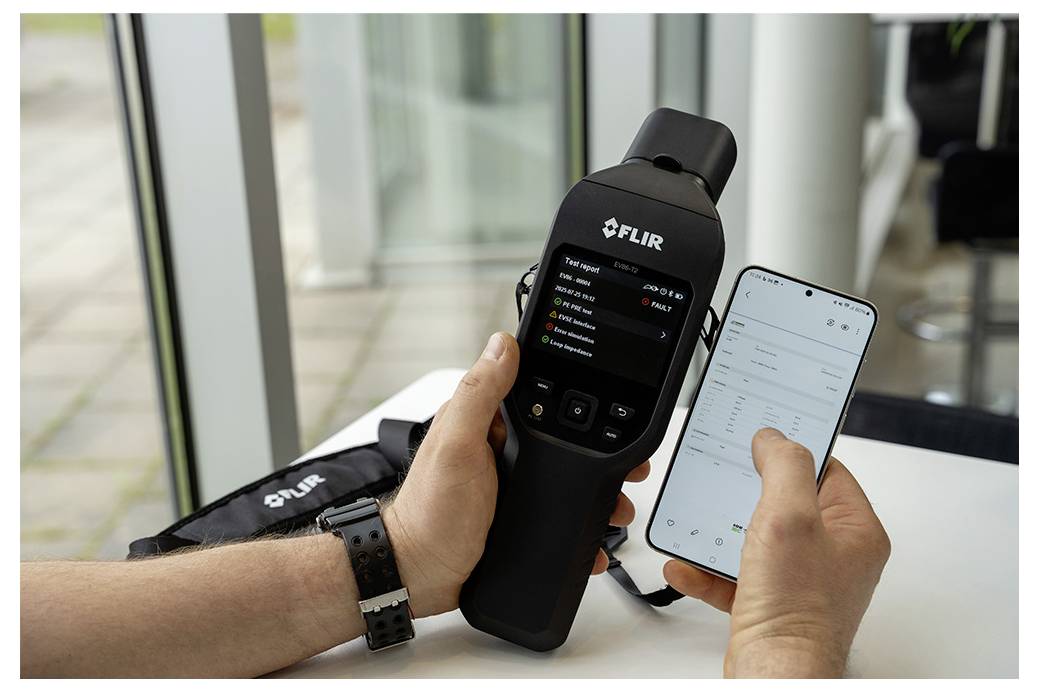

Person using a FLIR thermal camera and smartphone app side by side, likely to view and control thermal imaging settings.

Front view of a black electric vehicle charging connector with seven round sockets and a protective cap on the lower body.

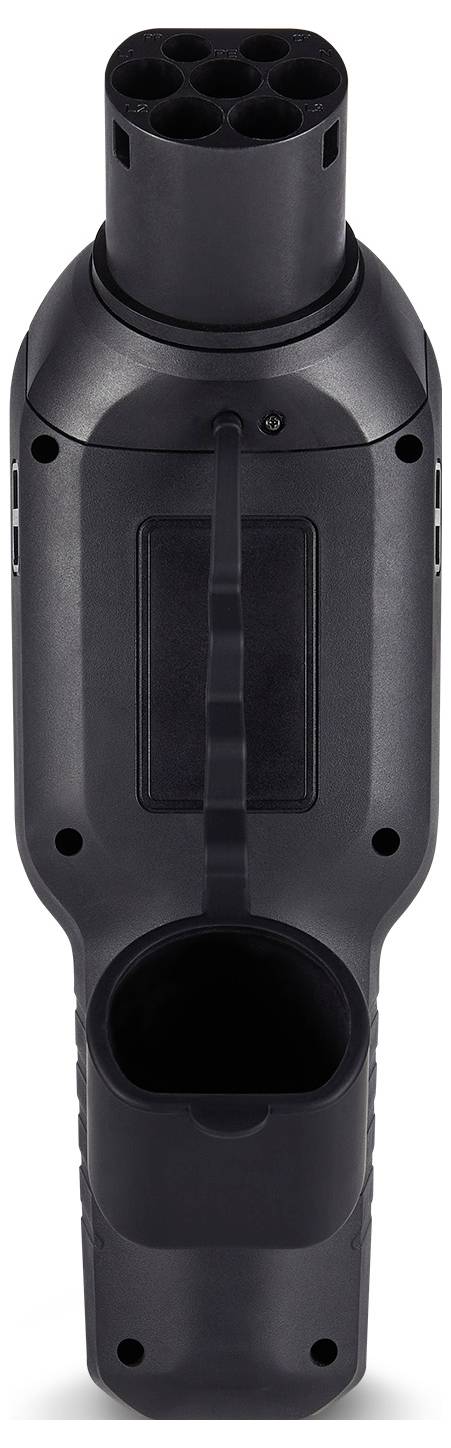

Black plastic electric vehicle charging connector or dock shown front view, with multiple circular socket openings and a large central handle panel.

Black electronic device with a centered USB-C port and a small front flap or cover on a boxy, matte casing.<br>

Handheld FLIR EVB-12 tester displaying a waveform graph on its screen, with control buttons below for testing electric vehicle charging equipment.

FLIR EVSE-2 handheld tester showing a waveform graph on its display, used to check electric vehicle charging station signals.

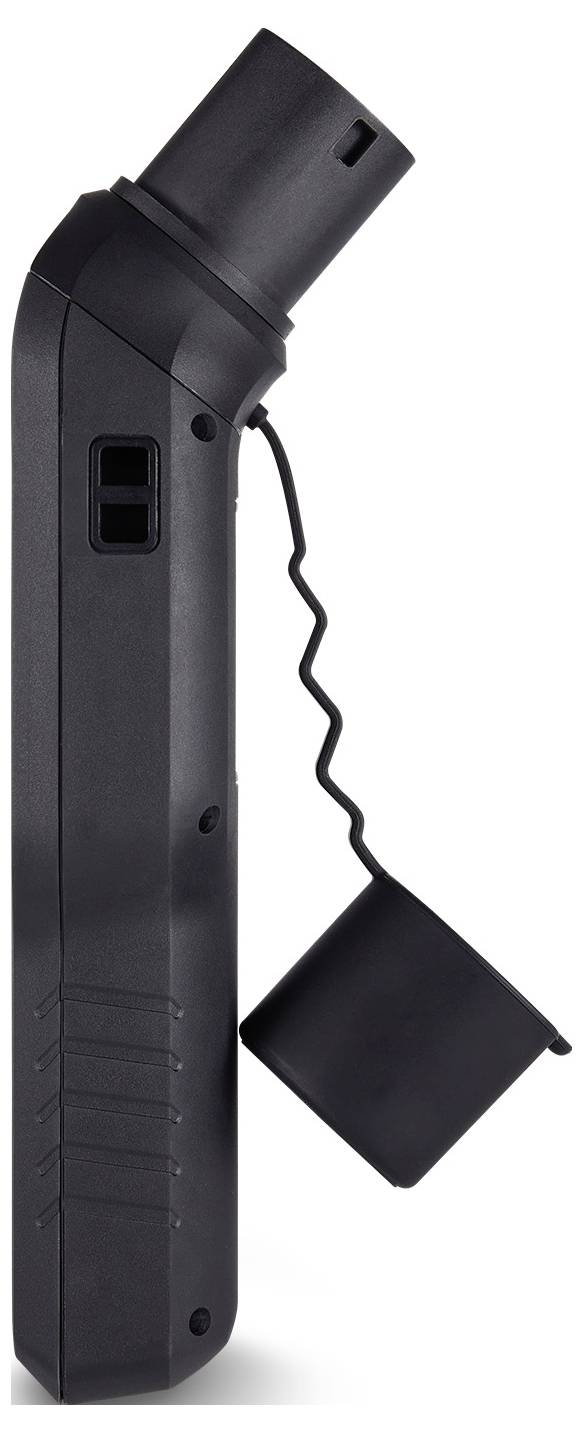

Black handheld electronic device with a coiled cord and rectangular attachment hanging from the side, shown on a white background.

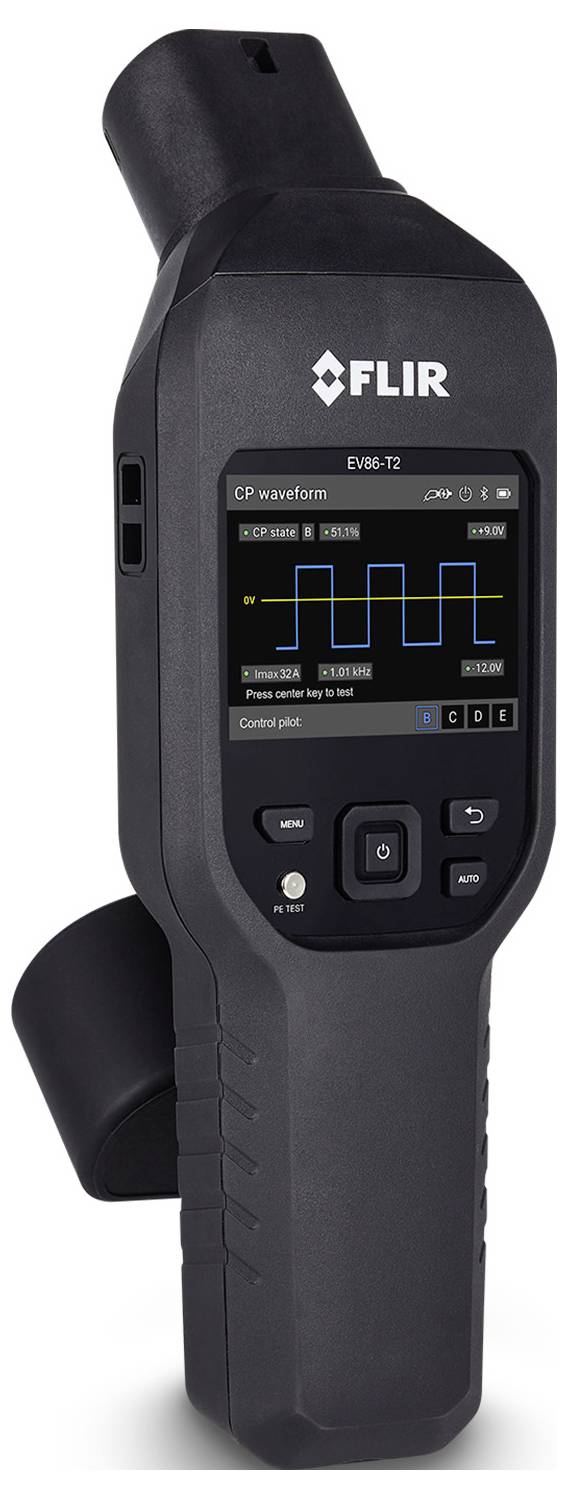

FLIR EV12 handheld thermal inspection camera showing a display with a CP waveform graph and control buttons on the front<br>

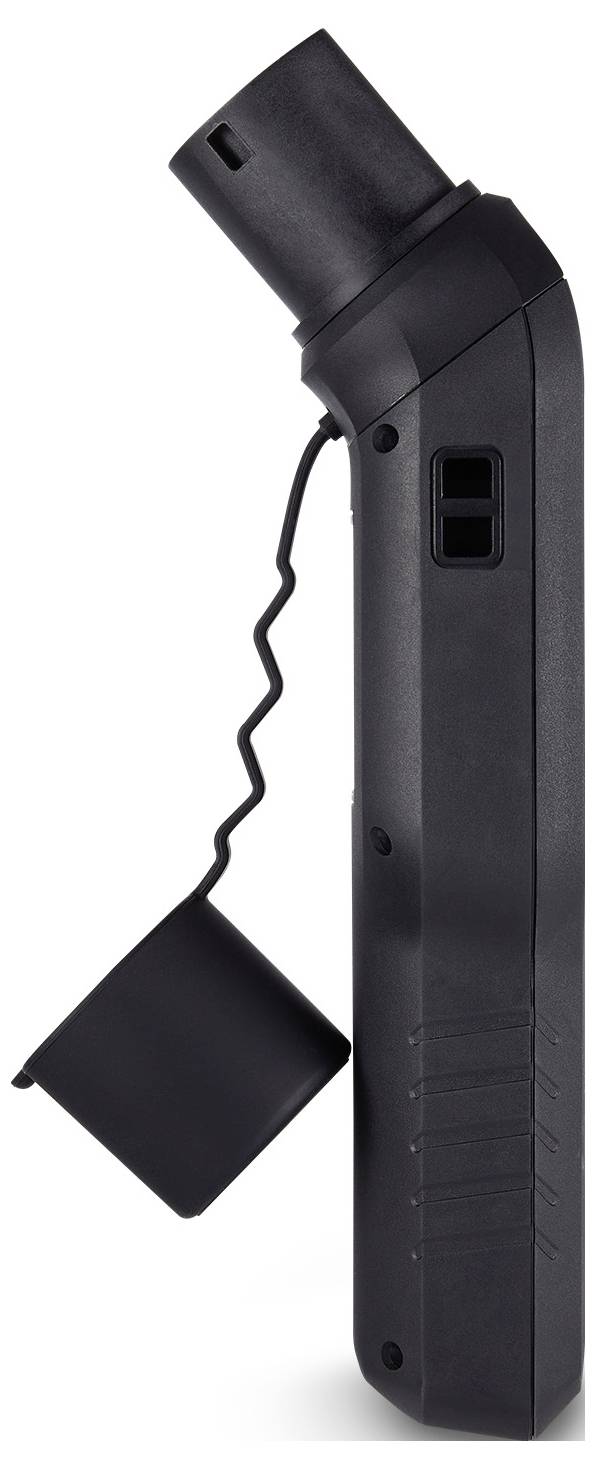

Black handheld device with a dangling square sensor or cover attached by a wavy cable, shown in side view on a white background.

1/11

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,831.09 / piece)

€ 2,831.09

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Charging station analyzer

No. of ports: 1

No. of phases: 1- & 3-phase

Nominal voltage: 250 V
440 V

Type: EV charger analyzer/tester with MeterLink

: CAT II

Factory colour: Black/grey

Length: 293 mm

Width: 93.5 mm

Height: 50 mm

Weight: 760 g

Nominal current: 10 A

Max. temperature: 60 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

Datasheet 3829546 FLIR Charging station analyzer No. of ports 1

User & Safety Instructions

User & Safety Instructions 3829546 FLIR Charging station analyzer No. of ports 1

Description

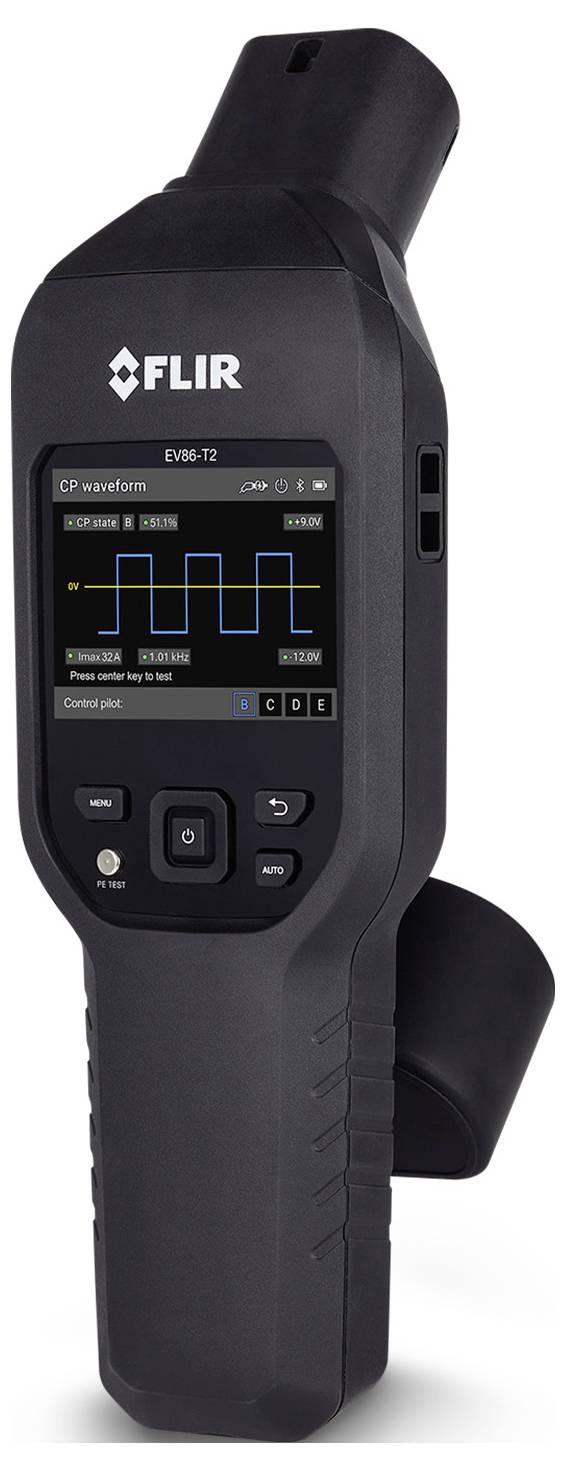

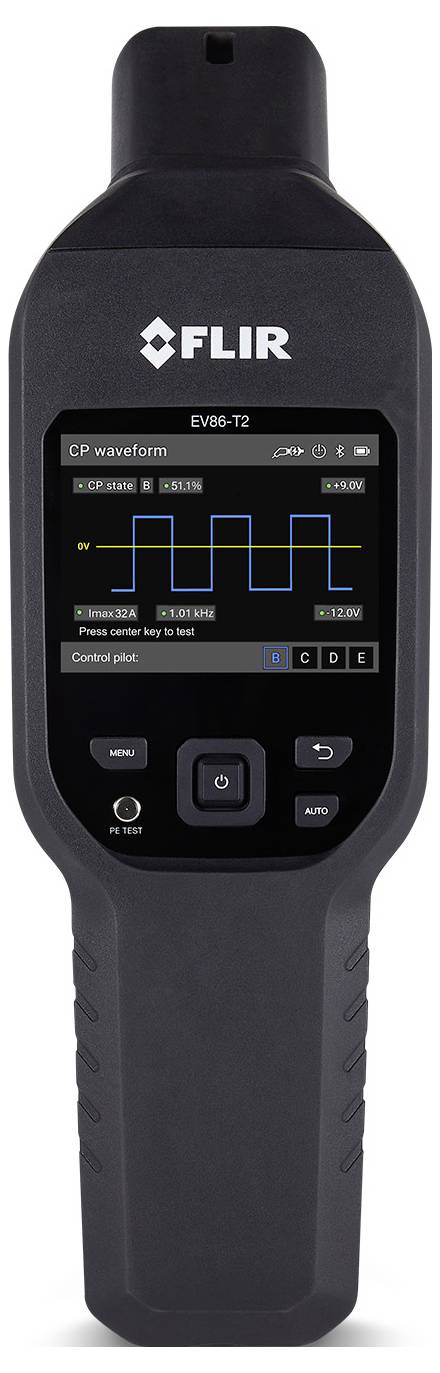

Comprehensive solution for the safety and functional testing of AC-E charging stations in the private and commercial sector. It supports charging modes (Mode 1, Mode 2 and Mode 3) with integrated Type 2 charging jack and a compact Type 1 adapter for broad compatibility. Thanks to seamless BLE (Bluetooth Low Energy) connectivity, the EV86-T2 enables automated test routines that optimize workflows, deliver clear pass/fail results and display reliable voltage safety information in advance. CP signal analysis (Control Pilot) for peak voltage, frequency and pulse duty factor. In conjunction with the MeterLink-APP, the EV86-T2 helps you to carry out tasks safely and efficiently, including instant reporting and easy data transfer.

This text is machine translated.

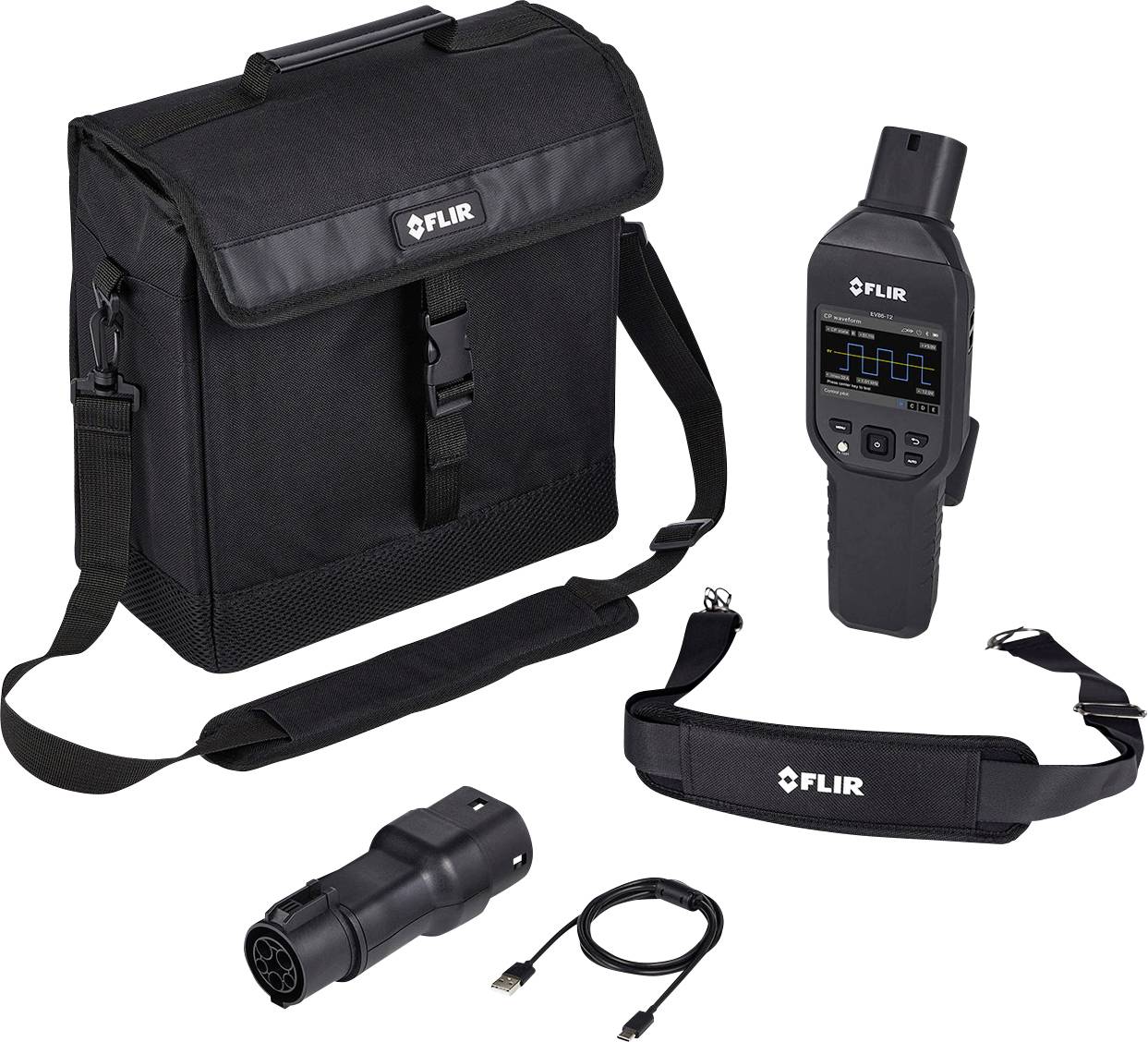

Scope of delivery

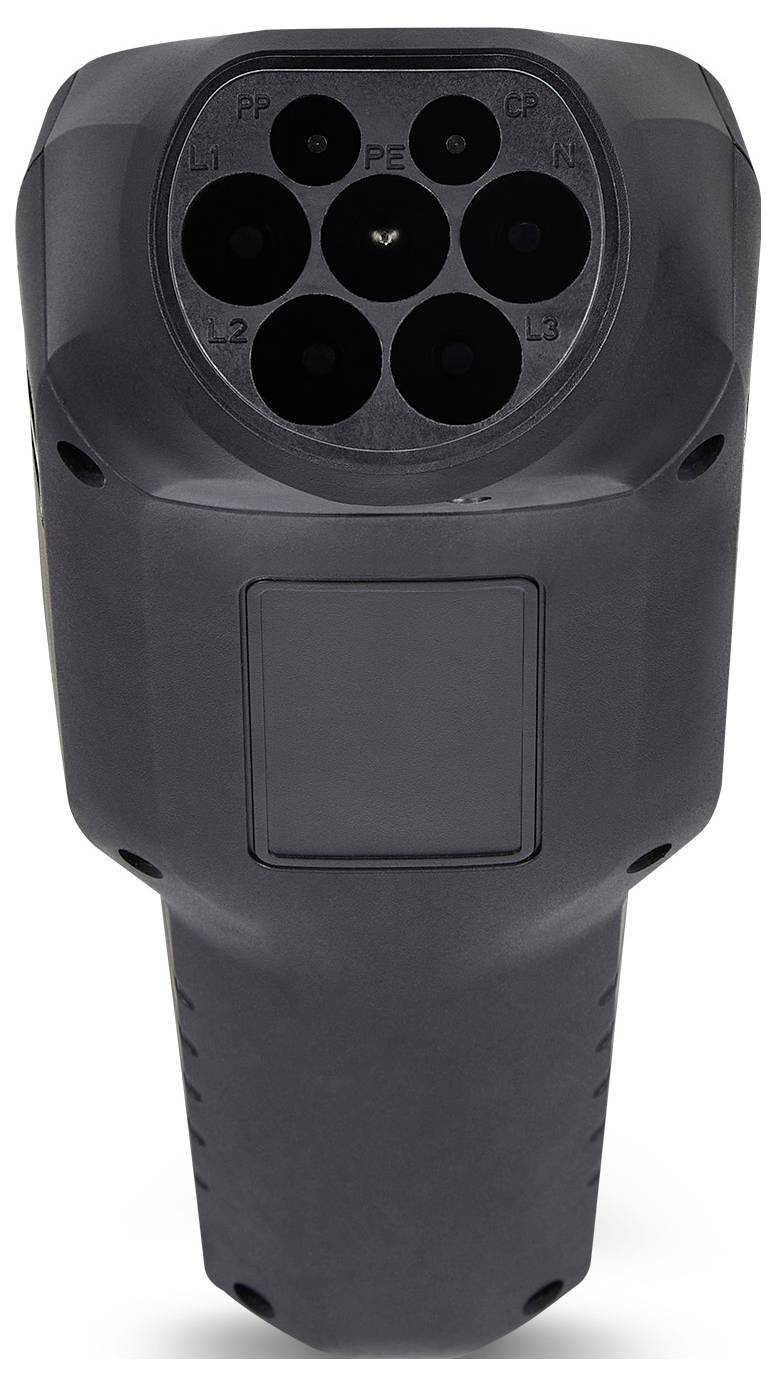

Converter for type 1
Carrying case
Neck strap

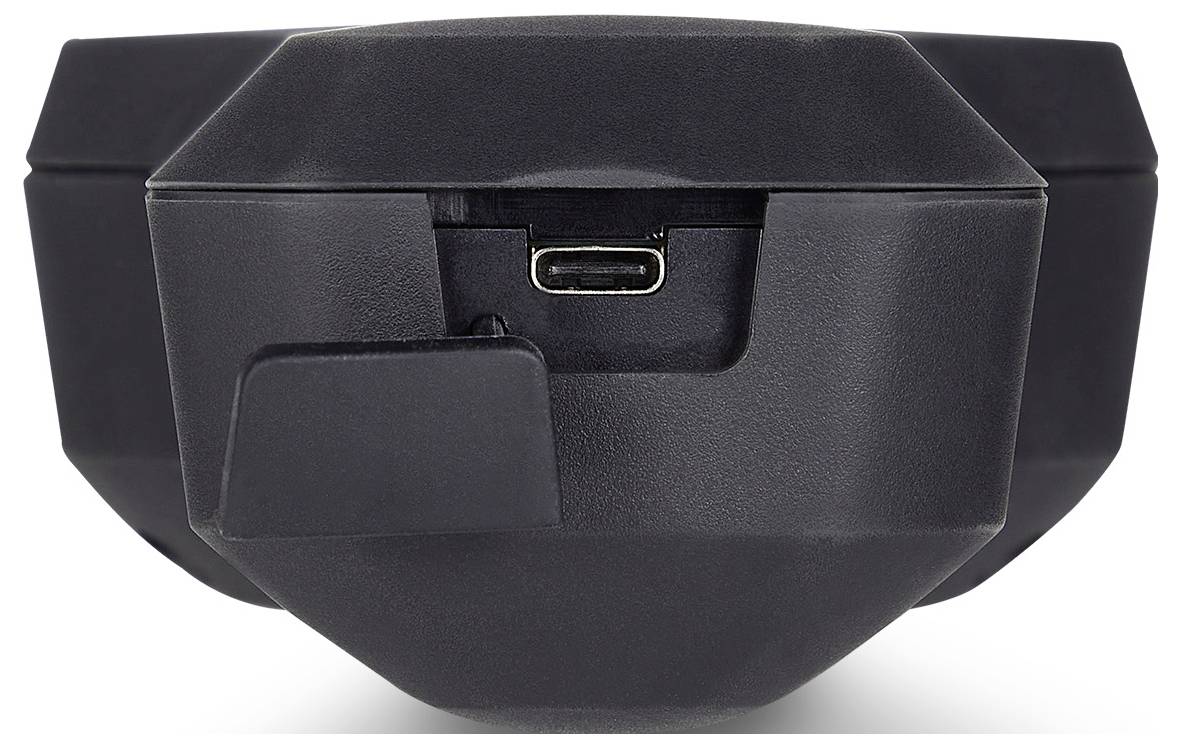

USB type A to type C cable
Quick guide
