FLIR CM65 Clamp meter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 483.19 / piece)
€ 483.19
plus VAT.
14-day return policy included
Clamp-on ammeter CM65
Highlights & Details
- CAT III 1000 V, CAT IV 600 V
- Optimized for solar applications: MV scale, low DC measurements, more accurate DC measurements and MC4 test leads supplied
- LoZ mode for eliminating errors in residual spirit voltages
Technical specifications
- Protection class: IP40
- Storage: 8 GB
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (max.)
1000 V
- A DC reading range (max.)
600 A
- Amperage reading range AC (max.)
600 A
- Reading range - resistance
up to 6000 kΩ
- Frequency reading range
50 - 500 Hz
- Temperature
-40 to +400 °C
- Basic accuracy
1.5 %
- Measurement type (details)
True RMS
- Power supply (details)
3x batteries type AA
- Height
40 mm
- Width
80 mm
- Length
251 mm
- Weight
300 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
CM65
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 251 x 80 x 40 mm
- Features
Data logger
- Opening range of current clamps
30 mm
Documents & Downloads
Datasheet
Datasheet 2179969 FLIR CM65 Clamp meter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 2179969 FLIR CM65 Clamp meter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Description

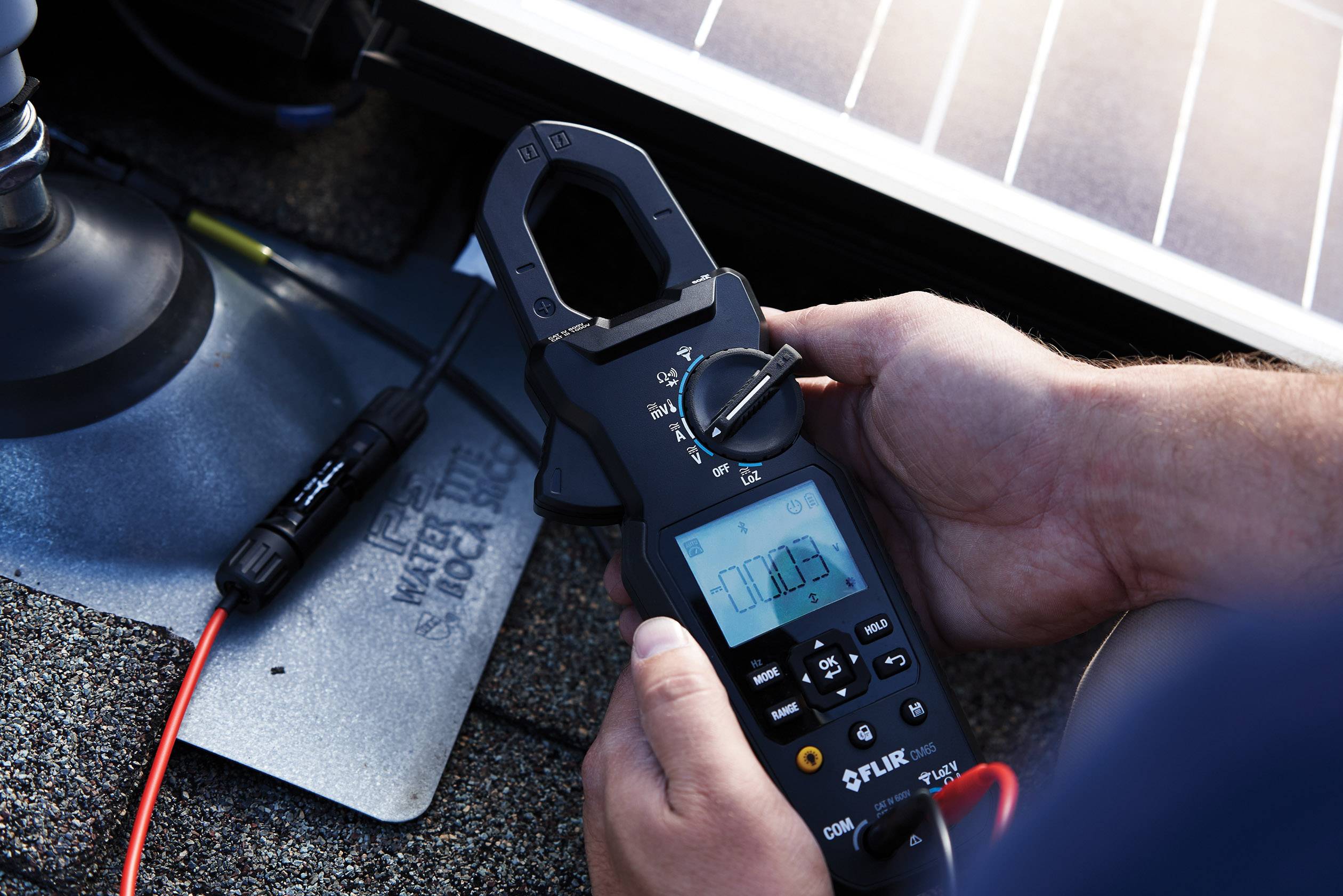

The CM65 is a rugged clamp meter designed specifically to meet the challenges of installing, maintaining and repairing solar power systems. This clamp-on ammeter is supplied with MC4 quick-connect test leads that improve the accuracy and safety of direct current measurements on solar cell lines and inverters. With the CM65, you can check the AC power and the inverter efficiency and then save the measured values in the internal memory. Share data wirelessly via MeterLink® or monitor measurements live on a smartphone with the FLIR Tools® mobile app.
This text is machine translated.
This text is machine translated.
Features
- With functions such as resistance, frequency, temperature and continuity.
- MeterLink-compatible for simplified workflows
- Save the measured values in the internal memory for further analysis
Scope of delivery
- Test Leads
- MC4 test leads
- Quick start guide
- Manual
- Bag
- Type K temperature sensor
