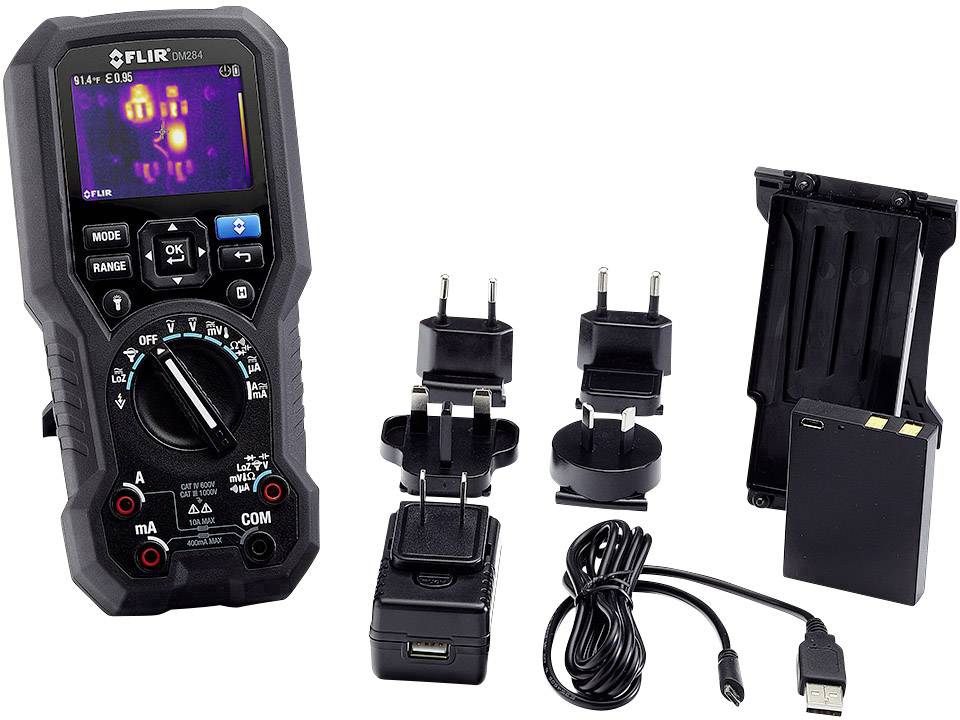

FLIR DM284-KIT Handheld multimeter Digital Built-in thermal imager, Graphics display CAT III 1000 V, CAT IV 600 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 743.70
5
3% = € 22.31
€ 721.39
10
5% = € 37.19
€ 706.51
50
10% = € 74.37
€ 669.33
100
20% = € 148.74
€ 594.96
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 743.70 / piece)
€ 743.70
plus VAT.
14-day return policy included
Highlights & Details
Infrared Multimeter DM284-KIT
- 2 in 1-Digital Multimeter and thermal imaging technology in innovative combination
- CAT III 1000 V, CAT IV 600 V
- True RMS measurement
- Bolometer matrix: 160 x 120 pixels
- Thermal sensitivity< 150 mK
- IR-measurement range -10 to +150 °C
Technical specifications
- Measurement range temperature type K: -40 to +400 °C
- Color Palettes: 3
- Measuring accuracy 3°C or 3.5%
- Degree of emission: individually adjustable, 4 preset levels
- Fixed focus
- Display size: 7.11 cm
- Bolometer matrix: 160 x 120 pixels
- Voltage reading range DC (min.)
0 V
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0 A
- A DC reading range (max.)
10.00 A
- A AC reading range (min.)
0 A
- Amperage reading range AC (max.)
10.00 A
- Reading range - resistance
0 Ω - 50 MΩ
- Reading range - capacity
0 - 10 mF
- Frequency reading range
0 Hz - 99.99 kHz
- Temperature
-10 to +150 °C
- Basic accuracy
0.09 %
- Measurement type (details)
True RMS
- Height
200 mm
- Width
95 mm
- Length
49 mm
- Weight
537 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Type
DM284-KIT
- Display
Digital
- Dim
(L x W x H) 49 x 95 x 200 mm
- Features
Built-in thermal imager
Graphics display
Documents & Downloads
Datasheet
Datasheet 1881761 FLIR DM284-KIT Handheld multimeter Digital Built-in thermal imager, Graphics display CAT III 1000 V, CAT IV 600 V
Description
The FLIR DM 284 infrared multimeter with IGM is a professional complete instrument, a digital TRMS TRUE RMS multimeter and an infrared camera that combines and you for a faster fault diagnosis exactly on the point of the electrical problem notes. With its infrared-controlled measuring help technology Igm (Infrared Guided measurement) and its integrated FLIR infrared sensor with a resolution of 160 x 120 pixels leads you to precisely the point in the respective the DM 284 visually electrical problem, so that you can detect hot-spots faster and more efficiently. You can control cabinets with IGM, connections and cable from a safe distance check, without this to touch. Once you have a problem with IGM detected, the DM 284 the results with its extended contact measuring functions check and confirm them when loosening the most complicated electrical problems.
Ideal for on-site fault diagnostics in electronics systems, commercial electrical systems, in light industrial environments, with field service operations and when working on HVAC systems.
You can feel more errors by electrical problems visually identify
• With the FLIR infrared sensor with a resolution of 160 x 120 pixels, you can recognize the ideal measuring point
• Complete instrument: You need only a device to carry to each order to be able to use the benefits of infrared technology.
• With IGM, you can switch cabinets and distributor boxes from a safe distance check, without this to touch
Identify and fix with ease complex problems
• Digital multimeter with 18 functions, among others. VFD-low-pass filter mode, TRMS real effective value, LoZ and contact-less voltage testing (NCV)
• Thermocouple Input
• Simultaneous display of thermal and thermocouple measurement values.
Long-lasting for all professional requirements
• Built-in LED lights and a laser pointer make it easier for you to work in hard-to-reach locations with poor lighting conditions, so that the problem location on the thermal image to identify and locate can
• With the user-friendly user interface, you can choose different color palettes: iron, Rainbow, Grayscale
• Robust and tested on drop specification
This text is machine translated.
Ideal for on-site fault diagnostics in electronics systems, commercial electrical systems, in light industrial environments, with field service operations and when working on HVAC systems.
You can feel more errors by electrical problems visually identify
• With the FLIR infrared sensor with a resolution of 160 x 120 pixels, you can recognize the ideal measuring point
• Complete instrument: You need only a device to carry to each order to be able to use the benefits of infrared technology.
• With IGM, you can switch cabinets and distributor boxes from a safe distance check, without this to touch
Identify and fix with ease complex problems
• Digital multimeter with 18 functions, among others. VFD-low-pass filter mode, TRMS real effective value, LoZ and contact-less voltage testing (NCV)
• Thermocouple Input
• Simultaneous display of thermal and thermocouple measurement values.
Long-lasting for all professional requirements
• Built-in LED lights and a laser pointer make it easier for you to work in hard-to-reach locations with poor lighting conditions, so that the problem location on the thermal image to identify and locate can
• With the user-friendly user interface, you can choose different color palettes: iron, Rainbow, Grayscale
• Robust and tested on drop specification
This text is machine translated.
Features
- Measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, diode test, acoustic continuity tester, low-impedance function, contact temperature, non-contact infrared measurement, connection of Flex clamp-on ammeter possible
- Built-in flash light
- Hold function
- Comfortable Joystick operation.
Scope of delivery
- Thermocouple probe (type K)
- Silicon test leads
- CAT IV alligator clips
- Type K plug adapter
- User manual
- TA04 Battery pack
