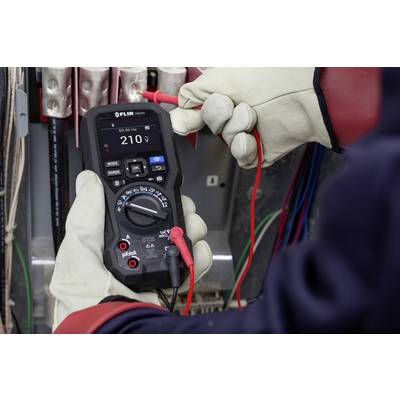

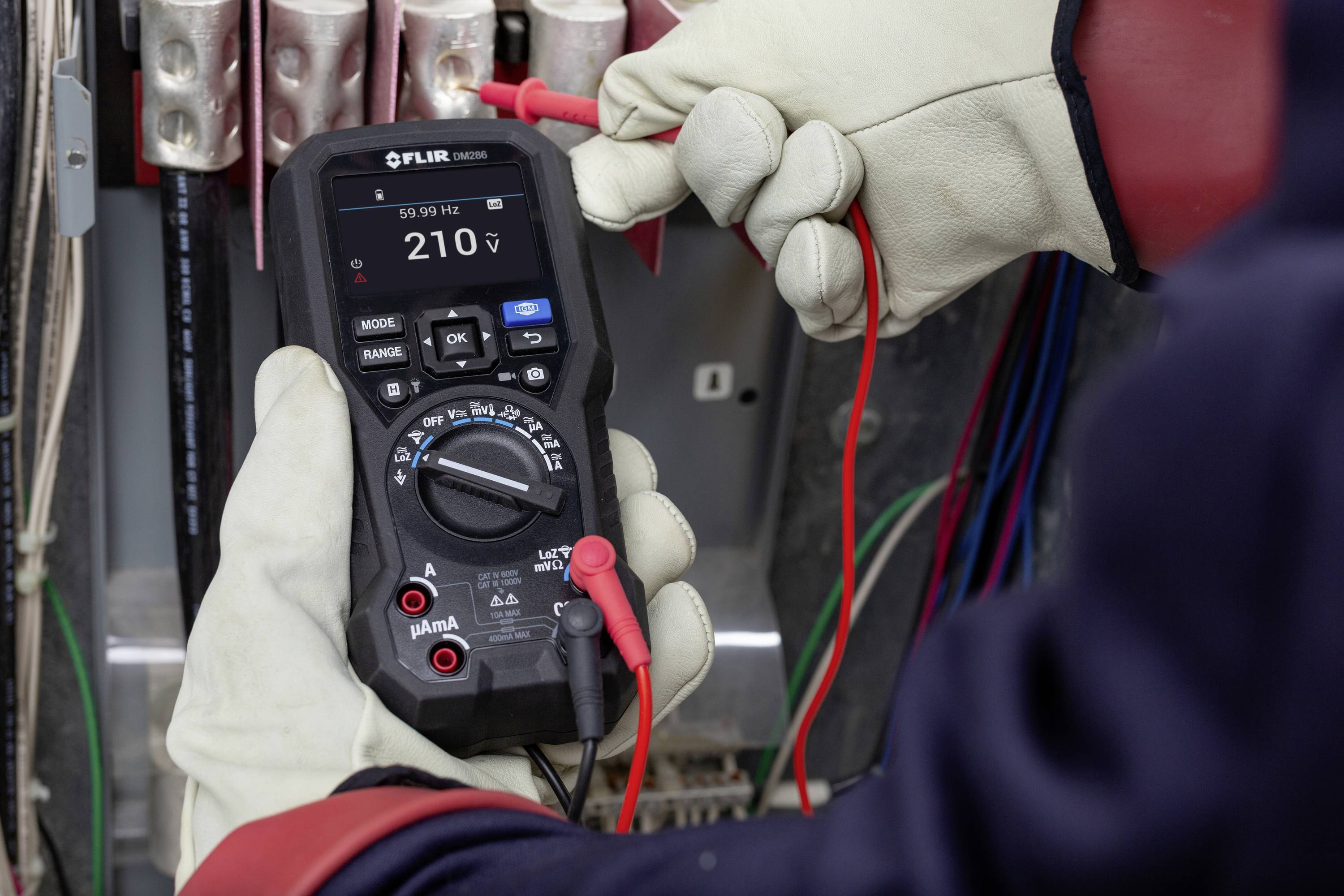

FLIR DM286 Handheld multimeter Built-in thermal imager CAT III 1000 V, CAT IV 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,037.82 / piece)
€ 1,037.82
plus VAT.
14-day return policy included
Highlights & Details
DM286
- CAT III 1000 V, CAT IV 600 V
Technical specifications
- Voltage reading range DC (min.)
600 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
600 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
400 mA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
400 mA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
60 - 6000 Ω
- Reading range - capacity
10 mF
- Temperature
-5 to +300 °C
- Basic accuracy
3 %
- Measurement type (details)
True RMS
- Interfaces
Bluetooth®
- Height
56 mm
- Width
96 mm
- Length
200 mm
- Weight
569 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Current reading
AC/DC
- Type
DM286
- Display (counts)
6000
- Dim
(L x W x H) 200 x 96 x 56 mm
- Features
Built-in thermal imager
Documents & Downloads
Datasheet
Datasheet 2937152 FLIR DM286 Handheld multimeter Built-in thermal imager CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Datasheet 2937152 FLIR DM286 Handheld multimeter Built-in thermal imager CAT III 1000 V, CAT IV 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 2937152 FLIR DM286 Handheld multimeter Built-in thermal imager CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Conformity certificate
Conformity certificate 2937152 FLIR DM286 Handheld multimeter Built-in thermal imager CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Description

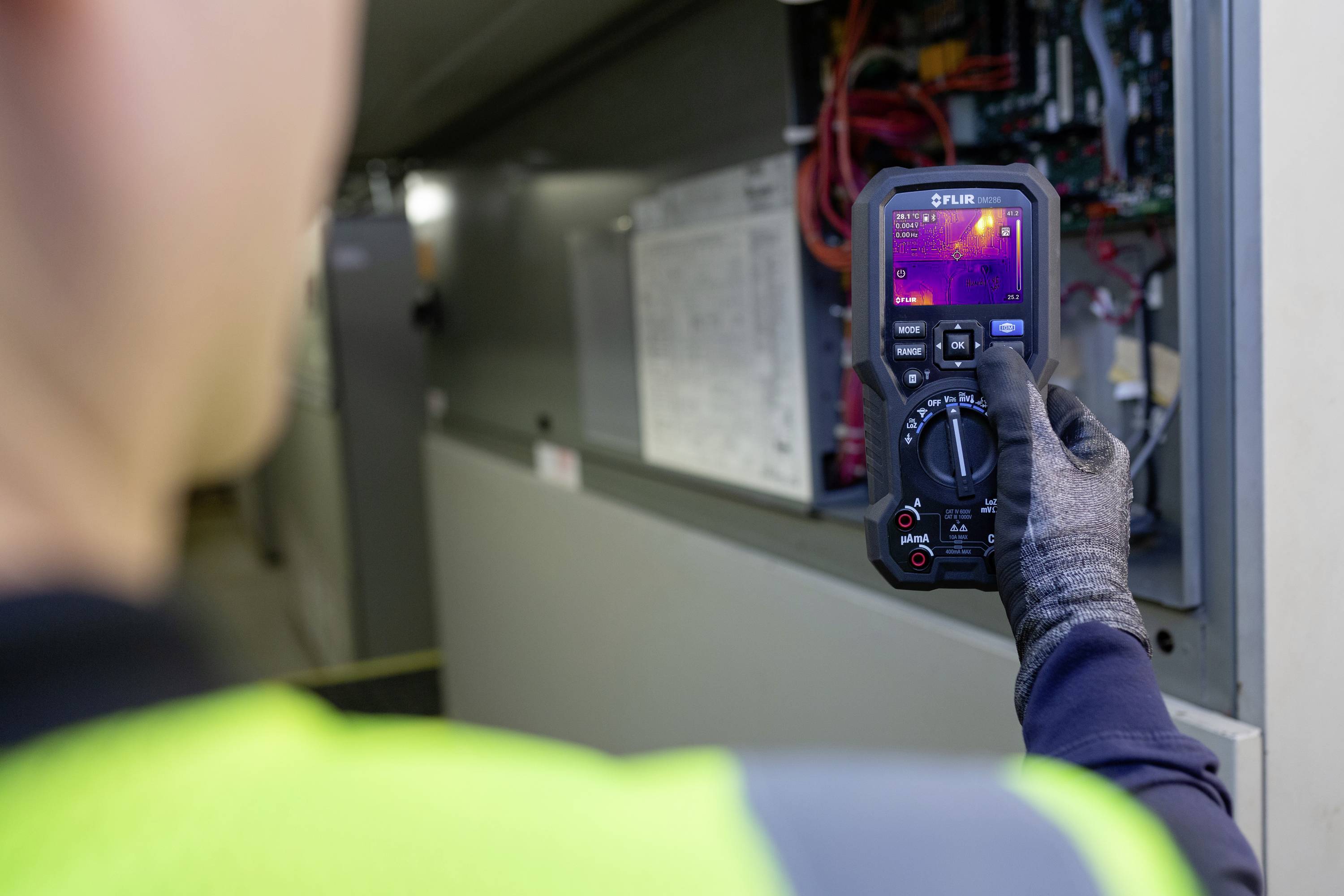

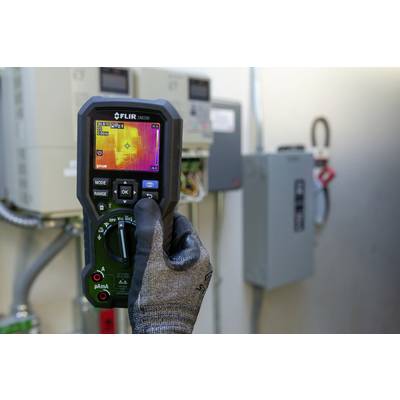

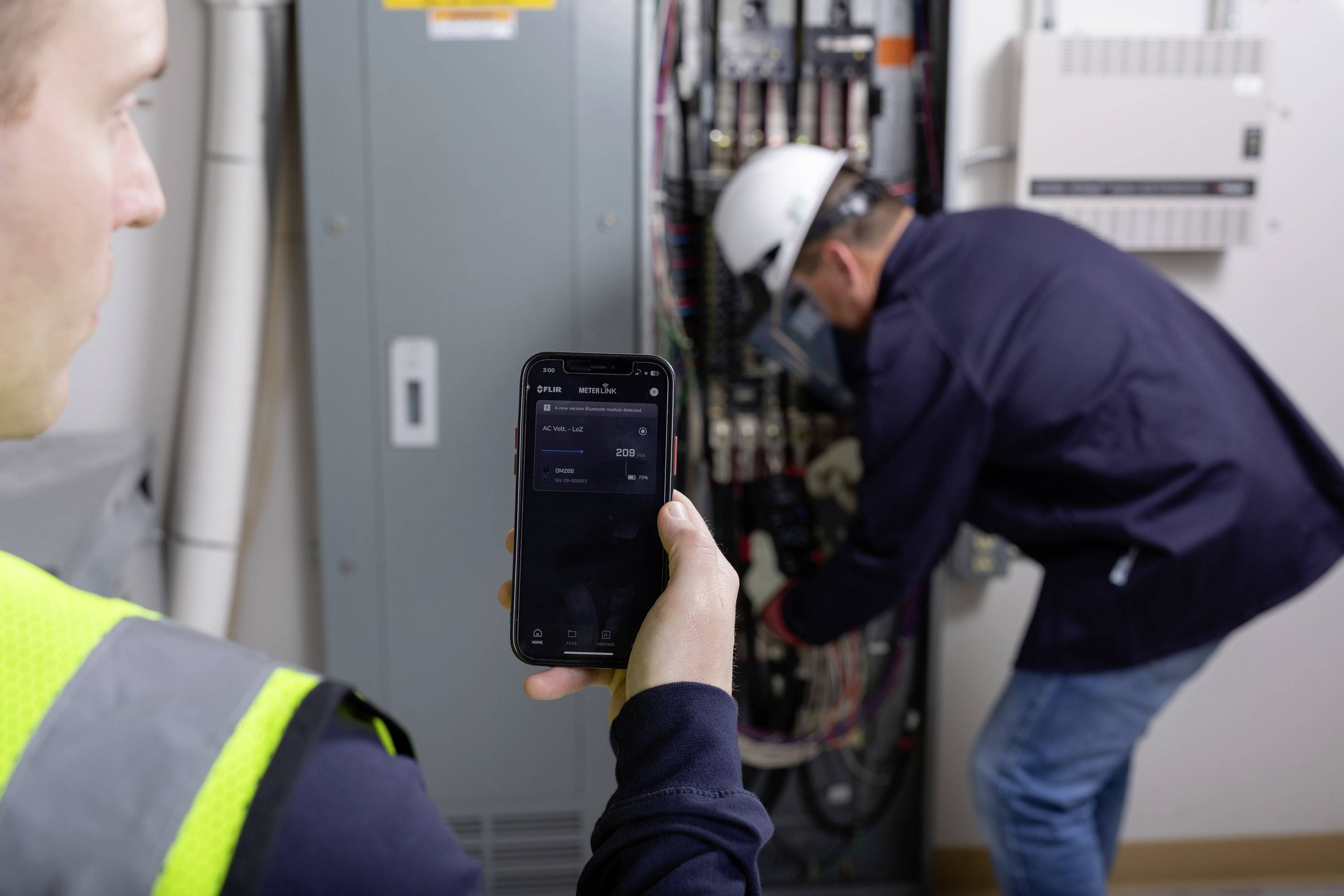

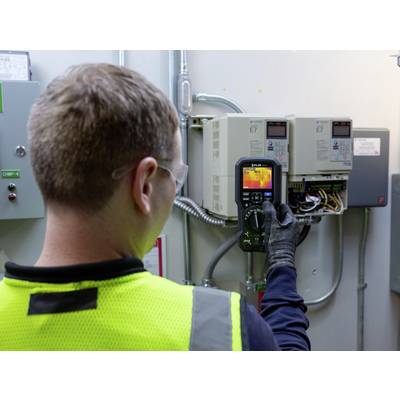

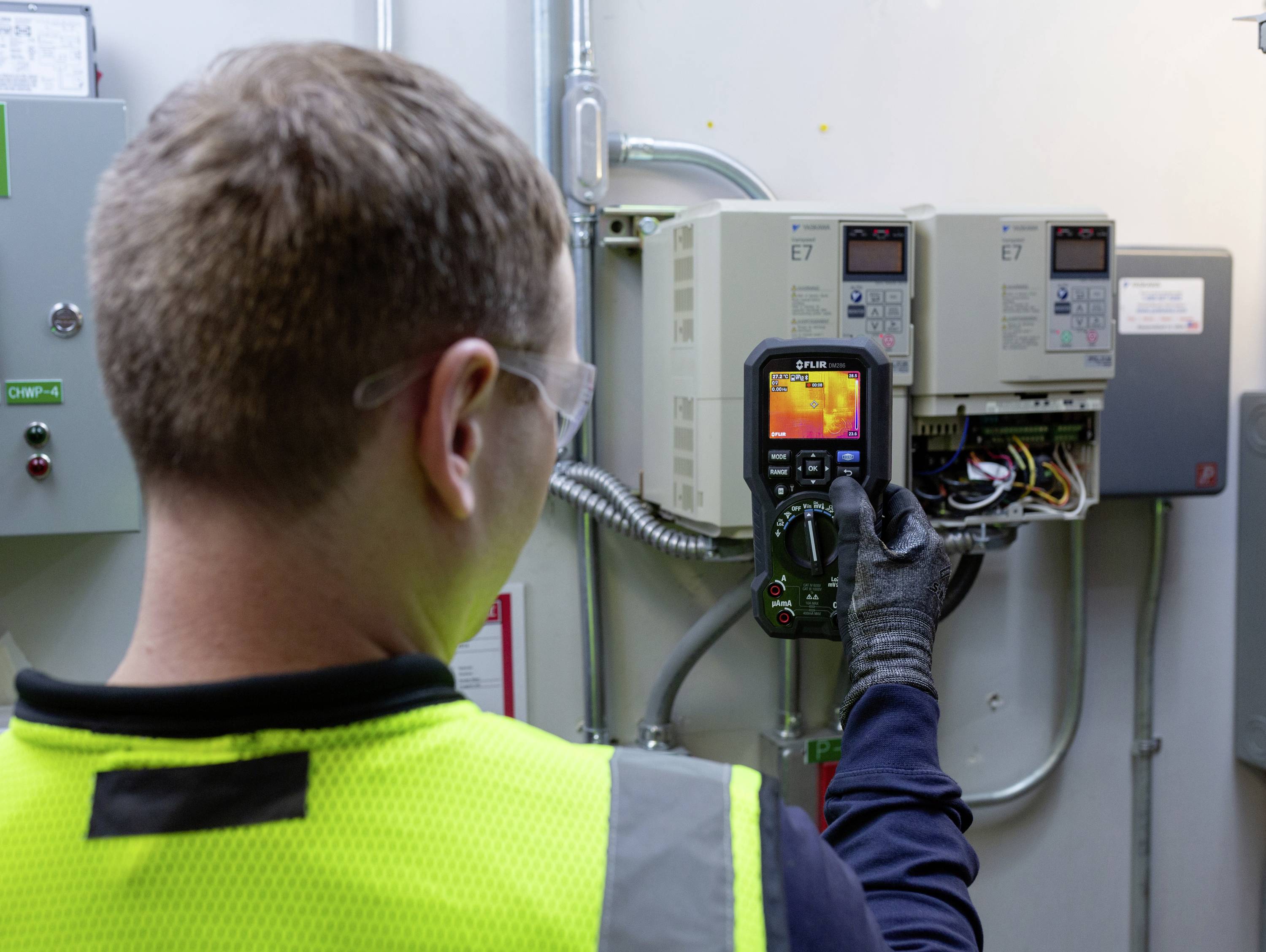

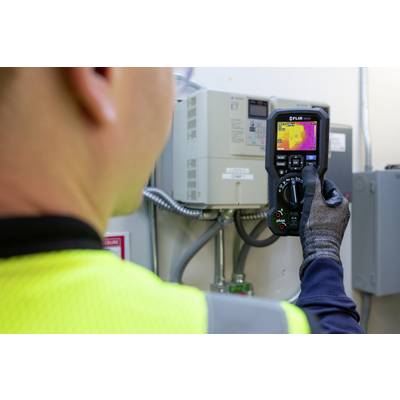

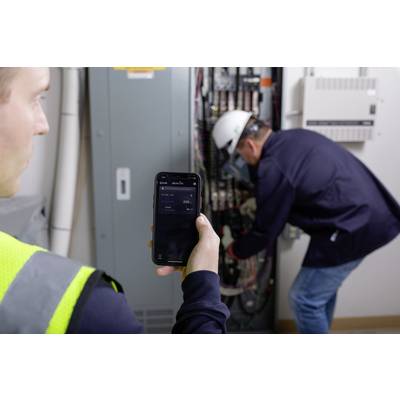

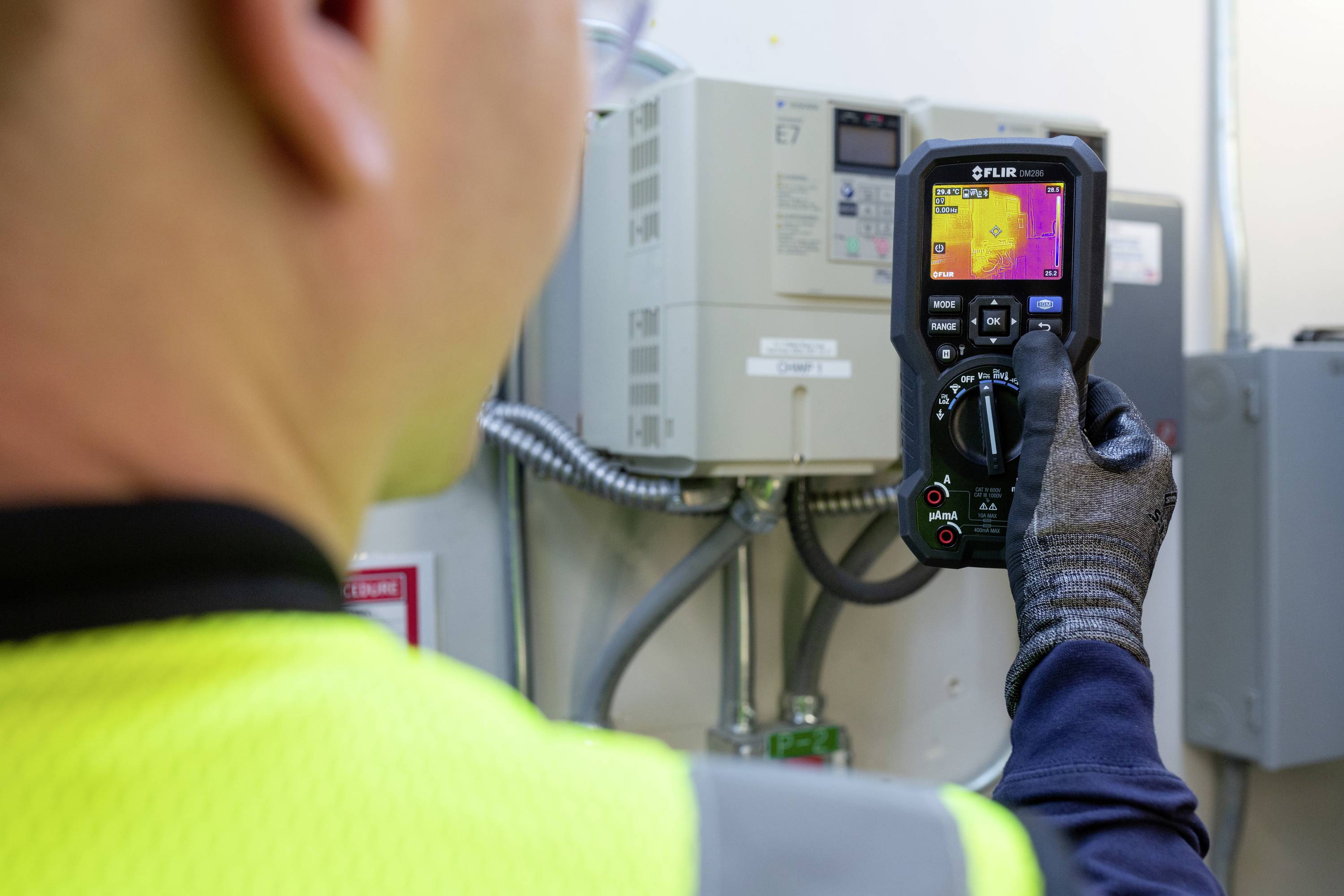

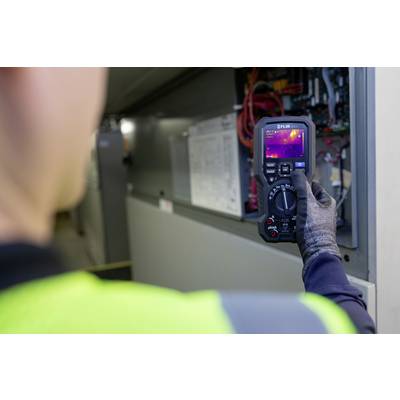

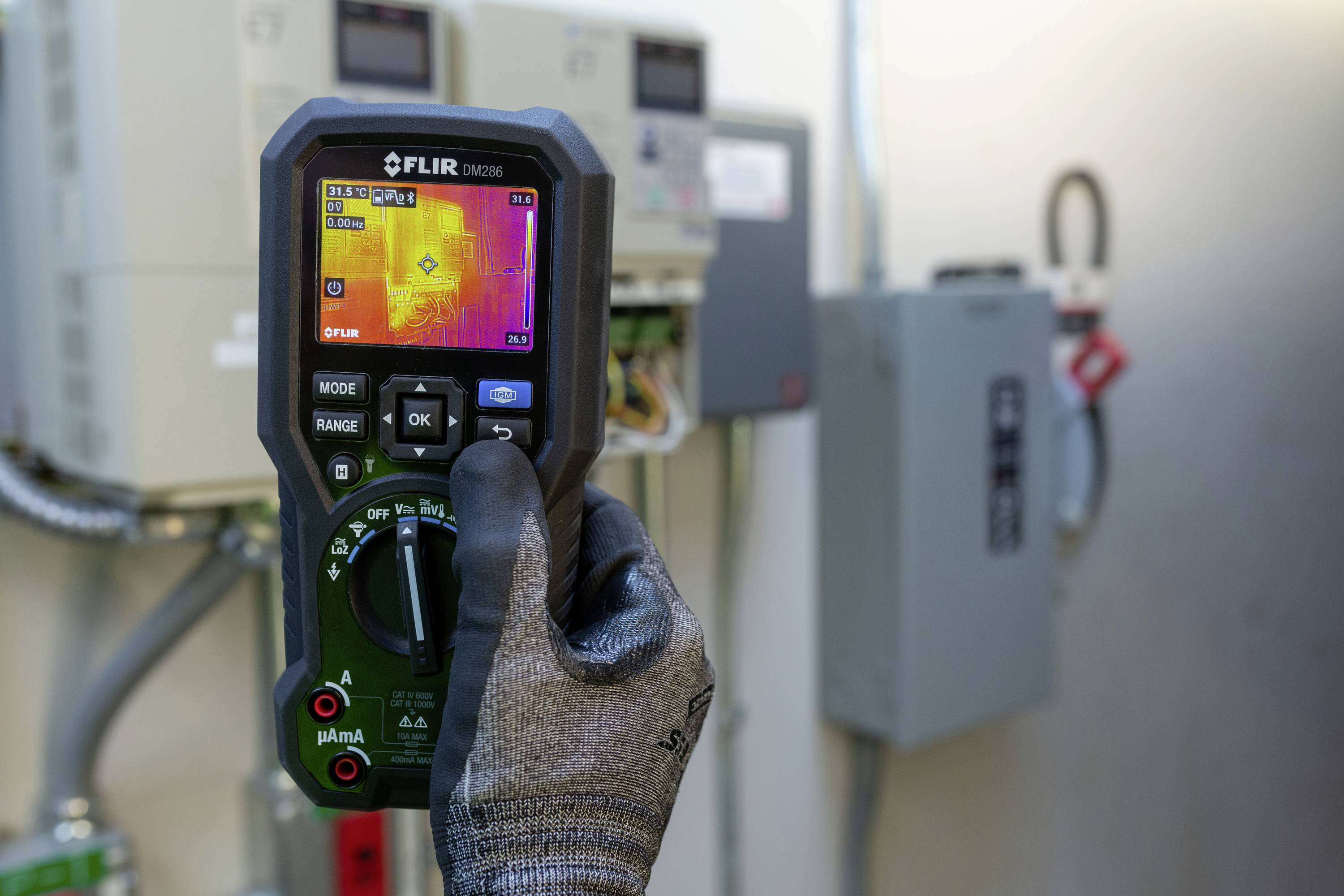

The FLIR DM286 Industrial Thermal Imaging Multimeter is the ultimate electrical installation inspection tool that requires a safe, accurate and efficient method of detecting, documenting, and sharing the results. With IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging), you can safely identify where hazards are hidden before contact occurs. The powerful multimeter can record and store up to 30,000 images and 100 log files, with the option of recording video clips in the IR and visible area. Stream live data from the DM286 to your mobile device in real time. Use the MeterLink® app to quickly and efficiently capture and share measurements, images, and videos for analysis and trends.
This text is machine translated.
This text is machine translated.
Features
- With FLIR IGM™, you can safely locate potentially dangerous problems without direct contact
- MSX® gives you unsurpassed clarity by embedding the edge and outline details into thermal images
- Features a built-in LED work light for improved visibility in dark or poorly lit areas
- Two rechargeable lithium polymer batteries for full-day operation
- Is drop-tested from 2 m height
Scope of delivery
- 1 x DM286 multimeters for industrial infrared imaging
- 1x set CATIV 600V test leads
- 1x set CATIV 600V alligator clips
- 1x USB cable type A to micro USB (with data transfer capability)
- 1x K-type thermocouple (-30°C to 260°C)
- 1x Upholstered carry bag
- 1x FLIR-Quick start guide
- 1x FLIR guarantee card
- 2X TA04 rechargeable battery cells
