FLIR DM64 Handheld multimeter Digital CAT IV 300 V, CAT III 600 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Handheld multimeter DM64
- CAT IV 300 V, CAT III 600 V
- Diagnosis of complex systems with high and low-voltage measurement options
- Evaluation of temperatures up to 400°C (752°F) with thermocouple type K
- Testing of flame sensors with micro amper properties
- Fast and accurate identification of live lines with probes contact voltage detection
Technical specifications
- Protection class: IP40
- Drop test: 2 m
- Diode testing
- Frequency counter.
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
60 MΩ
- Reading range - capacity
2000 µF
- Temperature
-40 to +400 °C
- Measurement type (details)
True RMS
- Power supply (details)
2 x micro batteries (AAA)
- Height
50 mm
- Width
80 mm
- Length
161 mm
- Weight
334 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 300 V
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
DM64
- Display
Digital
- Dim
(L x W x H) 161 x 80 x 50 mm
Documents & Downloads
Datasheet
Datasheet 1629395 FLIR DM64 Handheld multimeter Digital CAT IV 300 V, CAT III 600 V
User & Safety Instructions
User & Safety Instructions 1629395 FLIR DM64 Handheld multimeter Digital CAT IV 300 V, CAT III 600 V
Description
The FLIR DM 64 is the only multimeter, the HVAC technicians need, a best-of-breed of functions and high-quality measurements at an affordable price. This digital multimeter is easy to use and has been for a long life and offers long-term stability and robust reproduction quality for field use. The DM64 is the right choice for professionals, the HVAC systems install, inspect and wait.
This text is machine translated.
This text is machine translated.
Features
- Fast and comfortable working by user-friendly design, intuitive user interface and improved ergonomics
- Easy identification of deviations from normal conditions by comparing new measured values with saved data

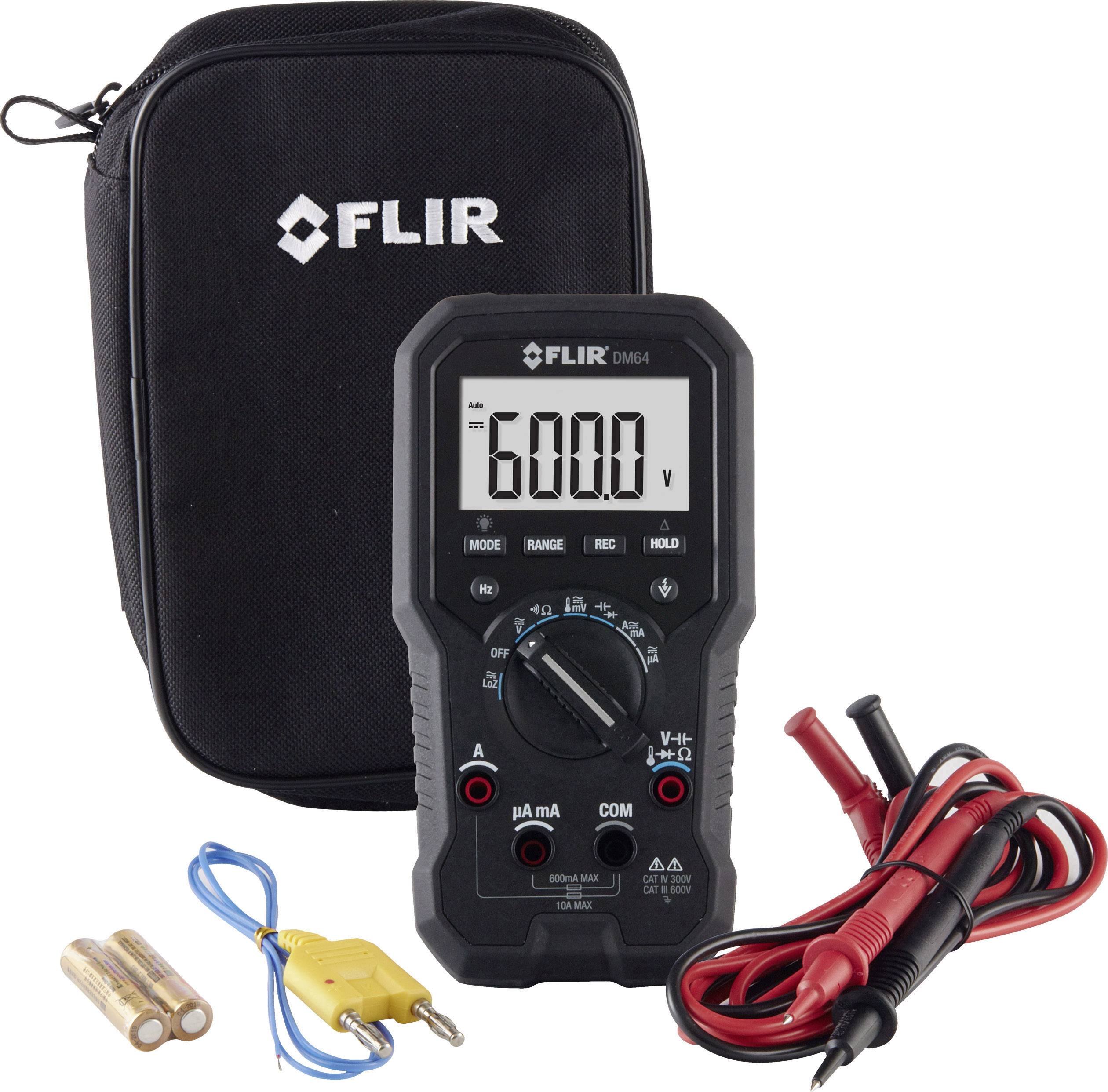

Scope of delivery
- DM 64
- Silicone test lead
- 2x AAA batteries
- K-type thermocouple
- Bag
- Bedíenungsanleitung
