Highlights & Details

Infrared camera for Smartphones: FLIR ONE Gen 3

8.7 Hz Thermal imaging camera
Temperature reading range -20 up to +120 °C
80 x 60 Pixel Bolometer matrix

Technical specifications

Resolution of visual image: 1440 x 1080
Frame rate 8.7 Hz
Focus: Fixed 15 cm - infinite
HFOV/VFOV: 50° ± 1°/38° ± 1°
Infrared sensor: Pixel size 17 µm, spectral range 8 – 14 µm
Measuring point: Off/°C/°F. Resolution depth: 0.1 °C/0.1 °F.
File formats: Single images: Radiometric JPEG; ideos: MPEG-4 (MOV (iOS) or MP4 (Android) file format
Battery charging time 40 min.
Battery life: Approx. 1 hour

Optics: 50 x 38°

Dim: (L x W x H) 14 x 67 x 34 mm

Height: 34 mm

Length: 14 mm

Width: 67 mm

Temperature reading range: -20 up to +120 °C

Bolometer array: 80 x 60 Pixel

Focus: Automatic
Manual

Interfaces: Apple Lightning

Type: One Gen 3 - iOS

Temperature reading range (max.): +120 °C

Temperature reading range (min.): -20 °C

Colour schemes: 9

Frame rate: 8.7 Hz

Weight: 34.5 g

Product type: Smartphone thermal imager

Documents & Downloads

Datasheet

English

Datasheet 2369563 FLIR One Gen 3 - iOS Smartphone thermal imager -20 up to +120 °C 80 x 60 Pixel 8.7 Hz

User & Safety Instructions

English

User & Safety Instructions 2369563 FLIR One Gen 3 - iOS Smartphone thermal imager -20 up to +120 °C 80 x 60 Pixel 8.7 Hz

Description

Besides the world, which you can see daily with the naked eye; there is another world, which you can discover now with the FLIR ONE. Whether you're looking at the world with new eyes or just looking for hidden problems in your home, the FLIR ONE Thermal Imager lets you see your everyday surroundings as you've never seen them before. Discover was there with FLIR ONE The new FLIR ONE app requires a login with personal user data; provides automatic warranty registration and access to the latest FLIR updates. Quickly identify problems in and around your home and detect heat loss; condition of your heat insulation; electrical problems and water damage – all you need to do is point the device at the target area.

This text is machine translated.

Features

Equipment features not included in technical data!

Scope of delivery

Camera
Charging cable
Manual

System requirements

iOS

Frequently Bought Together

(^*All information is plus legal VAT)

FLIR One Gen 3 - iOS Smartphone thermal imager -20 up to +120 °C 80 x 60 Pixel 8.7 Hz

FLIR One Gen 3 - iOS Smartphone thermal imager -20 up to +120 °C 80 x 60 Pixel 8.7 Hz

Conrad Electronic

Benning CM 1-1 Clamp meter Digital CAT III 600 V Display (counts): 2000

Benning CM 1-1 Clamp meter Digital CAT III 600 V Display (counts): 2000

Conrad Electronic

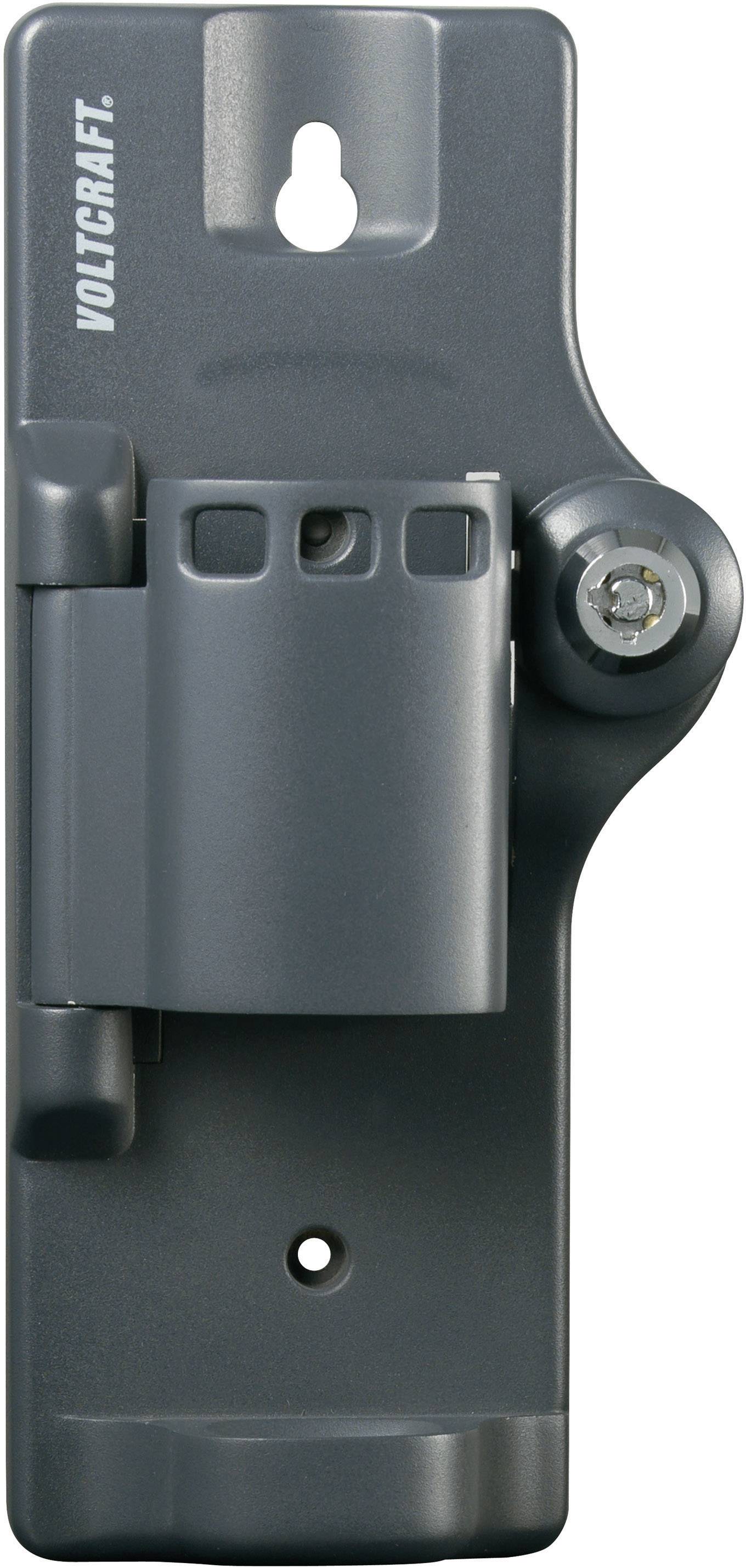

VOLTCRAFT WH-DL WH-DL Wall bracket 1 pc(s)

VOLTCRAFT WH-DL WH-DL Wall bracket 1 pc(s)

Conrad Electronic

Total price:

€ 273.09€ 270.57^*

What kind of Thermal Imaging Cameras are you looking for?

More interesting products

(^*All information is plus legal VAT)

FLIR One Gen 3 - USB-C Smartphone thermal imager -20 up to +120 °C 80 x 60 Pixel 8.7 Hz

FLIR One Gen 3 - USB-C Smartphone thermal imager -20 up to +120 °C 80 x 60 Pixel 8.7 Hz

Conrad Electronic

HT Instruments THT120 IR camera -20 up to +650 °C 120 x 120 Pixel 50 Hz Built-in digital camera, Wi-Fi, Touchscreen, mic

HT Instruments THT120 IR camera -20 up to +650 °C 120 x 120 Pixel 50 Hz Built-in digital camera, Wi-Fi, Touchscreen, mic

Conrad Electronic

HIKMICRO PocketE IR camera -20 up to 350 °C 96 x 96 Pixel 25 Hz Built-in LED light, Wi-Fi

HIKMICRO PocketE IR camera -20 up to 350 °C 96 x 96 Pixel 25 Hz Built-in LED light, Wi-Fi

Conrad Electronic

FLIR One Pro iOS USB-C IR camera 8.7 Hz MSX®

FLIR One Pro iOS USB-C IR camera 8.7 Hz MSX®

Conrad Electronic

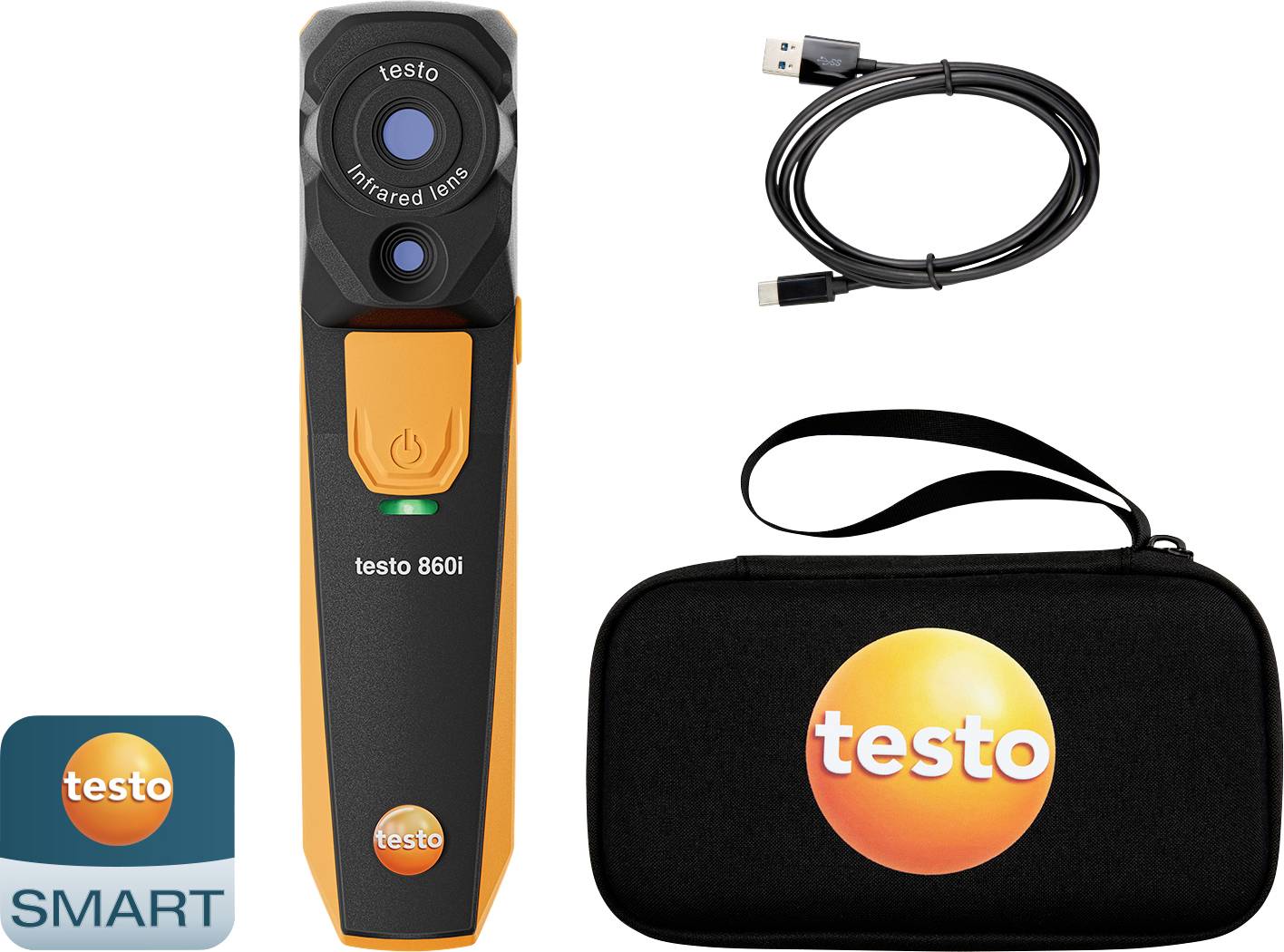

testo 860i Set IR camera -20 up to 350 °C 9 Hz

testo 860i Set IR camera -20 up to 350 °C 9 Hz

Conrad Electronic

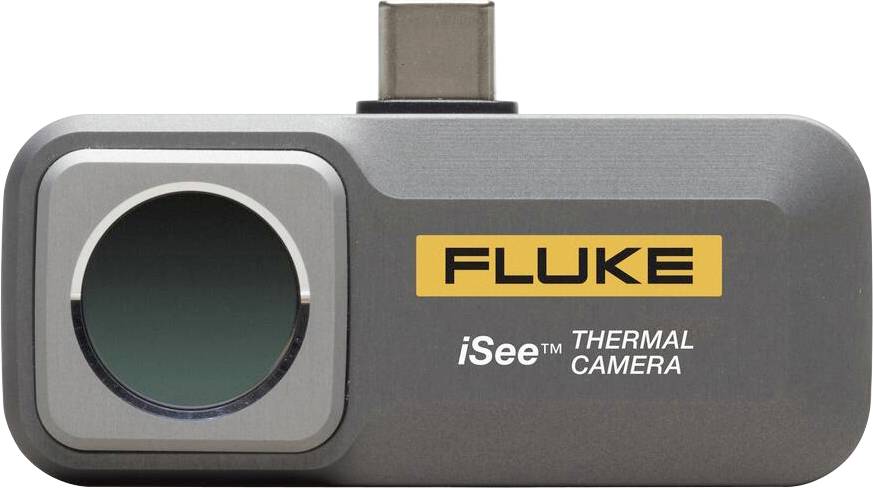

Fluke FLUKE-TC01A 9HZ IR camera -10 up to +550 °C 256 x 192 Pixel 9 Hz

Fluke FLUKE-TC01A 9HZ IR camera -10 up to +550 °C 256 x 192 Pixel 9 Hz

Conrad Electronic

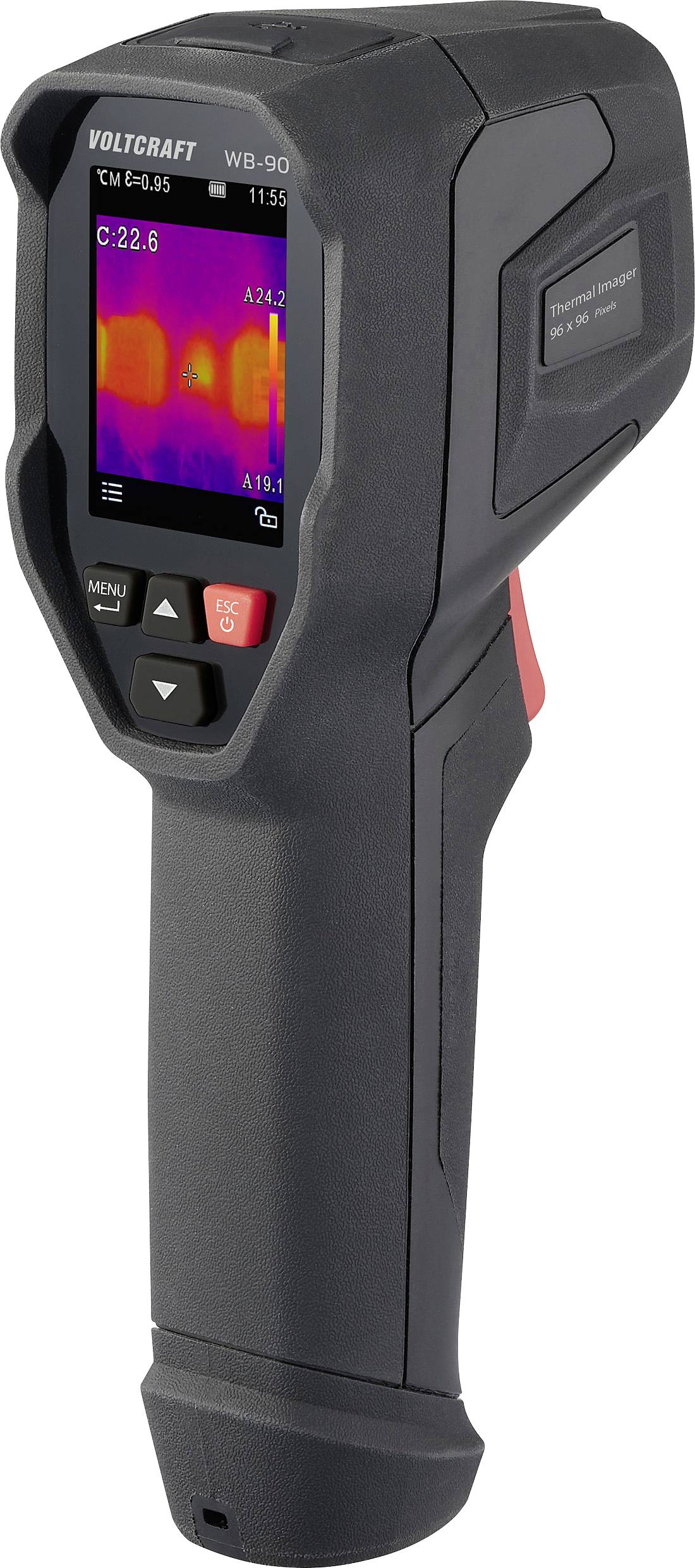

VOLTCRAFT WB-90 IR camera -20 up to 550 °C 96 x 96 Pixel 25 Hz USB-C, Built-in digital camera

VOLTCRAFT WB-90 IR camera -20 up to 550 °C 96 x 96 Pixel 25 Hz USB-C, Built-in digital camera

Conrad Electronic

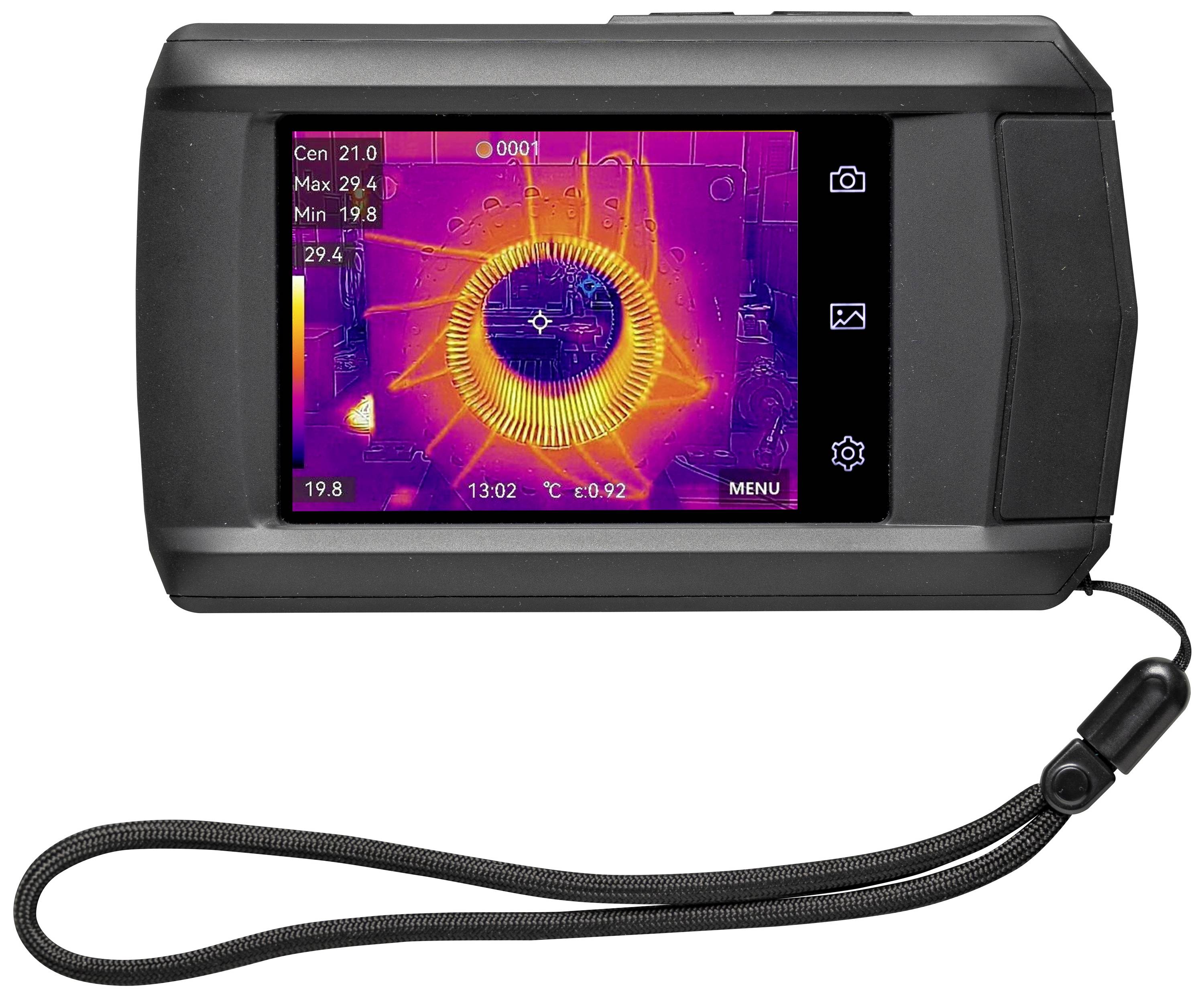

Benning TC 30 IR camera -20 up to 400 °C 25 Hz Withstands falls from heights of up to 2 m

Benning TC 30 IR camera -20 up to 400 °C 25 Hz Withstands falls from heights of up to 2 m

Conrad Electronic

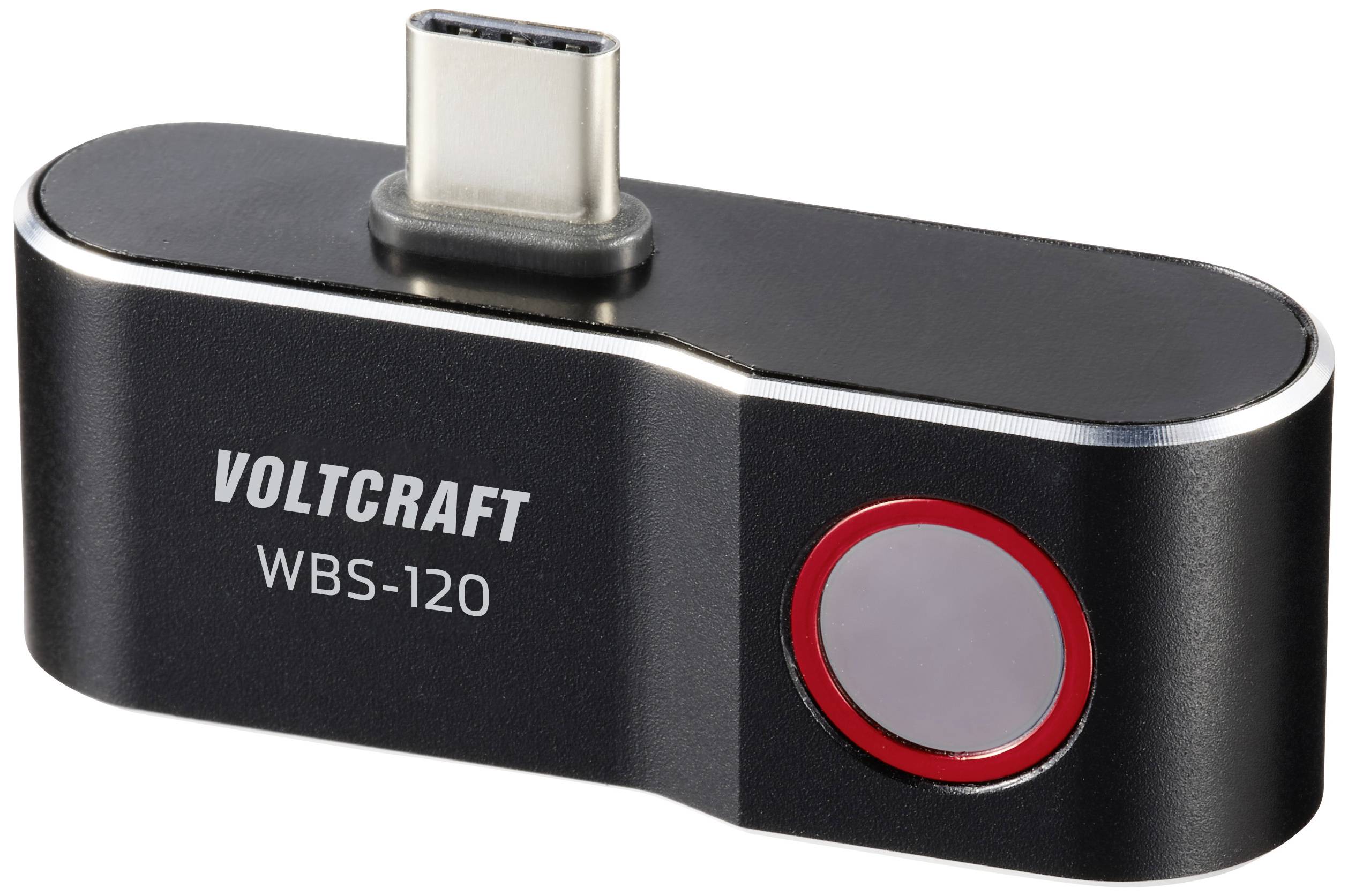

VOLTCRAFT WBS-120 IR camera -20 up to 400 °C 120 x 90 Pixel 25 Hz Android USB-C® port

VOLTCRAFT WBS-120 IR camera -20 up to 400 °C 120 x 90 Pixel 25 Hz Android USB-C® port

Conrad Electronic

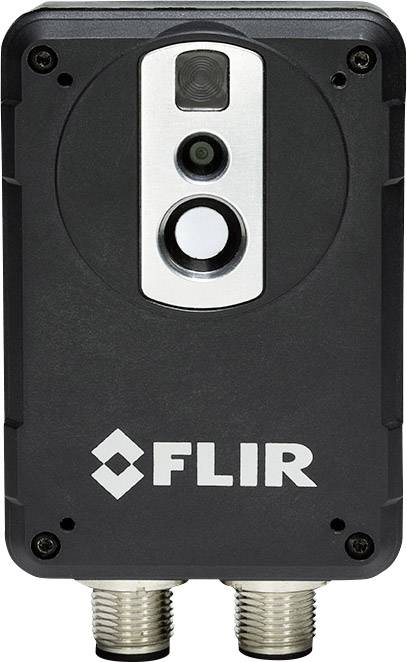

FLIR AX8 IR camera -10 up to 150 °C 80 x 60 Pixel

FLIR AX8 IR camera -10 up to 150 °C 80 x 60 Pixel

Conrad Electronic

testo 868s IR camera -30 up to +650 °C 160 x 120 Pixel 9 Hz

testo 868s IR camera -30 up to +650 °C 160 x 120 Pixel 9 Hz

Conrad Electronic

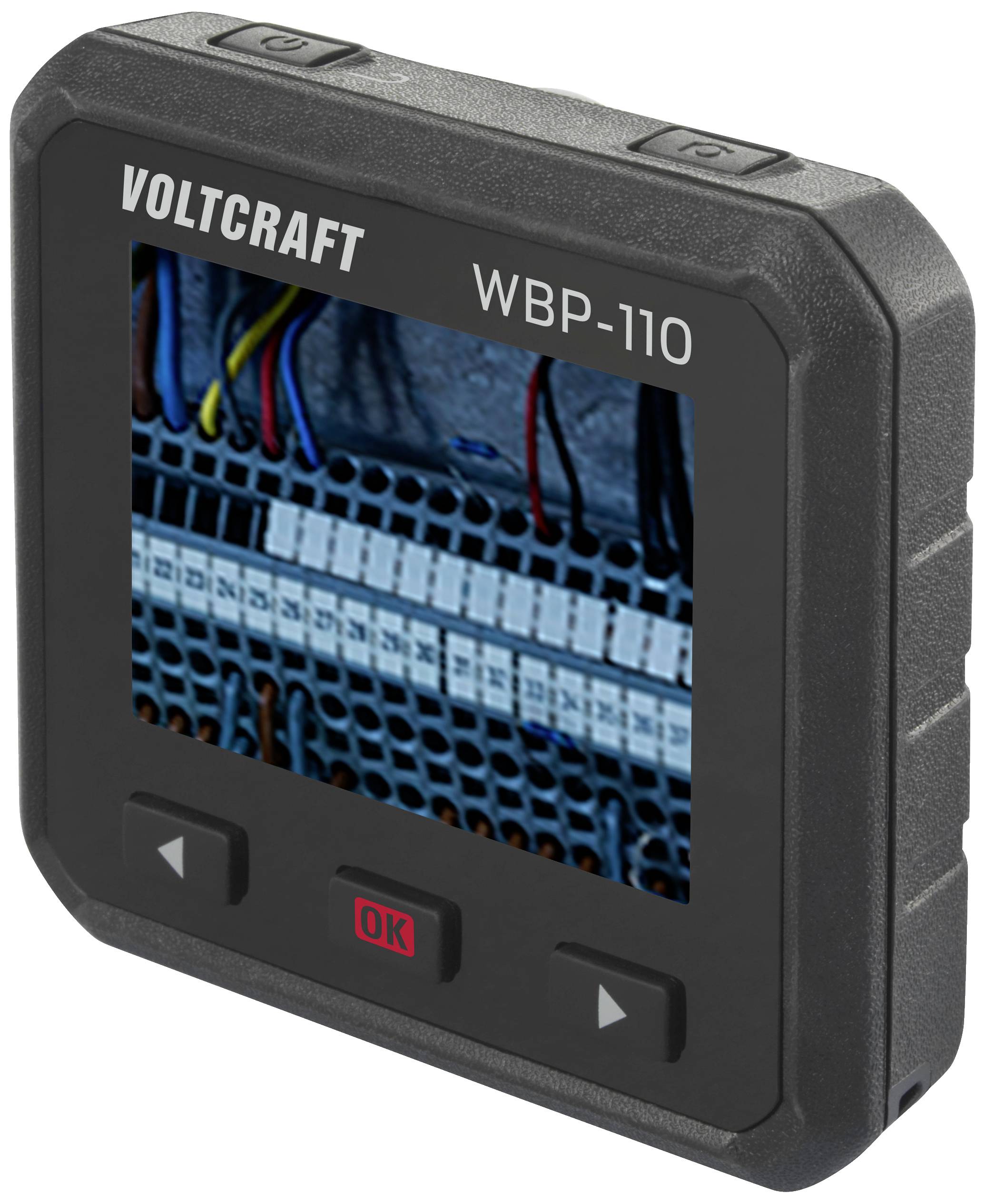

VOLTCRAFT WBP-110 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera

VOLTCRAFT WBP-110 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera

Conrad Electronic

FLIR C5 (Wi-Fi) IR camera -20 up to +400 °C 8.7 Hz MSX®, Built-in LED light, Built-in digital camera, Wi-Fi

FLIR C5 (Wi-Fi) IR camera -20 up to +400 °C 8.7 Hz MSX®, Built-in LED light, Built-in digital camera, Wi-Fi

Conrad Electronic

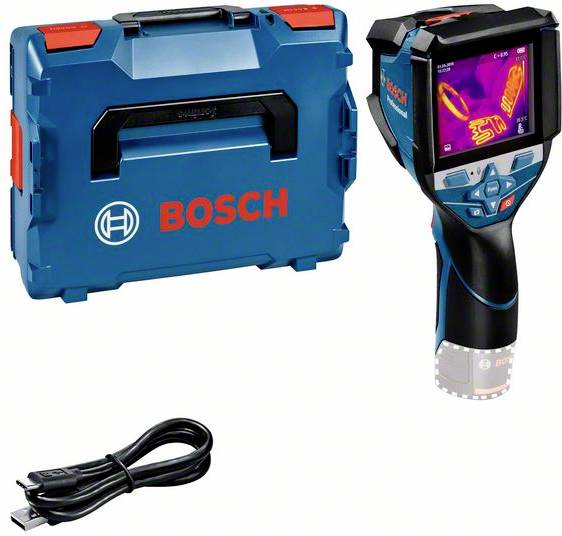

Bosch Professional GTC 600 C Click&Go IR camera -20 up to 600 °C 9 Hz

Bosch Professional GTC 600 C Click&Go IR camera -20 up to 600 °C 9 Hz

Conrad Electronic

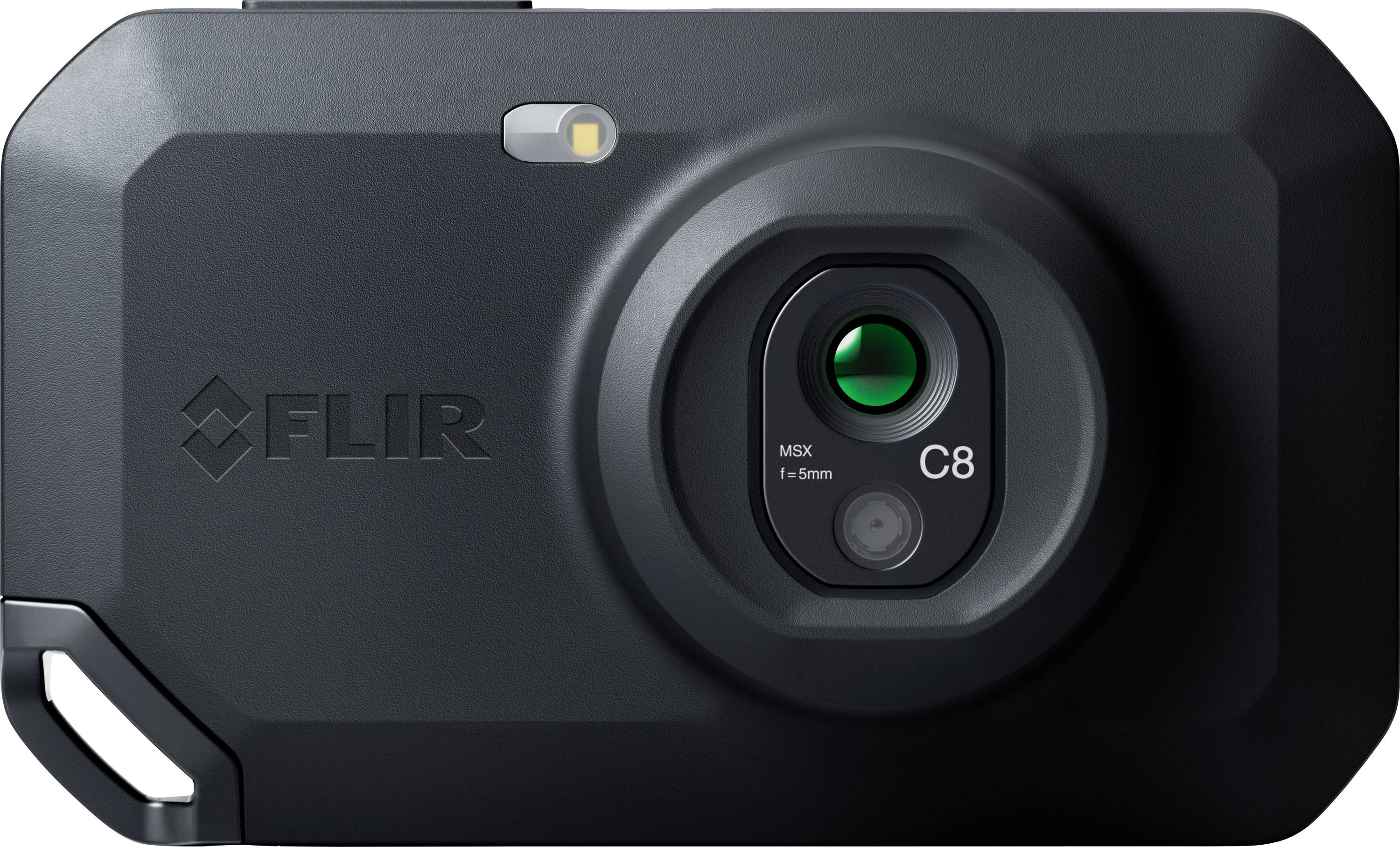

FLIR C8 IR camera

FLIR C8 IR camera

Conrad Electronic

FLIR E6 Pro IR camera -20 up to 550 °C 9 Hz

FLIR E6 Pro IR camera -20 up to 550 °C 9 Hz

Conrad Electronic

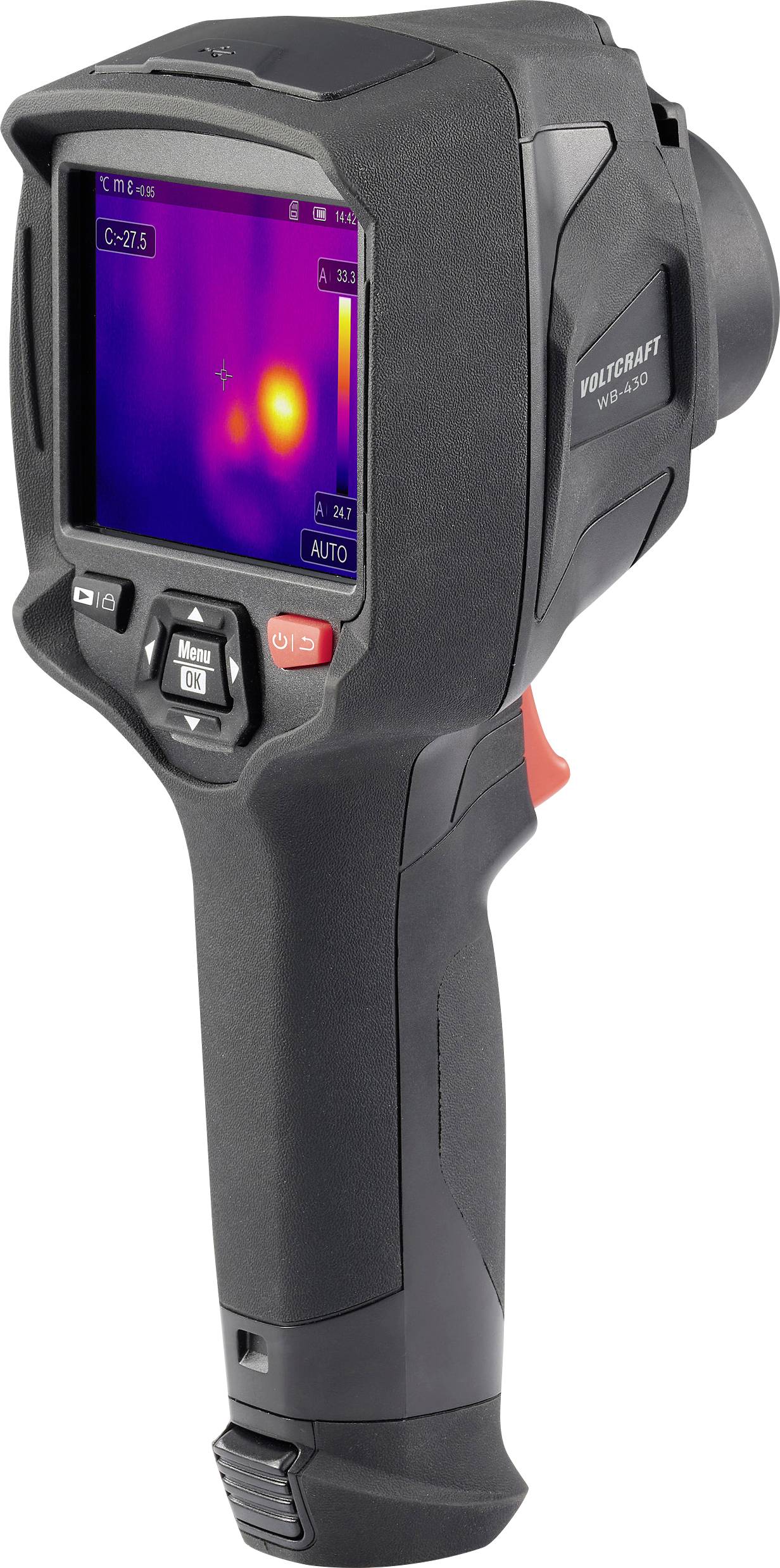

VOLTCRAFT WB-430 IR camera -20 up to 650 °C 384 x 288 Pixel 50 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstand

VOLTCRAFT WB-430 IR camera -20 up to 650 °C 384 x 288 Pixel 50 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstand

Conrad Electronic

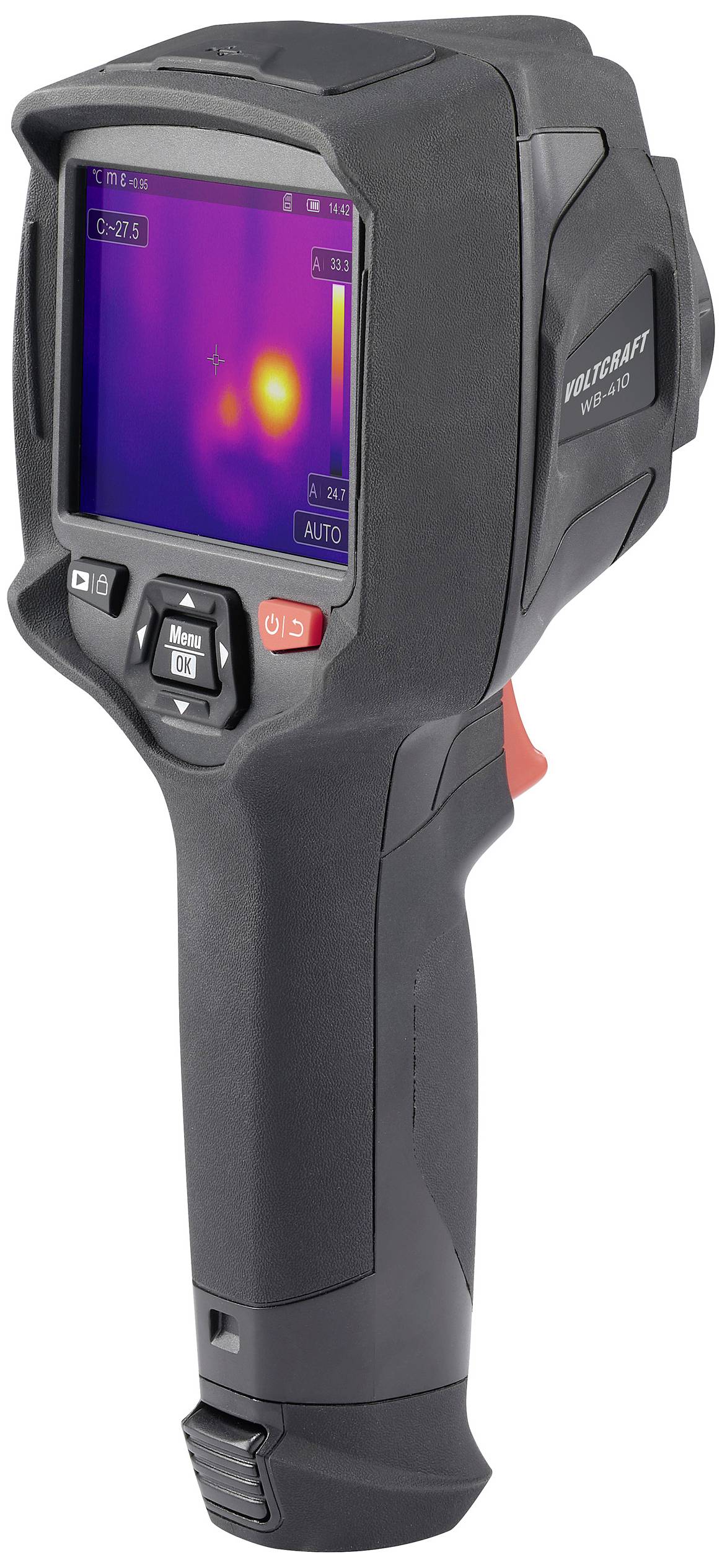

VOLTCRAFT WB-410 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstand

VOLTCRAFT WB-410 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstand

Conrad Electronic

VOLTCRAFT WB-80 IR camera -20 up to 600 °C 32 x 32 Pixel 9 Hz Built-in digital camera

VOLTCRAFT WB-80 IR camera -20 up to 600 °C 32 x 32 Pixel 9 Hz Built-in digital camera

Conrad Electronic

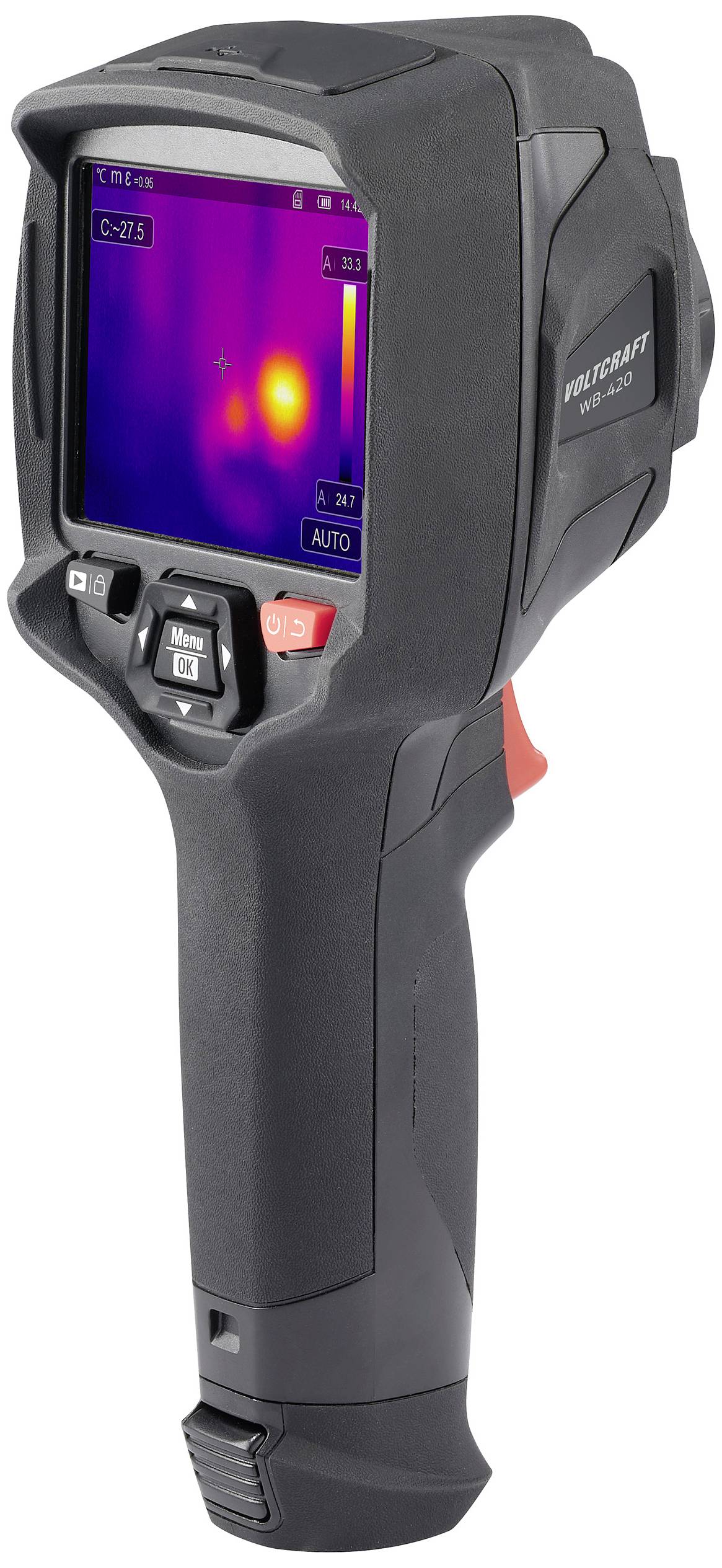

VOLTCRAFT WB-420 IR camera -20 up to 550 °C 256 x 192 Pixel 25 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstand

VOLTCRAFT WB-420 IR camera -20 up to 550 °C 256 x 192 Pixel 25 Hz Built-in digital camera, Touchscreen, Wi-Fi, Withstand

Conrad Electronic

VOLTCRAFT WB-310 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Wi-Fi, Built-in LED light

VOLTCRAFT WB-310 IR camera -20 up to 550 °C 160 x 120 Pixel 25 Hz Built-in digital camera, Wi-Fi, Built-in LED light

Conrad Electronic

FLIR One Pro Android USB-C Smartphone thermal imager -20 up to +400 °C 160 x 120 Pixel 8.7 Hz

FLIR One Pro Android USB-C Smartphone thermal imager -20 up to +400 °C 160 x 120 Pixel 8.7 Hz

Conrad Electronic

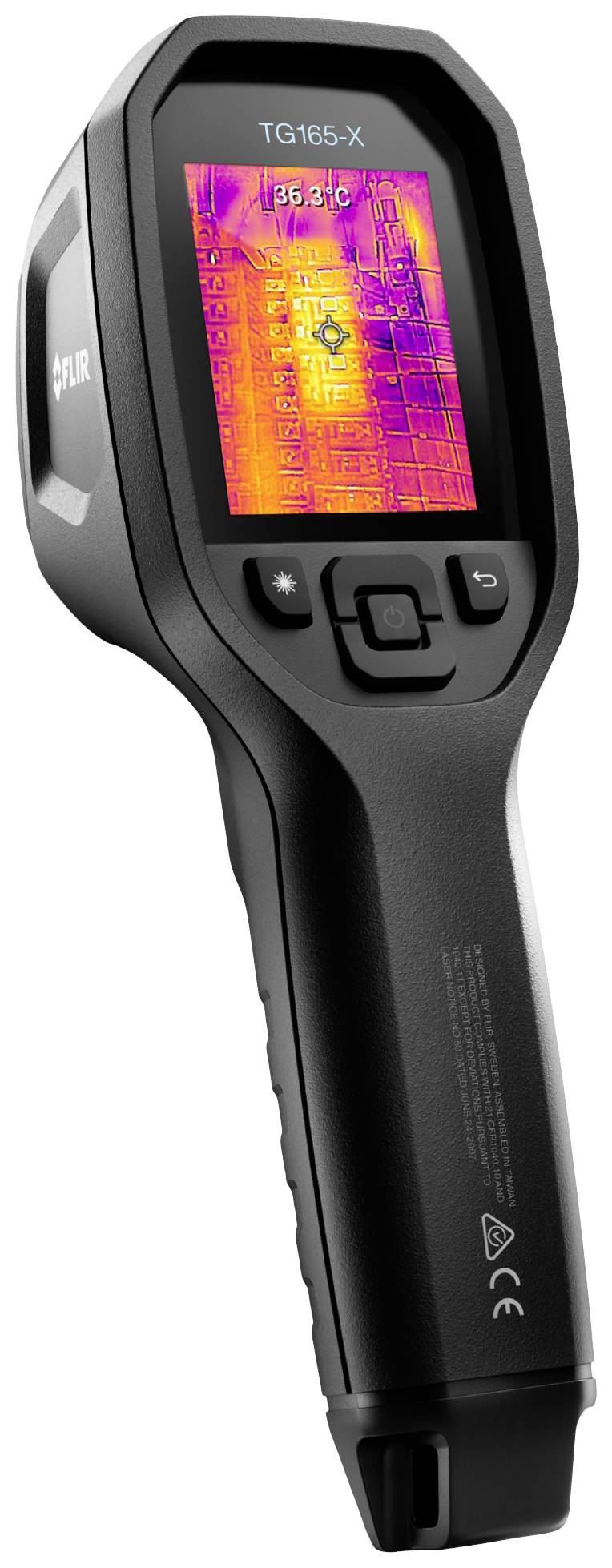

FLIR TG165-X MSX IR camera -25 up to +300 °C 80 x 60 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera

FLIR TG165-X MSX IR camera -25 up to +300 °C 80 x 60 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera

Conrad Electronic

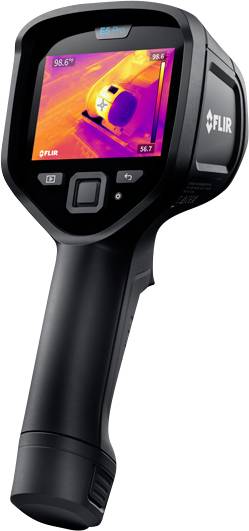

FLIR E5 Pro IR camera -20 up to 550 °C 9 Hz

FLIR E5 Pro IR camera -20 up to 550 °C 9 Hz

Conrad Electronic

FLIR One Pro iOS Smartphone thermal imager -20 up to +400 °C 160 x 120 Pixel 8.7 Hz

FLIR One Pro iOS Smartphone thermal imager -20 up to +400 °C 160 x 120 Pixel 8.7 Hz

Conrad Electronic

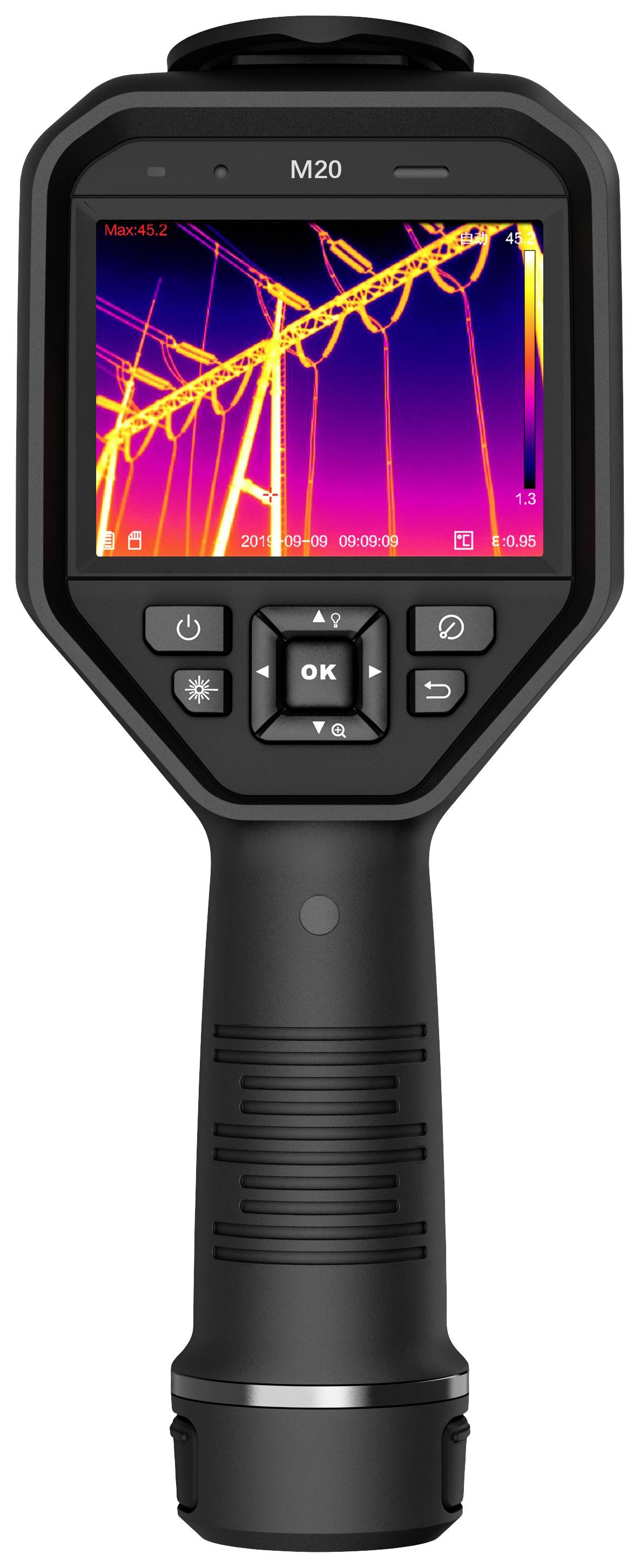

HIKMICRO M20 IR camera -20 up to +550 °C 256 x 192 Pixel 25 Hz Wi-Fi, Touchscreen

HIKMICRO M20 IR camera -20 up to +550 °C 256 x 192 Pixel 25 Hz Wi-Fi, Touchscreen

Conrad Electronic

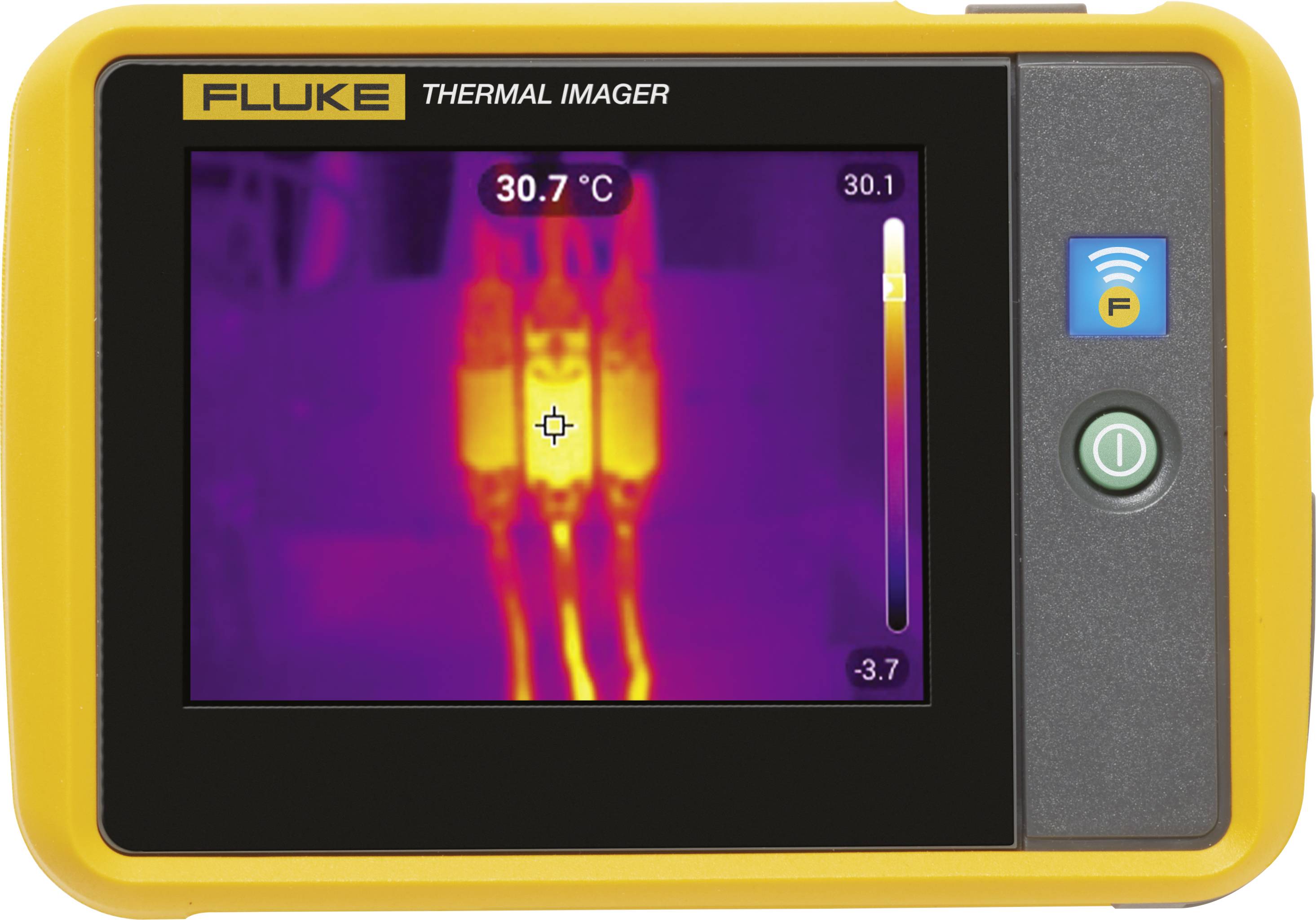

Fluke FLK-PTI120 9HZ 400C IR camera -20 up to +400 °C 120 x 90 Pixel 9 Hz

Fluke FLK-PTI120 9HZ 400C IR camera -20 up to +400 °C 120 x 90 Pixel 9 Hz

Conrad Electronic

Fluke FLK-TIS20+ MAX 9HZ IR camera -20 up to +400 °C 9 Hz

Fluke FLK-TIS20+ MAX 9HZ IR camera -20 up to +400 °C 9 Hz

Conrad Electronic

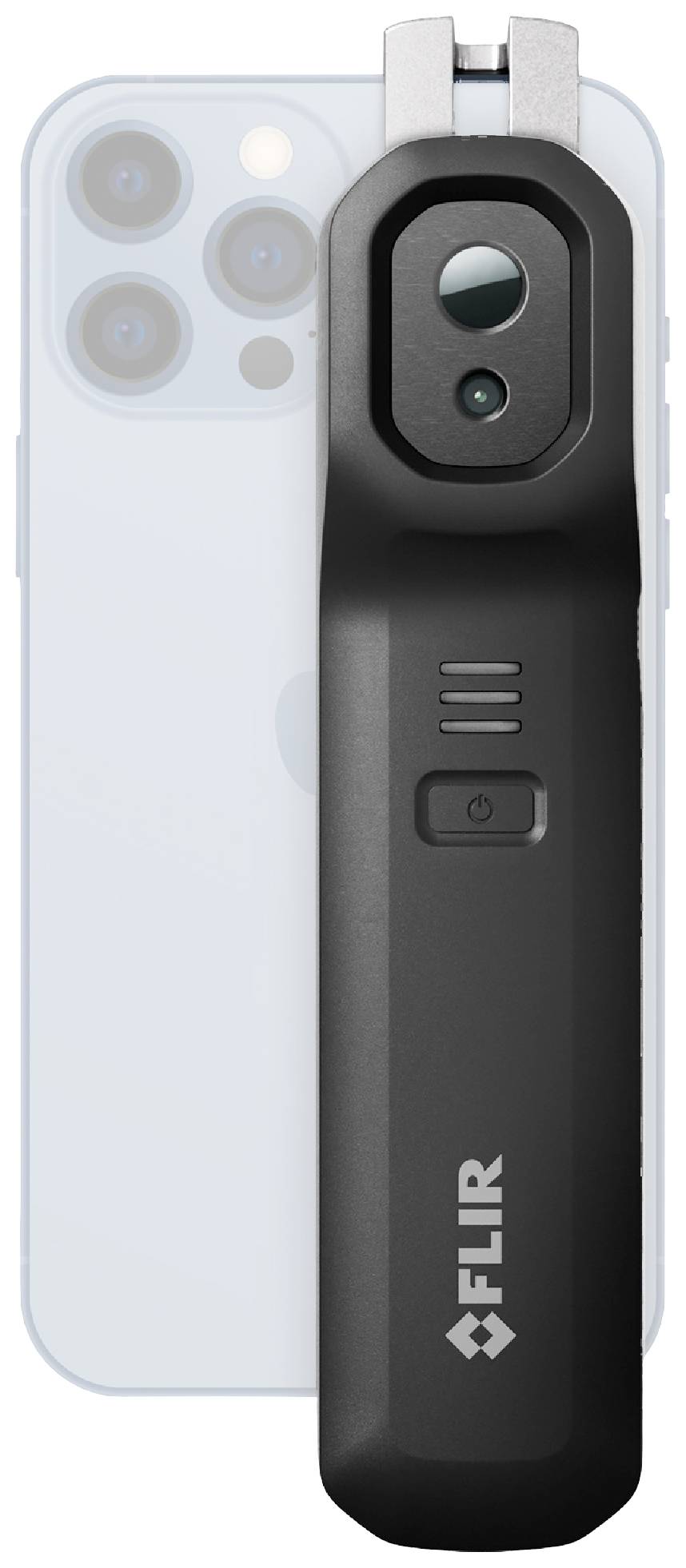

FLIR EDGE IR camera -20 up to 120 °C 8.7 Hz
