Buy FLIR PV78 Solar irradiance meter

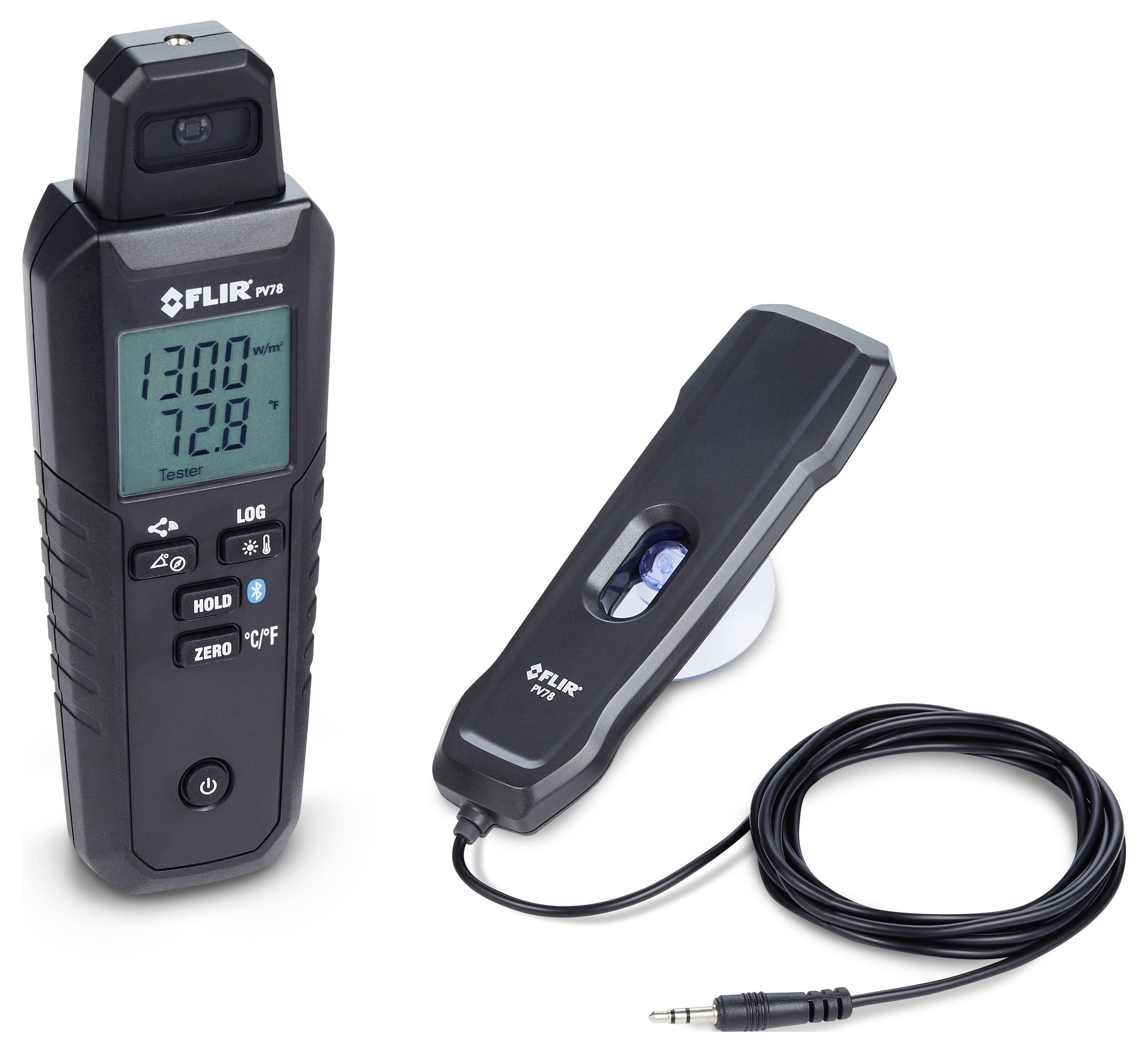

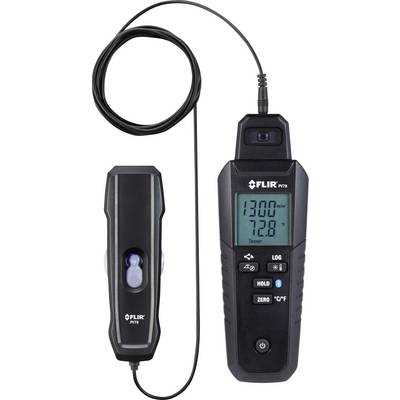

Two electronic devices with displays for temperature measurement, one with a digital readout and the other with a sensor and cable.

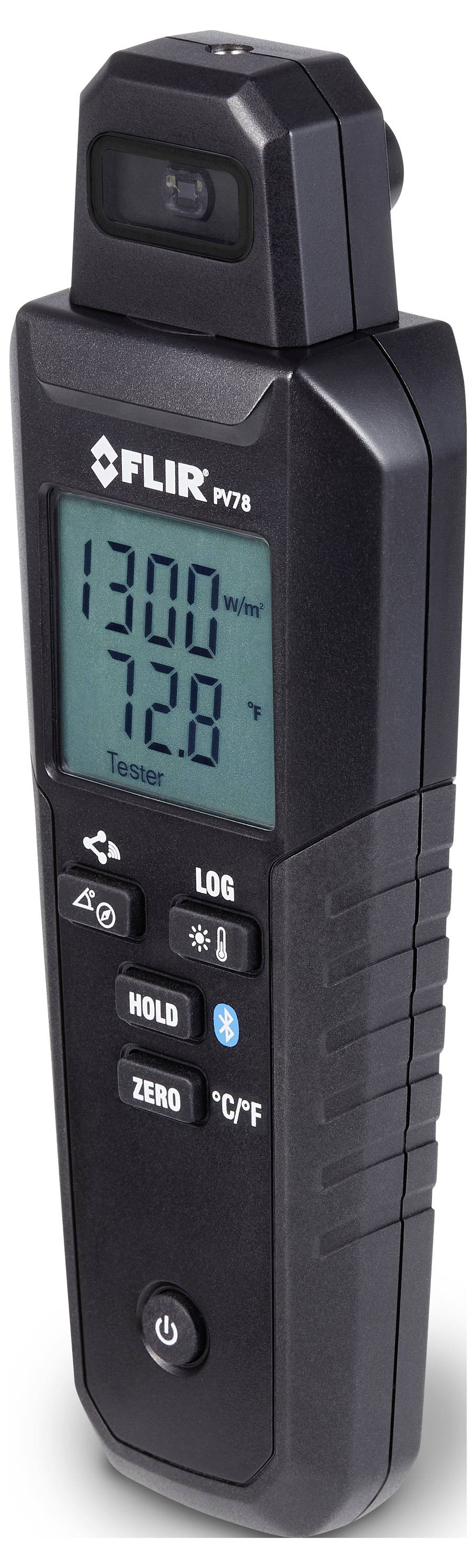

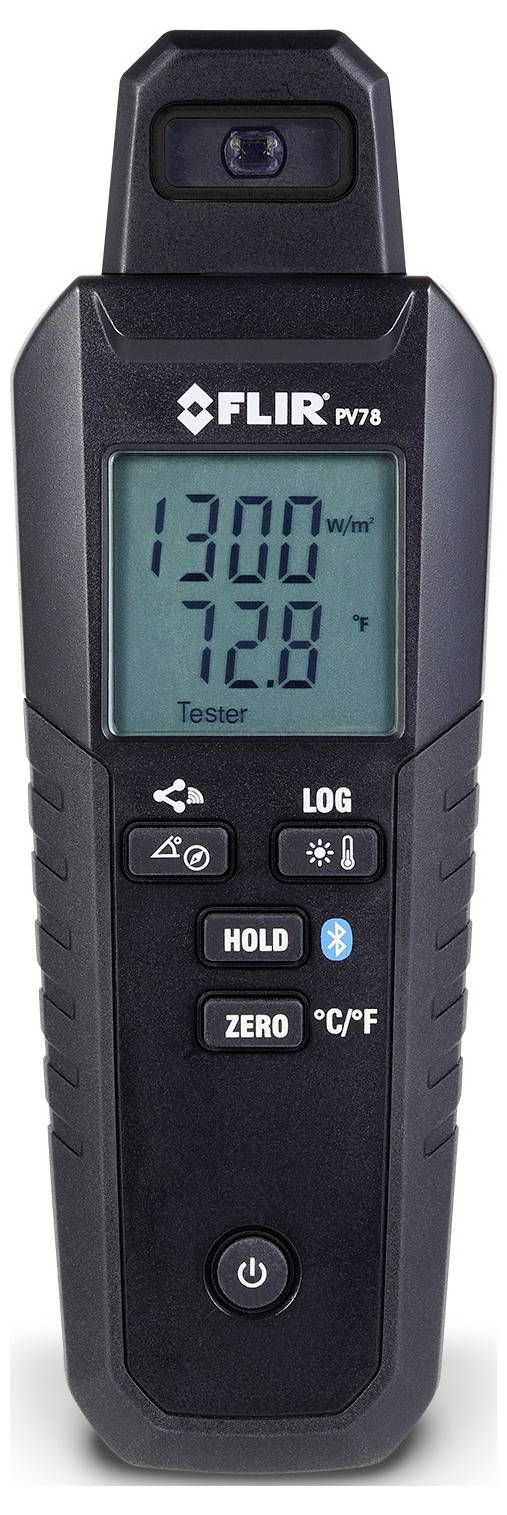

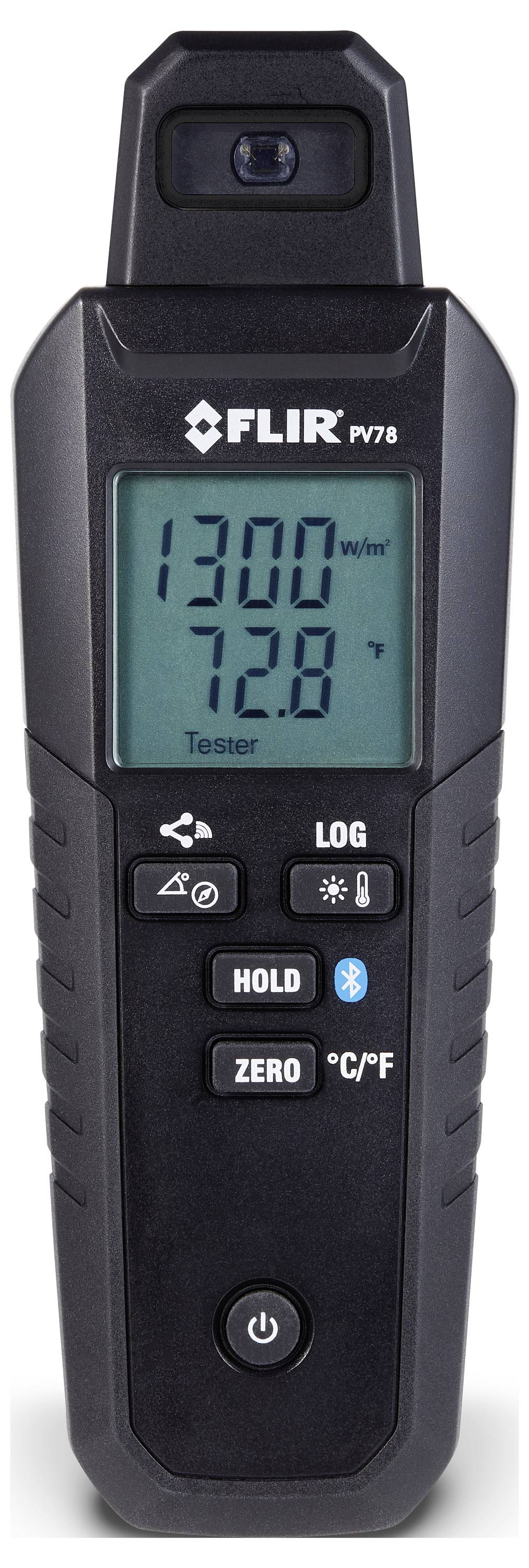

A digital infrared thermometer displays values of '1300' and '72.8°F' on its display. It has buttons for Log, Hold, Zero, and °C/°F.

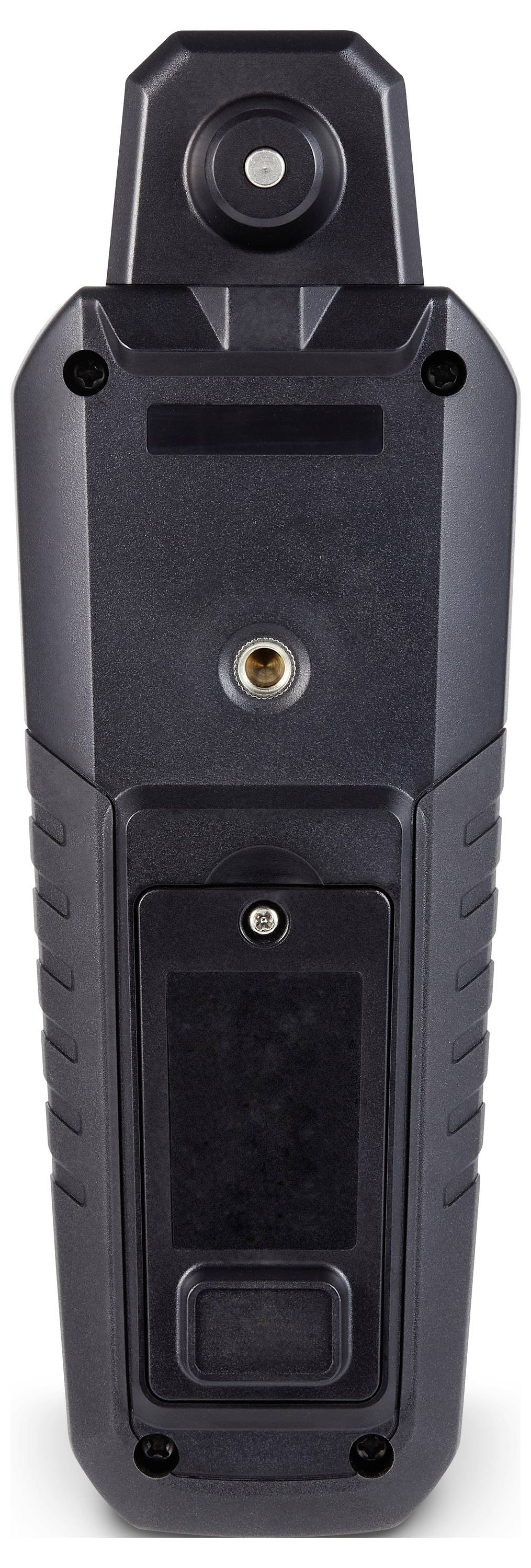

Black, portable electronic device with a circular sensor on top and multiple screws, suitable for security applications.

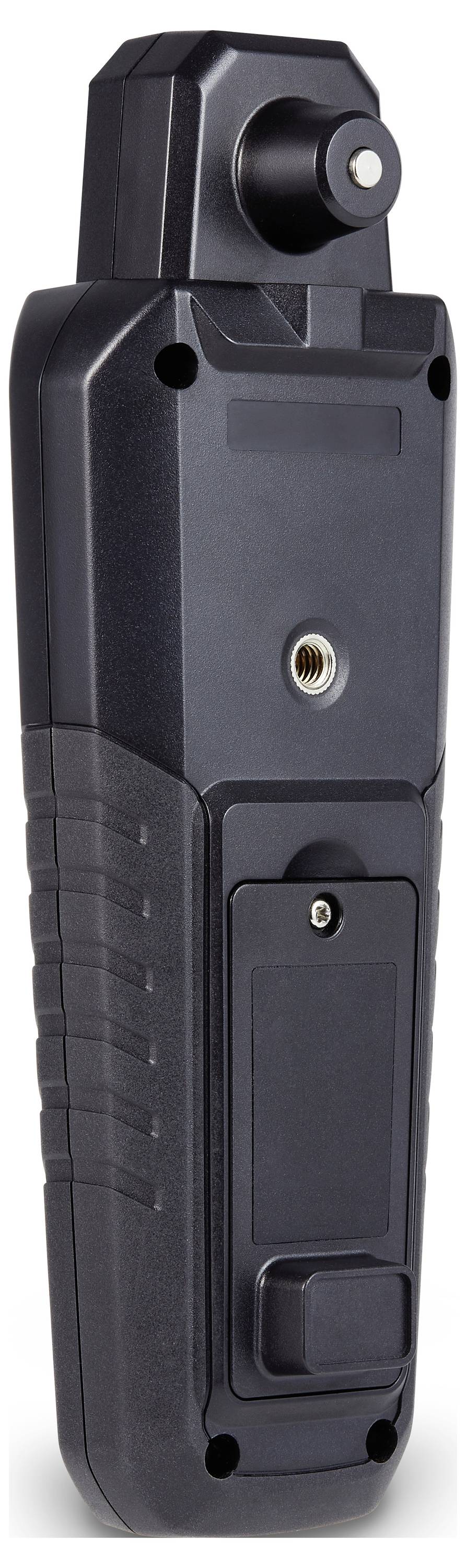

A black, rectangular electronic device with rounded edges and multiple buttons. Used for data or security monitoring.

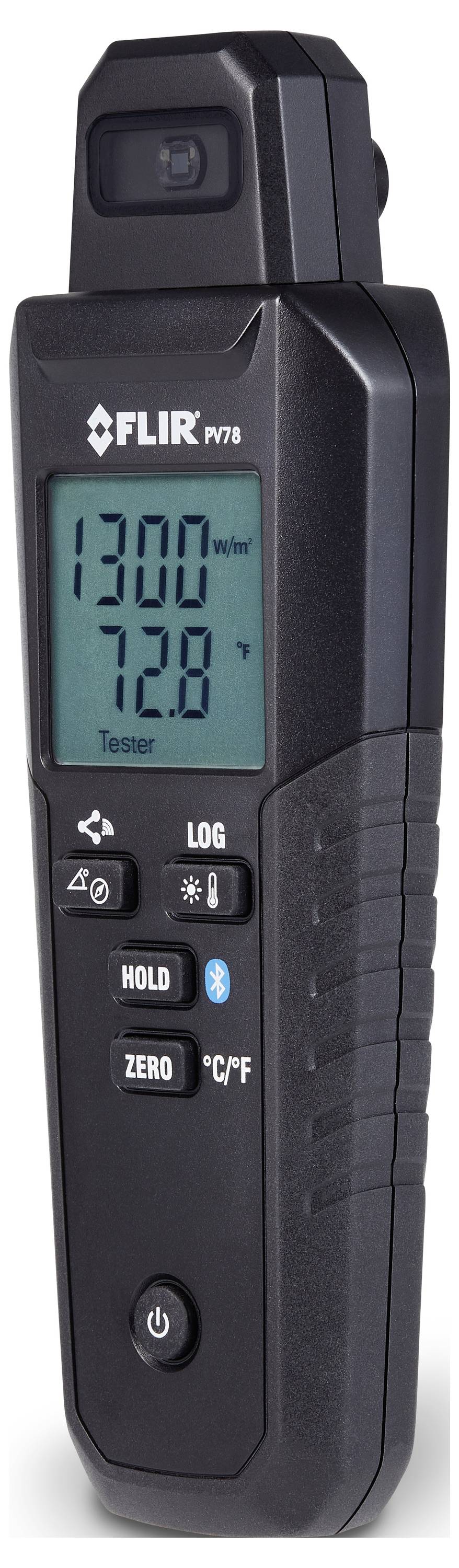

Portable measuring device, displays '1300' ppm and '72.8' °F on the screen. Buttons for logbook, Bluetooth, and temperature units are visible.

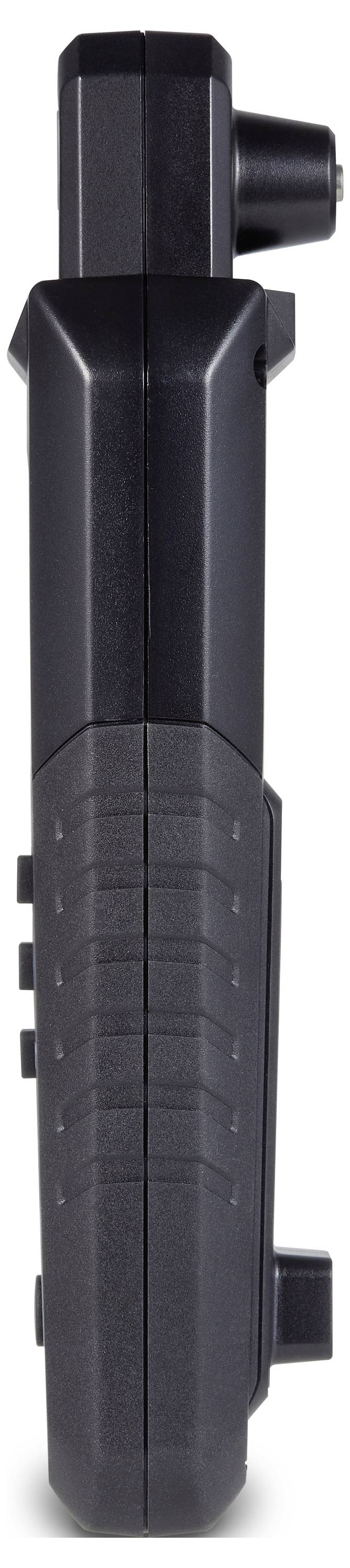

A black, rectangular electronic device with several buttons on its side.

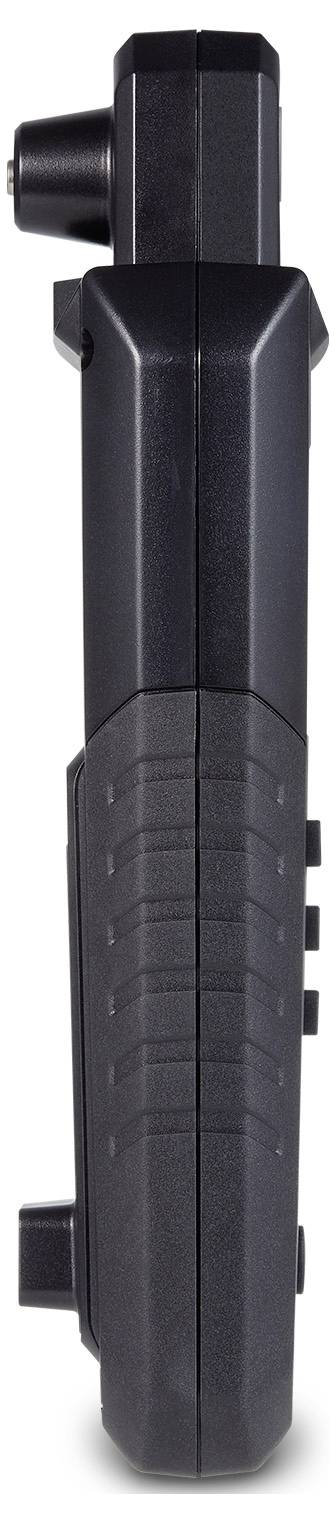

Black, rectangular electronic device with side buttons and ports. Indication of a compact, portable design.

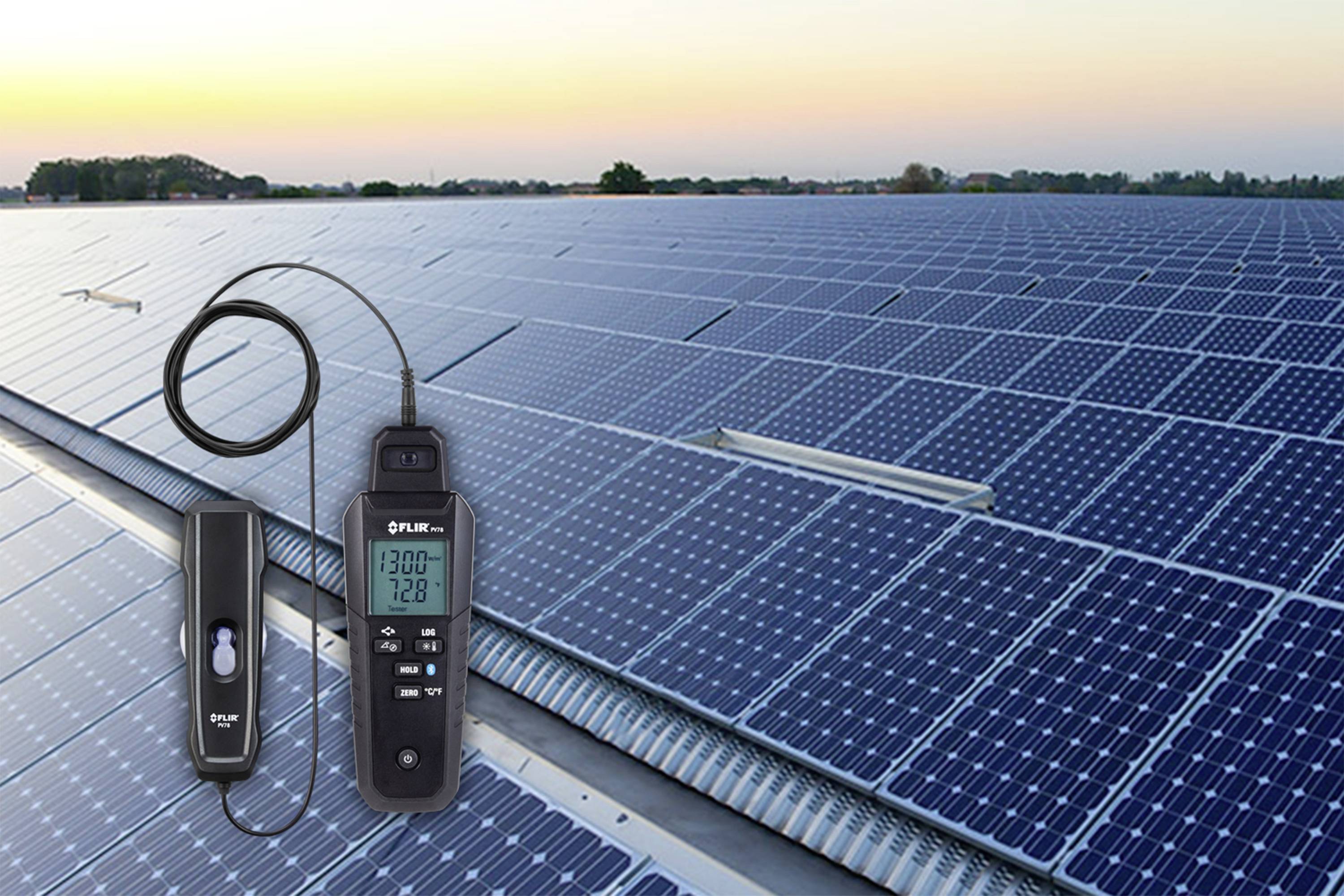

A solar field at sunset. In the foreground, a digital measuring device with a display, positioned facing the solar panels.

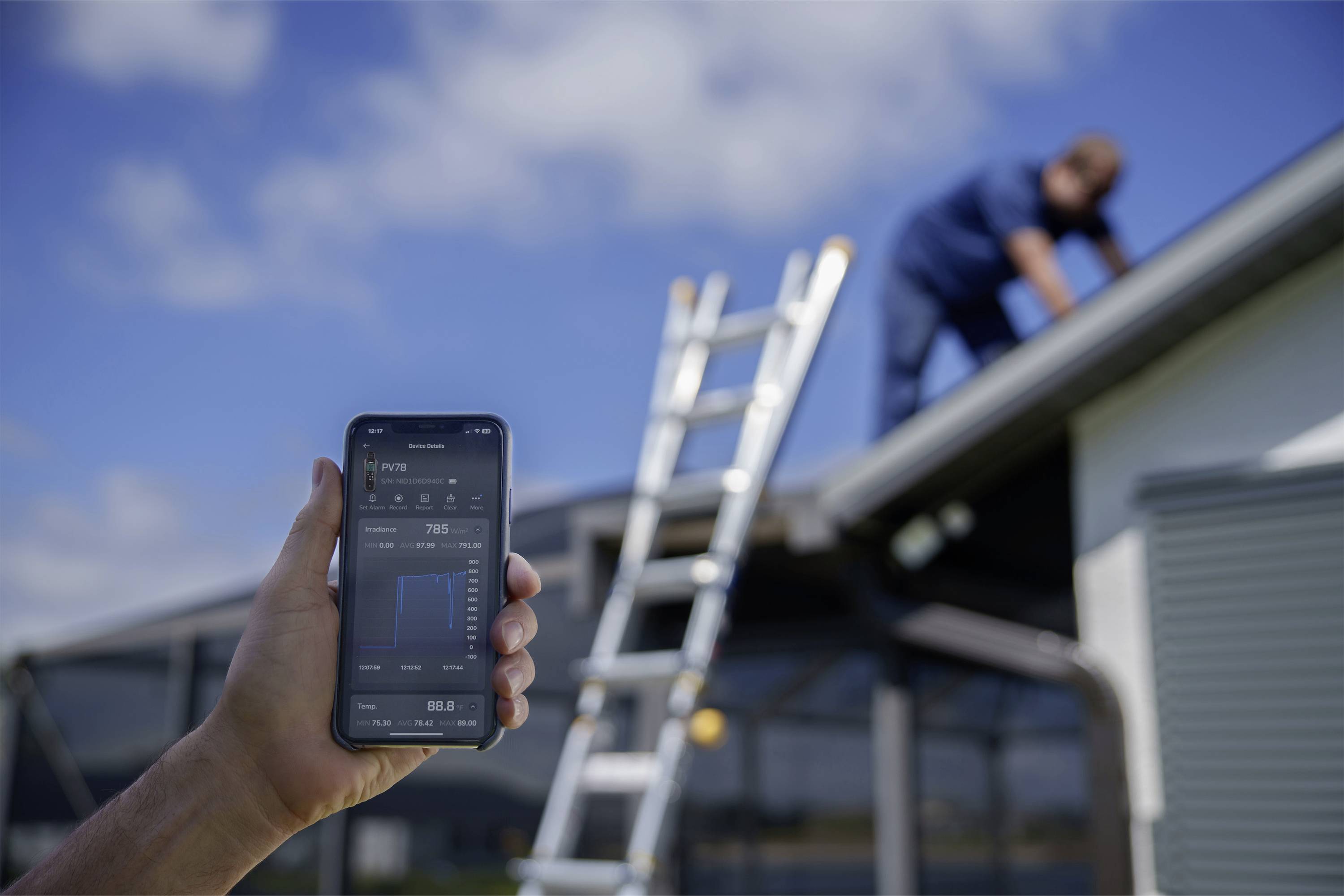

A smartphone displays solar panel data, while a person works on a solar installation on a roof in the background.

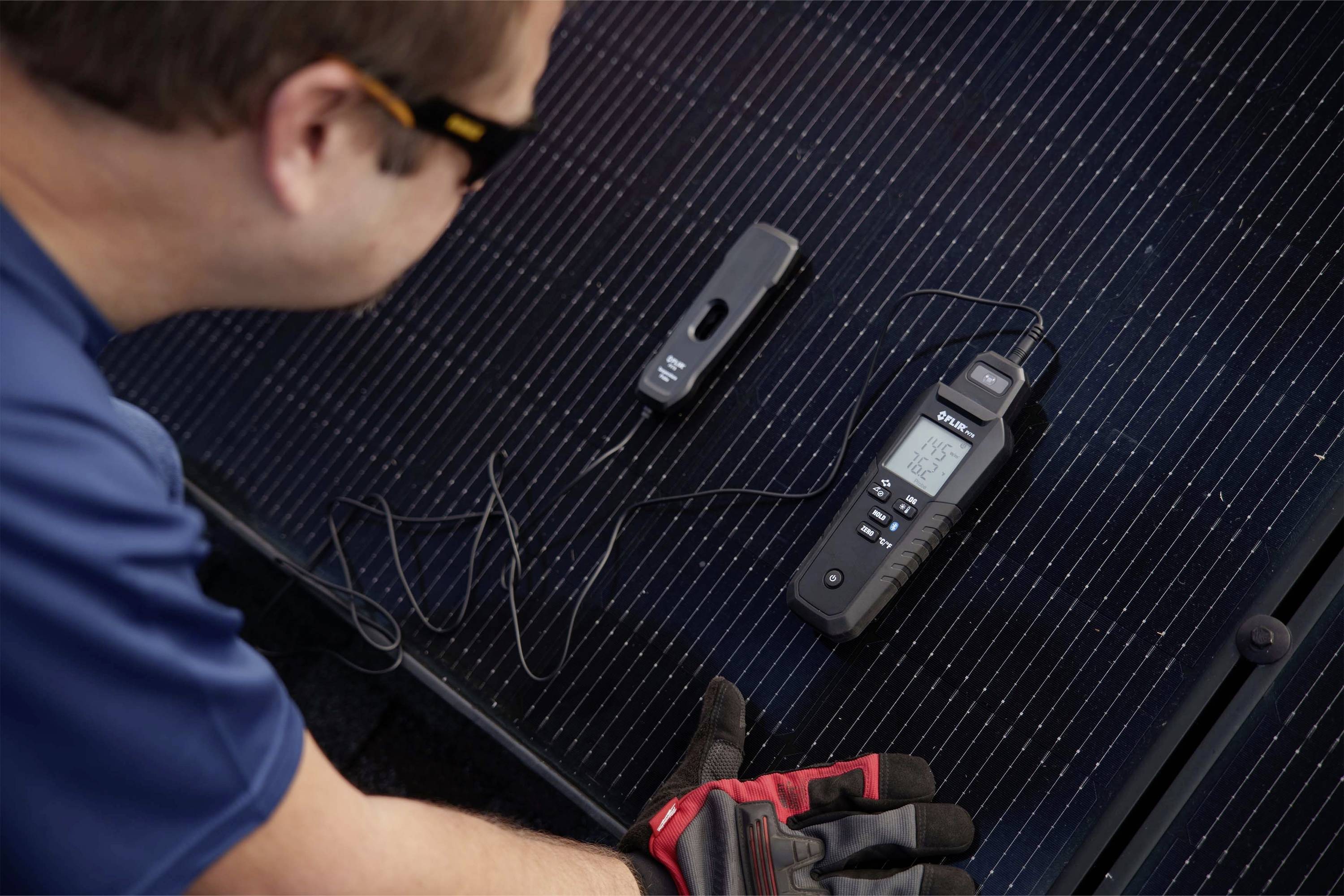

A person is checking solar cells on a roof using a digital multimeter and sensors to measure performance.

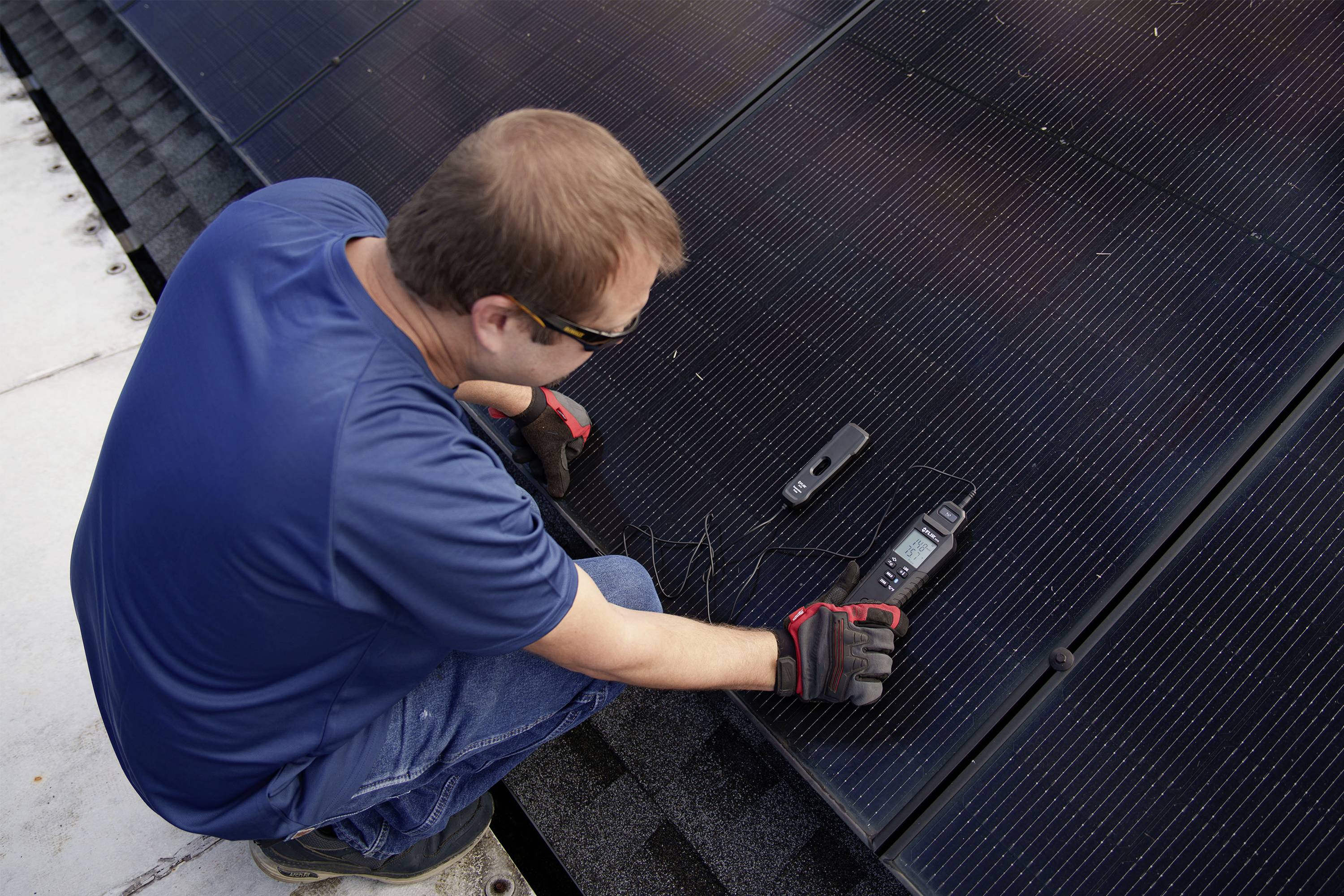

A person is checking the performance of solar modules on a roof using a measuring device.

1/14

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 461.34 / piece)

€ 461.34

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Solar irradiation and temperature meter with inclination sensor and METERLINK

Immediately measures the solar radiation intensity from 0 W/m² to 1400 W/m², as required by the standard IEC 62446-1-7
Measures solar irradiation intensity, module temperature, system alignment and slope
Compact design with external temperature sensor and mounting bracket for continuous measurements
The high-contrast, large LCD can be easily read even in direct sunlight
Supports MeterLink® wireless connectivity for fast data collection and sharing

Technical specifications

Bluetooth range 32 ft (10 m)
Data storage interval 1 minute
Measured values per memory set 360 sets per file
Measurement rate 3 samples per second Irradiation intensity 50 W to 1400 W/m² ±5%
Tilt angle -90° to 90° ±3°

Product type: Solar irradiance meter

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 240.50 x 67 x 38 mm

Weight: 300

Width: 67 mm

Height: 38 mm

Length: 240.50 mm

Documents & Downloads

Datasheet

Datasheet 3404530 FLIR PV78 Solar irradiance meter

User & Safety Instructions

User & Safety Instructions 3404530 FLIR PV78 Solar irradiance meter

Description

Take immediate measurements to determine the solar radiation intensity (0 to 1400 W/m²) in accordance with IEC 62446-1 standard
A large high-contrast LCD makes it possible to read the display even in bright sunlight
Testing the performance and safety of installed solar systems
Monitoring and maintenance of large-scale solar power plants
Ensure the quality of solar modules during production

This text is machine translated.

Scope of delivery

PV78
Bag
External temperature sensor.
1 x 9V Alkaline batteries
User manual

Hints

Radiation detector

Solar measuring device for the strength of sunlight

Bluetooth solar radiation level meter

IEC 62446-1 Standard

Inclinometer for solar module
