Buy FLIR TG275 IR camera -25 up to +550 °C 160 x 120 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera

Handy infrared thermometer with display shows thermal image. Temperature reading: 59.8°C. Model name: TG275.

FLIR TG275 IR camera -25 up to +550 °C 160 x 120 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera-1

FLIR TG275 IR camera -25 up to +550 °C 160 x 120 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera-2

FLIR TG275 IR camera -25 up to +550 °C 160 x 120 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera-3

FLIR TG275 IR camera -25 up to +550 °C 160 x 120 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera-4

FLIR TG275 IR camera -25 up to +550 °C 160 x 120 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera-5

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 550.42 / piece)

€ 550.42

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Infrared camera for vehicle diagnosis FLIR TG275

8.7 Hz Thermal imaging camera
Temperature reading range -25 up to +550 °C
160 x 120 Pixel Bolometer matrix
Thermal sensitivity 70 mK

Technical specifications

Type: TG275

Product type: IR camera

Bolometer array: 160 x 120 Pixel

Temperature reading range (max.): +550 °C

Colour schemes: 6

Temperature reading range (min.): -25 °C

Optics: 57° x 44°

Frame rate: 8.7 Hz

Display resolution: 320 x 240 Pixel

: IP54

Thermal sensitivity: 70 mK

Dim: (L x W x H) 210 x 64 x 81 mm

Temperature resolution: 0.1

Focus: Fixed-focus

Weight: 394 g

Accuracy ± °C: 1.5 °C

Temperature reading range: -25 up to +550 °C

Min. focusing distance: 30 cm

Width: 64 mm

Height: 81 mm

Length: 210 mm

Connection: USB

Power supply (details): Li-ion battery

Features: MSX®
Built-in LED light
Built-in digital camera

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2149289 FLIR TG275 IR camera -25 up to +550 °C 160 x 120 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera

User & Safety Instructions

User & Safety Instructions 2149289 FLIR TG275 IR camera -25 up to +550 °C 160 x 120 Pixel 8.7 Hz MSX®, Built-in LED light, Built-in digital camera

Description

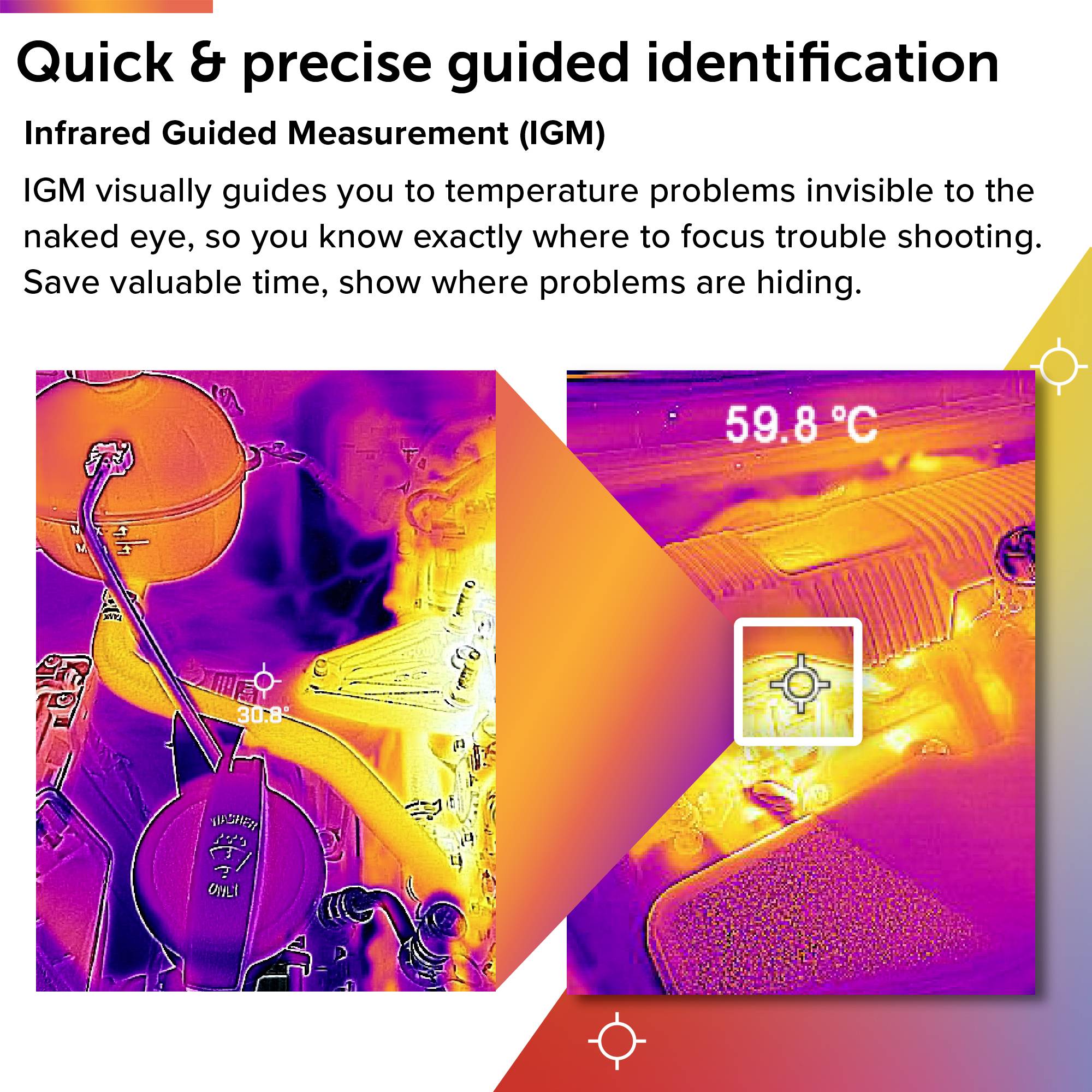

The TG275 is the first FLIR camera specially developed for car maintenance and repair experts. This diagnostic instrument is equipped with the infrared-controlled measurement technology IGM™ (Infrared Guided Measurement) and combines non-contact temperature measurements with thermal imaging technology. This allows you to quickly and quickly identify the cause of heat-related problems and potential defects. Take the TG275 before and after pictures of repairs. This will help you prove to your customers that you have identified the issue and have resolved it properly. The affordable and user-friendly TG275 is ideal for fault diagnosis, including batteries, relays, switches, exhaust manifolds, air conditioning capacitors and drive components.

This text is machine translated.

Features

Highly precise and energy-efficient laser
Bright displays and image optimization functions

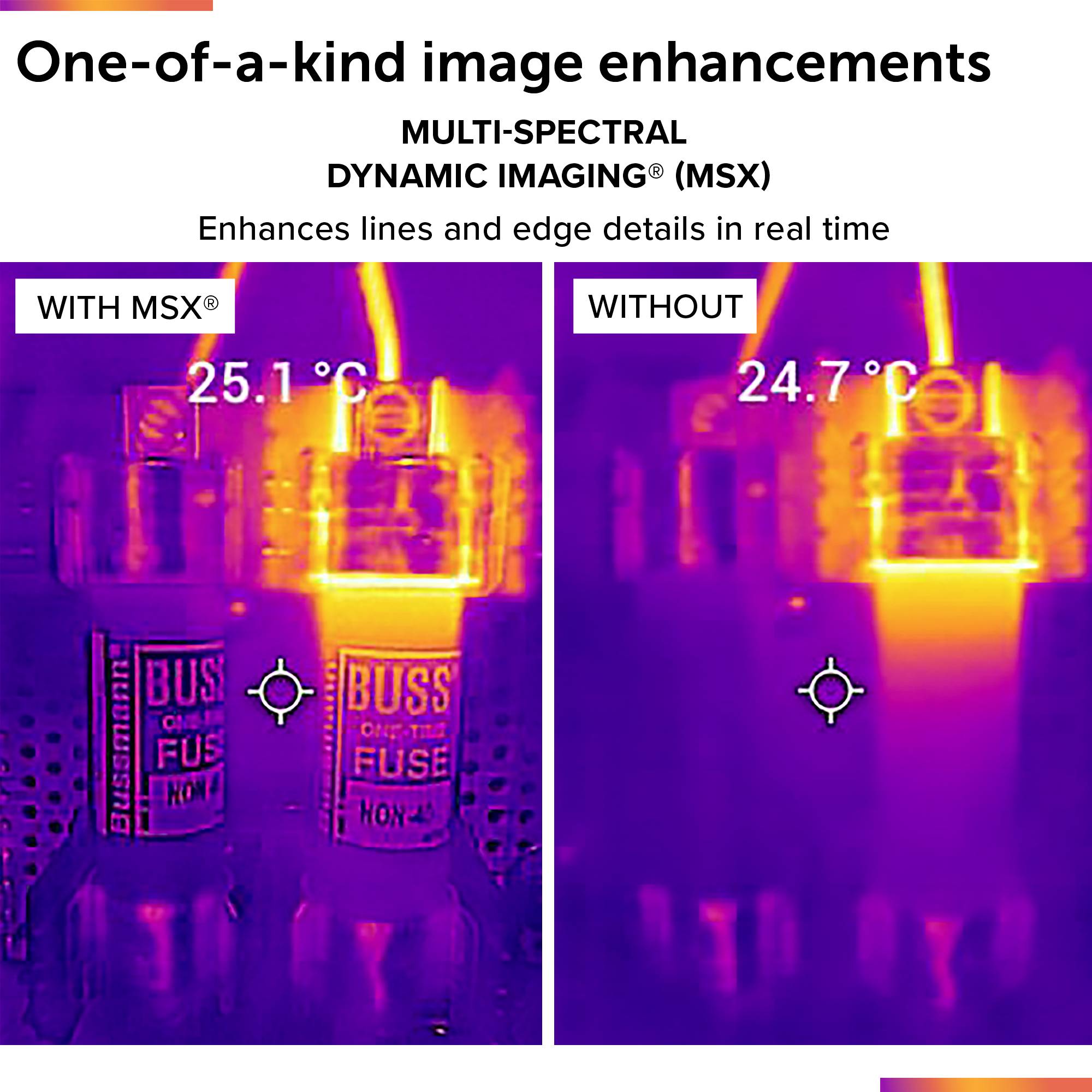

The patented FLIR MSX® image enhancement adds sharp visual detail to the thermal images, making it easier to spot problems
The bright, 2.4-inch display clearly shows thermal images in your preferred color palette
Image recording function
Point size ratio of the camera of 30:1
Robust design with a IP54 enclosure that protects the camera from dirt, dust and oil
Bright LED work light
