Fluke 115 Handheld multimeter Digital CAT III 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 259.66 / piece)
€ 259.66
plus VAT.
Highlights & Details

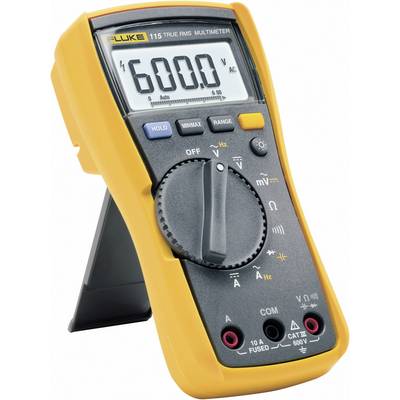

Fluke 115 Digital Multimeter, calibrated to manufacturer standards, CAT III 600 V
- True-RMS
- Current measuring range AC/DC
- CAT III 600V
Technical specifications
- Weight 550 g
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.001 A
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.001 A
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 50 MΩ
- Reading range - capacity
1 nF -10000 µF
- Frequency reading range
0.01 Hz - 50 k Hz
- DC resistance
10 MΩ
- AC resistance
5 MΩ
- Basic accuracy
0.5 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz -1 kHz
- Interfaces
none
- Power supply (details)
9 V battery pack
- Height
167 mm
- Width
84 mm
- Weight
550 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
115
- Display
Digital
- Display (counts)
6000
- Dim
(W x H) 84 mm x 167 mm
- Basic accuracy
±0.5 %
- Displays
LCD, 6000 counts
FALSE
IP42
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 122719 Fluke 115 Handheld multimeter Digital CAT III 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 122719 Fluke 115 Handheld multimeter Digital CAT III 600 V Display (counts): 6000
Conformity certificate
Conformity certificate 122719 Fluke 115 Handheld multimeter Digital CAT III 600 V Display (counts): 6000
Security datasheet
Security datasheet 122719 Fluke 115 Handheld multimeter Digital CAT III 600 V Display (counts): 6000
Description
Compact true-rms meter for field service technicians. The Fluke 115 is the solution for a wide variety of electrical and electronic testing applications.
It designed for daily use,Fluke 115 is optimized for the following applications: Electrical and electronic testing in field applications, industries and applications where additional features to facilitate the work (e.gMeasurement of AC and Dc current)
It designed for daily use,Fluke 115 is optimized for the following applications: Electrical and electronic testing in field applications, industries and applications where additional features to facilitate the work (e.gMeasurement of AC and Dc current)
Features
- Large white LED backlight to work in poorly lit areas
- Resistance and continuity
- Min/Max/Average to record signal fluctuations
- CAT III 600 V safety rated
- Safety conformance: All inputs are protected to CE, IEN61010-1 CAT III 600V. UL, CSA, TÜV listed and VDE.
Scope of delivery
- Test leads with 4mm lantern tups
- holster
- installed 9V battery and users manual
