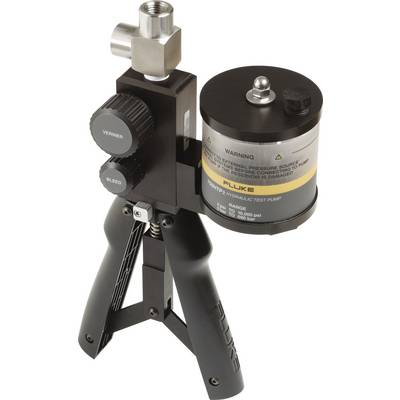

Fluke 4096855 700HTP-2 Hydraulic testing pump 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 1,836.13 / piece)
€ 1,836.13
plus VAT.
14-day return policy included
Technical specifications
- Product type
Hydraulic testing pump
- Compatible with
Fluke
- Type
700HTP-2
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1373051 Fluke 4096855 700HTP-2 Hydraulic testing pump 1 pc(s)
Description
The Fluke 700 HTP-2 is a hand-operated hydraulic pump, for the production of calibration pressures of up to 690 bar. Designed for use with high-pressure modules of the Fluke-700 series, such as the Fluke-700P09, 700P29, 700P 30 and 700 P31.
Ideal for calibration via the reference connection when connecting to a fluke high pressure module. For the calibration of high-pressure input devices such as pressure transmitters or pressure measuring devices uses the 700 HTP-2 hydraulic oil on the basis of distilled water or mineral oil. Can also be used with Pressure Calibrators Fluke Series 717.
This text is machine translated.
Ideal for calibration via the reference connection when connecting to a fluke high pressure module. For the calibration of high-pressure input devices such as pressure transmitters or pressure measuring devices uses the 700 HTP-2 hydraulic oil on the basis of distilled water or mineral oil. Can also be used with Pressure Calibrators Fluke Series 717.
This text is machine translated.
Features
- • Variable size stroke adjustment, enables the user to adjust the volume and the pressure vary per hub
- • Integrated pressure controller for fine adjustment.
- • By direct connection to pressure modules are used in the pressure calibration and testing two separate parts of a single combines
- • Two ¼ inch NPT pressure connections, one for reference (pressure module or measuring device), one for uut
- • Compatible with the optional Fluke-700 PRV-pressure relief valve for the protection of pressure modules against overpressure damage
- • Improved Primer
- • Improved stroke limiter
Scope of delivery
- • ¼ inch NPT to ¼ inch NPT-Adapter to connect the reference measurement connection on the pump body to the 1/4 NPT connection socket at the pressure modules Fluke 700 P29, P30 and P31.
- • ¼ inch NPT plug on ¼ inch (2) BSP Socket adapter
- • ¼ inch NPT T-piece (installed)
- • Instructions for Use
Hints
The user must have a hose with appropriate enda circuits in order to pressure from the UUT connection on the test calibration unit such as the Schlauchkit Fluke-700 HTH-1.
