Buy Fluke 4962665 Endoscope Probe diameter: 8.5 mm Probe length: 1.2 m

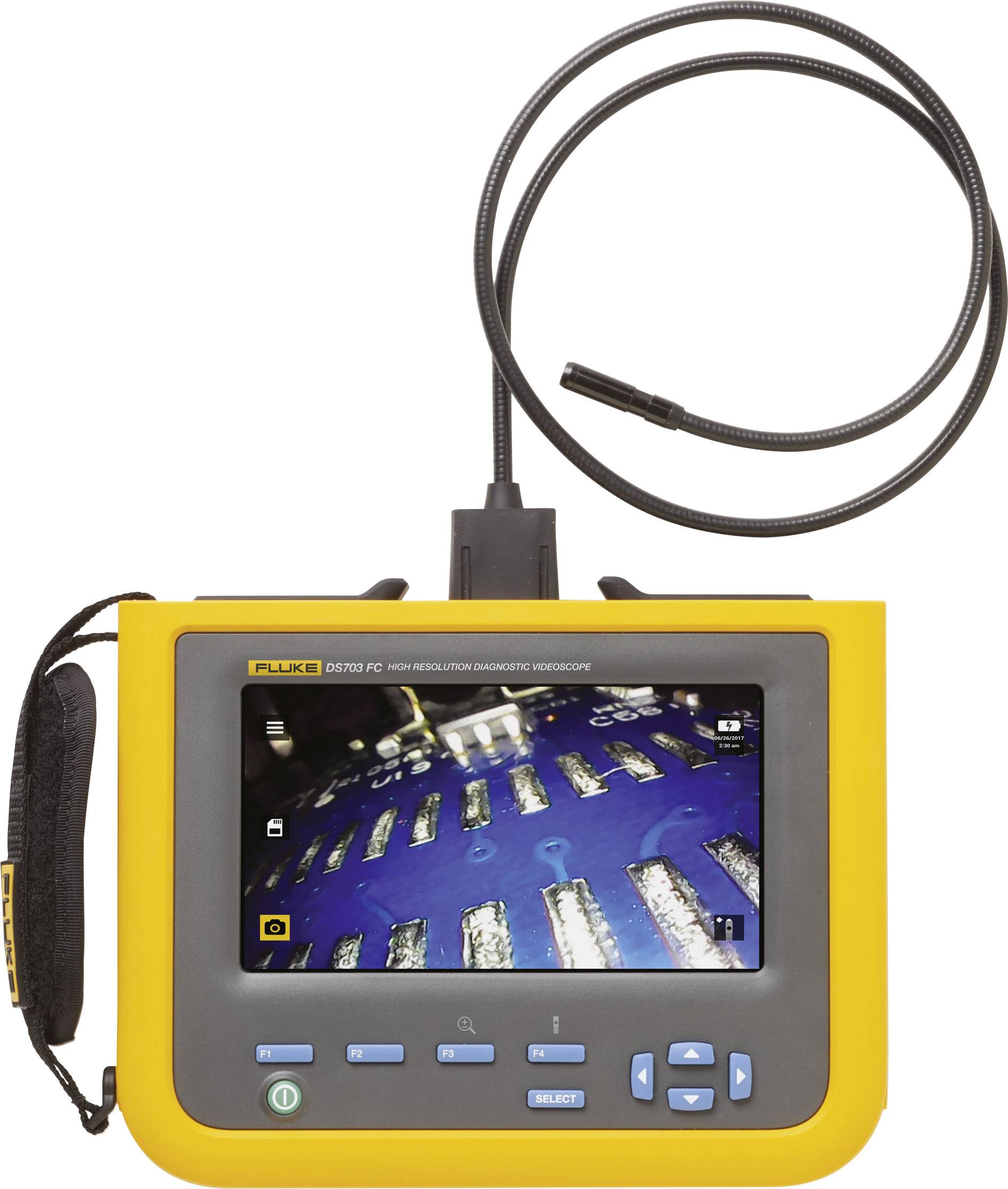

A yellow endoscopic device with a monitor displaying electronic components. A long, flexible tube is connected to it.

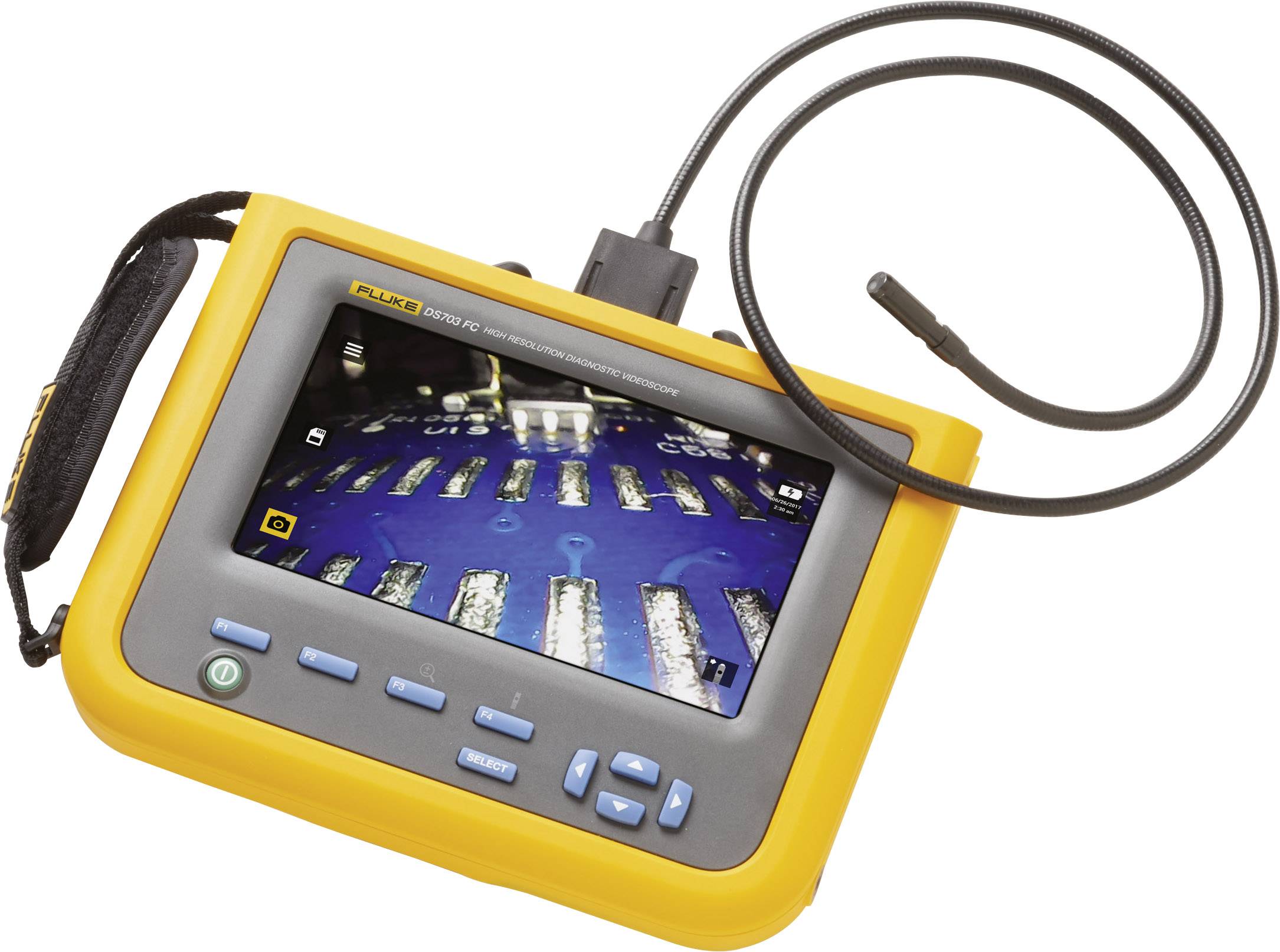

A portable endoscope with a flexible tube displays defects on a circuit board screen.

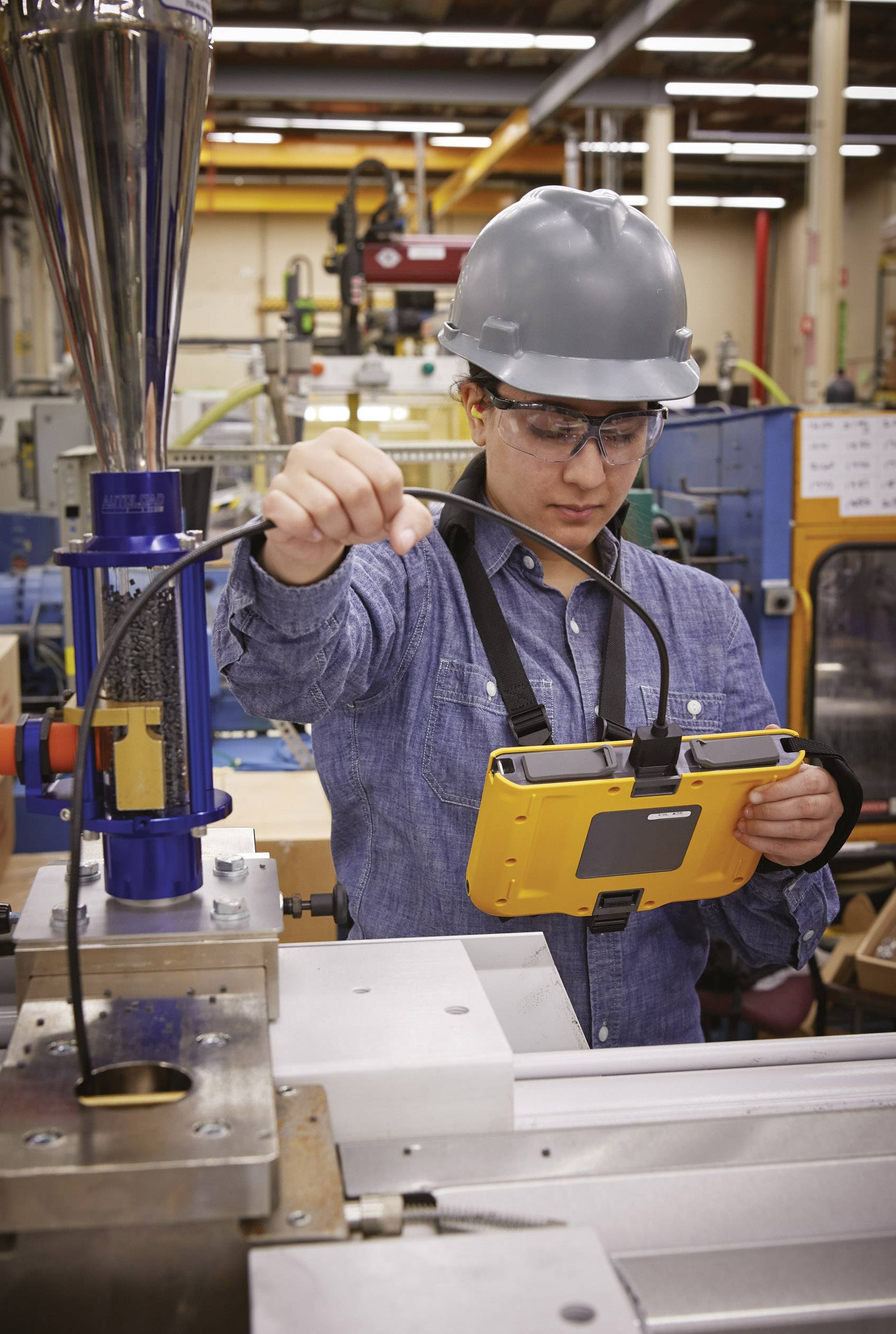

A person wearing a hard hat and safety glasses is working with a digital device in a factory environment, surrounded by machinery.

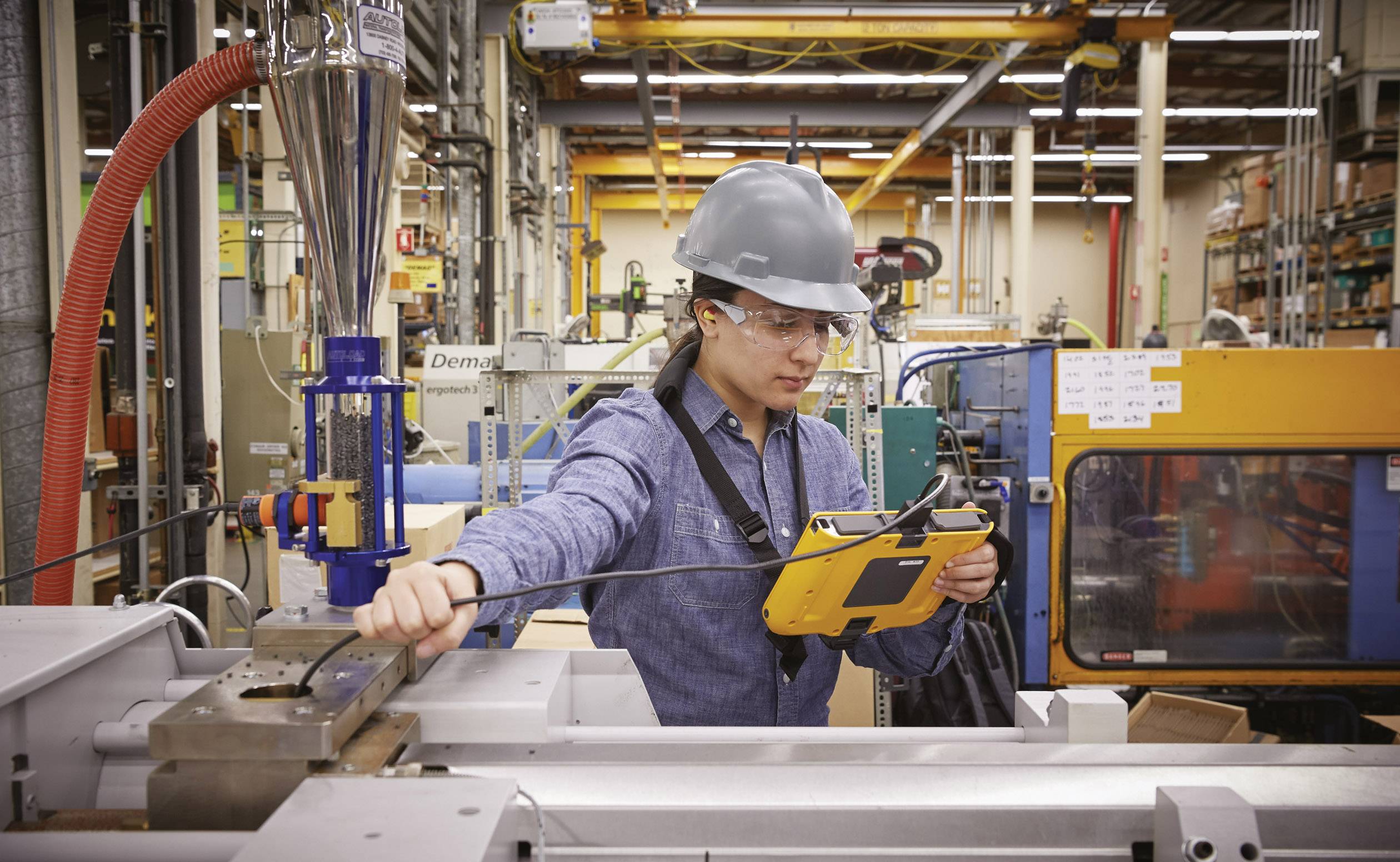

A man wearing a safety helmet is operating a machine in a factory. He is holding a tablet and standing surrounded by technical equipment.

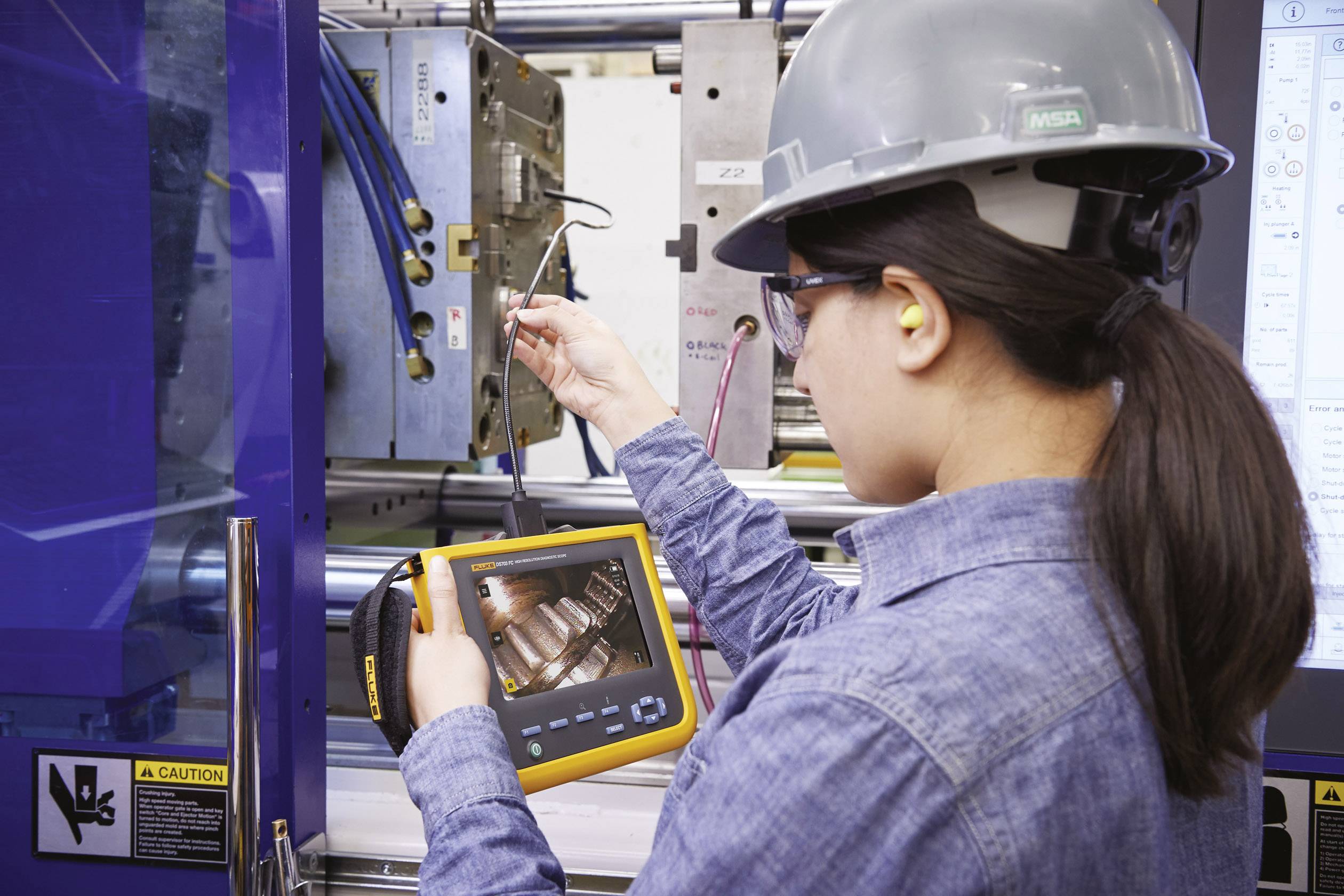

A person wearing a protective helmet and safety glasses is operating a machine inspection device and checking technical data on a monitor.

1/5

Datasheet (PDF)

Fast track dispatch on Mon, 6 Jul

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 3,365.55 / piece)

€ 3,365.55

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Fluke Diagnostic Video scope DS703

High-resolution probe with two-way Camera
LCD screen
Fluke Connect

Technical specifications

Relative Humidity: 10% to 95%, non-condensing

Product type: Endoscope

Probe diameter: 8.5 mm

Probe length: 1.2 m

Endoscope features: High-resolution
Digital zoom
LED lit
Exchangeable camera attachment

Camera resolution: 1280 x 720 Pixel

Digital zoom: 8 x

Power supply (details): V/DC

Field of view: 68°

Light source: LED

Weight: 920 g

Dim: (L x W x H) 3.7 x 22.5 x 17.8 cm

Length: 3.7 cm

Width: 22.5 cm

Height: 17.8 cm

Type: FLK-DS703 FC

Ambient temperature: 0 °C to +50 °C

Documents & Downloads

Datasheet

Datasheet 1714785 Fluke 4962665 Endoscope Probe diameter: 8.5 mm Probe length: 1.2 m

User & Safety Instructions

User & Safety Instructions 1714785 Fluke 4962665 Endoscope Probe diameter: 8.5 mm Probe length: 1.2 m

Description

Robust, high-resolution diagnose-videoskop for industrial use with 1280 x 720 resolution and WLAN function. Capacitive Touch Screen 17.8 cm (7 inch) for an exact diagnosis in hard to reach places. Inspection camera with video recording (720 pixels). Adjustable LED lighting and digital zoom for high image quality. Up is up® technology for the rotation of the display screen, so that the image is displayed regardless of the position of the probe (only with 8.5-mm probe with 1.2 m long cable).

This text is machine translated.
