Name: Fluke 5590605 Test lead MC4 plug, MC4 socket 4 mm jack Black, Red 1 pc(s)
Brand: Fluke
SKU: 3859337

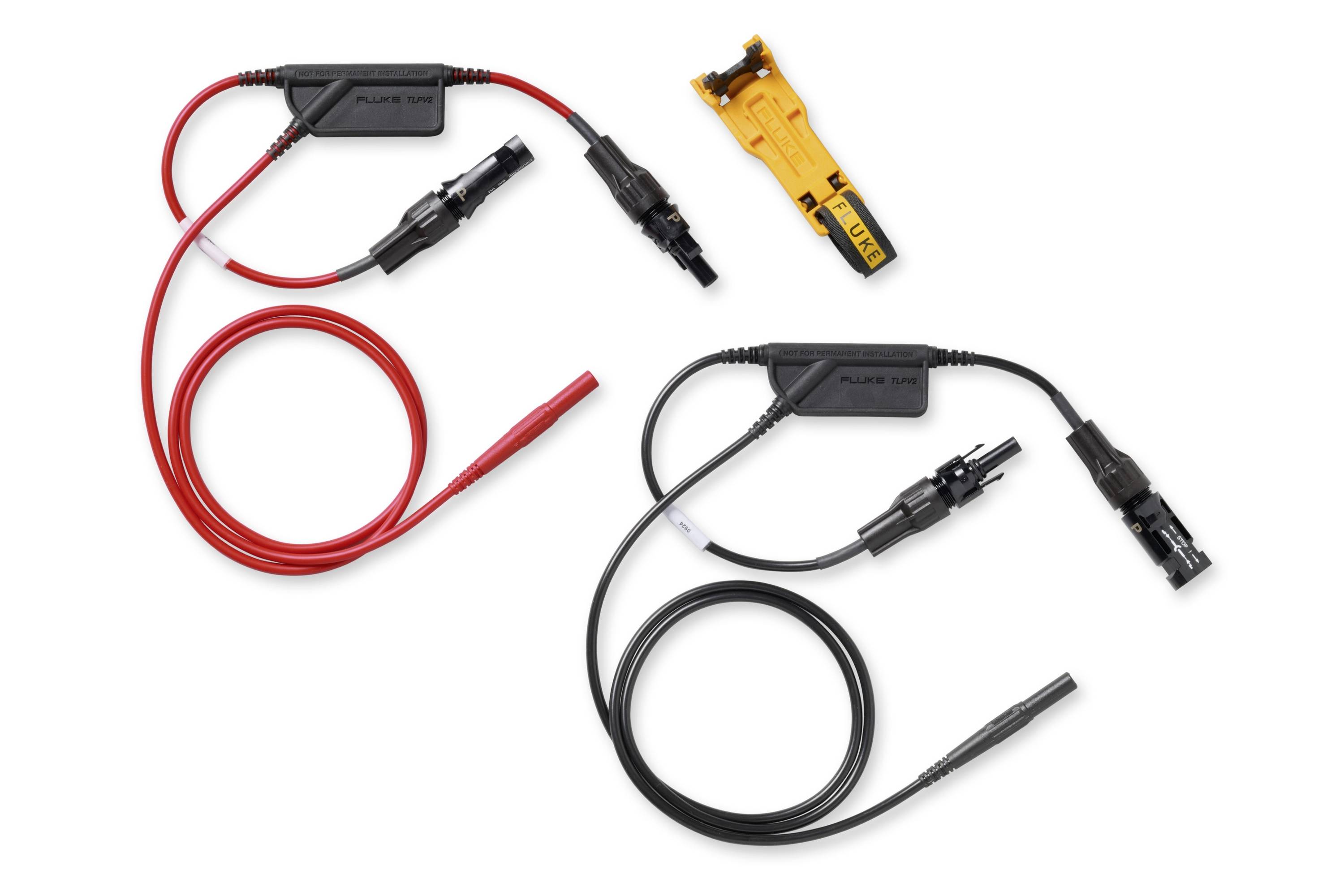

Two solar panel test lead assemblies, one red and one black, with inline connectors and MC4-style plugs; a yellow locking tool sits above them.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Test lead set for Fluke TLPV2 solar current clamp meters

TLPV2 includes a pair of 4 mm Stäubli MC4 Y branch connectors (red - female MC4 branch to male MC4/black - male MC4 branch to female MC4)
Designed for safe and accurate PV measurements with MC4 connectors, compatible with 4 mm sheathed banana plugs
Includes Fluke TLPV UTOOL for convenient connection with leadwrap for test line management
CAT III rated 1500 V, 30 A
Compatible with Fluke solar tools: 393 FC, 283 FC/PV, 1537, GFL-1500, PVA-1500HE2

Technical specifications

Cable length: MC4 branch: 12 in. (~30.5 cm); Banana cable: 36 in. (~91.4 cm)

Product type: Test lead

Type A: MC4 plug
MC4 socket

Type B: 4 mm jack

Factory colour: Black
Red

Plug features: Scoop-proof

Material: Plastic

Diameter/connectortype: MC4 to 4-mm banana plug

Temperature range: +5 °C to +30 °C, over 80 % rH; +31 °C to +40 °C, over 50 % rH °C

Nominal current: 30 A

Nominal current - rounded value: 30 A

Jack diameter: 4 mm

Contact material: Nickel plated

Reading category: CAT III 500 V

Compatible with (details): Solar clamp-on ammeter (e.g. Fluke 393 FC) and photovoltaic systems / PV circuits

Type: 5590605

Documents & Downloads

Datasheet

Datasheet 3859337 Fluke 5590605 Test lead MC4 plug, MC4 socket 4 mm jack Black, Red 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3859337 Fluke 5590605 Test lead MC4 plug, MC4 socket 4 mm jack Black, Red 1 pc(s)

Description

The Fluke TLPV2 solar clamp test lead set is an indispensable accessory for professionals working with photovoltaic (PV) solar systems and demanding precision, safety and performance. Specially developed for accurate DC measurements on solar power systems, this premium lead set has industry-standard Studbli MC4 connectors that enable safe and reliable connections to PV modules, combinator boxes and inverters and thus the risk of faulty measurements during tests, A black-red test cable and a 4 mm covered banana plug enable the TLPV2 to be seamlessly integrated with solar clamps such as the Fluke 393 FC, allowing technicians to take quick and safe measurements without the need for an adaptor. The connections are available via nickel-plated contacts for a long life and a constant contact quality, while the supplied PV-release tool makes a safe separation quick and easy - even in narrow or elevated installations.
The TLPV2 is designed for CAT III 1500 V and conforms to IEC safety standards; it is designed for demanding solar environments where high direct voltage is often the case. Its rugged design and specially developed design make it Ideal for the installation of solar modules, inverter tests, energy audits and field diagnostics. Whether you are performing acceptance tests or routine maintenance, the TLPV2 set offers reliability and performance that will help you work faster and safer, making it an indispensable must in the toolbox of professional solar technicians.

This text is machine translated.
