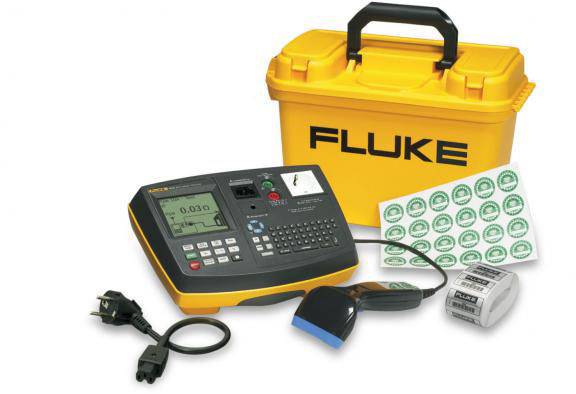

Fluke 6500-2 DE KIT 2 Equipment tester set

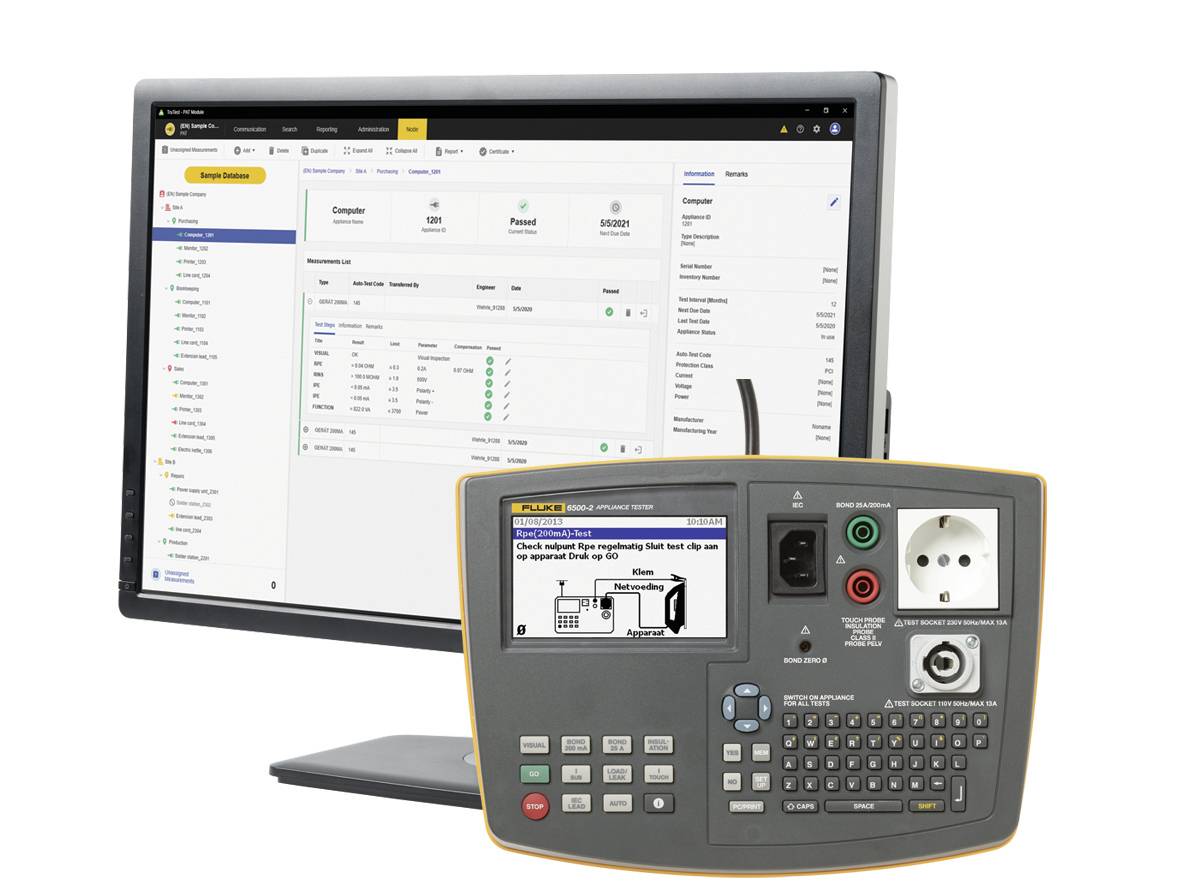

FLUKE-6500-2 device tester, according to local standards like DIN VDE 0701-0702, for all necessary tests for protection class I and protection class II devices with a variety of preset tests bundled with data management and reporting software Fluke TruTest™. Fluke TruTest software is designed to significantly reduce the amount of data management and reporting required for electrical systems compared to traditional data management. Whether you are testing equipment in an office, verifying repairs in a workshop, or conducting annual visual inspections, proper data management is critical to creating easy-to-understand reports for customers. The TruTest software allows you to quickly and easily import measurement results directly from measuring devices, manage files or enter them manually if required.

· German screen text
· Compact and light - for efficient working and easy carrying
· One-button operation - Preset and customizable test routines can be accessed with a single button press, so you can run the tests on site faster and save time
· More efficient operation - fast data entry via a QWERTY keyboard (or optionally with a Fluke barcode scanner) and fast data transfer via USB flash drive or data output via optional printer
· Color dot-matrix display: Better visibility and better viewing angle
· 250 V Insulation test: Possibility to perform 250V insulation tests
· 110 V test function: Optional 110V test function for testing devices on construction sites
· FI-circuit breaker test: Possibility to test devices that are protected with FI-circuit breaker

Measurement functions and features:
· LN mains voltage
· Display for limit violation
· Compensation of the measuring lead for protective conductor resistance measurement
· PE earth resistance (200 mA)
· PE 10 A (DE) EARTH RESISTANCE
· Insulation 500 V dc
· Insulation 250 V dc
· Protective conductor current
· Contact current
· FI-circuit breaker test
· Spare leakage current
· Device performance kVA
· Device load current
· Testing of cold-device and extension cables
· Self-test
· Programmable values for good/bad test
· Polarity check
· Program mode
· Real-time clock
· Results management
· 230 V test connection / 230 V mains input plug
· 110 V device test compatible with optional adapter

This text is machine translated.
