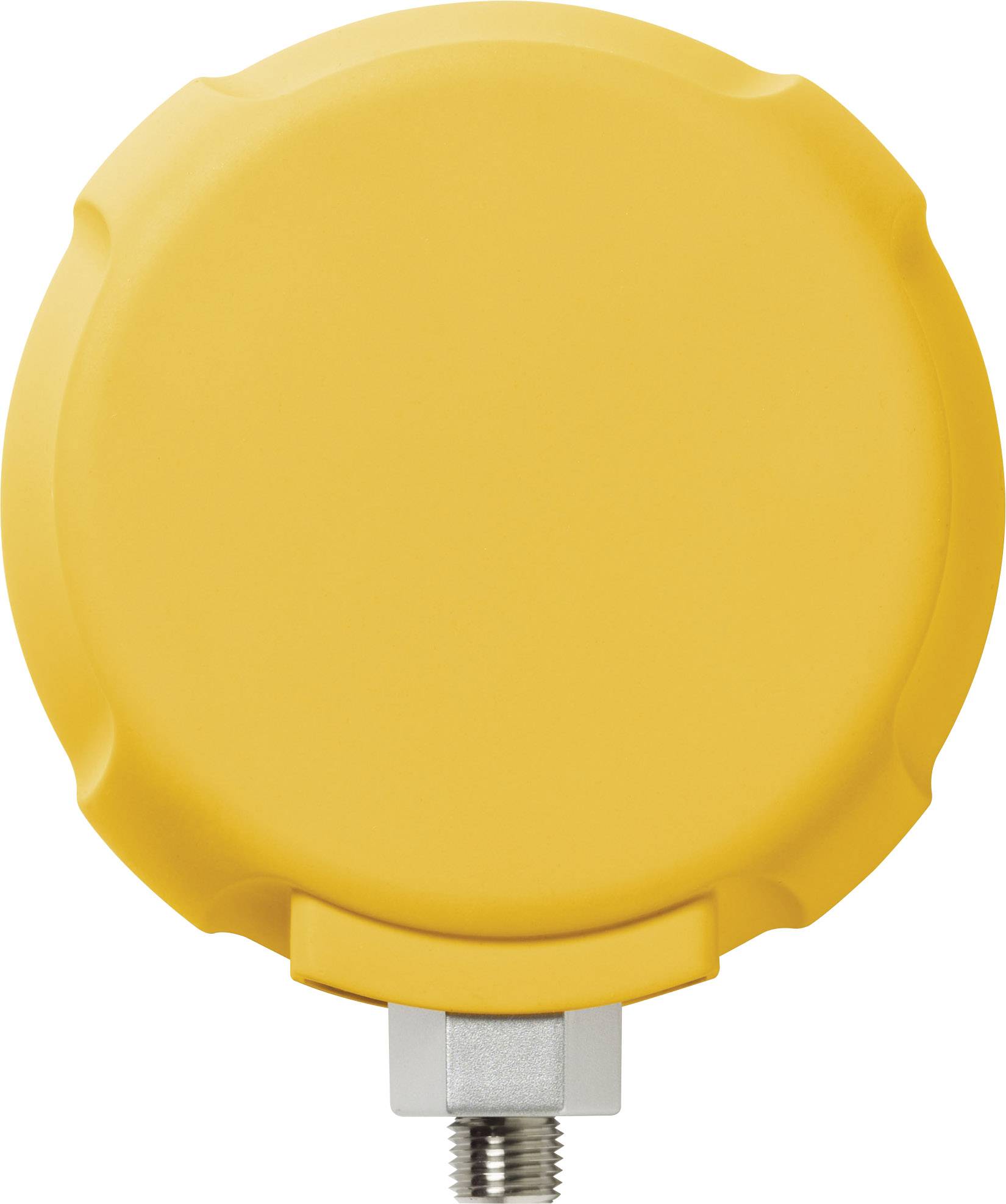

Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
EAN:
Part number:
Item no:
Number
Total (€ 1,264.71 / piece)
€ 1,264.71
plus VAT.
14-day return policy included
Highlights & Details
Digital precision pressure gauge Fluke 700 G29
- -0,97-14 to 3000 psi or up to 200 bar
- Specified in accordance with the ATEX directive
Technical specifications
- Power supply (details)
3 x AA battery
- Product type
Pressure gauge
- Reading range
-0.97 - 200 bar
- Unit of measurement
Gas
Liquid
- Operating voltage
4.5 V DC
- Pneumatic connection
1/4 inch NPT external thread
Manufacturer's standards (no certificate)
- Display range
-0,97 up to 200 bar
- Print resolution
0.01 bar
- Basic accuracy
0.05 %
- Excess pressure resistance
10000 psi, 690 bar
- Dim
(L x W x H) 37 x 114 x 127 mm
- Weight
560 g
- Accuracy
0.05 %
- Reading range (max.)
200 bar
- Reading range (min.)
-0.97 bar
- Width
114 mm
- Height
127 mm
- Length
37 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
User & Safety Instructions 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
User & Safety Instructions 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
User & Safety Instructions 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
User & Safety Instructions 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
User & Safety Instructions 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
User & Safety Instructions 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
User & Safety Instructions 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
Information
Information 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
Information 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
Information 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
Information 1374226 Fluke 700G29 Pressure gauge Gas, Liquid -0.97 - 200 bar
Description
Portable, high-quality precision manometer for fast and accurate results for pressure measurement and calibration. The Powerful Precision manometer of the series 700 G of Fluke satisfy all your requirements in the field of pressure measurement and calibration. The robust and user-friendly precision pressure gauge 700 series G 23 models, which include a range of ±10 inH2O/20 mbar up to 10,000 psi/690 bar including areas for absolute pressure. In conjunction with the hand pump sets of PTPK 700 or 700 HTPK you will receive a complete solution for pressure measurement up to 600 psi (40 bar) with the pneumatic pump PTP-1 and up to 10,000 psi (690 bar) with the hydraulic pump HTP-2.
This text is machine translated.
This text is machine translated.
Features
- • Pressure measurements from -14 up to 3000 psi or -0,97 up to 200 bar
- • Accuracy of 0.05% of the measurement range
- • Gauges with accuracy of the reference class of 0.04% of the measured value
- • User-friendly, robust design for reliable function
- • Certified by CSA in accordance with Class I, Division 2, groups A-D
- • Specified in accordance with the ATEX directive: Ex nA II 3G IIB T6
- • Up to 8.493 pressure measurements can be logged (requires 700 G/TRACK Software)
Scope of delivery
- Protective cover · Batteries · Adapter 1/4" NPT/metric operating instructions.
- This text is machine translated.
Hints
Media Compatibility
All non-combustible, non-toxic, non-explosive, non-oxidising liquids or gases, which are compatible with stainless steel SS 316.
