Fluke 80i-110s Clamp meter adapter A/AC reading range: 0 - 100 A A/DC reading range: 0 - 100 A
EAN:
Part number:
Item no:
Highlights & Details

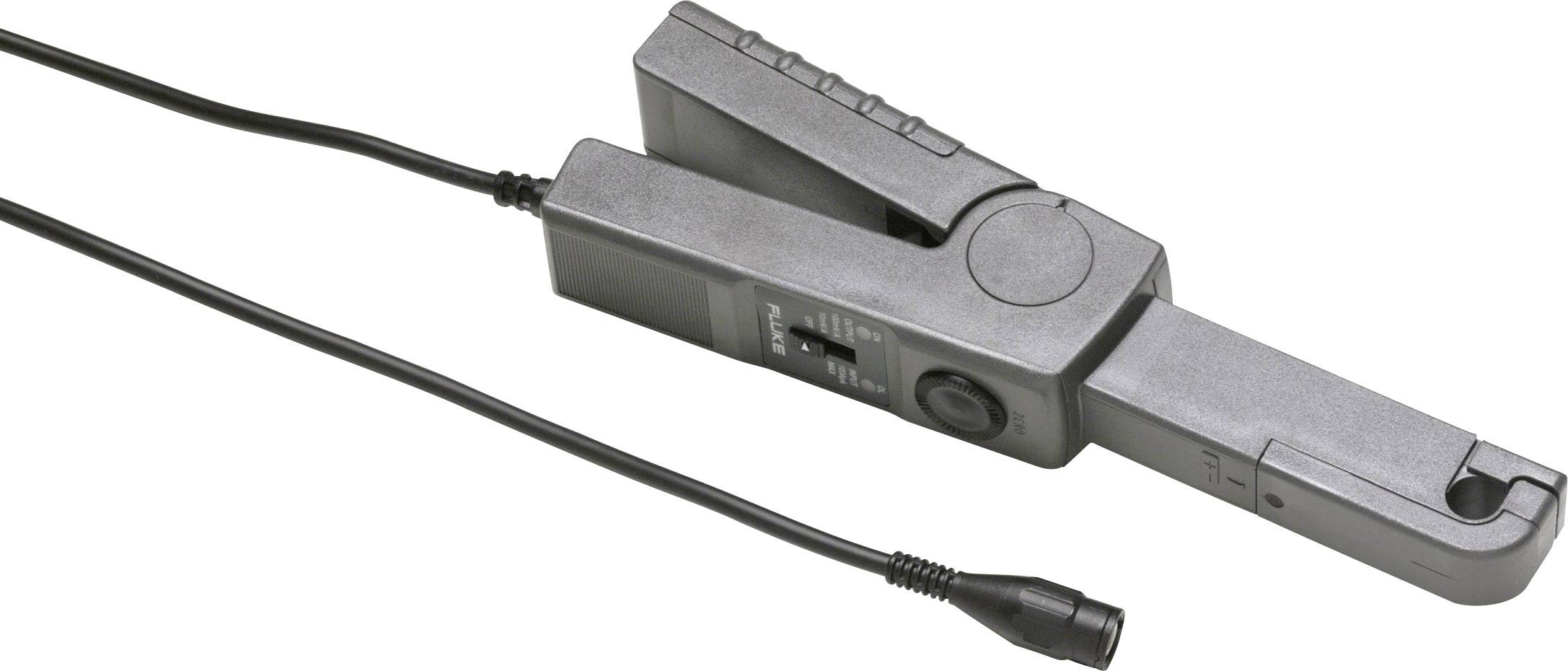

AC-DC clip-on ammeter adapter Fluke 80i-110s
- N/A
- Opening range of current clamps 11.8 mm
Technical specifications
- Nominal current 100 A
- Resolution: 10 mV/A; 100 mV/A
- Opening range of current clamps
11.8 mm
- Product type
Clamp meter adapter
- Type B
BNC plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
0 A
- Amperage reading range AC (max.)
100 A
- Basic accuracy
3 %
- Amperage reading range DC (min.)
0 A
- A DC reading range (max.)
100 A
- Power supply (details)
9 V battery
- Dim
(L x W x H) 36 x 67 x 231 mm
- Current reading
AC/DC
- Reading category
CAT II 600 V
CAT III 300 V
- Weight
330 g
- Max. frequency
20 kHz
- Width
67 mm
- Height
231 mm
- Length
36 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1372598 Fluke 80i-110s Clamp meter adapter A/AC reading range: 0 - 100 A A/DC reading range: 0 - 100 A
Description
Fluke clamp-on ammeters are ideal for expanding the current measuring range of Fluke measuring instruments.
Fluke 80i-110s is a direct and alternating current measuring clamp to replay the current signal shapes in modern commercial and industrial power supply systems. this current probe is for the exact reproduction of currents with mains frequency and up to 50. Harmonic optimized. In addition, the clip-on ammeter Fluke 80i-110s compatible with every instrument, the millivolt measurements can be performed.
This text is machine translated.
Fluke 80i-110s is a direct and alternating current measuring clamp to replay the current signal shapes in modern commercial and industrial power supply systems. this current probe is for the exact reproduction of currents with mains frequency and up to 50. Harmonic optimized. In addition, the clip-on ammeter Fluke 80i-110s compatible with every instrument, the millivolt measurements can be performed.
This text is machine translated.
Features
- Accurate measurement of AC, DC and AC+DC for electrical, electronic and automotive applications.
- Shielding for high storfestigfestigkeit with measurements on electronic motor drives and ignition systems
- Conical shape in forceps form facilitates measurements in confined spaces
- Security specified insulated BNC connections for 600 volt-compatible with the Fluke ScopeMeter measuring devices, harmonic analyzers and oscilloscopes
- Can be used with the optional BNC/4mm adapter may be used in conjunction with multi-Meters PM 9081/001
Scope of delivery
- Battery
- User manual.
