Fluke Acoustic camera Colour display FLUKE-II915/SB140 12.1 - 114.6 dB 2 Hz - 100 Hz USB-C, Wi-Fi
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 23,264.71 / piece)
€ 23,264.71
plus VAT.
14-day return policy included
Technical specifications
- Product type
Acoustic camera
- Reading type
SPL
- dB (A) SPL reading range (max.)
114.6 dB
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 68 x 322 x 186 mm
- Display
Digital
LCD
Touchscreen
- Max. frequency
100 Hz
- Min. frequency
2 Hz
- Frequency range
2 Hz - 100 Hz
- dB (A) accuracy
1 dB
- dB SPL (A) reading range
12.1 - 114.6 dB
- dB (A) SPL reading range (min.)
12.1 dB
- Width
322 mm
- Height
186 mm
- Length
68 mm
- Features
Colour display
- Interfaces
USB-C
Wi-Fi
Documents & Downloads
Datasheet
Datasheet 3437876 Fluke Acoustic camera Colour display FLUKE-II915/SB140 12.1 - 114.6 dB 2 Hz - 100 Hz USB-C, Wi-Fi
User & Safety Instructions
User & Safety Instructions 3437876 Fluke Acoustic camera Colour display FLUKE-II915/SB140 12.1 - 114.6 dB 2 Hz - 100 Hz USB-C, Wi-Fi
Description

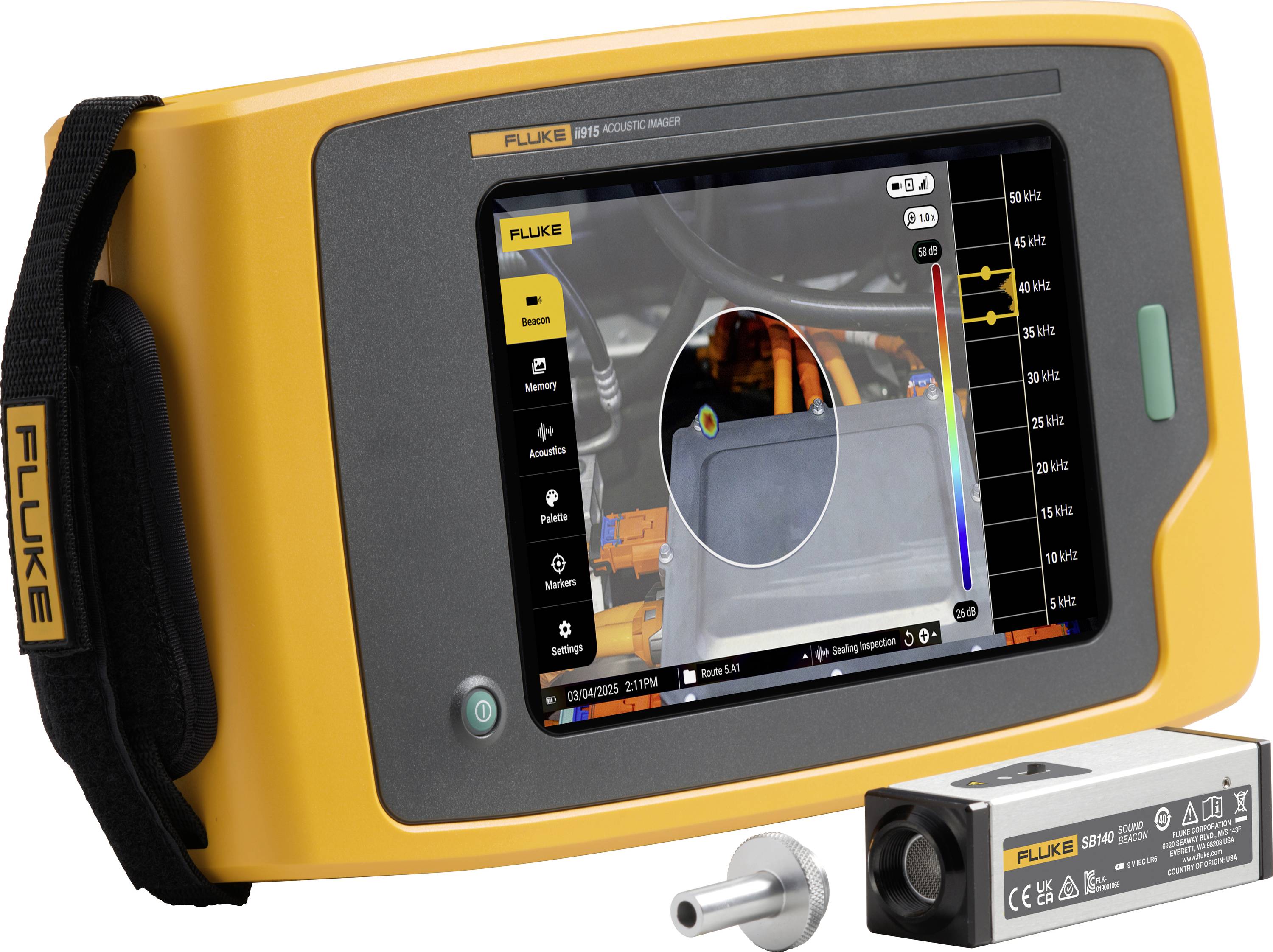

The Fluke ii915 Sound Camera with LeakQ™, PDQ Mode™ and MecQ™ Mode helps service teams detect, locate and evaluate leaks, partial discharges, and potential mechanical anomalies. The multi-award winning industrial camera series (II) has an intuitive, user-friendly interface, which enables the entire maintenance team a fast and safe working. Maintenance teams can anticipate potential problems by scanning large areas efficiently. This allows maintenance teams to act proactively and maximize system performance. The Fluke SB140 sound generator enables leakage testing in pressure-free containers.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Sound camera i915
- Wrist strap
- Sensor array cover
- Camera strap
- USBC cable
- Lithium-ion rechargeable battery
- USB-C mains adapter
- Connector set
- Hard case
- Shipping box
- Guide, safety information.

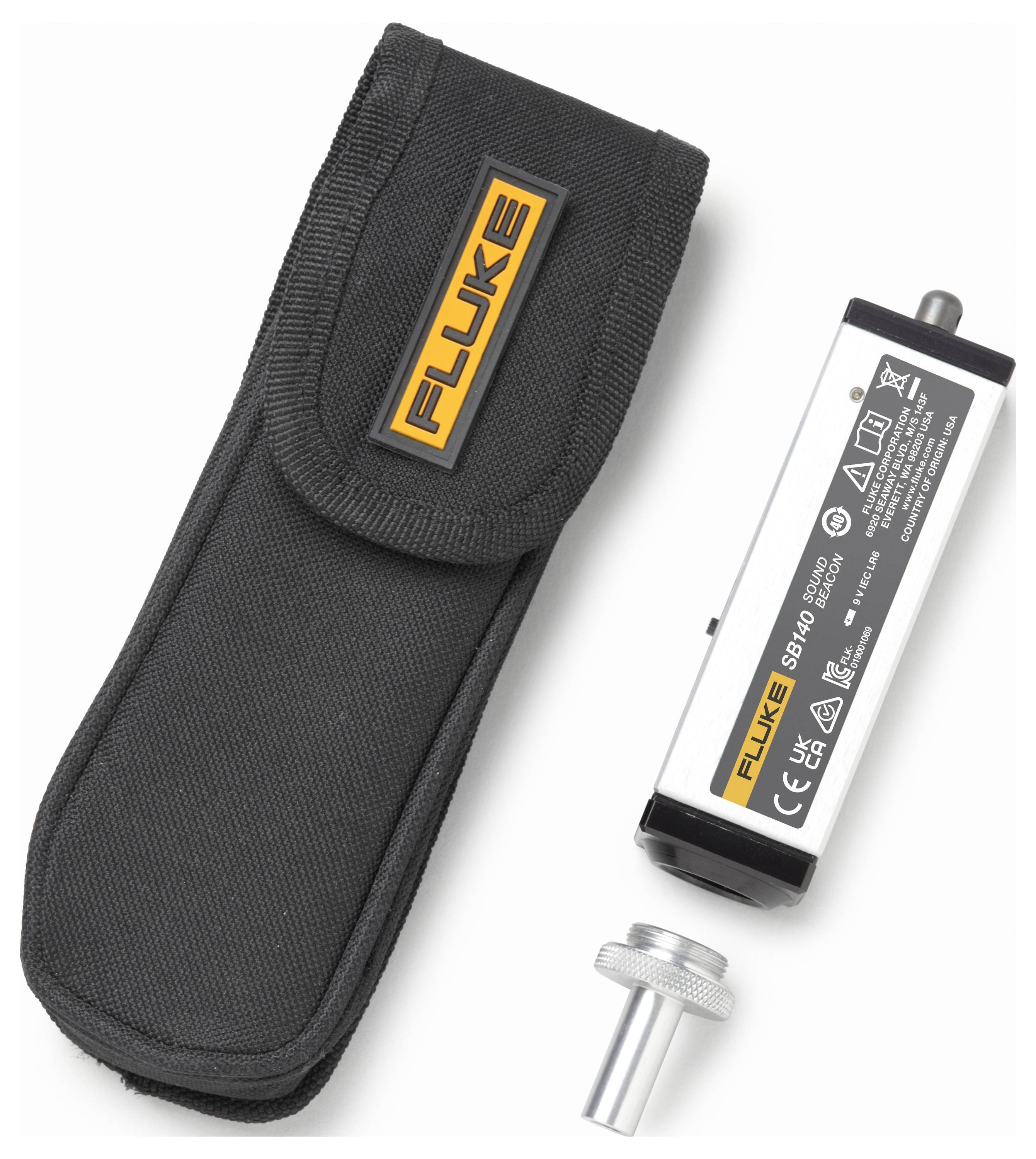

- Sounder, 9 V battery, carrying case, 1-Cal probe As accessories, operating instructions and warranty card.
