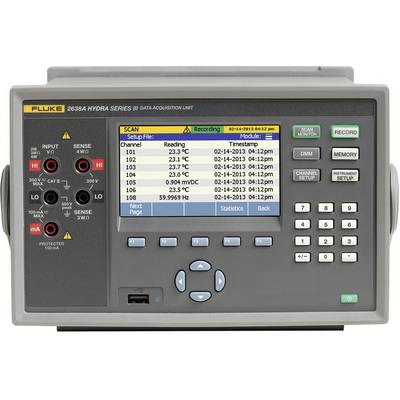

Fluke Calibration 4410407 2638A/60 240 Multi-channel data logger Unit of measurement Voltage, Amperage, Temperature, Res
EAN:
Part number:
Item no:
Total (€ 4,049.58 / piece)
€ 4,049.58
plus VAT.
Highlights & Details
Fluke Calibration 4410407 2638A/60 240 Multi-channel data logger Unit of measurement Voltage, Amperage, Temperature, Resistance -270 up to 2315 °C 0.1 up to 300 V 0.1 up to 100 mA
- DC accuracy of 0,0024%
- Accuracy of thermocouple measurements of 0.5 °C
- Up to 66 separate universal inputs
- Screen display color trend graphs for up to four channels at the same time
- User-friendly menu system for setup and data management.
- Measurement functions: AC V, DC V, AC I, DC I, thermocouple, PRT (2, 3, 4 wire), thermistor, resistance (2- or 4-wire), frequency
- Multi-channel display of the measurement data in real time
- Multimeter function with 6.5-digit resolution and front-sided inputs
- Monitor function for real-time display and display between scans
- Integrated mathematical functions for 20 channels
- Screenshot of the chart or data display with the push of a button.
- Sampling rate up to 45 channels/s for DC measurements
- Internal memory for 57,000 scan/setup files
- Functions for data security and consistency
- Data security features
- Safety according to ISO 61010-1 measurement category CAT II 300 V
Technical specifications
- Measuring range RTD temperature accuracy / accuracy: -200°C to 600°C/0.015 - 0.06°C
- Measuring range thermistor temperature accuracy/accuracy: -40°C to 150°C/0.002 - 0.35°C
- Frequency measurement range/accuracy: 20 Hz to 1 MHz/0.03 %
- Memory
Internal memory for 57,000 files
- Dim
(L x W x H) 150 x 285 x 385 mm
- Weight
6 kg
- Channels
60
- Height
385 mm
- Length
150 mm
- Width
285 mm
- Temperature reading range
-270 up to 2315 °C
Manufacturer's standards (with certificate)
- Interfaces
USB
- Unit of measurement
Voltage
Amperage
Temperature
Resistance
- Reading category
CAT II 300 V
- Type
2638A/60 240
- Reading accuracy temperature
0.5 °C
- Voltage reading accuracy
0.0024 %
- Resistance reading range (max.)
100000000 Ω
- Resistance reading range (min.)
100 Ω
- Amperage reading range (max.)
100 mA
- Amperage reading range (min.)
0.1 mA
- Temperature reading range (max.)
2315 °C
- Temperature reading range (min.)
-270 °C
- Voltage reading range (max.)
300 V
- Voltage reading range (min.)
0.1 V
- Product type
Multi-channel data logger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1761781 Fluke Calibration 4410407 2638A/60 240 Multi-channel data logger Unit of measurement Voltage, Amperage, Temperature, Res
Description
Stand-alone data acquisition system with excellent price / performance ratio
This text is machine translated.
This text is machine translated.
Features
- Measurement data acquisition device/Data logger with 60 universal channels. Contains a relay board (2638 A-RLY) and an input module 2638 A-100.
Scope of delivery
- Installed relay board
- Universal Input Module
- Test Leads
- Product Guide
- Security information registration on CD
- Power cord
- Screwdriver
- Feedback can be calibration heritage directional with data
