Fluke FLK-1662 UK Electrical tester Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Highlights & Details
Fluke 1662 UK multi-functional installation tester
- Tripping current test for residual current protective devices (FI switch)/ramp test
- FI-switch Auto Test and ramp test
- Pulsating test of DC-voltage sensitive FI-switches (G- and S-type);Remote-probe
- Auto start can be switched on/off for FI switch testing and loop impedance measurement
- Single input power cable for high demands
Technical specifications
- Insulation resistance at 100 / 250 / 500 / 1,000 V.
- Product type
Electrical tester
ISO standards
- Reading category
CAT III 500 V
CAT IV 300 V
- Dim
(L x W x H) 100 x 250 x 125 mm
IP40
- Display type
Digital (LCD)
- Width
250 mm
- Height
125 mm
- Length
100 mm
- Test procedure
automated
- Voltage supply
Battery
- Memory
Optional
- Type
FLK-1662 UK
- Features
RCD/FI testing
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2387161 Fluke FLK-1662 UK Electrical tester Calibrated to (ISO standards)
Information
Information 2387161 Fluke FLK-1662 UK Electrical tester Calibrated to (ISO standards)
Description
A solid, easy-to-use installation tester.
The Fluke 1662 Installation Tester offers you the high Fluke reliability, easy operation and versatile functions you need for daily installation tests
This text is machine translated.
The Fluke 1662 Installation Tester offers you the high Fluke reliability, easy operation and versatile functions you need for daily installation tests
This text is machine translated.
Features
- Measuring function
- Voltage and frequency
- Polarity tester, detects interrupted N-conductors
- Insulating resistance
- Continuity and resistance
- Measure motor windings with continuity test
- Loop and mains impedance
- Ground fault current (PEFC/IK)
- Expected short circuit current (PSC/IK)
- RCD tripping time
- RCD tripping current (ramp test)
- Measures trip time and trip current for RCD type A and AC in a single test
- Variable test current for RCDs
- Automatic test sequence for residual current protective devices (RCDs)
- Rotary field indicator;
- Automatic start can be switched on and off for RCD and loop impedance measurement
- Self-test
- Backlit display
- Time and date (when used with optional FlukeView software)

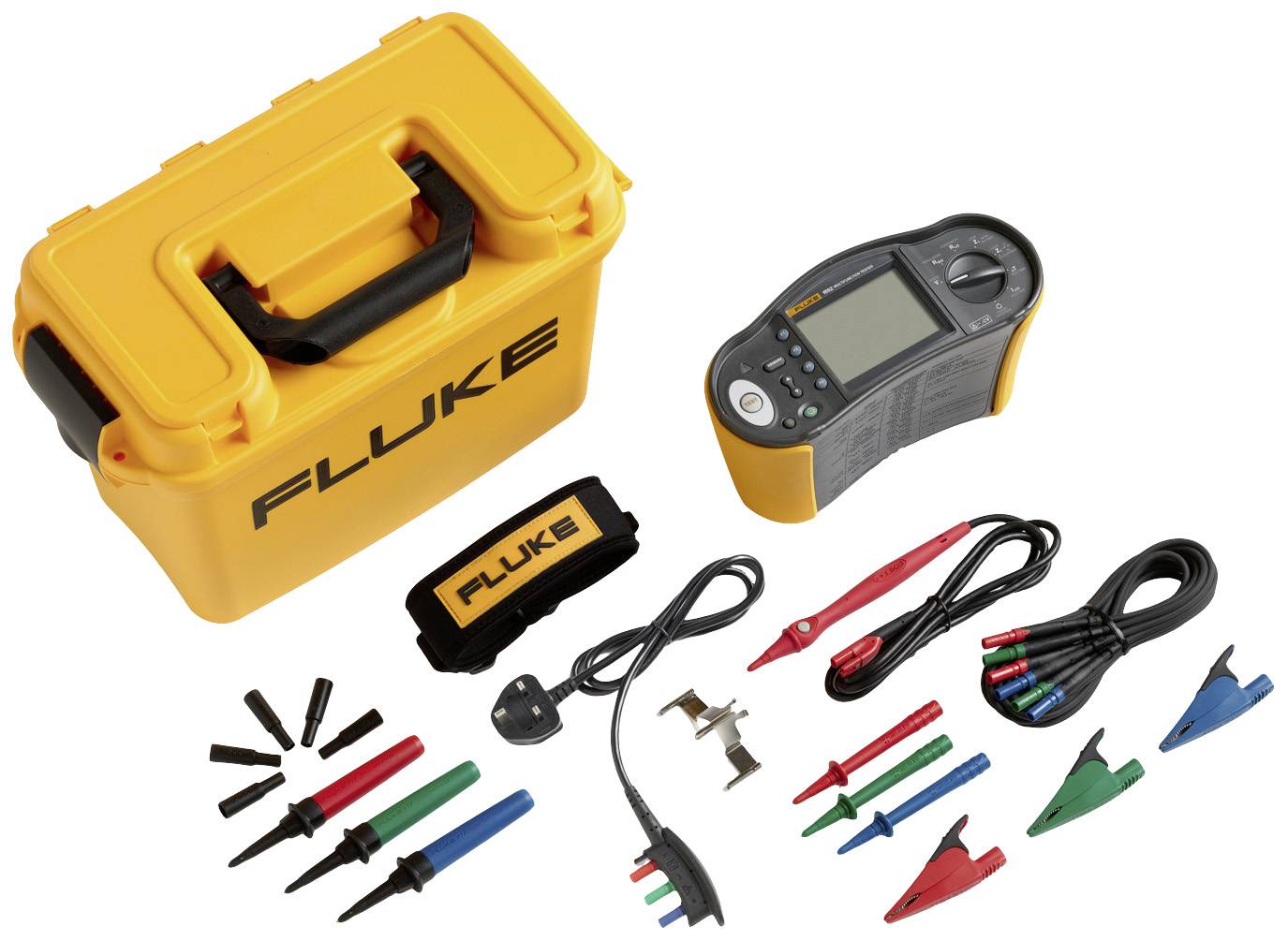

Scope of delivery
- Robust mains measuring lead
- Hard case
- Probe with release key
- Zero adapters
- 6 batteries
- Hard case
- Zero adapters
- Mains measuring lead
- Test lead set
- Camera strap
- Remote probe
- User manual on CD
- Quick guide
