Fluke FLUKE-1738/GOLD-IGF Network diagnostics 3-phase Graphic display, Clamp meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

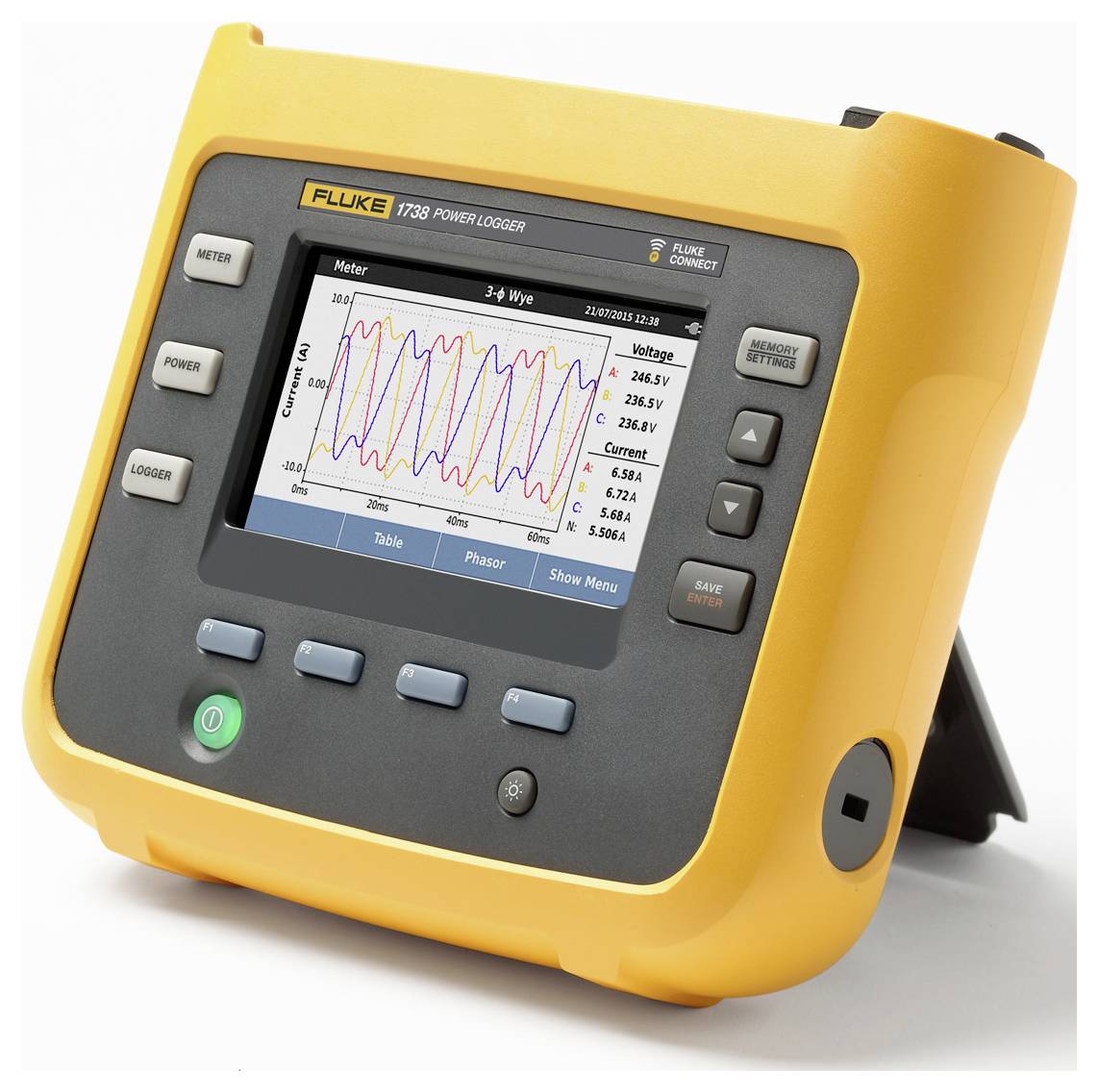

Three-phase power quality logger Fluke 1738 - gold edition
- Automatic recording and logging of all relevant parameters (voltage, current, power, harmonics, THD and power events)
- Includes the exclusive Fluke 1738 GOLD E-set with extended accessories for comprehensive network quality analyzes
- Wi-Fi and Bluetooth® connectivity for wireless data transfer to the Fluke Connect® APP
- Integrated measuring test for automatic correction of connection errors without reconnection of the measuring lines
- Supply directly from the measured circuit for non-disruptive field measurements
Technical specifications
- VDE STANDARD: DIN EN 61010-1, DIN EN 61010-2-030, EN 61010-031, EN 50160
- Voltage range up to 1000 V RMS
- Frequency range: 42.5 Hz to 69 Hz
- Memory capacity of 4 GB internal flash memory (expandable via USB)
- Sampling rate 10.24 kHz at 50/60 Hz
- Operating temperature: -10 °C to + +50 °C.
- Storage temperature -20 °C to +60 °C.

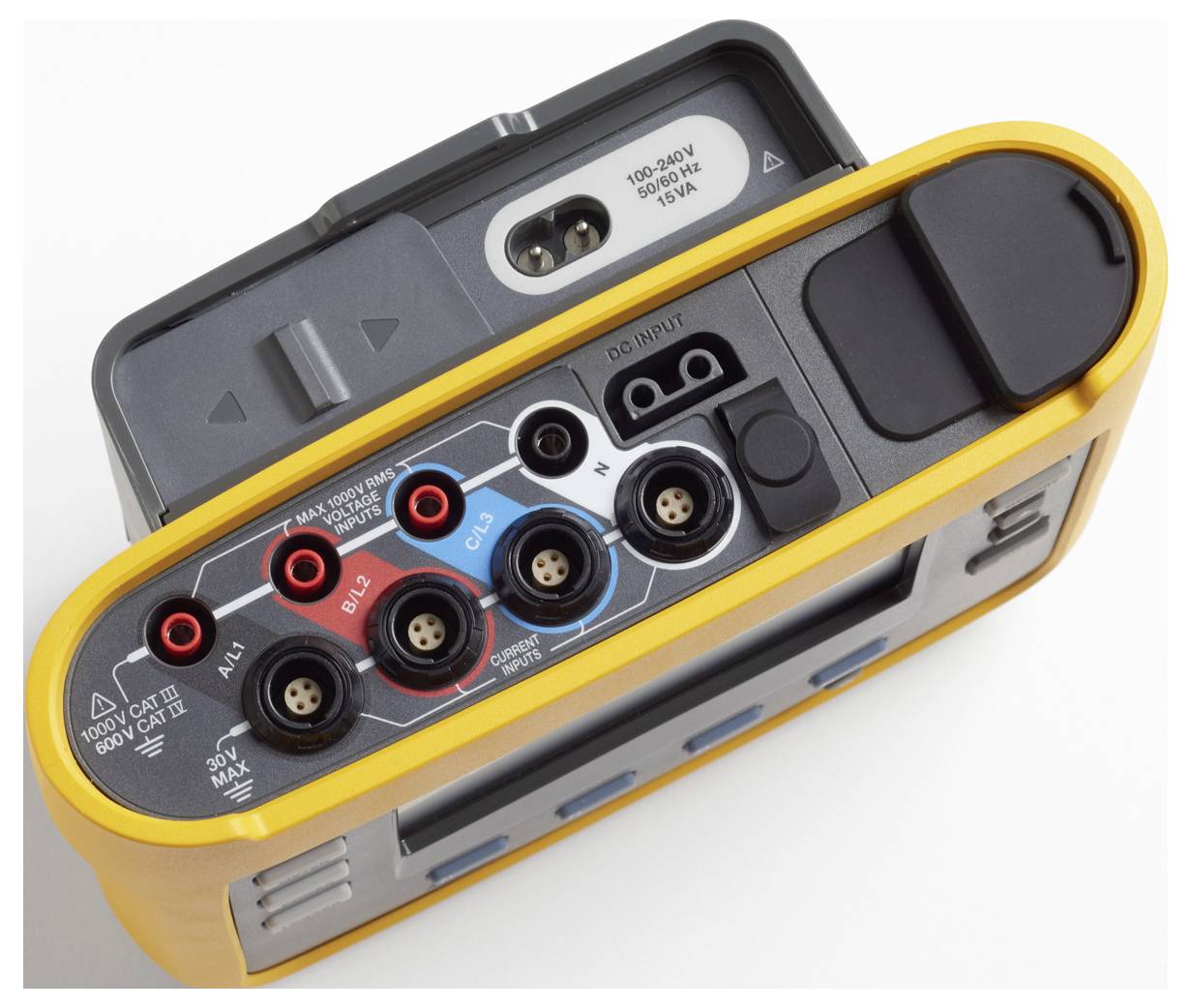

- Connector
Specific Fluke multi-pin input/protective plug connections (4 mm safety sockets)
- Product type
Network diagnostics
- Reading category
CAT IV 600 V
CAT III 1000 V
- Display (details)

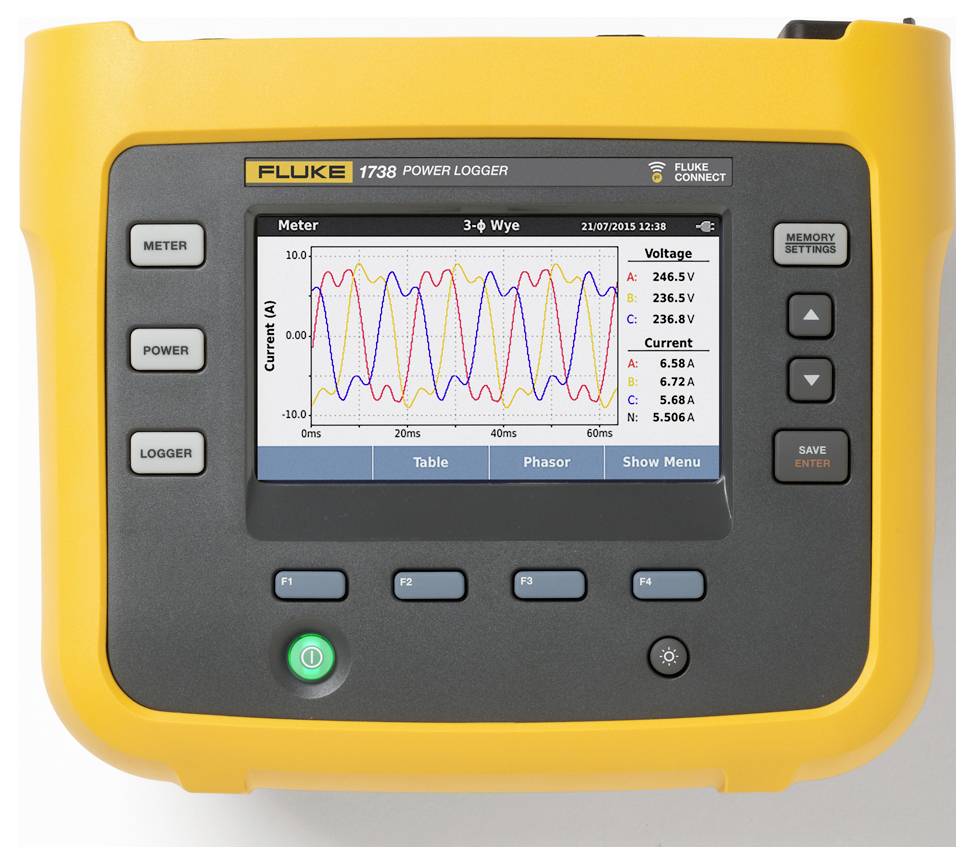

4.3-inch (10.9 cm) Transreflective color LCD touch screen (480 x 272 pixels) with backlight
- Phase detection
Yes
- PG recognition
Yes
Manufacturer's standards (no certificate)
- Power supply (details)
Rechargeable lithium-ion battery (Li-Ion 3.7 V, 9.25 Wh) with automatic charging via the measuring voltage (100 V to 500 V AC) or external mains adapter
- Dim
(L x W x H) 55 x 198 x 167 mm
- Weight
1.1
- Calibration service
Factory calibration certificate included (ISO/DAkkS optional)
- Measurement type
3-phase
- Features
Graphic display
Clamp meter
- Width
198 mm
- Height
167 mm
- Length
55 mm
- Interfaces
USB host
USB 2.0 port Mini B
Wi-Fi
Bluetooth®
SD card
Documents & Downloads
Datasheet
Datasheet 3828197 Fluke FLUKE-1738/GOLD-IGF Network diagnostics 3-phase Graphic display, Clamp meter
User & Safety Instructions
User & Safety Instructions 3828197 Fluke FLUKE-1738/GOLD-IGF Network diagnostics 3-phase Graphic display, Clamp meter
Description
The three-phase Power logger Fluke 1738 with wireless data transmission to the Fluke Connect® Mobile APP and the PC software included with it provides you with the data you need for important immediate decisions on power quality and power consumption. The 1738 is the ideal measuring device for conducting energy consumption studies and logging power quality. The device automatically records over 500 power quality parameters. This gives you a better view of the data you need to optimize system reliability and power savings. With the Power logger Fluke 1738 with extended function scope you can conduct an extended analysis with a detailed overview of the power quality status according to EN 50160, which offers you a quick insight into the condition of the electrical supply. The power quality health overview is an evaluation of the logged data based on the detailed power quality data and contains the captured waveforms of events. GOLD EDITION: Fluke 1738/EUS, MP1 Magnetic Probe, 4 mm Banana, set of 4
This text is machine translated.
This text is machine translated.
Features

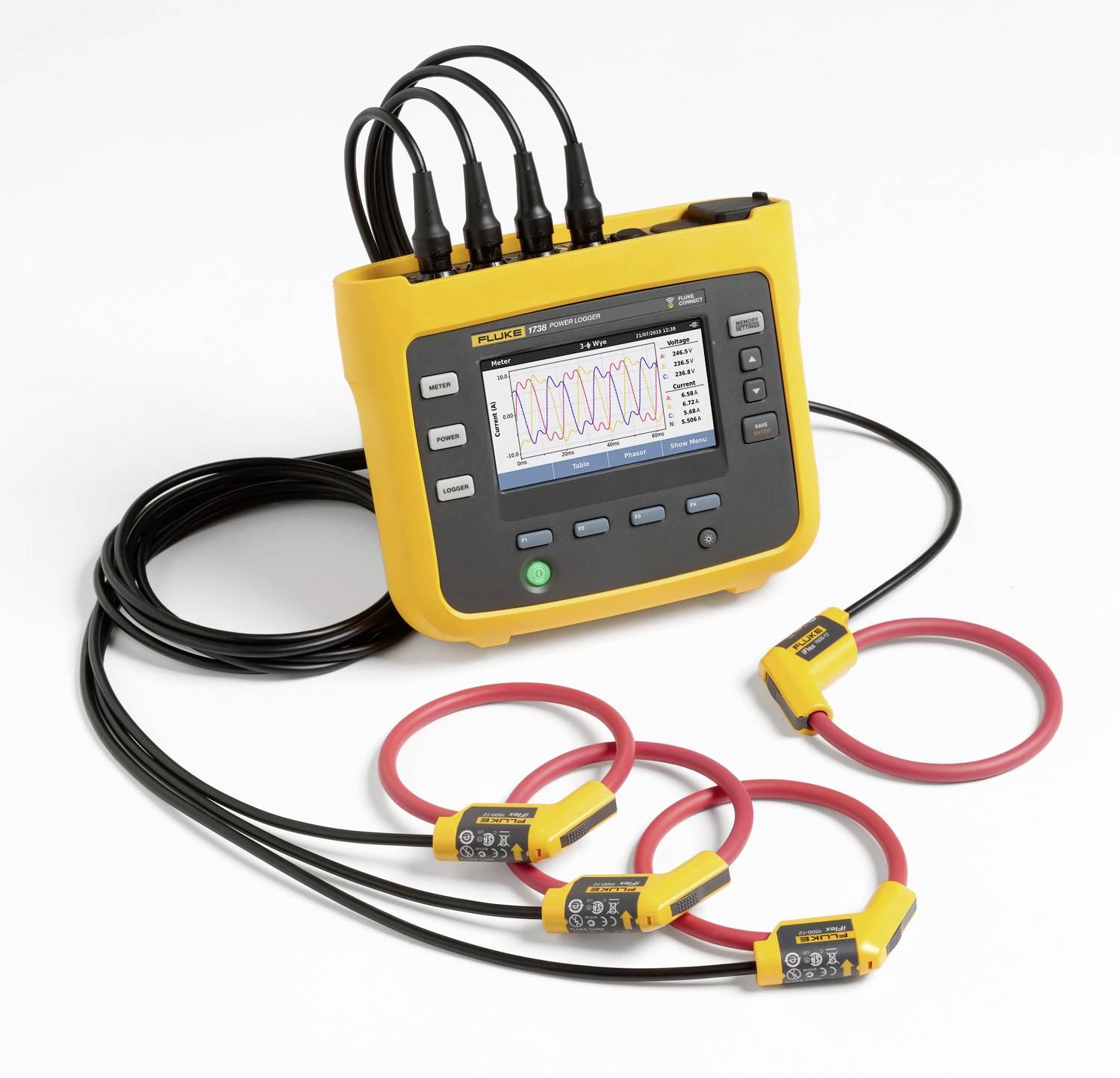

- Simultaneous measurement of all three phases and the neutral conductor with flexible clamp-on ammeters
- Recording of voltage drops, rises, transients and switch-on currents (inrush)
- Measures harmonics up to 50 standard
- Coloured LCD touch screen for clear analysis directly on the device
- Configurable logging of all parameters without data loss
- Power supply via the test lead or the supplied mains cable
- Built-in memory and USB-interface for an easy data export

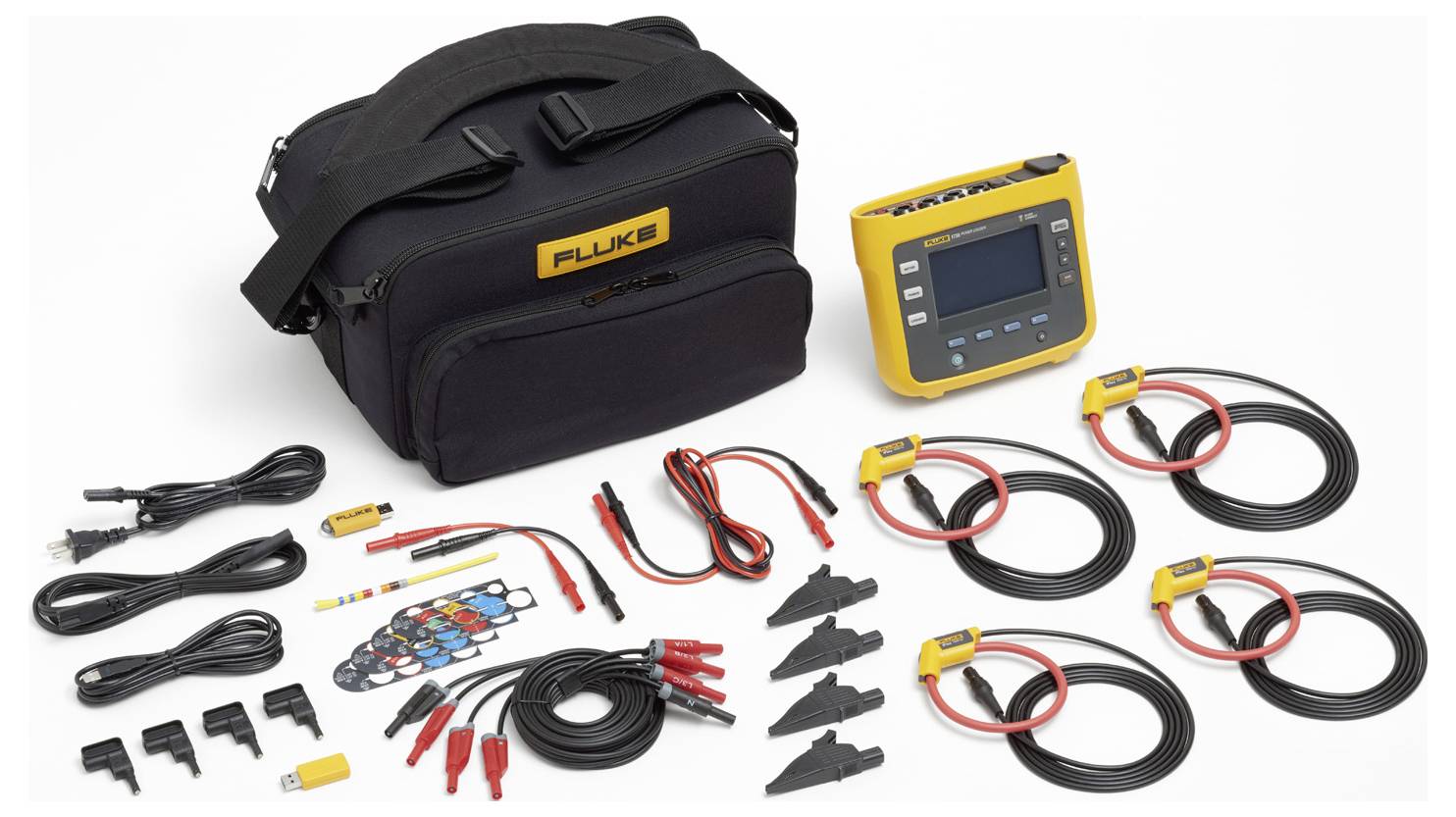

Scope of delivery
- Mains- analyzer Fluke 1738
- Fluke connect WiFi adapter
- 4x Flexible current probes (i173X-flex1500)
- Voltage probe and test lead set (4-phase)
- Magnetic measuring tips and holder
- C1730 sturdy soft carry case
- Energy Analyze Plus software (download/license)
- Power supply, power cable and rechargeable battery set
- Colour coding kit for test leads and documentation
