Fluke FLUKE-283FC/EUR Handheld multimeter Digital incl. bag, incl. testing cable CAT III 1500 V, CAT IV 1000 V Display (
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 629.41 / piece)
€ 629.41
plus VAT.
Only 3 Piece(s) available
Highlights & Details
FLUKE-283FC/EUR
- CAT III 1500 V, CAT IV 1000 V
Technical specifications
- Protection class: IP52
- Operating temperature: -10 °C to + +60 °C.
- Voltage reading range DC (min.)
6 V
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1500 V
- V AC reading range (min.)
6 V
- V AC reading range (max.)
1000 V
- Reading range - resistance
600 Ω - 50 MΩ
- Reading range - capacity
1 nF -9999 µF
- Frequency reading range
99.99 Hz - 99.99 kHz
- Measurement type (details)
True RMS
- Height
225 mm
- Width
105 mm
- Length
57 mm
- Weight
700 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1500 V
CAT IV 1000 V
- Voltage metering
AC/DC
- Current reading
DC/TRMS
- Type
FLUKE-283FC/EUR
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 57 x 105 x 225 mm
- Temperature reading range (max.)
60 °C
- Temperature reading range (min.)
-10 °C
- Features
incl. bag
incl. testing cable
Documents & Downloads
Datasheet
Datasheet 3340297 Fluke FLUKE-283FC/EUR Handheld multimeter Digital incl. bag, incl. testing cable CAT III 1500 V, CAT IV 1000 V Display (
User & Safety Instructions
User & Safety Instructions 3340297 Fluke FLUKE-283FC/EUR Handheld multimeter Digital incl. bag, incl. testing cable CAT III 1500 V, CAT IV 1000 V Display (
Description

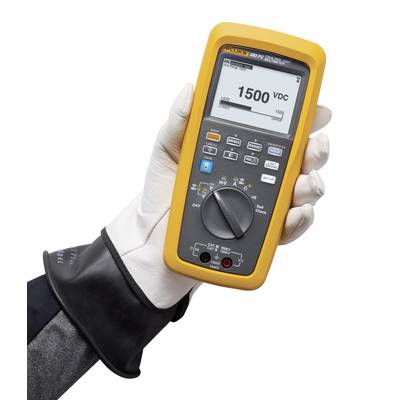

The true-RMS digital multimeter Fluke 283 FC with safety according to CAT III 1500 V/CAT IV 1000 V is Ideal for technicians working on DC-systems with up to 1500 V. Whether you are working on large PV systems, wind turbines, electrical railways or data centers, the Fluke 283 FC increases your security and productivity and delivers accurate, reliable and repeatable results.
The 283 FC includes TL175-HV TwistGuard silicone test leads with safety specification CAT III 1500 V/CAT IV 1000 V for safe working in high voltage environments and offers increased flexibility in measuring voltages down to the mV range, resistance, continuity and capacity. The backlit LCD screen and illuminated keypad make working in different lighting conditions easier, and thanks to a magnetic hanger kit, you have your hands free while testing. The delivery of the 283 FC also includes a special hard shell case, so that your investment is well protected during transportation.
This text is machine translated.
The 283 FC includes TL175-HV TwistGuard silicone test leads with safety specification CAT III 1500 V/CAT IV 1000 V for safe working in high voltage environments and offers increased flexibility in measuring voltages down to the mV range, resistance, continuity and capacity. The backlit LCD screen and illuminated keypad make working in different lighting conditions easier, and thanks to a magnetic hanger kit, you have your hands free while testing. The delivery of the 283 FC also includes a special hard shell case, so that your investment is well protected during transportation.
This text is machine translated.
Features
- Use a multimeter with safety rating in accordance with measurement categories CAT III 1500 V/CAT IV 1000 V.
- Includes premium test leads TL175-HV with safety specifications CAT III 1500 V/CAT IV 1000 V
- Visual and acoustic polarity indicators prevent accidental wiring errors
- The adjustable limit values help you to quickly make decisions when troubleshooting
- The unique self-test ensures that your multimeter is ready for use

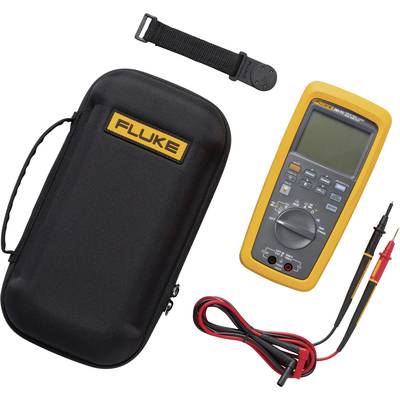

Scope of delivery
- 1x Wireless True RMS Multimeter 283 FC
- 1x silicon test leads TL175-HV TwistGuard™
- 1x Premium carry case
- 1x magnetic suspension strap
