Buy Fluke FLUKE-SOL-INS37-KIT PV tester

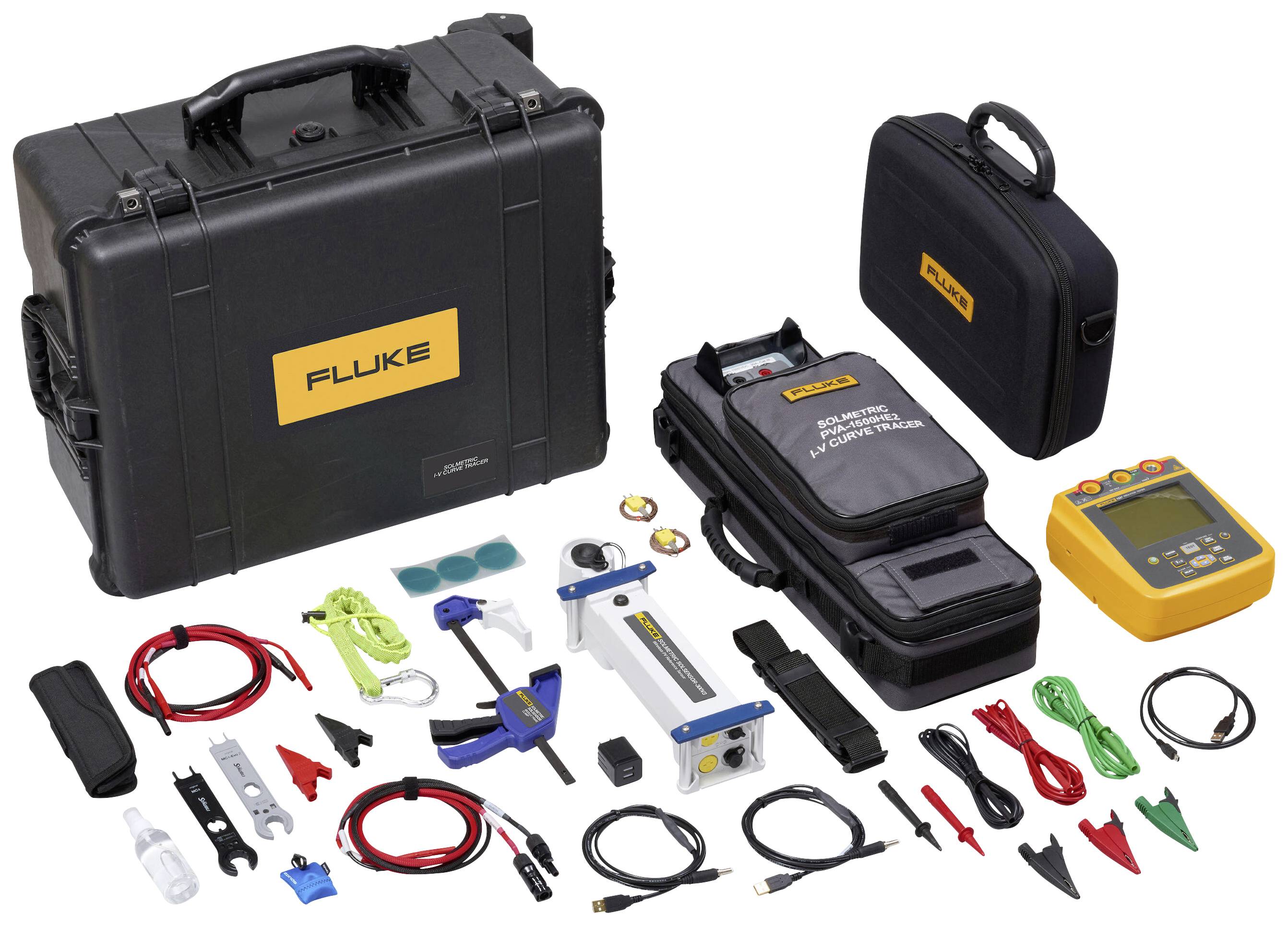

A measuring instrument set with a black hardcase, yellow and black multimeter, cables and accessories. Suitable for electrical testing.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 17,444.54 / piece)

€ 17,444.54

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Voltage range 20 - 1500 V/DC
Max. Current 30 A/DC
Accuracy of voltage current measurement 0.5 %
I-U characteristic points: 100 or 500 can be selected
Operating temperature: 0 °C to +45 °C
Max. I-U-sweeps 400/h
Max. Measurable performance 3.5 mw/h

Product type: PV tester

: Manufacturer's standards (no certificate)

Illuminance reading accuracy: 1.7 %

Reading category: CAT III 1500 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3161938 Fluke FLUKE-SOL-INS37-KIT PV tester

User & Safety Instructions

User & Safety Instructions 3161938 Fluke FLUKE-SOL-INS37-KIT PV tester

Description

This tool kit combines the precision of the Fluke-PVA-1500HE2 Solmetric with I-U characteristic tracing with the highly developed capability of the Fluke 1537 insulation tester, which enables the comprehensive diagnosis of photovoltaic systems. The PVA-1500HE2 offers a range of advanced features, including I-U characteristic tracing with Hohem run, so performance data is available quickly and in detail. Its intuitive user interface enables easy navigation and real-time analysis, so that potential problems can be identified immediately. In addition, the 1537 insulation tester can test insulation resistances up to 2500 volts, which can detect potential safety hazards and prevent system failures. Together, these tools enable professional users of solar energy to confidently ensure the efficiency, reliability and safety of solar systems from start-up and routine maintenance to troubleshooting and performance optimization.

This text is machine translated.

Features

Enhanced I-V trace: With Hohem throughput I-V trace, the PVA-1500HE2 delivers fast and detailed performance data, enabling efficient troubleshooting and optimization of solar systems.
Insulation resistance testing: The insulation tester 1537 offers insulation resistance testing up to 2500 V and helps identify potential safety risks and prevent system failures, ensuring the safety and reliability of solar power systems.
Confidence in efficiency and safety: Together, these tools enable solar professionals to reliably ensure the efficiency, reliability and safety of solar systems, covering all aspects from commissioning and routine maintenance to troubleshooting and performance optimization.
