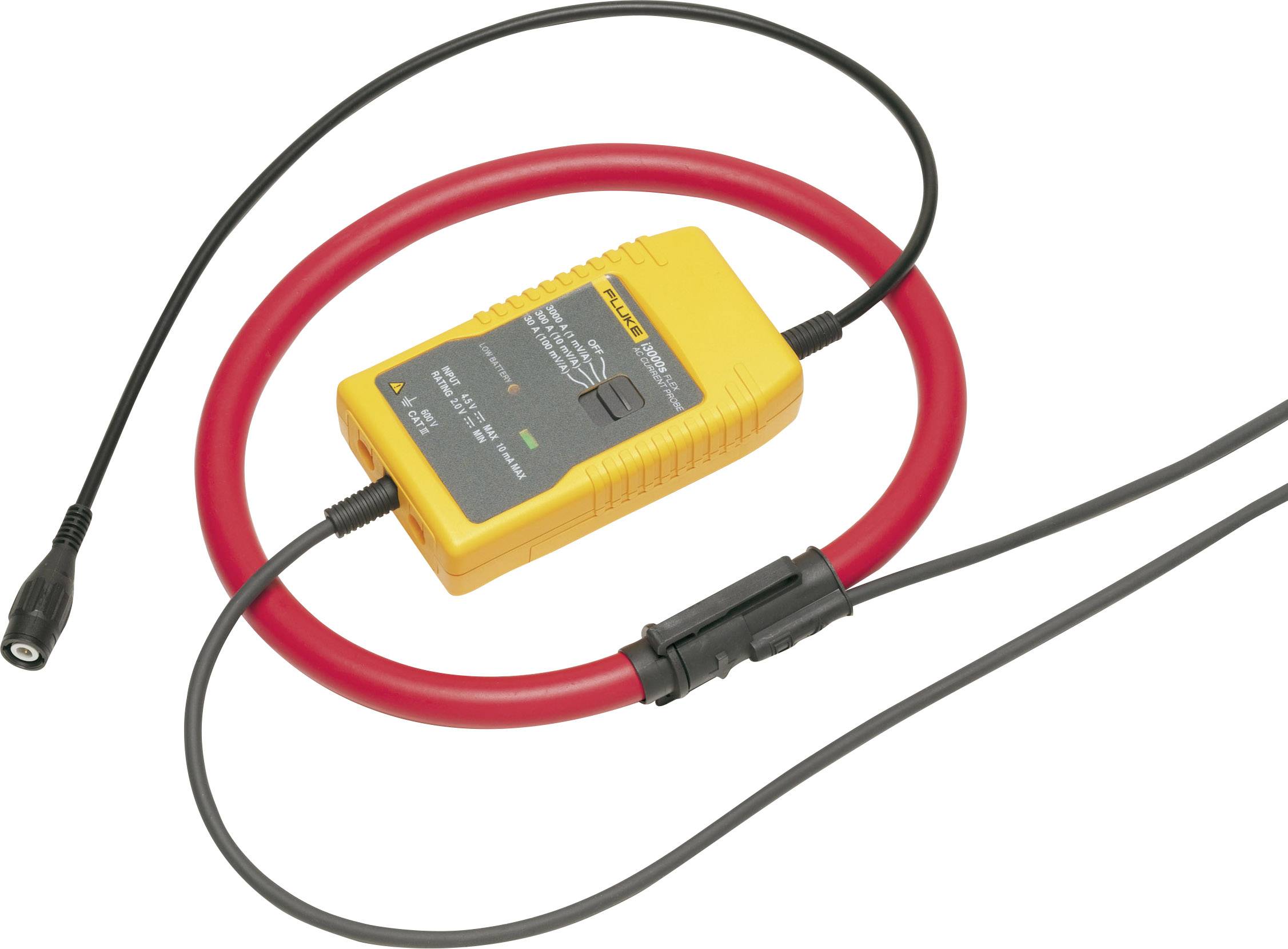

Fluke i3000s flex-24 Clamp meter adapter A/AC reading range: 3 - 3000 A Flexible
EAN:
Part number:
Item no:
Number
Total (€ 721.85 / piece)
€ 721.85
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Ac current clamp adapter i 3000 s Flex-24
- N/A
- Opening range of current clamps 610 mm
Technical specifications
- Resolution: 1/10/100 mV/A
- Output voltage: 1/10/100 mV/A
- Opening range of current clamps
610 mm
- Product type
Clamp meter adapter
- Type B
BNC plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
3 A
- Amperage reading range AC (max.)
3000 A
- Power supply (details)
2 AA batteries
- Dim
(L x W x H) 30 x 69 x 116 mm
- Current reading
AC
- Reading category
CAT III 600 V
- Weight
190 g
- Width
69 mm
- Height
116 mm
- Length
30 mm
- Features
Flexible
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1374222 Fluke i3000s flex-24 Clamp meter adapter A/AC reading range: 3 - 3000 A Flexible
Description
The i3000 s Flex is a after the Rogowski principle functioning AC current clamp. In connection with oscilloscopes, recorders and data loggers can with your currents of up to 3000 A can be measured. The flexible and lightweight measuring head allows a quick and easy installation in difficult to reach areas.
This text is machine translated.
This text is machine translated.
Features
- Three areas: 30 A, 300A and 3000A, 1, 10 or 100 mV/A Output
- Ideal for current measurements on thick and hard-to-reach leads, without breaking the circuit.
- Flex cable length 610 mm
- Safety rating: CAT III, 600 V
- Connection BNC
Scope of delivery
- Batteries
- User manual.
