Fluke PLS 5G KIT Plump dot laser Range (max.): 30 m
EAN:
Part number:
Item no:
Show alternatives
Sales and shipping:
Total (€ 368.91 / piece)
€ 441.18
-16 %
€
Highlights & Details
- Accuracy: ≤3 mm to 10 m
- Green laser beam
- Direction of laser point: 90° up, down, left, right, front
- Robust platform with pendulum lock.
- Protection class IP 54, therefore dust and splash-proof, for years of operation at the place of use.
Technical specifications
- Range (max.)
30 m
- Accuracy (+/-)
3 mm
- Auto-adjustment range (+/-)
4°
- Laser category
2
- Visible beam length
525
- Operating time (battery-powered)
9
- Power supply (details)
3 x type AA batteries
- Length
104 mm
- Width
64 mm
- Height
116 mm
- Dim
(L x W x H) 104 x 64 x 116 mm
Manufacturer's standards (no certificate)
- Type
PLS 5G KIT
- Product type
Plump dot laser
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1953964 Fluke PLS 5G KIT Plump dot laser Range (max.): 30 m
Description
The new PLS 5G laser leveling system with green laser gives you the durability and precision you expect from a Fluke company like PLS. Our new laser leveling platform includes tilt mode devices and pendulum locks for safe transport. The fast stabilizing/self-leveling pendulum immediately provides for exact point and line references.
The PLS 5G is a self-leveling five-point laser leveling system with green laser (solder, leveling and right-angled horizontal and vertical points), which is equipped for various applications.
The unit includes the PLS pendulum target for easy transfer of points to the ground at right angles.
The kit includes a stand and an L-bracket for quick and easy measurement of overhangs and center lines.
This text is machine translated.
The PLS 5G is a self-leveling five-point laser leveling system with green laser (solder, leveling and right-angled horizontal and vertical points), which is equipped for various applications.
The unit includes the PLS pendulum target for easy transfer of points to the ground at right angles.
The kit includes a stand and an L-bracket for quick and easy measurement of overhangs and center lines.
This text is machine translated.

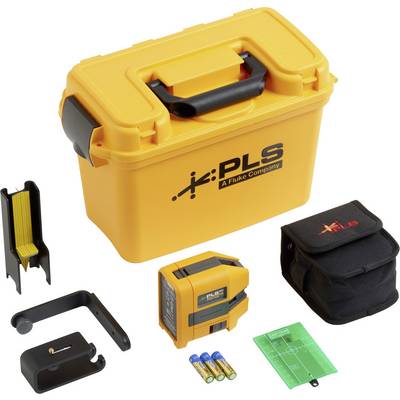

Scope of delivery
- PLS 5G laser leveling device, PLS line bag, PLS BP5 alkaline battery set, PLS FS stator, PLS MLB magnetic L-bracket, PLS PT pendulum target, green reflective GRT4 target, safety data sheet and quick start guide
