Fluke TI401PRO 9Hz IR camera -20 up to +650 °C 648 x 480 Pixel 9 Hz
EAN:
Part number:
Item no:
Number
Total (€ 9,049.58 / piece)
€ 9,049.58
plus VAT.
14-day return policy included
Highlights & Details

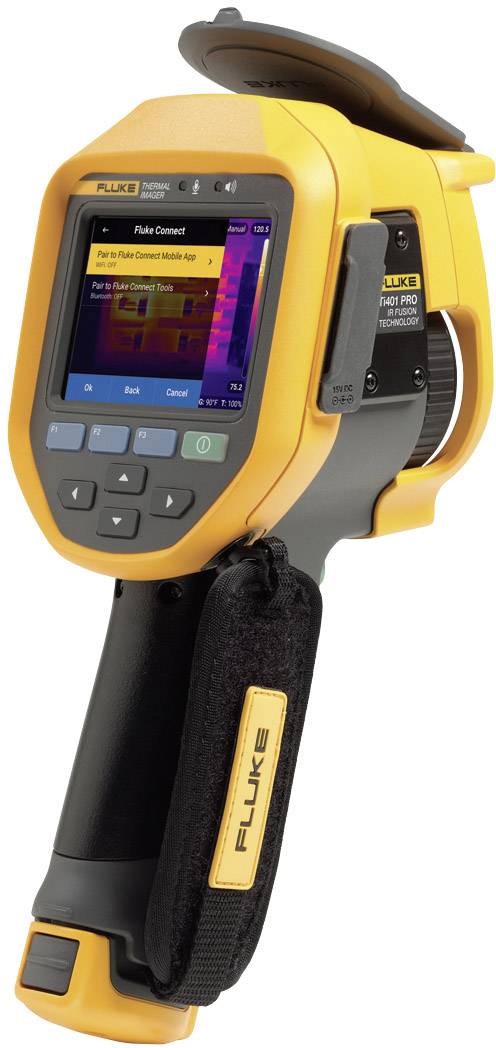

Ti401 pro Thermal Imager
- 9 Hz Thermal imaging camera
- Temperature reading range -20 up to +650 °C
- 648 x 480 Pixel Bolometer matrix
- Thermal sensitivity 75 mK
Technical specifications
- Spectral range: 7.5 μm to 14 μm (long wave)
- Spatial resolution: 0.93 mRad.
- Type
TI401PRO 9Hz
- Product type
IR camera
- Bolometer array
648 x 480 Pixel
- Interfaces
microSD
USB
- Temperature reading range (max.)
+650 °C
- Colour schemes
9
- Temperature reading range (min.)
-20 °C
- Optics
34° x 24°
- Frame rate
9 Hz
- Display resolution
648 x 480 Pixel
IP54
- Thermal sensitivity
75 mK
- Dim
(L x W x H) 167 x 122 x 277 mm
- Display
LC-screen in landscape format, 8.9 cm (3.5"), resolution 640 x 480 p
- Focus
Automatic
- Weight
1.04 kg
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Temperature reading range
-20 up to +650 °C
- Min. focusing distance
15 cm
- Width
122 mm
- Height
277 mm
- Length
167 mm
- Power supply (details)
Two intelligent lithium-ion batteries with five-stage LED display for displaying the charging status
Manufacturer's standards (no certificate)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2109650 Fluke TI401PRO 9Hz IR camera -20 up to +650 °C 648 x 480 Pixel 9 Hz
Description

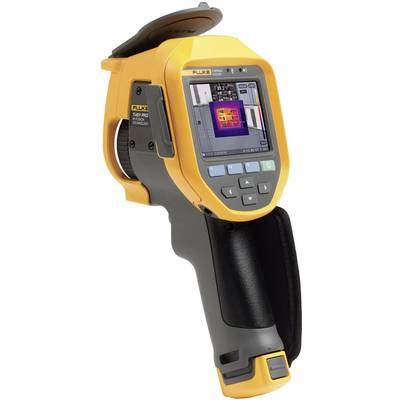

Perform thermal imaging tests with greater security and faster results than ever before. With 640x480 pixels, the Fluke Ti401 PRO offers the ruggedness and ease of use you expect from Fluke, along with sharper, clearer images and more accurate temperature measurements. The proven pistol grip enables one-handed operation. Never lose sight of problems thanks to the 8.9 cm (3.5") large LC-screen (landscape format). Stream image data with Fluke Connect Desktop software and operate the camera remotely.
This text is machine translated.
This text is machine translated.
Features
- Sharp images within seconds. The LaserSharp™ autofocus uses an integrated laser distance meter to calculate and display the distance to the object to be measured and adjusts the focusing immediately.
- Thanks to the resolution of 640 x 480 pixels, you can quickly discover small details and anomalies in the images.
- With patented IR-Fusion™ technology, you can see more detail by changing the amount of blending between the thermal image and the visual image.
- Fluke Connect™ software for managing data and collecting mechanical, electrical and thermal measurement data, organized by equipment.
- The best optics for energy transfer and high-quality thermal imaging Fluke uses only 100% Germanium-based, specially coated lenses that have been machined with diamonds.
Scope of delivery
- Ti401 PRO with standard infrared lens
- Power supply and battery charger (incl. universal mains adapter)
- 2x batteries
- USB cable
- HDMI video cable
- Micro-SD card (4 GB)
- Wrist strap
- Carrying case
