FMH8-al/an Eltako Wireless Handheld transmitter 8-channel Max. range (open field) 30 m
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
14-day return policy included
Highlights & Details

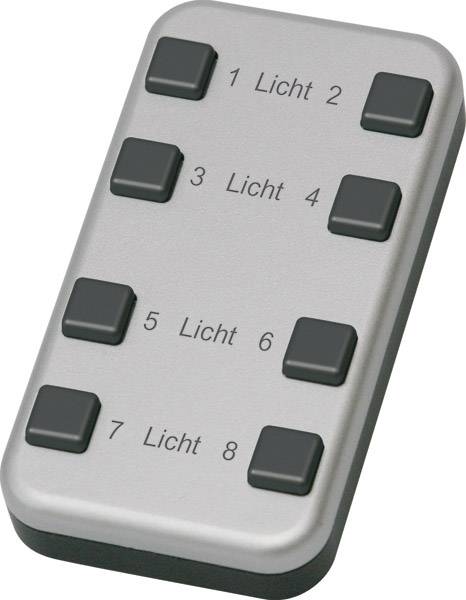

Wireless mini hand-held transmitter. Top side painted aluminum, bottom side and keys anthracite-soft-paint
- Without batteries
Technical specifications
- Product type
Handheld transmitter
- Series
Eltako
- Dim
(W x H x D) 45 x 85 x 18 mm
- Power supply (LOV)
dynamo-powered
- Data transfer (Smart Home)
Wireless
- Channels
8
- Frequency
868 MHz
30 m
- Width
45 mm
- Height
85 mm
- Depth
18 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
60 g
Other
Other
TRUE
Other
Radio frequency (RF)
8
30 m
FALSE
FALSE
TRUE
TRUE
FALSE
Thermoplastic
Plastic
TRUE
TRUE
FALSE
Matt
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162139 FMH8-al/an Eltako Wireless Handheld transmitter 8-channel Max. range (open field) 30 m
Description
Radio 8-channel mini-hand transmitter, 45x85mm, 18mm high. Weight only 60 grams. Generates the energy for radio telegrams even at the push of a button, therefore without battery. Smart home sensor. The FMH8 battery-free mini hand-held transmitter contains two radio modules of the same type as the FT4 radio button and has 8 buttons. Therefore, 8 evaluable radio telegrams can be sent. The housing is laser-engraved with the numbers 1 to 8. The radio modules contained in the radio mini-hand transmitter can be programd in encrypted form in all the actuators of the 61 and 71 series, as well as in the FAM14 according to the operating instructions. For this purpose, the wireless key encryption rocker FTVW is required. Cipherable actuators carry the key pictogram.
