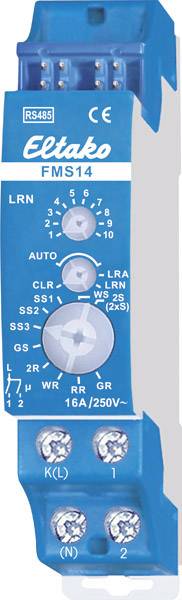

FMS14 Eltako RS485 Actuator DIN rail Switching capacity (max.) 2000 W
EAN:
Part number:
Item no:
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
14-day return policy included
Technical specifications
- Product type
Actuator
- Series
Eltako
- Max. switching capacity
2000 W
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Mounting type
DIN rail
2000 W
- Data transfer (Smart Home)
RS485
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0
- Switching current (max.)
16 A
DRA (DIN-rail adapter)
10 A
0.6 W
2000 W
12-12 V
FALSE
TRUE
FALSE
2000 W
TRUE
1
1
10 A
None
FALSE
FALSE
FALSE
IP20
FALSE
FALSE
FALSE
TRUE
TRUE
400 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162174 FMS14 Eltako RS485 Actuator DIN rail Switching capacity (max.) 2000 W
Description
Multifunction surge current relay, 1+1 normally open contact potential-free 16A/250V AC, incandescent lamps 2000W, with DX technology. Bidirectional. Stand-by loss only 0.1-0.6 Watt. Series installation device for mounting on mounting rail. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. To do this, simply connect the N conductor to the clamp (N) and L to K(L). This results in an additional standby loss of only 0.1 watt. Maximum current as total over both contacts 16A at 230V. If the supply voltage fails, it is switched off in a defined way. If the 2 relays of the FMS14 are switched on, 0.6 watt is required. The sensors are taught in with the upper and middle rotary switches. For normal operation, the middle rotary switch is then set to AUTO and the lower rotary switch to the desired function. The LED below the upper rotary switch accompanies the programming process according to the operating instructions and indicates control commands during operation by short flashing.
