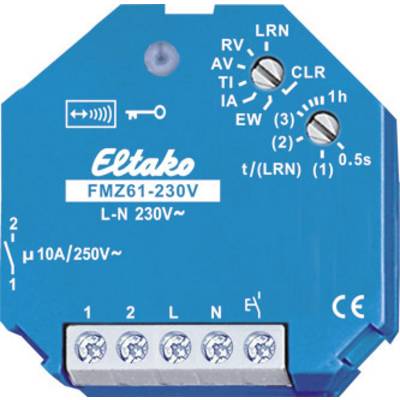

FMZ61-230V Eltako Wireless Actuator 1-channel Flush mount Switching capacity (max.) 2000 W Max. range (open field) 30 m

Wireless actuator multifunction time relay 230V. 1 normally open contact potential-free 10A/250V AC, incandescent lamps 2000 Watt*. Encrypted radio, bi-directional radio and repeater function can be activated. Stand-by loss only 0.8 watts. For panel mounting. 45mm long, 45mm wide, 33mm deep. Supply and control voltage local 230V. If the supply voltage fails, the switching state is retained. With recurring supply voltage is switched off in a defined way. This radio actuator has the most modern hybrid technology developed by us: We have combined the wear-free reception and evaluation electronics with a bistable relay. This means that there is no coil power loss and no heating, even when the motor is switched on. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be locally controlled with a conventional control button that may be installed in front of it. A glow lamp current is not permitted. From week 11/14, encrypted sensors can be trained. Bidirectional radio and/or a repeater function can be switched on. Each change in status and received central control message frames are confirmed with a radio message frame. This radio telegram can be taught in to other actuators, the GFVS software and in universal displays. With the upper rotary switch, up to 35 radio buttons can be assigned in the LRN position, one or more central control buttons. In addition, wireless window door contacts (FTK) with the function NO or NC contact with open window. If a direction key is taught in, a function (e.g. TI) can be started with the upper key (START) and stopped with the lower key (STOP). Then select the desired function of this radio actor. The switchover is visualized by LED flashing. The LED accompanies the teach-in process according to the operating instructions and indicates radio control commands during operation by briefly flashing.
