Fothermo 1004-CPVB-10 Solar water heater CPVB-10
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

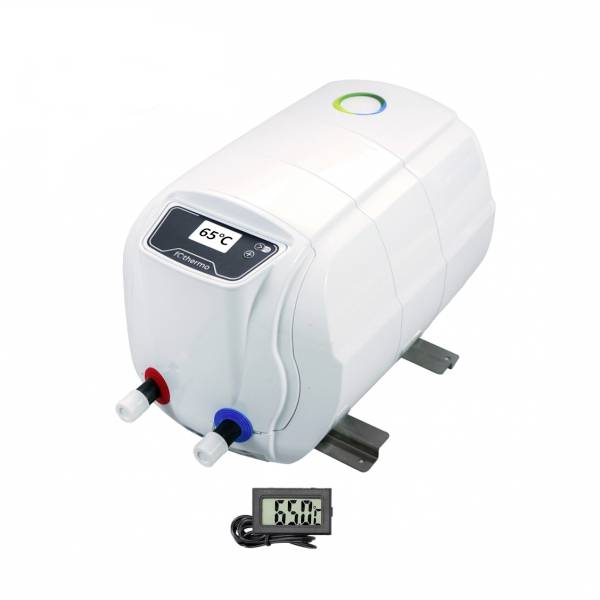

10 liter photo-voltaic caravan heater
- Photovoltaic boiler
Technical specifications
- Max. thermal output
550 W
- Product type
Solar water heater
- Water content
9.5 l
- Connections
1/2" water connection
- Max. weight (empty)
7.2 kg
- Temperature maxima
65 °C
- Dim
(L x W x H) 400 x 300 x 330 mm
- Weight
7.2 kg
- Width
300 mm
- Height
330 mm
- Length
400 mm
- Depth
440 mm
- Volume
10 l
- Tank volume
10 l
550 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2973202 Fothermo 1004-CPVB-10 Solar water heater CPVB-10
User & Safety Instructions
User & Safety Instructions 2973202 Fothermo 1004-CPVB-10 Solar water heater CPVB-10
Description
The photovoltaic boilers are the ideal solution for a cost-effective and independent hot water supply. Once installed, the boiler produces free hot water for years. The installation is intuitive thanks to Plug & Play connections and can be attached with only a few simple steps.
A hot shower after an eventful day hiking or sightseeing in the city makes traveling much more pleasant. The photovoltaic boiler warms up during the day so that a hot shower can be enjoyed immediately after returning to the caravan. An additional heating process is not necessary.
Don't want to study electrical engineering when installing the boiler? No problem – the photovoltaic boiler only has to be connected via a cable. Either to the photovoltaic module or to the battery. The boiler will take over the rest. No additional system components are required. A patented MPP tracker as well as intelligent algorithms of integrated deep discharge protection provide a all-round carefree package.
2 digital displays
All important data at a glance. A second display with a cable length of 5 meters allows the temperature to be displayed from anywhere in the caravan.
Photovoltaic module or battery? Both are fine!
A 12V or 24V battery as well as one or more photovoltaic modules can be connected to the photovoltaic boiler.
To start using the boiler, only the power cable of the boiler must be connected to the power source.
Use excess power of the battery.
If the boiler is connected to a battery, two modes can be selected:
Use excess energy
The boiler only switches on automatically when the connected battery is fully charged.
Excess energy and night heating
In the second mode, the boiler can be re-heated via the battery if the water becomes too cold. The rechargeable battery is discharged. Starting at about 50% remaining capacity of the rechargeable battery, the heating process is terminated automatically so that still enough energy is available for light, refrigerator or mobile phone charger.
This text is machine translated.
A hot shower after an eventful day hiking or sightseeing in the city makes traveling much more pleasant. The photovoltaic boiler warms up during the day so that a hot shower can be enjoyed immediately after returning to the caravan. An additional heating process is not necessary.
Don't want to study electrical engineering when installing the boiler? No problem – the photovoltaic boiler only has to be connected via a cable. Either to the photovoltaic module or to the battery. The boiler will take over the rest. No additional system components are required. A patented MPP tracker as well as intelligent algorithms of integrated deep discharge protection provide a all-round carefree package.
2 digital displays
All important data at a glance. A second display with a cable length of 5 meters allows the temperature to be displayed from anywhere in the caravan.
Photovoltaic module or battery? Both are fine!
A 12V or 24V battery as well as one or more photovoltaic modules can be connected to the photovoltaic boiler.
To start using the boiler, only the power cable of the boiler must be connected to the power source.
Use excess power of the battery.
If the boiler is connected to a battery, two modes can be selected:
Use excess energy
The boiler only switches on automatically when the connected battery is fully charged.
Excess energy and night heating
In the second mode, the boiler can be re-heated via the battery if the water becomes too cold. The rechargeable battery is discharged. Starting at about 50% remaining capacity of the rechargeable battery, the heating process is terminated automatically so that still enough energy is available for light, refrigerator or mobile phone charger.
This text is machine translated.
Features
- Max. 550 W heating power
- Volume: 9.5 l
- Nominal pressure 0.7 MPa
- IP class X1
- Max. Water temperature 65 °C.
- Water connection: 1/2 inches
- Display
- Boiler made of steel with coating
- PV input
- Recommended PV Power: 100 – 200 Wp
- Max. PV Power 1000 Wp
- DC input voltage range 17 – 42.4 Vdc
- Max. DC input voltage (VOC) 42.4 VDC
- Current consumption 0 - 15.5 A
- Max. connected short-circuit current (ISC): 36 A.
- MPP tracking
- External power supply (optional)
- Recommended power supply unit: PSU-12
- Power: 62 W
- Voltage Vdc 12 V
- Current consumption 0 - 5.2 A
- Adjustable temperature range with external power supply
Scope of delivery
- incl. super smash bros. Mounting template for simple mounting
- Pressure and non-return valve
- User manual
