Fothermo PVB-80-AC PVB-80-AC Solar hybrid water heater 1500 W Charge controller
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

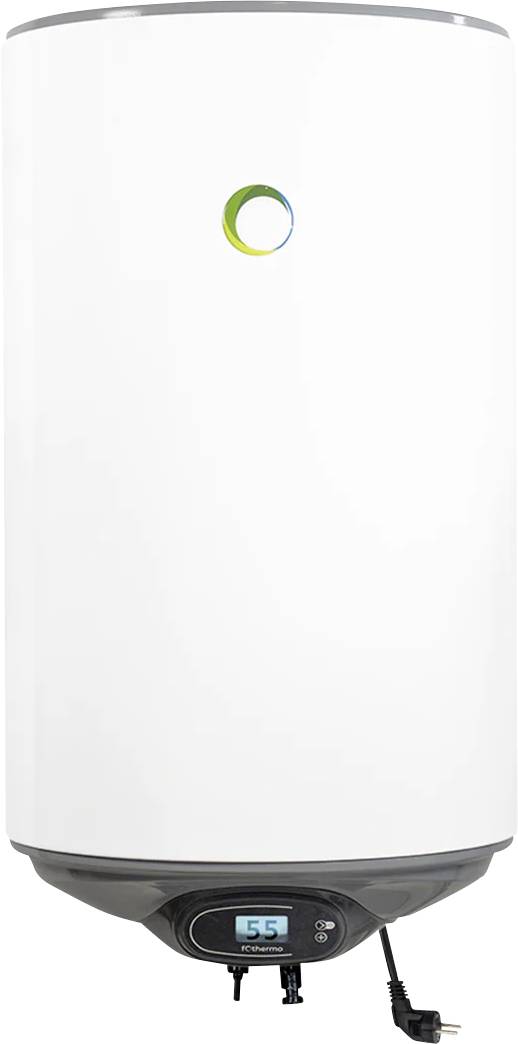

Fothermo PVB-80-AC Solar hybrid water heater
- Protective extra-low voltage
- Simple installation: Plug-and-play connections
- Warm water supply independent of 230-V power supply
- Second 230 V heater stick with 1500 W.
- Innovative MPP tracker
Technical specifications
- Volume: 77 l
- Dim. (L x W x H) 47 x 48 x 90 cm
- Adjustable water temperature range 10 - 65 C
- Photovoltaic connector MC4
- Product type
Solar hybrid water heater
1500 W
- Dim
(L x W x H) 47 x 48 x 90 cm
- Solar energy system features
Charge controller
- Weight
25 kg
- Width
48 cm
- Height
90 cm
- Length
47 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3375294 Fothermo PVB-80-AC PVB-80-AC Solar hybrid water heater 1500 W Charge controller
User & Safety Instructions
User & Safety Instructions 3375294 Fothermo PVB-80-AC PVB-80-AC Solar hybrid water heater 1500 W Charge controller
Description
The photovoltaic hybrid boiler is the ideal solution for a cost-effective and sustainable hot water supply in your house. Hot water accounts for 20-40% of the energy consumption in a household. Fothermo boilers are the easiest way to use the energy of the sun directly. Once installed, the boiler produces free hot water from the power of the sun. With its high performance the photovoltaic boiler serves as a replacement for a classic electric boiler. The automatic additional heating via the power grid in bad weather ensures sufficient warm water even on days without sunlight.
This text is machine translated.
This text is machine translated.
Features
- Low voltage: Due to the low voltage level below 50 V, no qualified electrician is required for installation
- Simple installation: The photovoltaic modules are simply connected by plug-and-play connections
- Independence:Supply: A second 230 V heater with 1500 W provides hot water – even on sunny days or at night
- Quality: Highest quality and safety standards thanks to a safety temperature limitation, a magnesium anode, enameled protection and a non-return valve
- Innovative MPP tracker: Integrated MPP tracker that always ensures maximum return on PV modules.
