FPE-1 Eltako Wireless Sensor Max. range (open field) 30 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
14-day return policy included
Technical specifications
- Product type
Sensor
- Series
Eltako
- Dim
(W x H x D) 48 x 32 x 11.5 mm
IP20
- Data transfer (Smart Home)
Wireless
- Frequency
868 MHz
30 m
- Width
48 mm
- Height
32 mm
- Depth
11.5 mm
- Hub
Not required, optional for remote access
- Data exchange
Unidirectional (uni)
n.rel.
Other
30 m
FALSE
1
FALSE
FALSE
FALSE
868 MHz
FALSE
FALSE
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2636375 FPE-1 Eltako Wireless Sensor Max. range (open field) 30 m
User & Safety Instructions
User & Safety Instructions 2636375 FPE-1 Eltako Wireless Sensor Max. range (open field) 30 m
Description

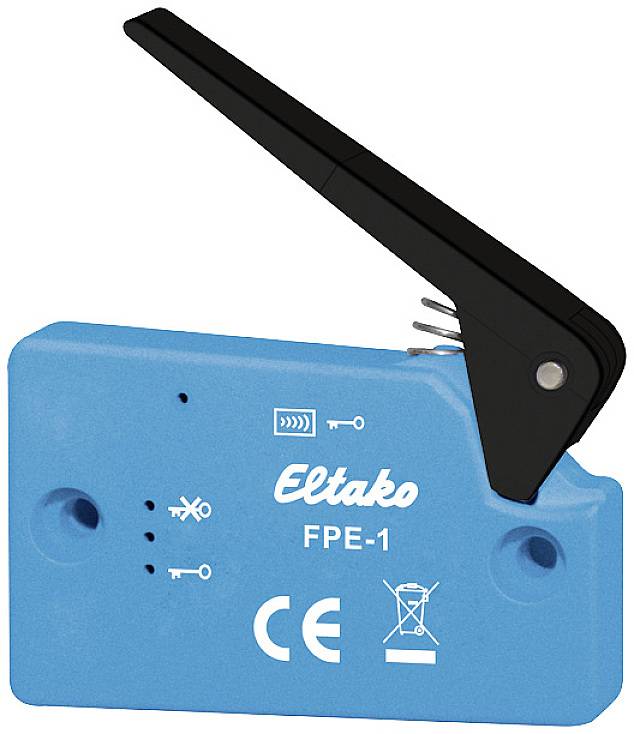

Wireless position switch with energy generator 48x32x11.5mm, blue Generate the energy for radio telegrams even when lever pressure is applied, therefore without battery, without connecting cable and no standby loss. FPE-1: When the control lever is pressed, a data (HEX) 0x10 radio telegram is transmitted and data (HEX) 0x00 is transmitted when released, as with a radio button. For more than 100,000 switching cycles, pressure spring can be exchanged.
This text is machine translated.
This text is machine translated.
