FPMA-D825BLACK
Highlights & Details
- Holder type: Height-adjustable, Tiltable, SwivellingSupports VESA standards up toSuitable for displays sized (range): 25,4 cm (10") - 68,6 cm (27")Load capacity (max.) 10 kg
Technical specifications
- Colour of product: Black
- Rotation: 360°
- Tilt angle: -90 - 90°
- Maximum weight (capacity): 10 kg
- Colour: N
- Height (max): 26 cm
- Product type
Monitor base
- Suitable for
25,4 cm (10") - 68,6 cm (27")
- Add-on displays
1 Display(s)
- Holder type
Height-adjustable
Tiltable
Swivelling
No
- Max. load capacity
10 kg
No
100 x 100 mm
75 x 75 mm
- Rotation
360°
- Tilt range (bottom)
-90°
- Tilt range (top)
+90°
- Min. distance to floor/ceiling
10 cm
- Max. distance to floor/ceiling
26 cm
- Swivel range (left)
0°
- Swivel range (right)
0°
- Width
15 cm
- Height
30 cm
- Depth
7 cm
- Factory colour
Black
- Weight
1.7 kg
- Dim
(W x H x D) 15 x 30 x 7 cm
- Suitable for
25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
Show more
- Product type description
Zubehör TFT/LCD-TV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1296585 FPMA-D825BLACK
User & Safety Instructions
User & Safety Instructions 1296585 FPMA-D825BLACK
Warranty Terms
Warranty Terms 1296585 FPMA-D825BLACK
Description

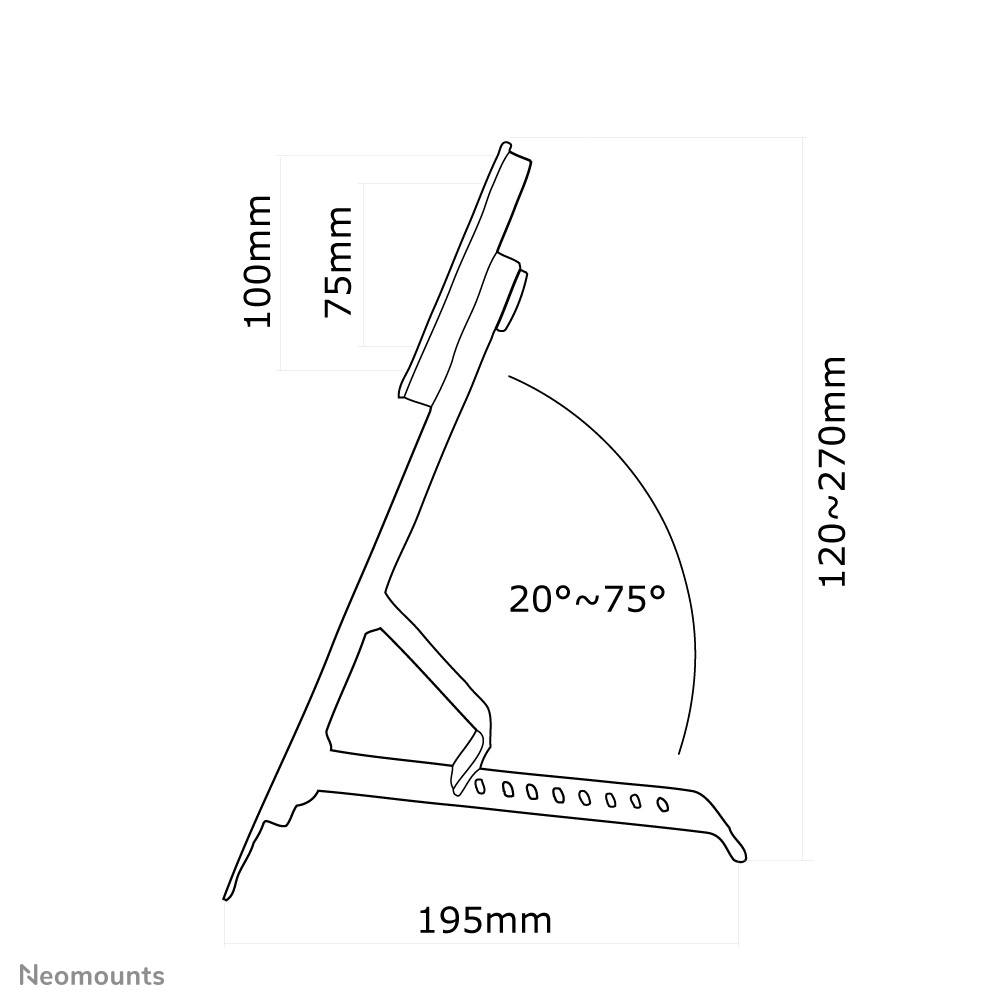

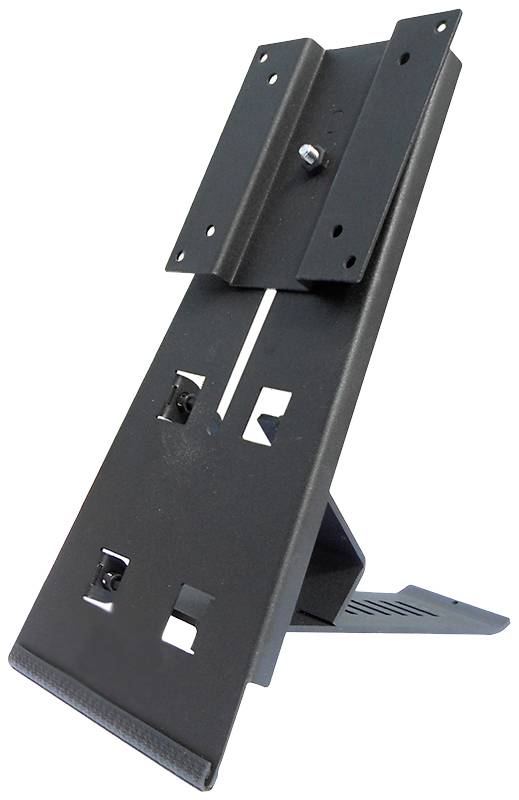

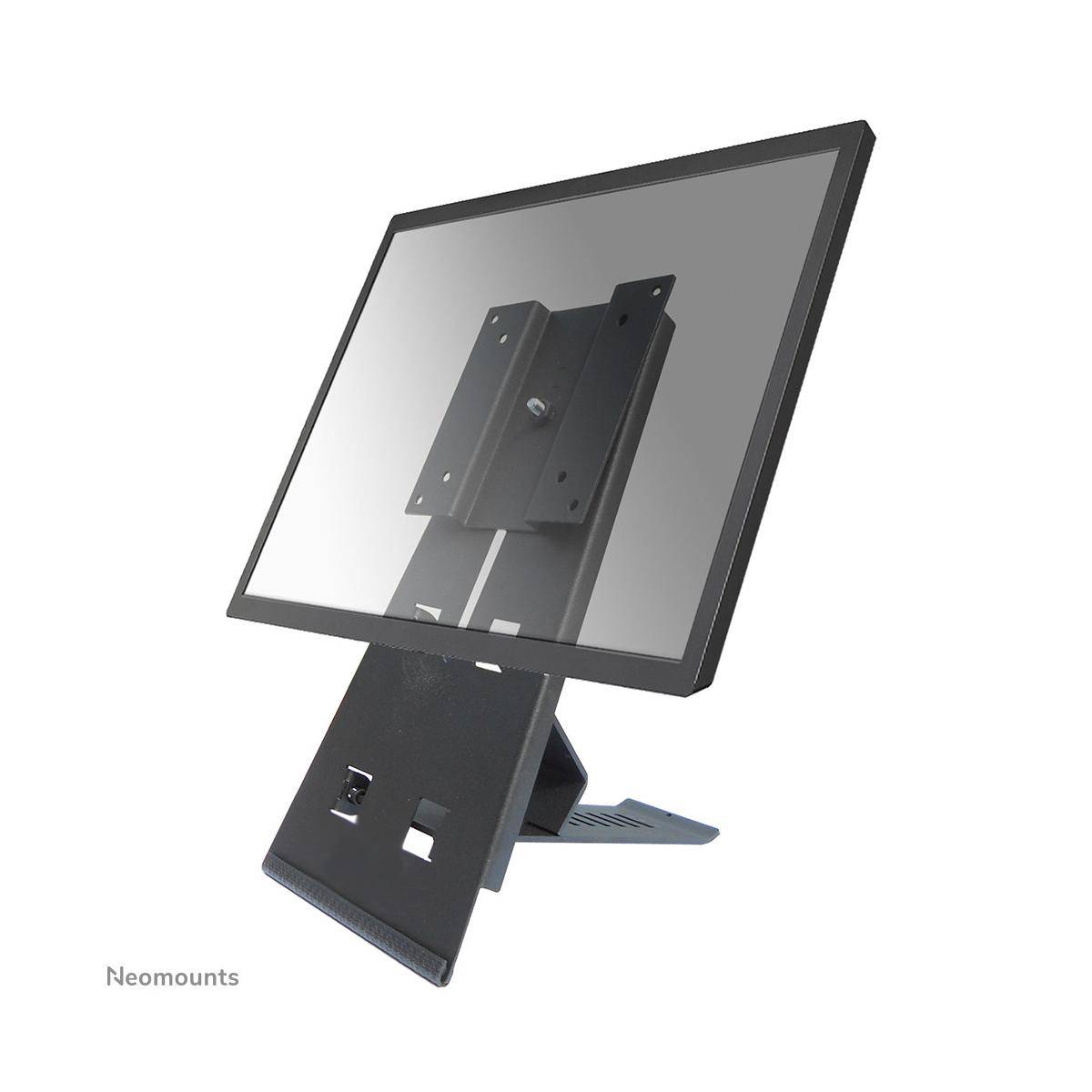

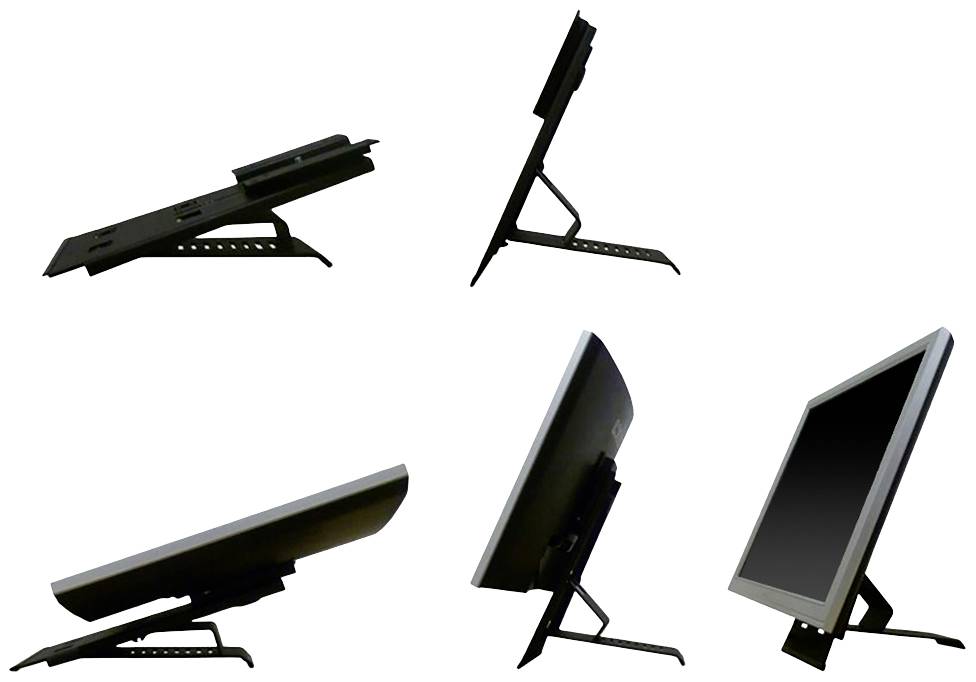

The NewStar desk mount, model FPMA-D825BLACK is a tiltable- and rotatable desk mount for flat screens up to 24”. This mount is a great choice for space saving placement on desks using a desk stand. NewStars’ unique tilt (180°) and rotate (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 10 to 26 centimetres. Depth 2 centimetres. NewStar FPMA-D825BLACK has one pivot point and is suitable for screens up to 24" (60 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
Features
- Adjustable height: 10 - 26 cm
Scope of delivery
- Mount
- Fixings
- Installation manual.
