FPMA-DTBW200
EAN:
Part number:
Item no:
Datasheet (PDF)
FPMA-DTBW200
Highlights & Details
- Holder type: Tiltable, Swivelling, SwivellingSupports VESA standards up toSuitable for displays sized (range): 25,4 cm (10") - 76,2 cm (30")Load capacity (max.) 10 kg
Technical specifications
- Colour of product: Grey
- Maximum weight (capacity): 10 kg
- Mounting interface: VESA 75x75 mm
- Product type
Monitor mount
- Suitable for
25,4 cm (10") - 76,2 cm (30")
- Add-on displays
1 Display(s)
- Holder type
Tiltable
Swivelling
Swivelling
No
- Max. load capacity
10 kg
No
75 x 75 mm
100 x 100 mm

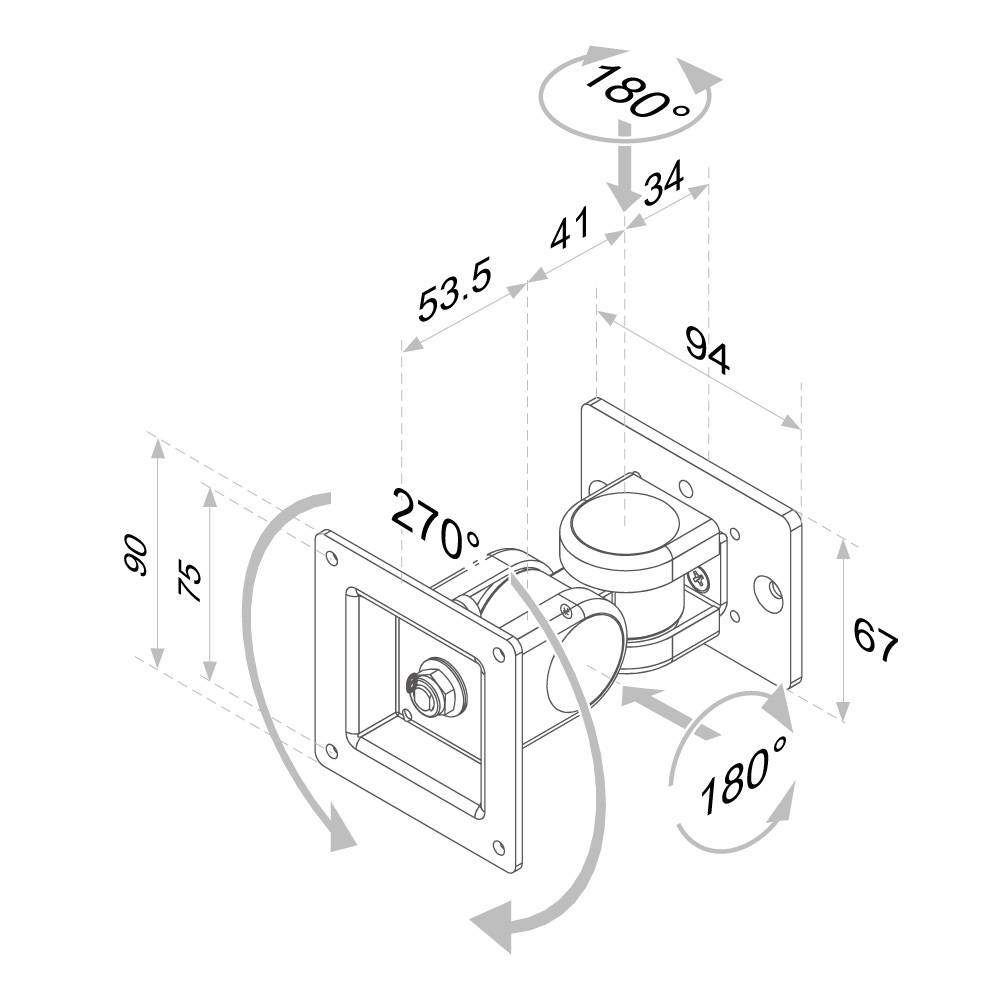

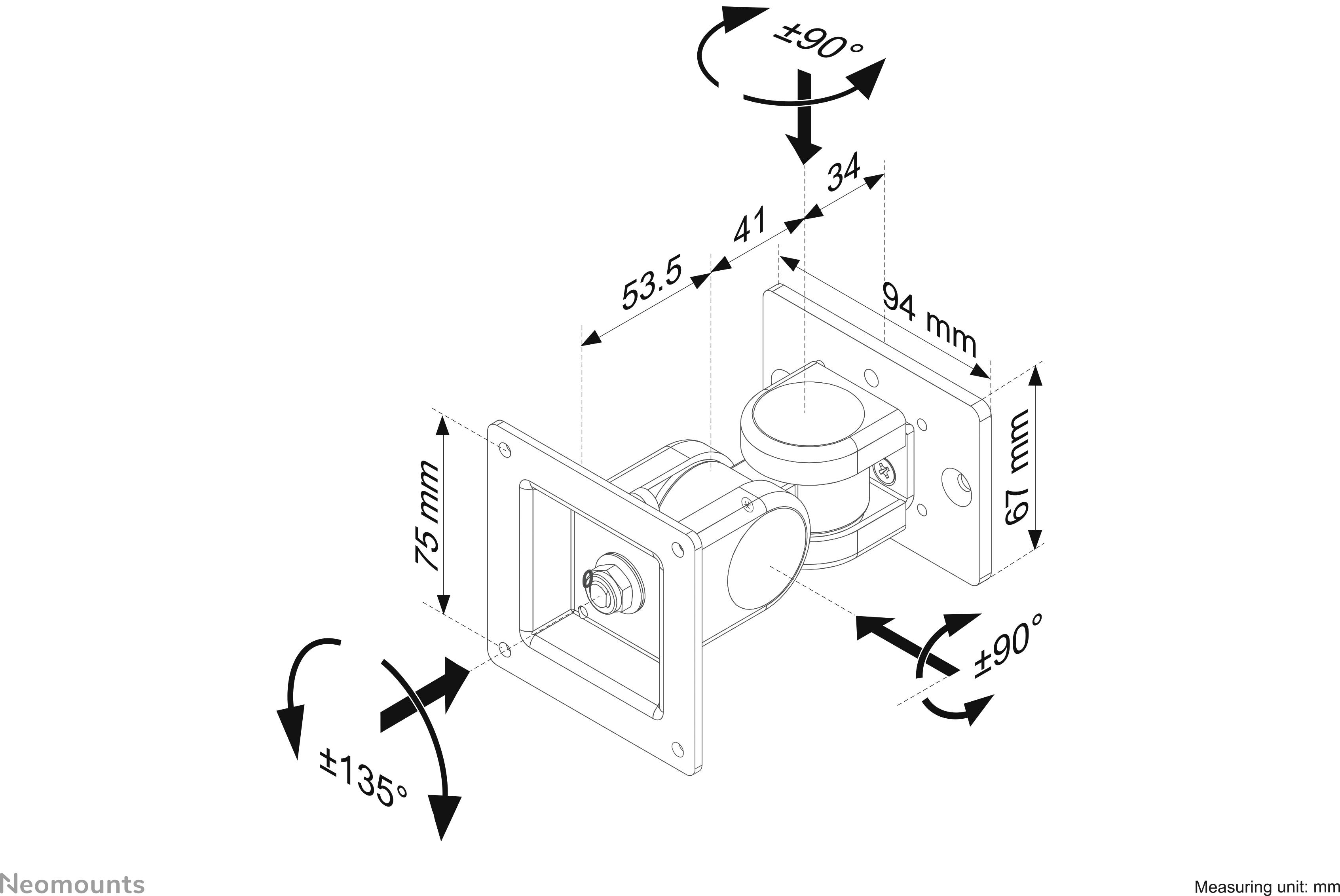

- Rotation
270°
- Tilt range (bottom)
-90°
- Tilt range (top)
+90°
- Swivel range (left)
90°
- Swivel range (right)
90°
- Distance to wall (min.)
8 cm
- Distance to wall (max.)
8 cm
- Width
94 mm
- Height
94 mm
- Depth
120 mm
- Factory colour
Grey
- Weight
1.4 kg
- Dim
(W x H x D) 94 x 94 x 120 mm
- Suitable for
25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
Show more
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1300694 FPMA-DTBW200
User & Safety Instructions
User & Safety Instructions 1300694 FPMA-DTBW200
Warranty Terms
Warranty Terms 1300694 FPMA-DTBW200
Description

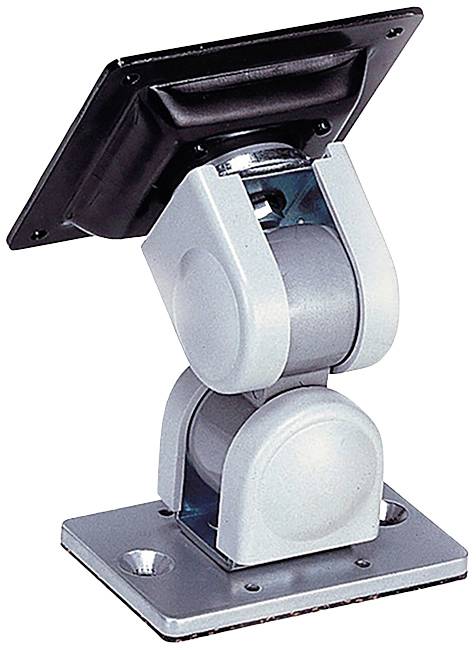

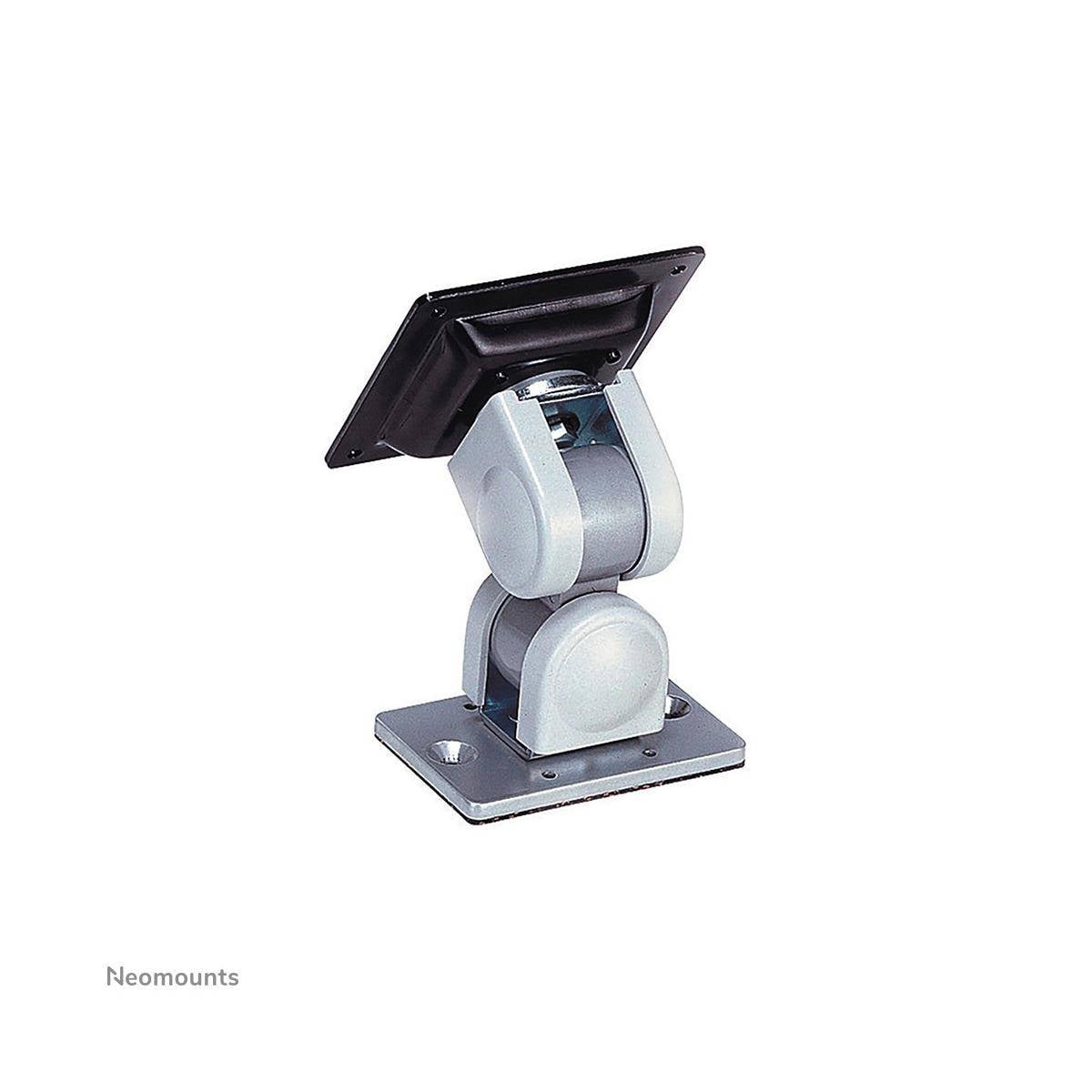

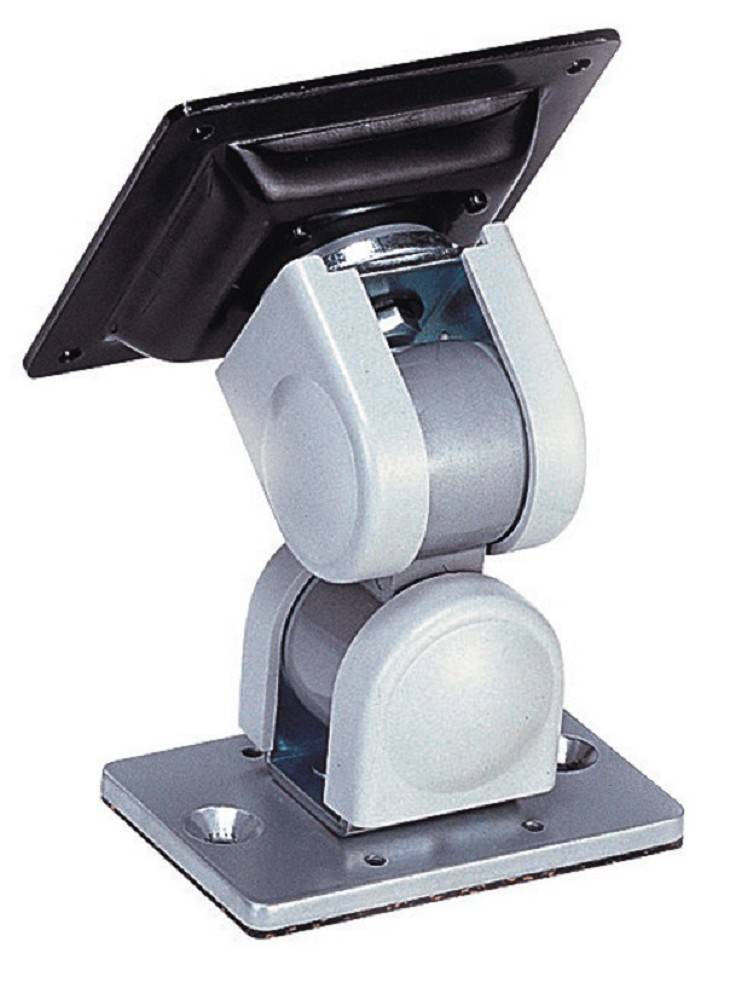

The NewStar toolbar mount, model FPMA-DTBW200 is a tilt-, swivel and rotatable mount for flat screens up to 24”. This mount is a great choice to use in combination with NewStars' toolbar model FPMA-DTB100 or FPMA-DTB200. NewStars’ unique tilt (180°), rotate (270°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth 8 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. FPMA-DTBW200 has two pivot points and is suitable for screens up to 24" (60 cm). The weight capacity of this mount is 10 kg each screen. The toolbar mount is suitable for screens that meet VESA hole pattern 75x75. Different hole patterns can be covered using NewStar VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
Features
- Ergonomic holder
- Space-saving placing on desk
- Easy to set up
Scope of delivery
- Mount
- Fixings
- Installation manual.
Hints
For mounting at the NewStar FPMA-DTB100 Table toolbar or FPMA-DTB200.
